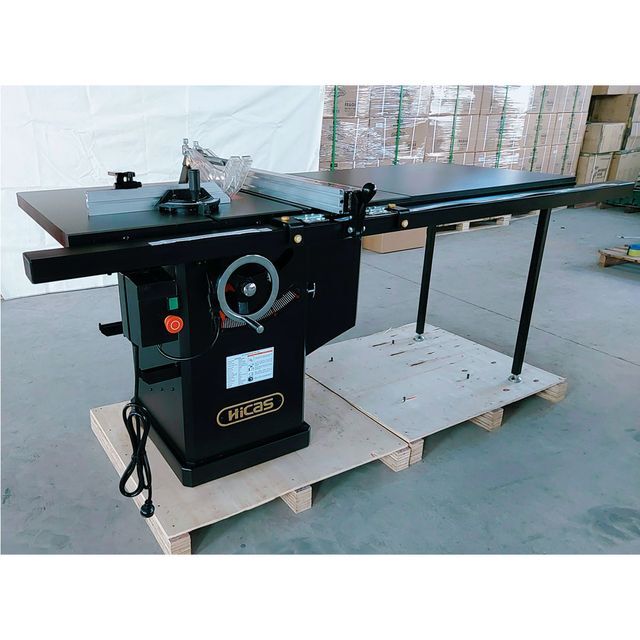

10" High Precision Heavy Duty Cast Iron Table Saw Cabinet Saw

Supplier: Qingdao High-Class Service Import & Export Co., Ltd.
Region: Shandong, China
Contact: Ms Cindy Yu
Price: $1500.00 / 1 - 9 sets
$1300.00 / 10 - 199 sets
$1100.00 / >=200 sets
Min. Order: 1 set

Click here to contact

Product details

Structure:	swallowtail	Packaging Details:	Two plywood boxes per machine, please see the following details: main machine 196kg/244kg, guide rail: 27/36KG main machine: 9508551100mm, plywood box guide rail: 2230170160mm, plywood box
Applicable industries:	Building Materials Store, Mechanical Repair Store, Farm, Household, Retail, Other	Mechanical test report:	if
Warranty:	1 year	Core components:	motor
Power (kW):	2500W	Core Components Warranty:	1 year
Voltage:	220V 50-60hz single phase	Supply capacity:	500 sets per month
Video external inspection:	if	usage:	Precision cutting
Main selling point:	Patented product	Weight (kg):	280kg
brand:	HICAS	Marketing Type:	New Products 2020
style:	vertical	Packaging Preview:
place of origin; place of origin:	Shandong China	application:	DIY workshop/home/factory
Health status:	new	use:	carpentry
Dimensions (LWH):	9508551100mm	port:	Qingdao
type:	luxurious	type:	table saw

Working video

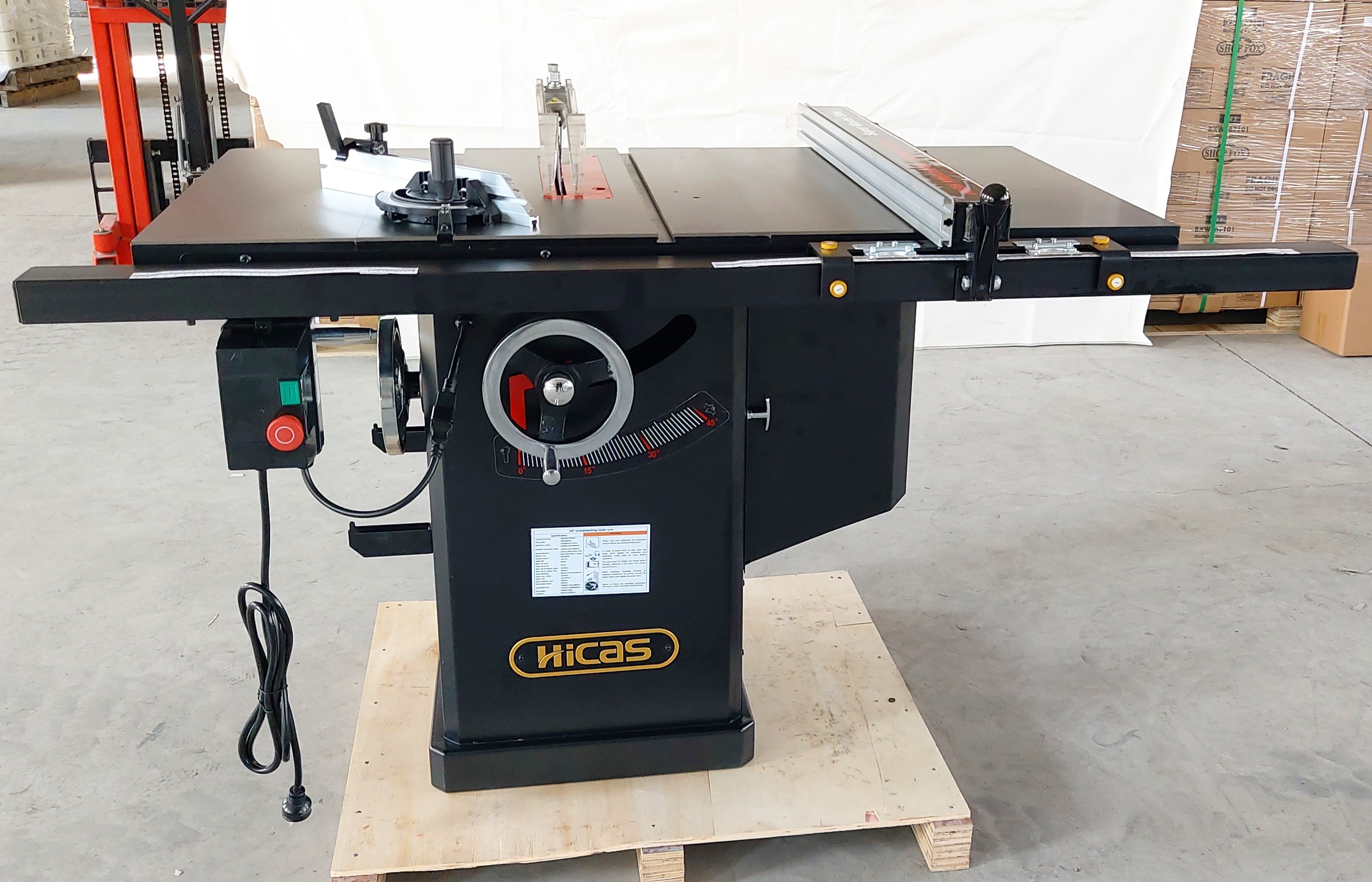

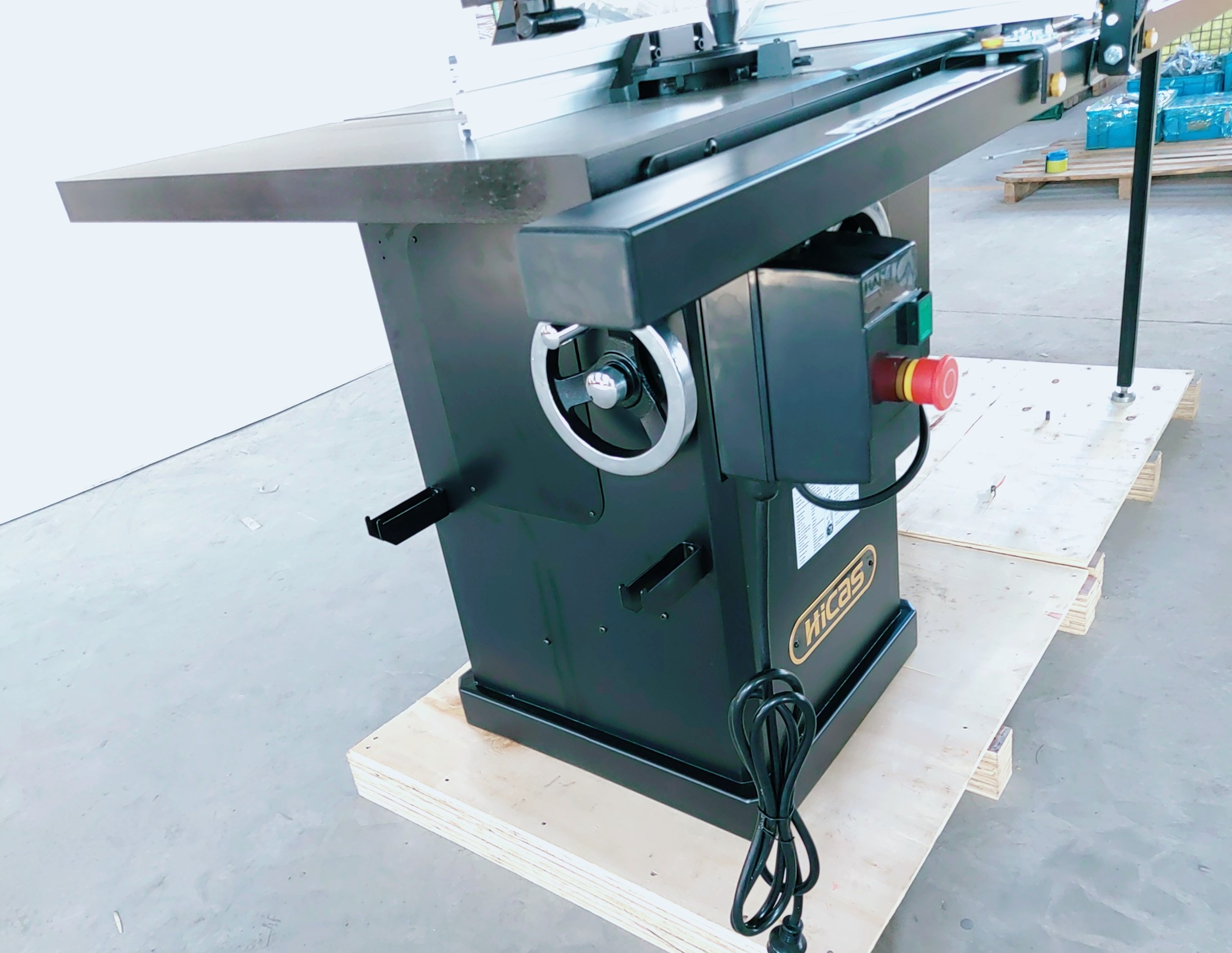

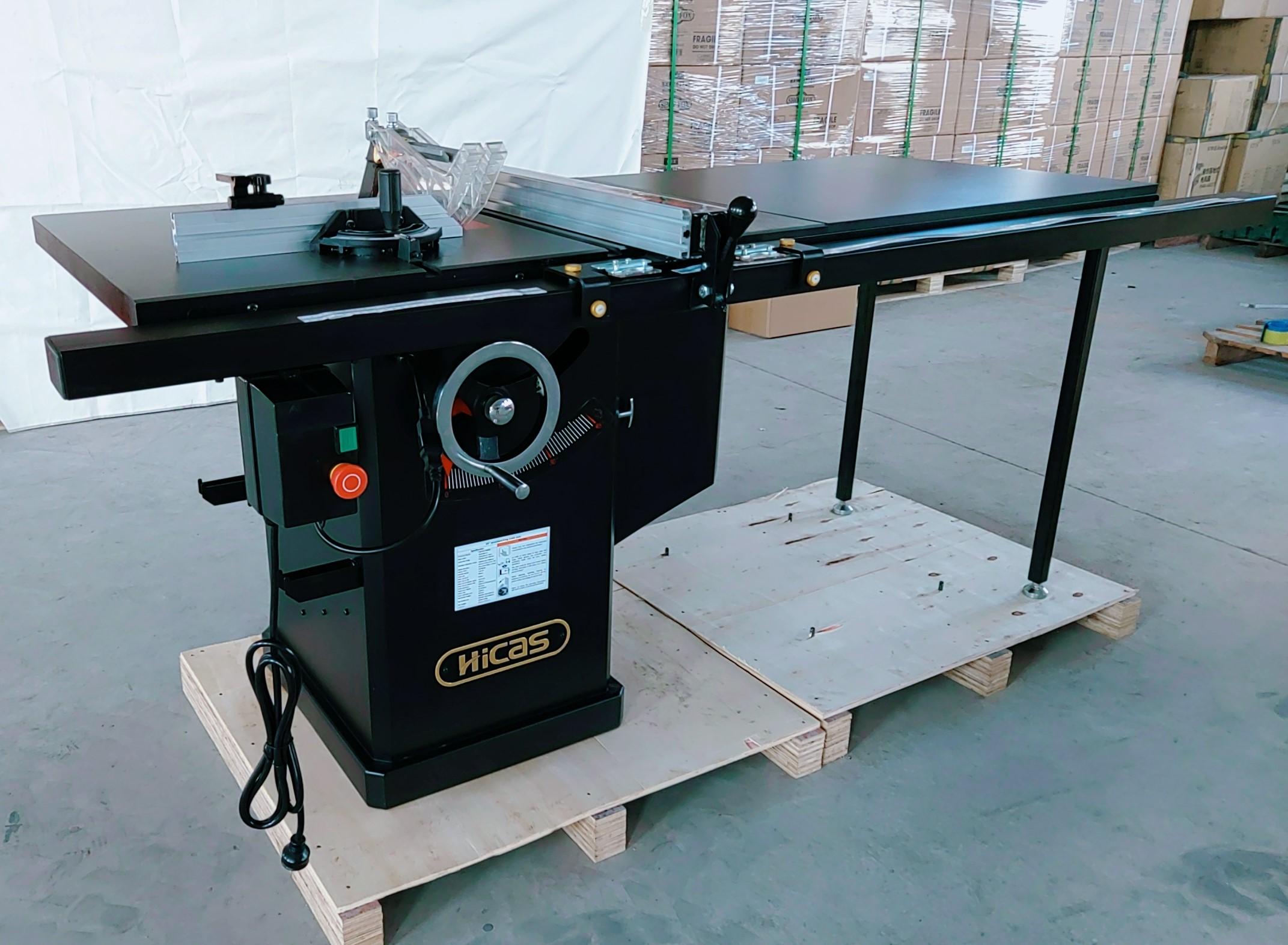

host image

Table saw introduction

For your information, I would like to introduce more about our table saw/cabinet saw: Through our own research and development, the unique dovetail construction ensures higher precision than other brands (including Harvey). Also, we use better parts like cast iron, copper wire motors, electrical parts, painting jobs, etc. and more time for quality control. We are confident in the quality of our table saws/cabinet saws. Our goal is to make the most popular table saw in the world.

If the quantity is reasonable, we can OEM with your own color, brand.

Specification

Model	H9930E	H9950E
motor	2.5kw(3Hp)	2.5kw(3Hp)

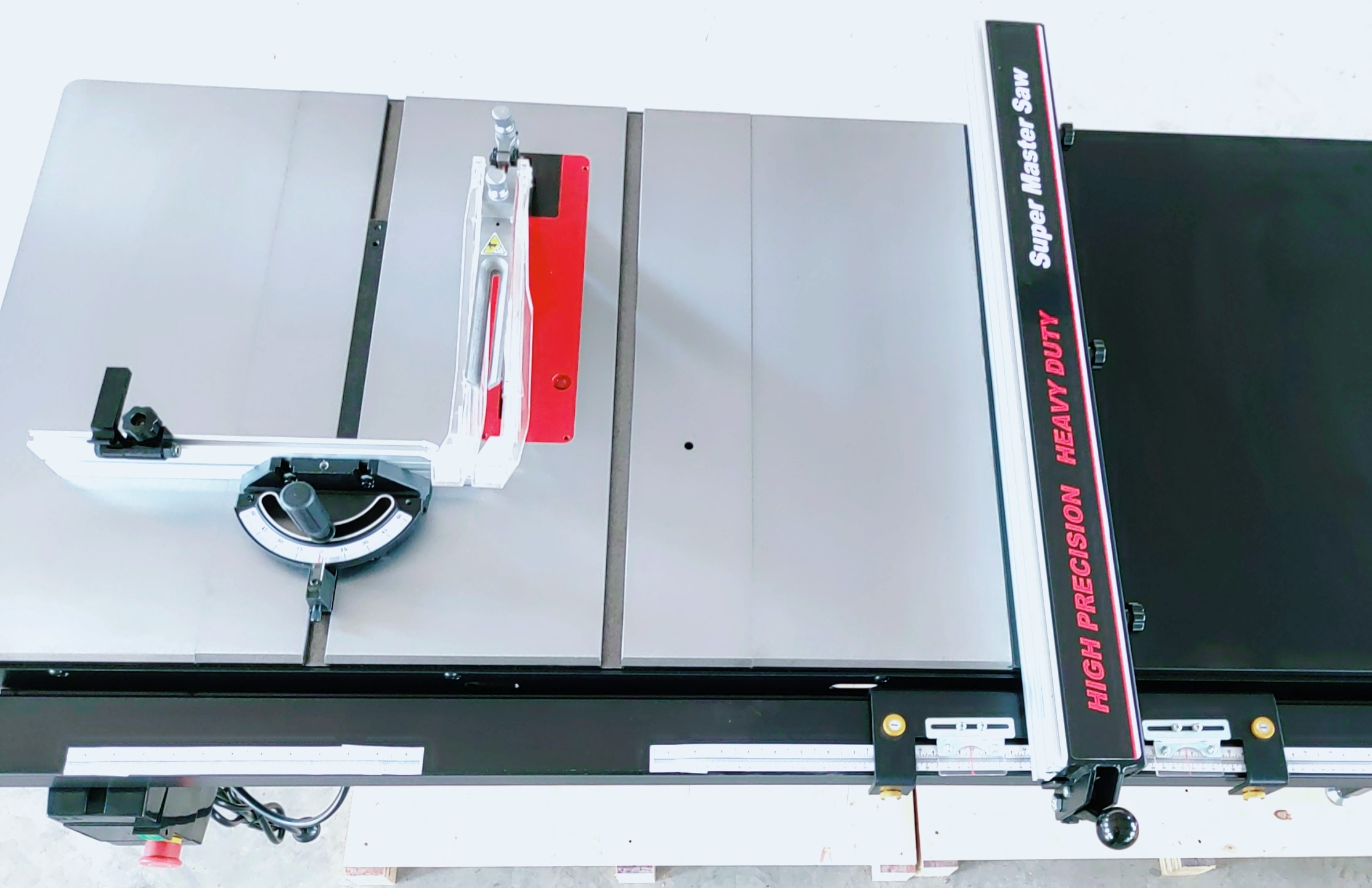

Main table material	cast iron	cast iron
Main table size	1020x686mm	1020x686mm
Expansion table size	305x686mm	305x686mm
Standard saw blade	254x15.875x2.8mm 40 teeth	254x15.875x2.8mm 40 teeth
DADO blade (not included)	203x15.875mm	203x15.875mm
Maximum DADO slot	20.6mm	20.6mm
Blade speed	3550 rpm	3550 rpm
Blade tilt	45° left	45° left
Maximum cutting thickness 90/45 degrees	85/57mm	85/57mm
Suspension lifting structure	match	match
table height	870mm	870mm
Inlet diameter	100mm	100mm
Machine size	1630x1060x1040mm	2138x1060x1040mm
Net weight/GW	Main body: 189/237KG Rail: 17/23KG	Main body: 196/244KG, Rail: 27/36KG
Packaging Dimensions (Plywood Box)	Main body: 950x855x1100mm Rail: 1680x140x150mm	Main body: 950x855x1100mm Rail: 2230x140x150mm

detail

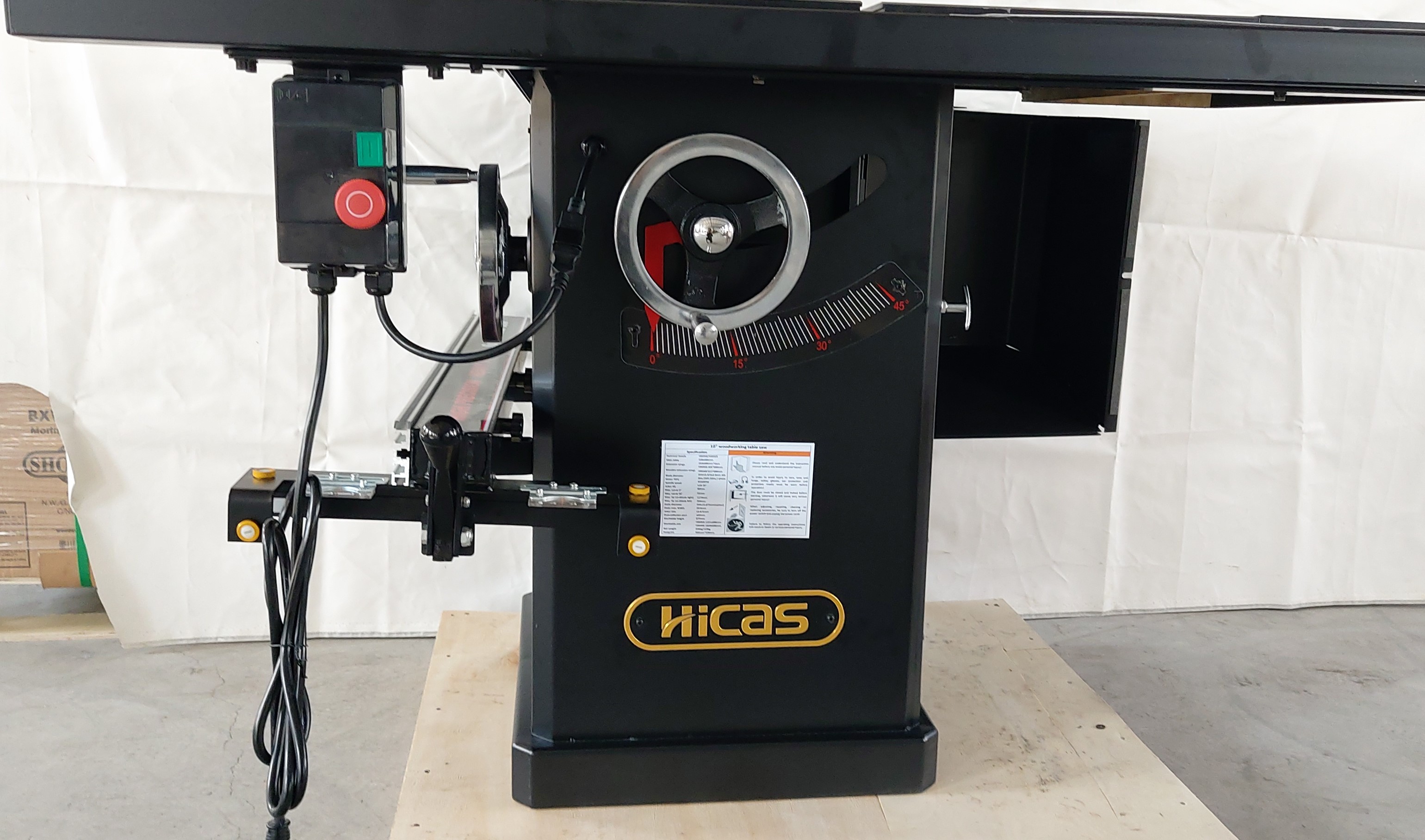

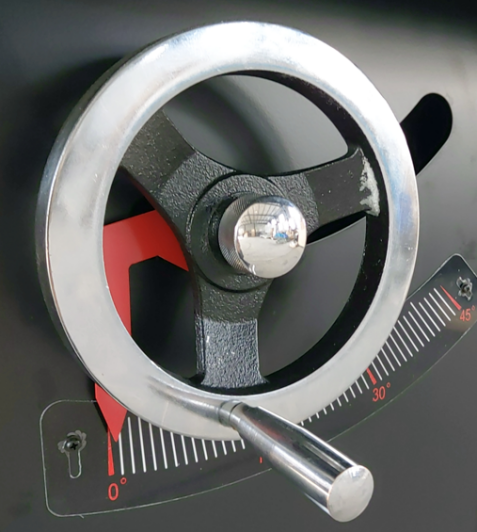

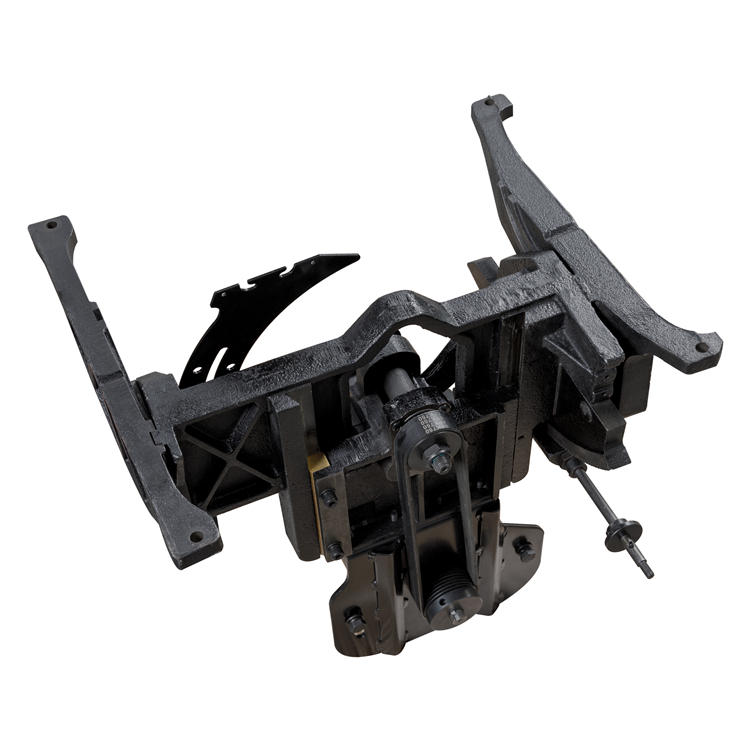

Dovetail Lifting Structure

Compared with the traditional worm lifting structure, the dovetail lifting structure is stronger, more precise and more stable

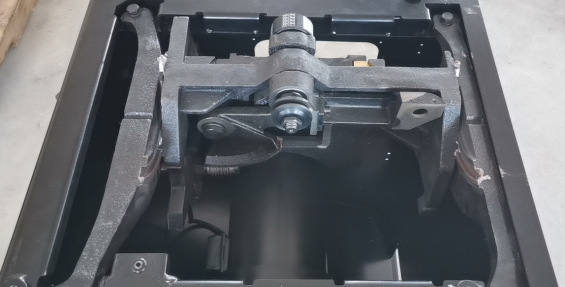

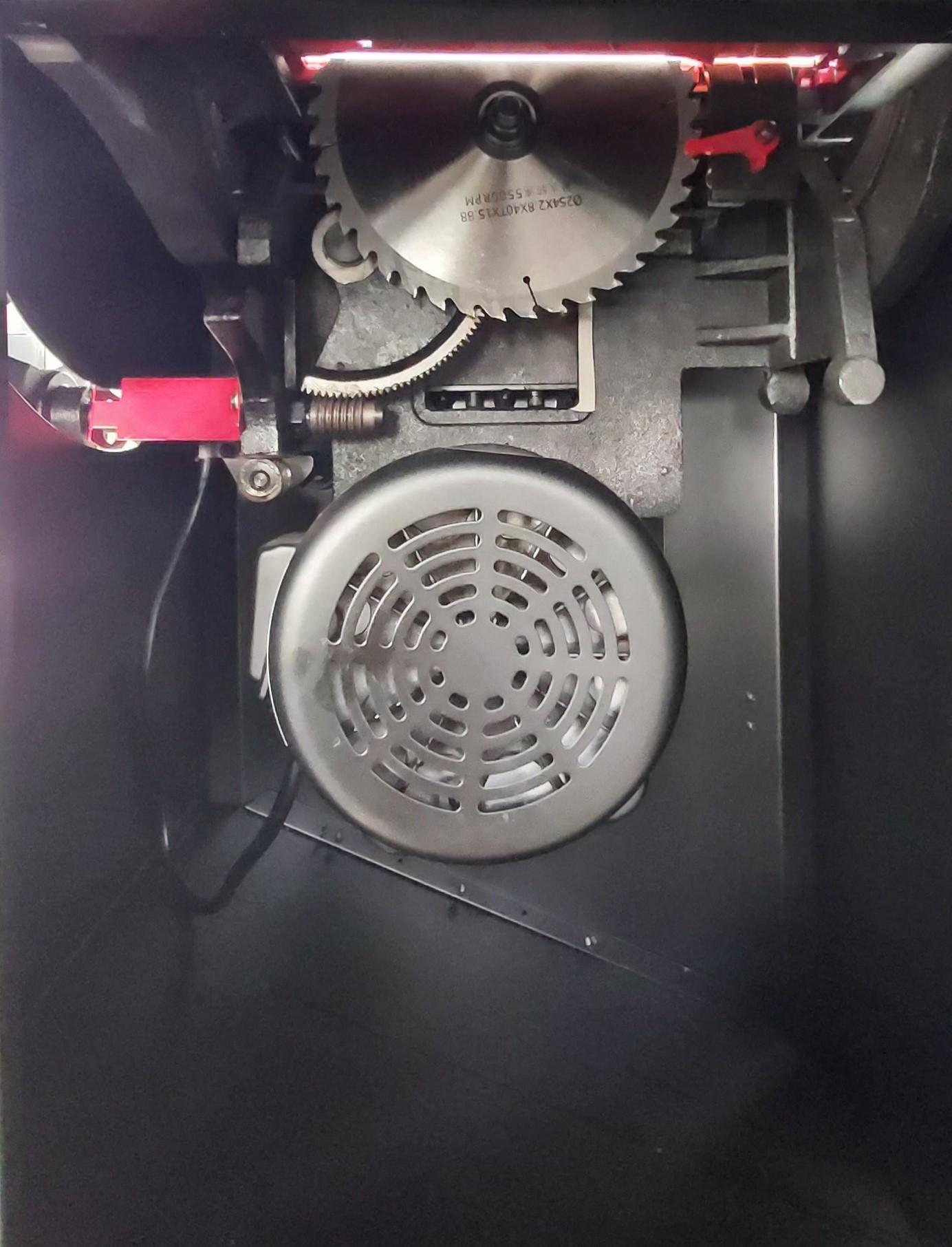

suspension system

The suspension system is hung on the box, which is convenient for maintenance, and the workbench will not be deformed after long-term use.

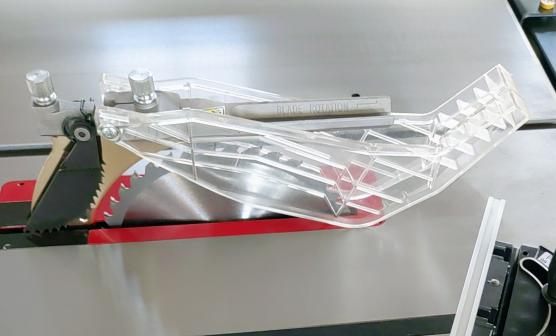

chopper

The split knife has a quick release function, which can be tilted up and down with the saw blade to prevent the saw blade from being caught and rebounded during the cutting process
