Solid Wood Full Automatic Finger Joint Machine Line

Supplier: Qingdao High-Class Service Import & Export Co., Ltd.
Region: Shandong, China
Contact: Ms Cindy Yu
Price: $50000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight (KG):	1111111111 KG;	Brand Name:	HICAS;
Power (kW):	65.35;	Warranty:	One year;
Packaging Detail:	Solid Wood Full Automatic Finger Joint Machine Line: Standard packaging or packaging according to customer requirements;	Color:	As per your request;
Air Pressure:	6-8bar;	Certification:	ISO9000;
Condition:	New;	Power:	65.35kw;
Port:	Qingdao China;	Supply Ability:	10 Set/Sets per Month finger joint production line;
After-sales Service Provided:	Field installation, commissioning and training;	Key Selling Points:	High Productivity;
Website:	www.hicasmach.com;	Air Pressure:	6-8bar;
Warranty:	1 YEAR;	Payment Terms:	L/C,T/T;
Model:	HC-RL-590A;	Brand Name:	HICAS;
Dimension(LWH):	18000x6000mm;	Local Service Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Uzbekistan,Tajikistan;
After Warranty Service:	Video technical support,Online support,Field maintenance and repair service;	Applicable Industries:	Furniture Factory;
Place of Origin:	China;	Place Of Origin:	Shangdong;
Name:	Finger Joint Line;	Showroom Location:	None;
Voltage:	220V/380V;

Solid Wood Full Automatic Finger Joint Machine Line

Product Description

Full automatic finger joint production line(tenon shaper/gluing/tenon jointer)

Technical Parameters	Figer jointer	Figer shaper MXB3518A-B	Figer shaper MXB3518C-C	Belt conveyor
Max working length	5000mm/6200mm	150mm-900mm	150mm-900mm	900mm
Effective working width	30mm-150mm	590mm	590mm	590mm
Effective working length	12mm-70mm	18mm-150mm	18mm-150mm	18mm-150mm
Cutting saw rotary	2840r/min	4150rpm	4150rpm
Fret saw motor		2840rpm	2840rpm
rotary speed
Shaper spindle diameter		50mm	50mm
Shaper spindle		6750rpm	6750rpm
rotary speed
Shaper motor power		11kw	11kw
Cutting saw motor	2.2kw	4kw	4kw
Fret saw motor		0.75kw	0.75kw*2pcs
Feeding motor power		0.55kw	0.55kw*2pcs	0.55kw*1pcs
Oil station motor power	4kw	2.2kw	2.2kw
Working speed	70m/min
Working air pressure	0.8Mpa
Max oil pressure	130kgs/c m²
Oil station motor power	4kw
Frequency motor power		1.1kw	1.1kw
Machine dimension(mm)	610012501600 / 730012501600	28001650 1450mm	33001900 1450mm	1700730980mm

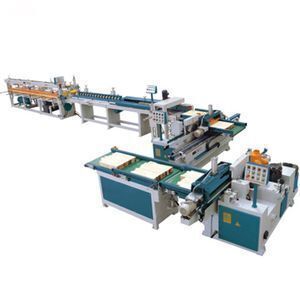

Product Show

Characteristic:

1.Guide rail of finger joint shaper’s conveyor is japan precision linear guide rail to gurantee the shaping accuracy .

2.The design for finger joint shaper is double blades+tooth-tenon knife assembly to provide high precision.

3.The conveyor table of finger joint shaper adopts German pneumatic hydraulic conveyor system to control bakc and forth ,smoothly,low maintenance,high quality .

4.The second push part of finger joint assembler adopts long+short double pushing board design,

by this kind of structure ,it can assemble very short workpiece to reduce the cost .

5.Whole machine is conveniently operated by PLC Central integrated programmable controller.
