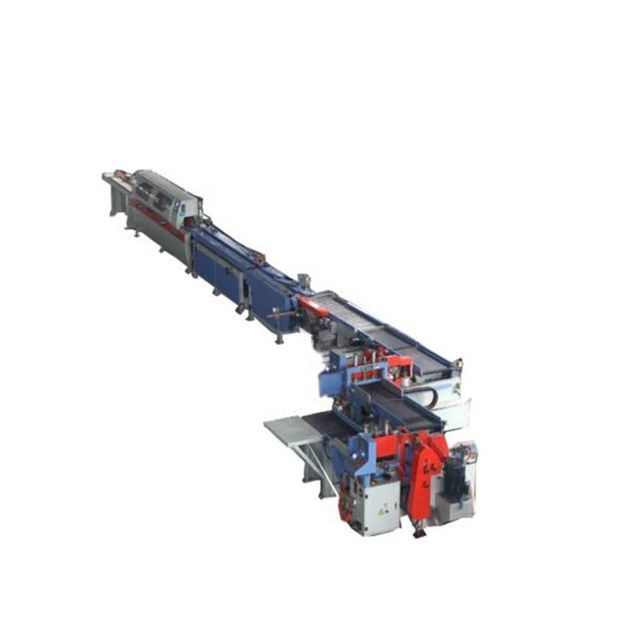

Fully automatic finger joint machine production line plank woodworking machinery
-
Supplier: Qingdao Weichang Industry And Trade Co., Ltd. -
Region: Shandong, China -
Contact: Mr Mike Lee -
Price: $55110.00 / 1 - 2 sets
$50100.00 / >=3 sets -
Min. Order: 1 set
Product details
| brand: | Jin Ji Suo | Blade speed: | 3700 rpm |
| Core component warranty: | 1 year | Core components: | PLC, engine, bearing, gearbox |
| Warranty: | 1 year, 1 year | After-sales service provided: | online support |
| Video outbound inspection: | if | Origin: | Shandong Province, China |
| Maximum assembled length: | endless | Package preview: | |
| Working width: | 30-150 mm | Energy source: | hydraulic |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Health status: | new |
| Marketing Type: | normal product | Working Thickness: | 15-80 mm |
| Packaging Details: | Stretch film with wooden case or as your request. | port: | Qingdao, Shanghai, Guangzhou or as your request |
| Saw blade power: | 3 kW | Saw blade diameter: | 355 mm |
| Supply capacity: | 50 sets per month | After Warranty Service: | On-site maintenance and repair services |
| Minimum working length: | 100mm | Dimensions (L*W*H): | 4700*1000*1420mm |
| Showroom location: | UK, US, Vietnam, India, Russia | Main selling points: | easy to operate |
| Applicable industries: | Building materials store, machinery repair shop, manufacturing plant | Weight (kg): | 7800 kg |
| Mechanical test report: | if | Voltage: | 220V 380V |
Product Description
Model | MXK3515-Ⅱ | MXK3515T-Ⅱ |
working width | 600 mm | 600 mm |
Minimum working thickness | 150mm | 150mm |
Cutting speed | 6000 rpm | 6000 rpm |
Seeing speed | 5600 rpm | 5600 rpm |
Trimming saw speed | 5000 rpm | 5000 rpm |
Mortise knife diameter | 160mm | 160mm |
Tenona cut-off saw diameter | 70 mm | 70 mm |
working desk size | 660×850 mm | 660×850 mm |
Cutter motor power | 11 kW | 11 kW |
Saw motor power | 5.5 kW | 5.5 kW |
Feeding motor power | 0.375 kW | 0.375 kW |
Servo motor power | 1 kW | 1 kW |
working pressure | 0.5-0.8Mpa | 0.5-0.8Mpa |
net weight | 2000 kg | 2200 kg |
Dimensions | 2380×1700×1400mm | 2580×1700×1400mm |
Model | MHK1525L(unlimited) x1 set |
Maximum assembly length | endless |
working width | 150mm |
Maximum Processing Thickness | 80mm |
Minimum working length | 100mm |
Minimum working width | 30mm |
Minimum Processing Thickness | 15 mm |
blade speed | 3700 rpm |
Blade diameter | 355mm |
Saw blade power | 3 kW |
Oil pump motor power | 5.5 kW |
working pressure | 0.5-0.8Mpa |
Oil pressure maximum thrust | 7800 kg |
maximum output | 25m/min |
Dimensions | 4700×1000×1420mm |
accessories | 1 piece of 5m workbench |
