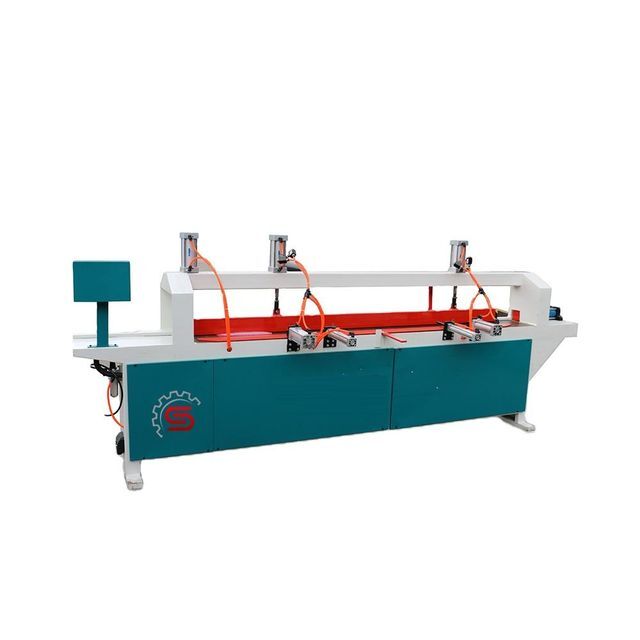

MH1540B semi-automatic finger joint assembly machine finger joint press machine in artificial panel door machine

Supplier: Qingdao Steeler Woodworking Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Mike Lee
Price: $3200.00 / 1 - 2 sets
$3100.00 / 3 - 4 sets
$2900.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Maximum assembly length:	4000mm	working pressure:	0.8MPa
brand:	Stiller	Core Components Warranty:	1 year
Warranty:	1 year	maximum. Working width:	150mm
Marketing Type:	normal product	Maximum blade diameter:	305mm
Function:	Finger joint assembly machine	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Energy source:	electric	Maximum Assembly Thickness:	70mm
Supply capacity:	50 sets per month	Power (kW):	1.5kW
Health status:	new	Showroom location:	Saudi Arabia, Spain, Chile
Applicable industries:	Building Materials Store, Manufacturing Plant, Farm, Home Use, Retail, Construction Works	Main selling point:	competitive price
Voltage:	380/220V	Oil pump power:	1.5kW
Dimensions (LWH):	52009001400mm	Packaging Details:	Wooden box stretch film or as your request
Core components:	Bearings, motors, gears, pumps	Name:	Automatic finger joint assembly machine
port:	Qingdao, Shanghai, Guangdong or as your request	place of origin; place of origin:	Shandong China
application:	wooden knuckles	Weight (kg):	2000kg
Video external inspection:	if	To cut power to the saw:	1.5kW
Mechanical test report:	if

Hot Products

MH1540B Semi-automatic Finger Joint Assembly Machine

Wood-based panel finger joint press

door operator

Product Description

1. Application:

This product is suitable for the reprocessing of waste engineering wood blocks, grooving operations, and the reprocessing of waste wood in construction sites.

2. Features:

1. Fixed length, longitudinal connection, automatic truncation of ideal length. Reduce labor intensity.

2. The operation mode of automatic feeding - butt forming - automatic discharging is simple and efficient

3. High-quality motor, sufficient power supply, longer service life

3. Advantages of our products

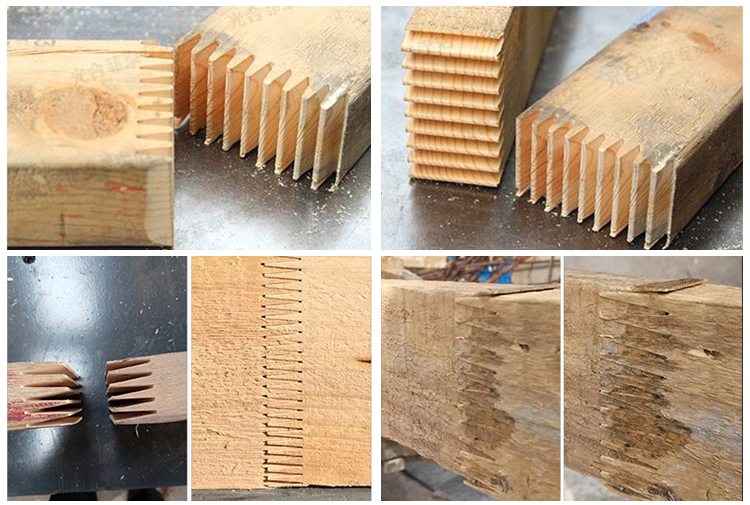

1. It can improve the utilization rate of wood, reduce waste of resources, and achieve the purpose of long-term effect of short wood and better use of inferior wood.

2. It is more convenient and simpler than most machines on the market, and can be operated by one person, saving labor costs for enterprises

3. The spliced product has high strength and can be used as new wood

4. High splicing efficiency, high precision, saving materials, saving raw material costs for enterprises.

Fourth, technical parameters:

working length			4000mm
maximum working width			150mm
Maximum working thickness			70mm
Oil pump power			1.5kW
Power off the saw			1.5kW
Spindle speed			2840 rpm
Maximum insert diameter			305mm
working pressure			0.8MPa
total measurement			5200×900×1400mm
net weight			600kg

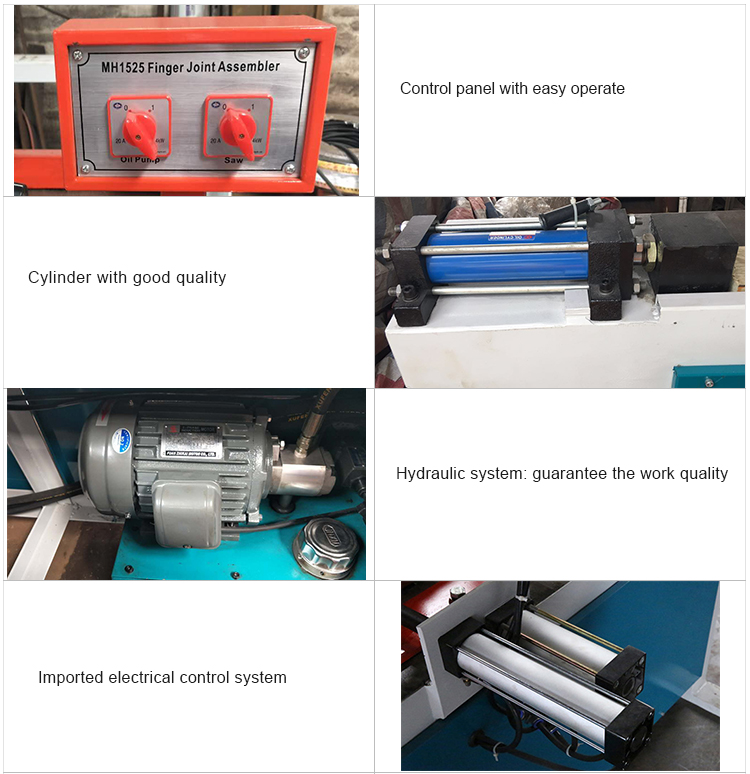

detailed image

manufactures

Packaging and Shipping

1. Delivery:

We can guarantee on-time delivery.

We can also sign contracts for on-time delivery. If we can't deliver on time, we will give corresponding discount to the product.

2. Packaging:
We will take care of your mechanical packaging just like the pictures show.
Our workers will make sure your machine is clean before packing.
We will add stretch film to the complete machine and parts for delicate protection.
We will make export standard sturdy wooden box packing according to your requirements.
3. Guarantee:
The machine is guaranteed for 12 months. Within 12 months of normal use and maintenance, if there is a problem with the machine, you will get spare parts free of charge. Over 12 months, you will get the cost price of the accessories. You will also always receive technical support and service.
4. Technical support:
Technical support via phone, email, WeChat, WhatsApp and Skype, 24 hours online.
We provide manuals and how-to videos in English.
Engineers can repair machinery overseas.
4. After-sales service:
Our machines are installed and tested before delivery. You can operate the machine as soon as you receive it.
If you do not know how to use the machine, we will provide you with free training until you are free to use the machine. If you still have any questions, please feel free to contact us via Email, Skype, WeChat, WhatsApp, Phone and Trade Manager Online Services.
