Wood machine MX3515B semi-automatic finger joint shaper

Supplier: Qingdao Steeler Woodworking Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Mike Lee
Price: $3400.00 / 1 - 2 sets
$3200.00 / 3 - 4 sets
$2900.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	STEELER;	Key Selling Points:	Competitive Price;
Shaper blade diameter:	160mm;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,as your request;
Power(W):	7.5kw;	Power (kW):	7.5;
Weight (KG):	600 KG;	Max.working thickness:	100mm;
Machinery Test Report:	Provided;	Condition:	New;
Dimension(LWH):	150013501120mm;	Warranty of core components:	1 Year;
Cut off saw speed:	14mm;	Packaging Detail:	Stretch film with wooden case or as your request Wood machine MX3515B semi-automatic finger joint shaper;
Warranty:	One Year;	Shaper spindle speed:	7000r/min;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Construction works ,Furniture Factory;	Max.working width:	350mm;
Cut off saw power:	2.2kw;	Overall size:	150013501120mm;
Marketing Type:	Ordinary Product;	Video outgoing-inspection:	Provided;
Weight:	600KG;	Supply Ability:	100 Sets per Month semi-automatic finger joint shaper;
Working table size:	630*800mm;	Power Source:	electrical;
Air Pressure:	2.2kw;	Port:	QINGDAO /SHANGHAI/GUANGZHOUO/AS YOUR REQUEST;
Core Components:	PLC;	Voltage:	220V/380V;
Showroom Location:	United Kingdom,Philippines,Mexico,Thailand;	Place of Origin:	Shandong, China;

Hot Sale Products

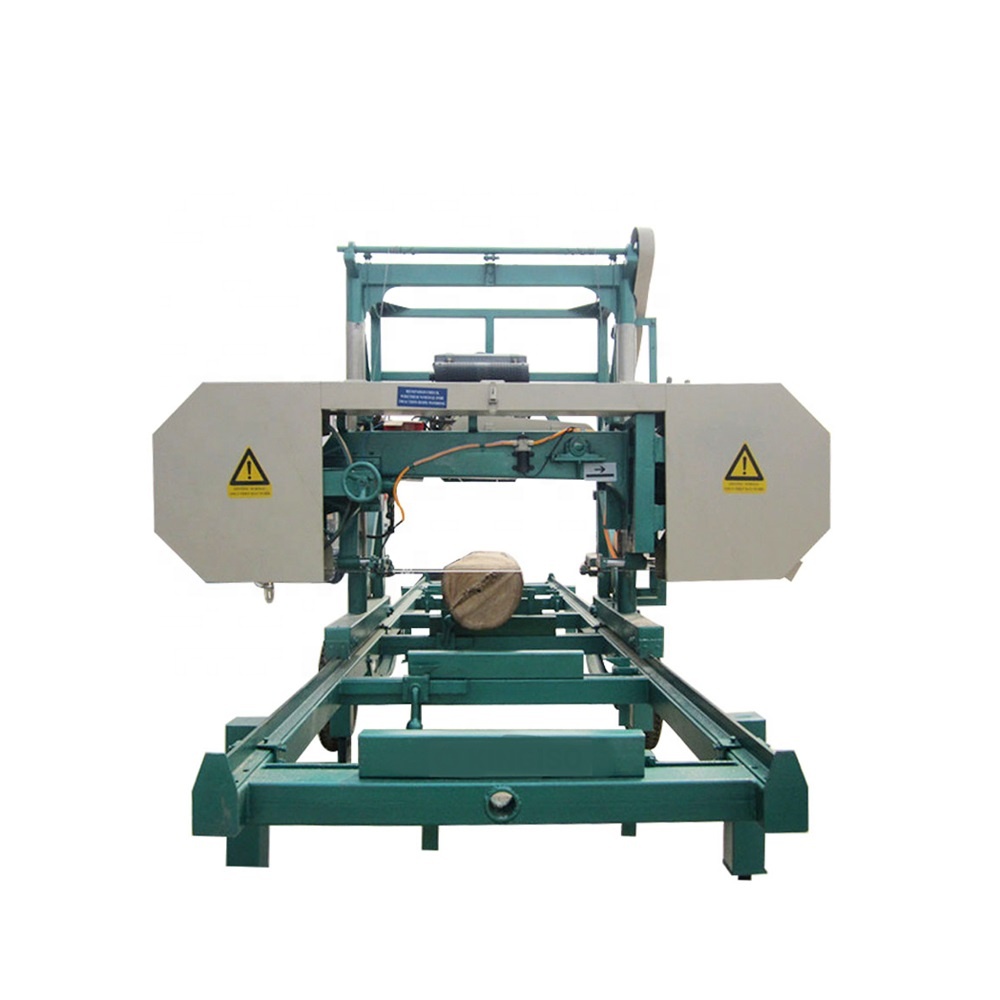

Horizontal Band Sawmill

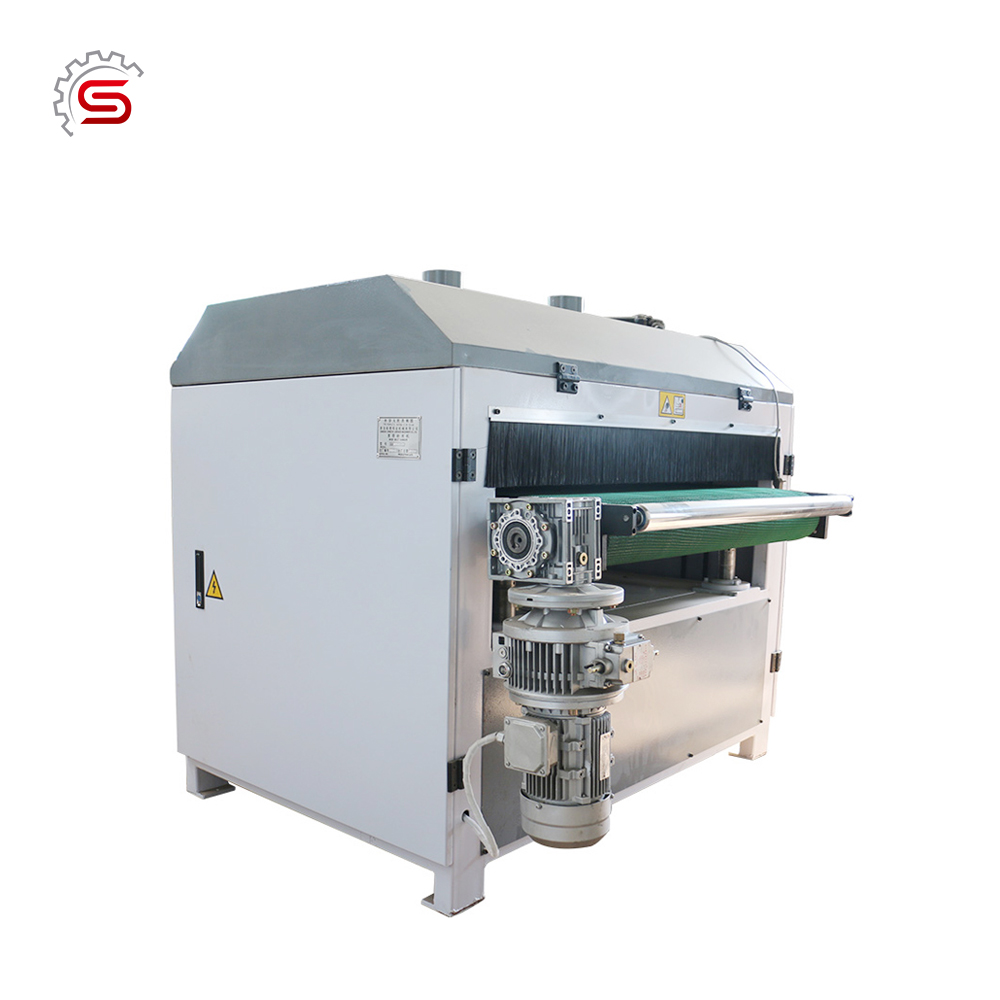

Drum Sander

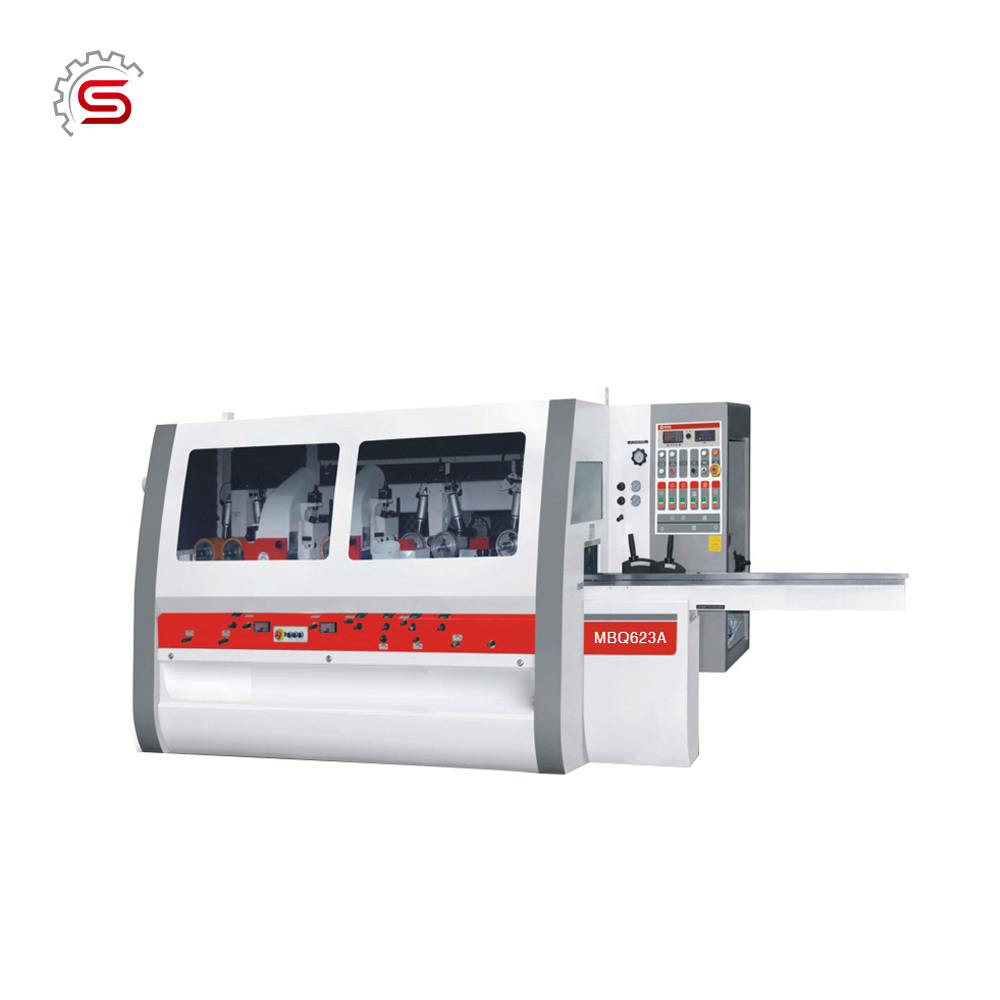

Four Side Planer

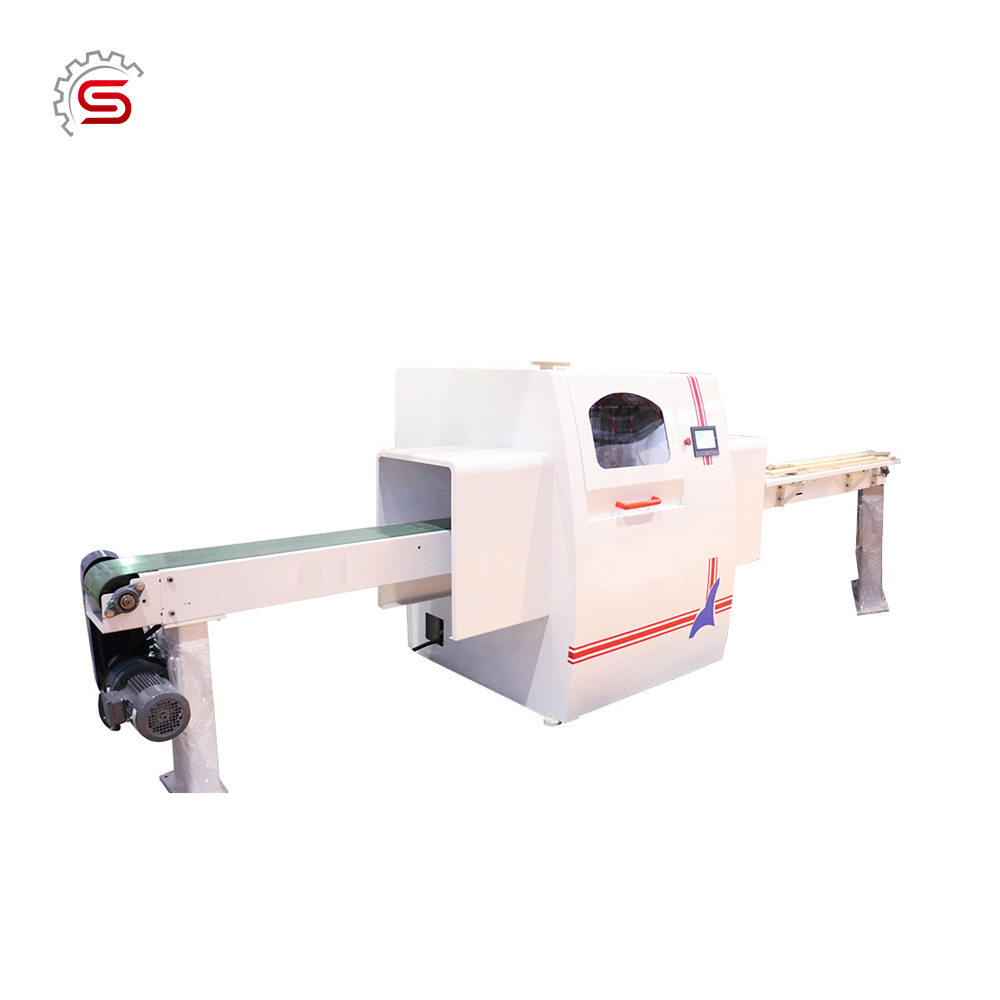

Optimizing Cut Off Saw

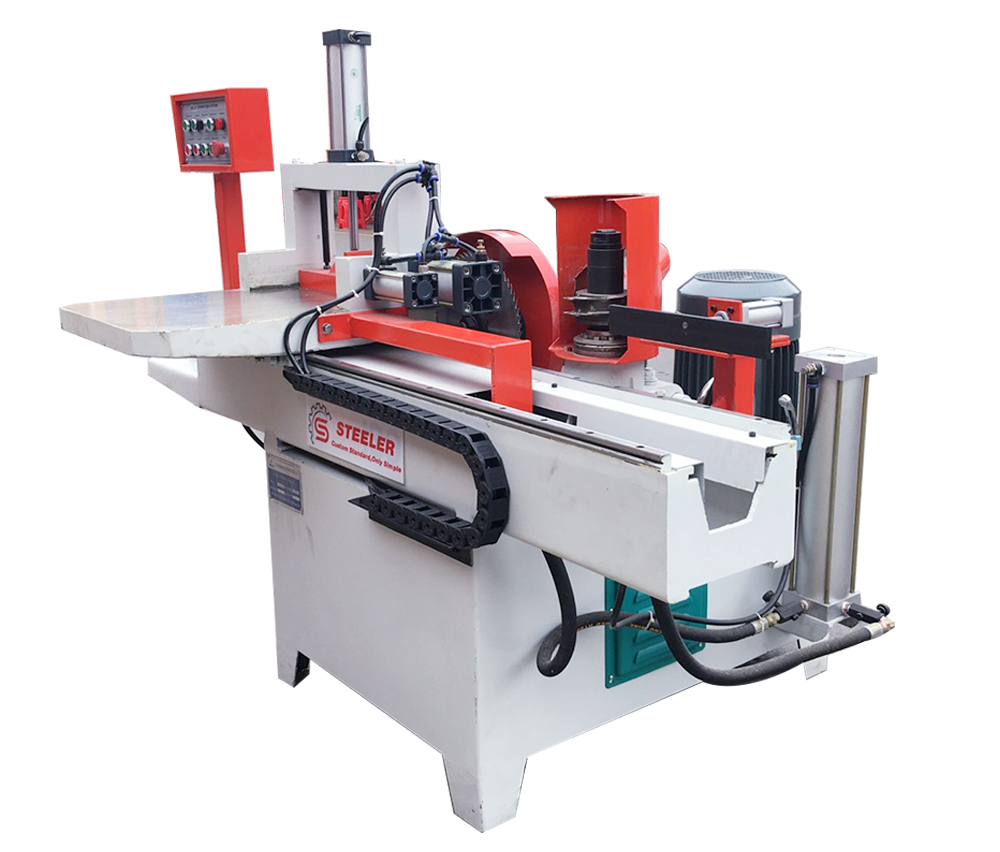

Wood machine MX3515B semi-automatic finger joint shaper

Product Description

Application:

This equipment is used for processing engineering square timber, grooving operations.

Features:

1. The equipment is equipped with automatic vacuum cleaner, which has high efficiency of automatic dust absorption after tooth opening and saves labor.

2. Precise linear guide rail is adopted to ensure the accuracy of the longitudinal Angle of the tooth shape after the wood tooth opening.

3.The worker only needs to comb the wood on the working table of the tooth comb. The machine can deliver the material automatically. When it reaches a certain length, press the switch, and the machine can work naturally.

4.The equipment is equipped with a full head circular saw, which can realize the processing of waste wood tooth opening and flat head

Advantage:

1.All gas - liquid dynamic components adopt high quality products produced by ISO and CE certification enterprises.

2.This machine can improve the efficiency by 3~5 times.

3.This equipment is more efficient and improves the working efficiency of the workers compared with the conventional wood finger joint shaper machine

4.High quality goods, low price, this equipment is your wood comb teeth processing of the choice

Technical Parameters:

Max.working width			350mm
Max.working thickness			100mm
Shaper spindle diameter			Ø35mm
Shaper blade diameter			Ø160mm
Shaper spindle speed			7000r/min
Cut off saw speed			2840r/min
Comb tenoning length			14mm
Cut off saw power			2.2kw
Shaper spindle power			7.5kw
Working air pressure			0.4-0.6mpa
Working table size			630×800mm
Overall size			1500×1350×1120mm
Net weight			600kgs

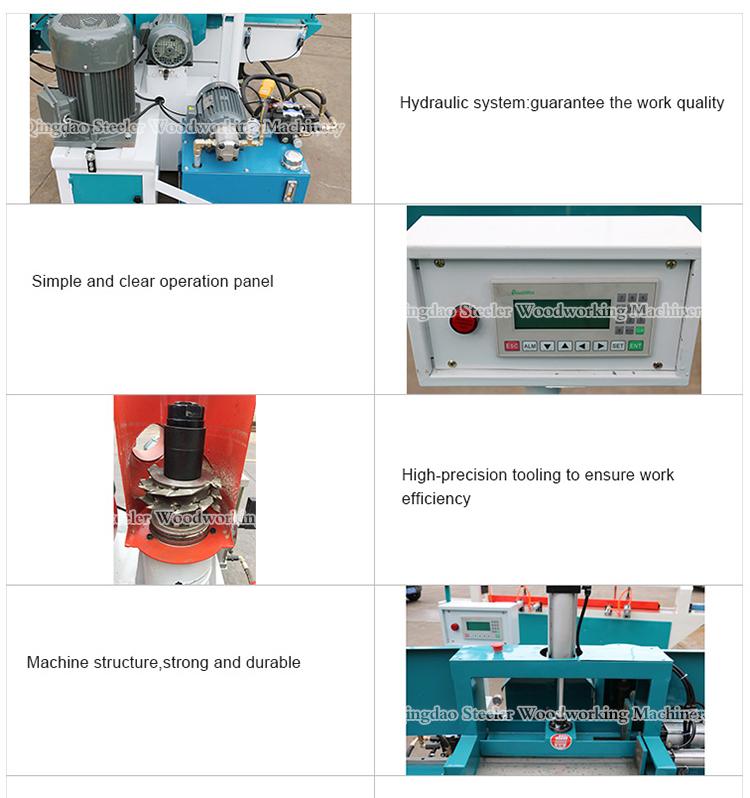

Detailed images

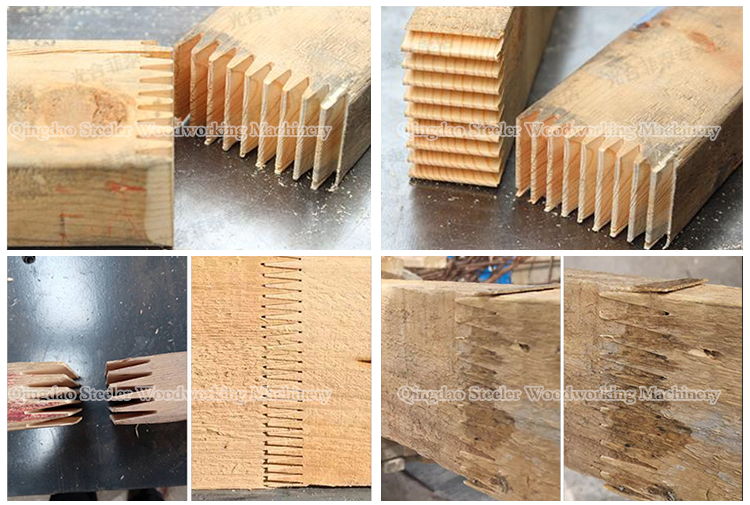

Finished Products

Packing&Service

1.Delivery and Package:
We will take care of your machinery packages well like picture show.
·Our workers will make sure your machine clean before package.
·We will add stretchy film for the whole machine and spare parts for delicate protection.
·We will make export standard strong Wooden box case package as your request.
2.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . more than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
3. Technical support:
·Technical support by Phone, Email ,Wechat, WhatsApp and Skype,24 hours online.
·We provide English version manual.
·Engineer available to service machinery overseas.
4. After sales services:
Our machine is installed and tested well before delivery. You can operation the machine immediately after received machine.
If you don't know how to use the machine,we will offer you free training until you can use machine freely.And If there is still have any question, please contact us by Email, Skype, Phone and Trademanager online service at any time.
