CNC Tenoning Machine Mortise Machine
-
Supplier: Qingdao Weichang Industry And Trade Co., Ltd. -
Region: Shandong, China -
Contact: Mr Mike Lee -
Price: $8000.00 /set -
Min. Order: 1 set
| Weight: | 900kg; | Brand Name: | KINGISO; |
| Voltage: | 220V/380V; | After-sales Service Provided: | Online support; |
| Automatic Grade: | Automatic; | Place of Origin: | china; |
| Packaging Detail: | Stretch film with wooden case or as your request; | Condition: | New; |
| Overall size: | 1930*1160*1840mm; | Port: | Qingdao Shanghai Guangzhou or as your requirement; |
| Spindle speed: | 6700r/min; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Certification: | ISO; | Drill Diameter: | 80mm; |
| Power(W): | 5.5KW; | After-sales Service Provided: | Overseas service center available; |
| Application: | woodworking; | Dimension(L*W*H): | 1930*1160*1840mm; |
| Motor Speed: | 6700r/min; | Max.horizontal mortise width: | 430mm; |
| Supply Ability: | 200 Set/Sets per Month Mortise Machine; | Warranty: | 12 months; |
| Main motor power: | 5.5kw; |
Panel saw |
Edge banding machine |
Cold Press
|
Drilling Machine |

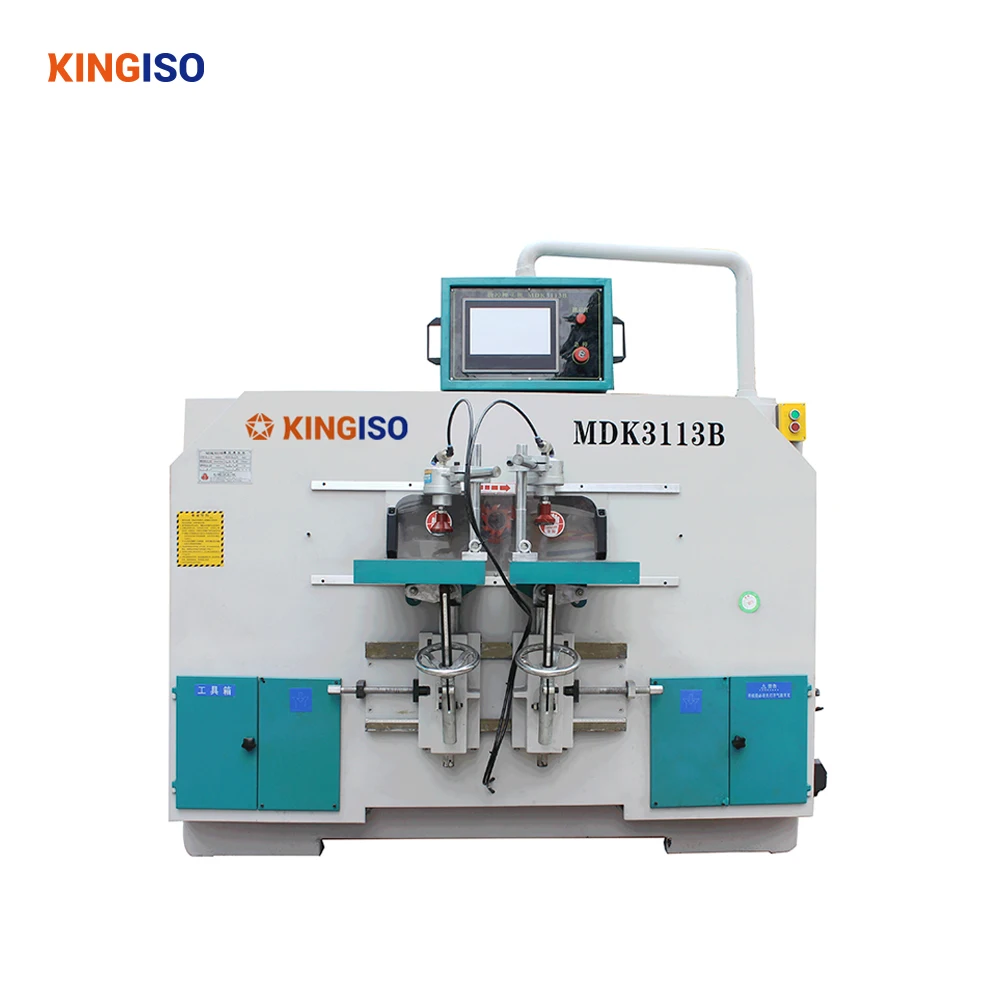

CNC Tenoning Machine Mortise Machine
Technical Parameters:
Max.quadrate tenoning size | 140x80mm |
Max.horizontal tenoning width(single worktable) | 430mm |
Max.horizontal tenoning width(double worktable) | 140mm |
Max.vertical tenoning width | 80mm |
Max.round tenoning diameter | 80mm |
Spindle speed | 6700r/min |
Main motor power | 5.5kw |
Overall size | 1930*1160*1840mm |
Net weight | 850kg |
1.Delivery :
We can guarantee delivery on time.
We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
2.Package:
We will take care of your machinery packages well like picture show.
Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
3.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
4. Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5. After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.
If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
-
