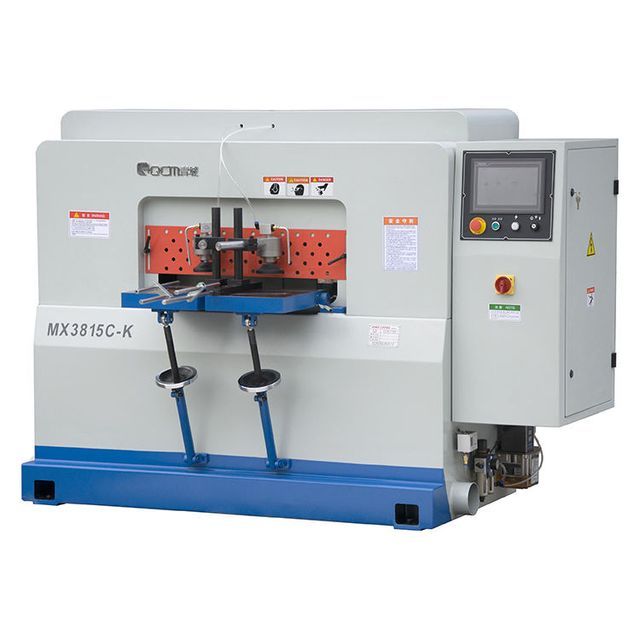

MX3815C-K CNC mortise and tenon tenon tenon tenon tenon woodworking machinery woodworking milling machine

Supplier: Hangzhou Smart Panther Tech Ltd.
Region: Zhejiang, China
Contact: Ms Angelina Mei
Price: $10600.00 / 1 - 2 units
$10200.00 / >=3 units
Min. Order: 1 unit

Click here to contact

Product details

Total power:	12KW	payment terms:	L/C, T/T
After warranty service:	Video technical support	Origin:	Sichuan, China
Spindle speed:	8500 rpm	Video shipment inspection:	if
maximum. Mortise Width:	80mm	usage:	Straight tenon, round tenon, oblique tenon
strength:	12KW	Motor speed:	8500 rpm
Showroom location:	India, Indonesia, Germany, Brazil, Vietnam	Supply capacity:	1000 pieces per month
Packaging Details:	The quotation is subject to the export film packaging. If the wood packaging needs to be replaced, this may result in a price increase.	product name:	MX3815C-K CNC Mortising Machine
Automatic level:	automatic	Applicable industries:	carpentry factory
Main selling points:	high productivity	Health status:	new
brand:	quality control system	Drilling diameter:	/
Mechanical test report:	if	Voltage:	380V/50HZ
Maximum Mortise Depth:	70mm	Warranty:	3 years
Weight (kg):	1000	Dimensions (LWH):	215013001780mm
Core component warranty:	3 years	Package preview:
Core components:	engine	Marketing Type:	2019 Hot Products
port:	Shanghai Port

MX3815C-K CNC mortise and tenon tenon tenon tenon tenon woodworking machinery woodworking milling machine

Product Description

QCM Intelligent Panther Woodworking Machinery Mortise and Tenon Machine CNC tenoning machine
Technical Parameters
Specification	unit	MX3815C-K
maximum. Working size of square tenon (horizontal)	mm	*14080**
maximum. Tenon working width	mm	80
maximum. Working Diameter of Round Tenon	mm	80
maximum. tenon depth	mm	70
Spindle diameter	mm	30
Spindle speed	rpm	8500
Milling axis motor power	kW/hp	3/4
X-axis motor power	kW/hp	1/1.5
X/Y axis motor power	kW/hp	1/1.5
Air pressure	kW/hp	0.4-0.6
Suction Hood Diameter	mm	φ120
Dimensions	mm	*215013001780*
weight	Kilogram	1000

Our advantage

1. The bed is made of overall high-quality castings, which are specially processed and precision-machined by the pentahedron machining center, with stable performance and good precision. 2. The X and Y axes adopt linear guide rail and ball screw drive structure, with flexible movement, stable performance and good precision. 3. The X and Y axes are driven by Delta's full servo drive system, and the Z axis is driven by a tenon-groove electric spindle. Stable performance, stable operation, good precision. 4. It adopts the international brand Delta motion controller and touch screen control to realize the man-machine interface. The operation is easy to learn and no special training is required. Parameters are conveniently entered and modified via the touch screen, and tool wear can be compensated. The operation is simple, convenient and fast. 5. The pressing system adopts three groups of left, middle and right cylinders to press the material, no need to disassemble and replace, and the material pressure is stable. The operation is convenient and quick.
