ZICAR mortise woodworking machine mortise and tenon machine horizontal single shaft woodworking mortise machine for sale

Supplier: Jaya International Co., Ltd.
Region: Shandong, China
Contact: Mr STEVEN CHOW
Price: $3500.00 / 1 - 5 sets
$2500.00 / >=6 sets
Min. Order: 1 set

Click here to contact

Product details

application:	manufacturing plant	Marketing Type:	New Products 2023
Mechanical test report:	if	Installed power:	2.2kw
Main selling points:	easy to operate	Model:	MS3112B
Video shipment inspection:	if	Workbench lift storke:	80mm
Weight (kg):	520	Warranty:	1 year
type:	working mortise	brand:	Zika
Motor speed:	9500 rpm	Packaging Details:	ZICAR tenon woodworking machine tenon machine horizontal single-axis tenon machine 1. Pine box suitable for long-distance sea transportation 2. Dimensions: 1500x1050x1170mm 3. Weight: 520kg
total measurement:	1500x1200x1230mm	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Origin:	Shandong China	port:	Qingdao, Shunde, Guangdong, Ningbo
Core components:	PLC, motor	Certification:	CE certification
Automatic level:	automatic	weight:	520 kg
Supply capacity:	100 sets per month	strength:	2.2
Showroom location:	Egypt, Canada, Turkey, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, United Arab Emirates, Colombia, Algeria , Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, Australia, None	Spindle speed:	9500 rpm
Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Machinery Repair Shops, Manufacturing Plants, Food & Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Shops, Construction, Energy & Mining, Food & Beverage Stores, Other, Advertising company	Health status:	new
Dimensions (LWH):	150012001230mm	Table tilt angle:	±20°
product name:	woodworking tenoning machine	Voltage:	380v
Core component warranty:	1 year	Package preview:

Product parameters

ZICAR mortise woodworking machine mortise and tenon machine horizontal single shaft woodworking mortise machine for sale

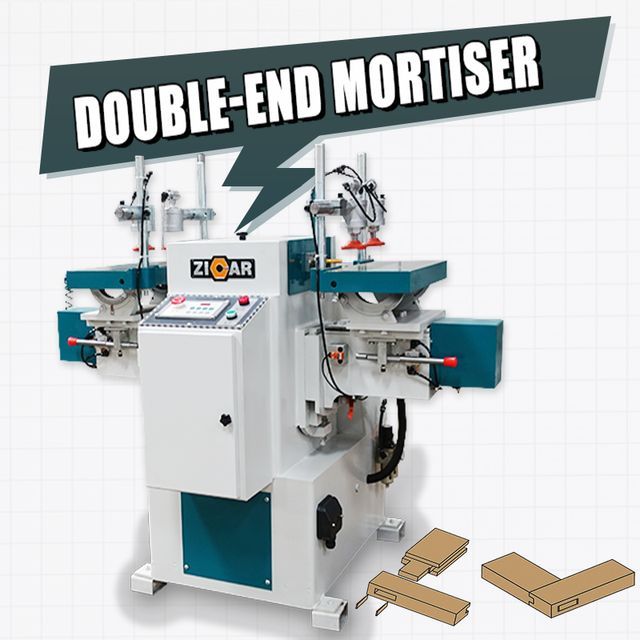

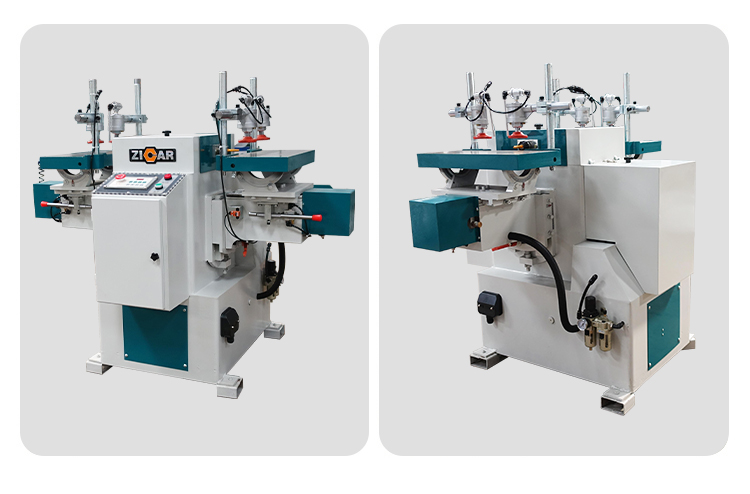

ZikaWoodwoking horizontal double-head mortising machine:

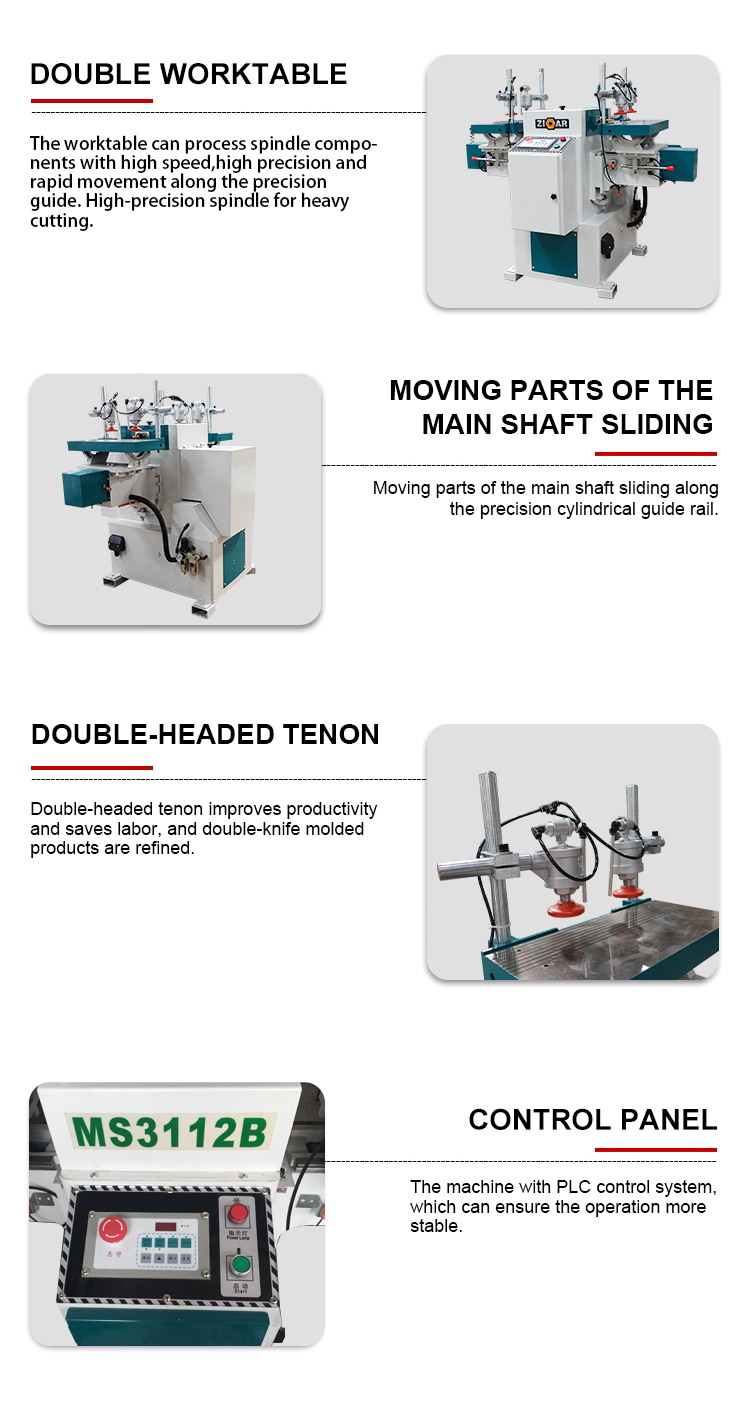

1.Double work table, high speed spindle, high efficiency.

2.It is suitable for mortise processing of doors, tables, chairs and other products.

3.The width can be adjusted by digital display, and it can be tilted 30 degrees on the worktable, which is used for the processing of oblique tongue and groove.

4.The spindle assembly slides along the precision cylindrical guide rail with high moving frequency to ensure the processing quality and efficiency.

5.PLC control system, more stable operation.

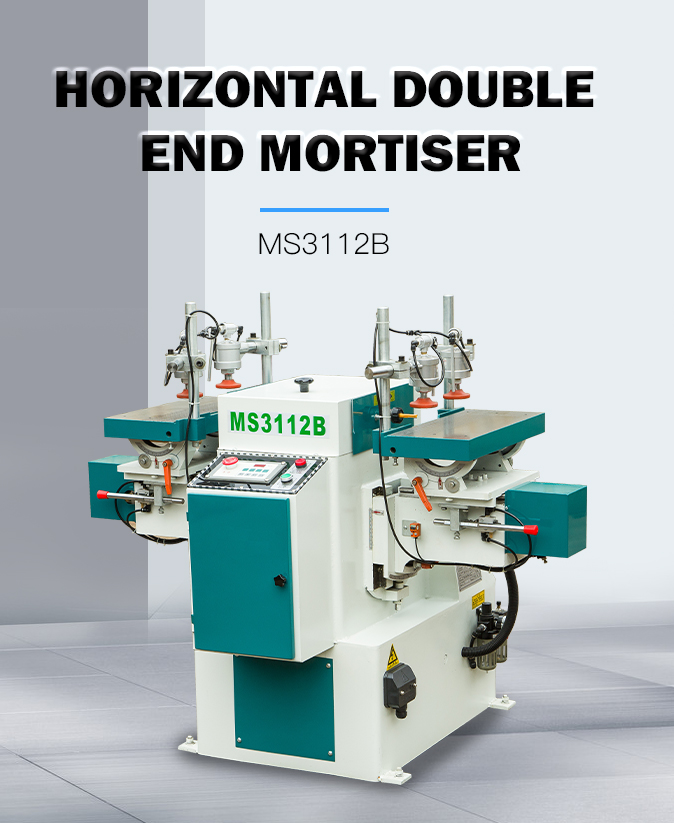

Model	MS3112B
Work platform lift	80mm
Table tilt angle	±20°
Maximum tenon chamfer width	120+ 2Rmm
Maximum tongue and groove depth	60mm
Spindle speed	9500 rpm
Installed power	2.2kw
weight	520 kg
Dimensions	1500x1200x1230mm
