ZICAR JY3248X50 High Quality Cold Press Machine

Supplier: Jaya International Co., Ltd.
Region: Shandong, China
Contact: Mr STEVEN CHOW
Price: $6000.00 / 1 - 5 sets
$4000.00 / >=6 sets
Min. Order: 1 set

Click here to contact

Product details

Working Table Size(mm):	1250×2500;	Max total thrust:	50t(1.6kg/cm2);
Packaging Detail:	the information of ZICAR brand JY3248X50 Veneer 50TONS Cold Press machine from jaya international 1.packing form: plastic wrap package 2.packing size:1250x2900x3000mm.;	Warranty of core components:	1 Year;
Warranty:	1year;	Type:	Cold PRESS;
Marketing Type:	New Product 2020;	Video outgoing-inspection:	Provided;
Machinery Test Report:	Provided;	Voltage:	380V;
Condition:	New;	Payment Terms:	L/C,Western Union,T/T;
Press platen dimensions:	1250mm*2500mm;	After Warranty Service:	Online support;
Pressure:	50T;	Max platen opening:	1000mm(1300mm optional);
Place of Origin:	Shandong China;	Applicable Industries:	Machinery Repair Shops,Manufacturing Plant,Farms,Home Use,Retail,Construction works ;
Max.Pressure(T):	50 T;	Port:	QINGDAO;
Showroom Location:	Viet Nam,Peru,Indonesia,Russia,Chile;	Certification:	CE ISO;
Key Selling Points:	Easy to Operate;	Local Service Location:	Viet Nam,Peru,Indonesia,Russia,Chile;
Supply Ability:	100 Set/Sets per Month;	Pressure of hydraulic system:	210kg/cm2;
Name:	JY3248X50 Cold Press Machine;	Oil Cylinder:	125mm2pcs 90mm2pcs;
Packing size:	1250x2900x2300mm;	Brand Name:	ZICAR;
Net Weight:	2200kg;	Overall Dimension:	1250x2900x3000mm;
Hydraulic motor power:	4kw;	Dimension(LWH):	1250x2900x3000mm;
Weight (KG):	2200;	Core Components:	Motor;
Power (kW):	4kW;

Product Description

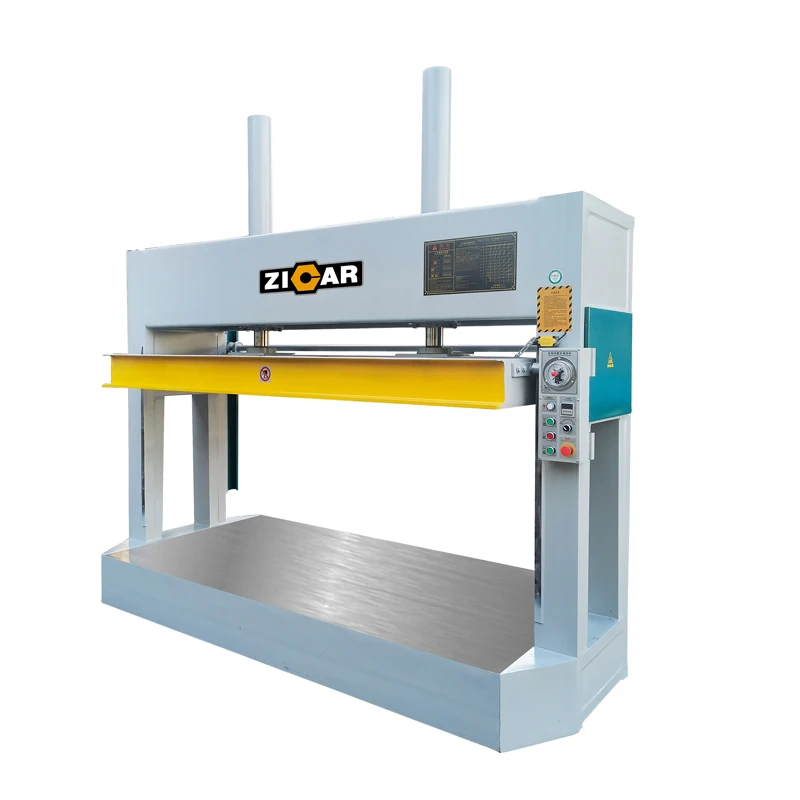

ZICAR JY3248X50 High Quality Cold Press Machine

Name			JY3248X50 Cold Press Machine
Press platen dimensions			1250x2500mm
Max.total thrust			50t(1.6kg/cm2)
Pressure of hydraulic system			210kg/cm2
Max.platen opening			1000mm(1300mm optional)
Oil cylinder			125mmx2pcs 90mmx2pcs
Hydraulic motor power			4kw
Overall dimensions			1250x2900x3000mm

Feature

Highlights of JY3248X50 Veneer 50TONS Cold Press machine

1.This cold press is mainly used for the pressing and Pre-molding for the glued board, with the features of good quality pressing, high efficiency.

2. Widely applied in the furniture manufacturing industry as well as other board production industry.

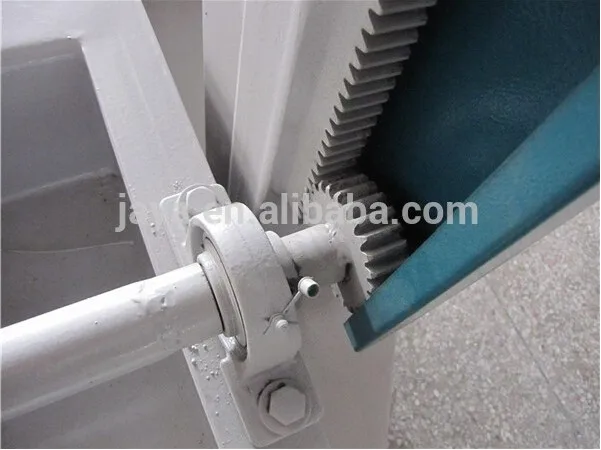

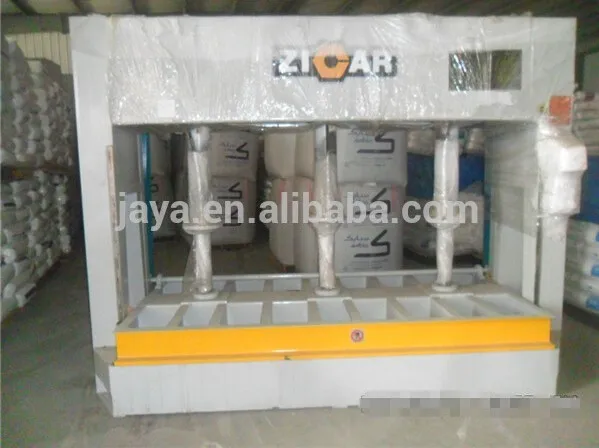

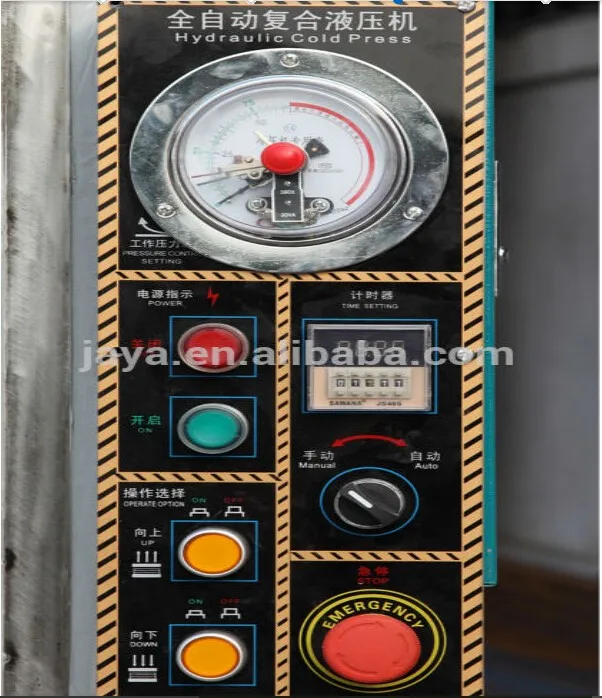

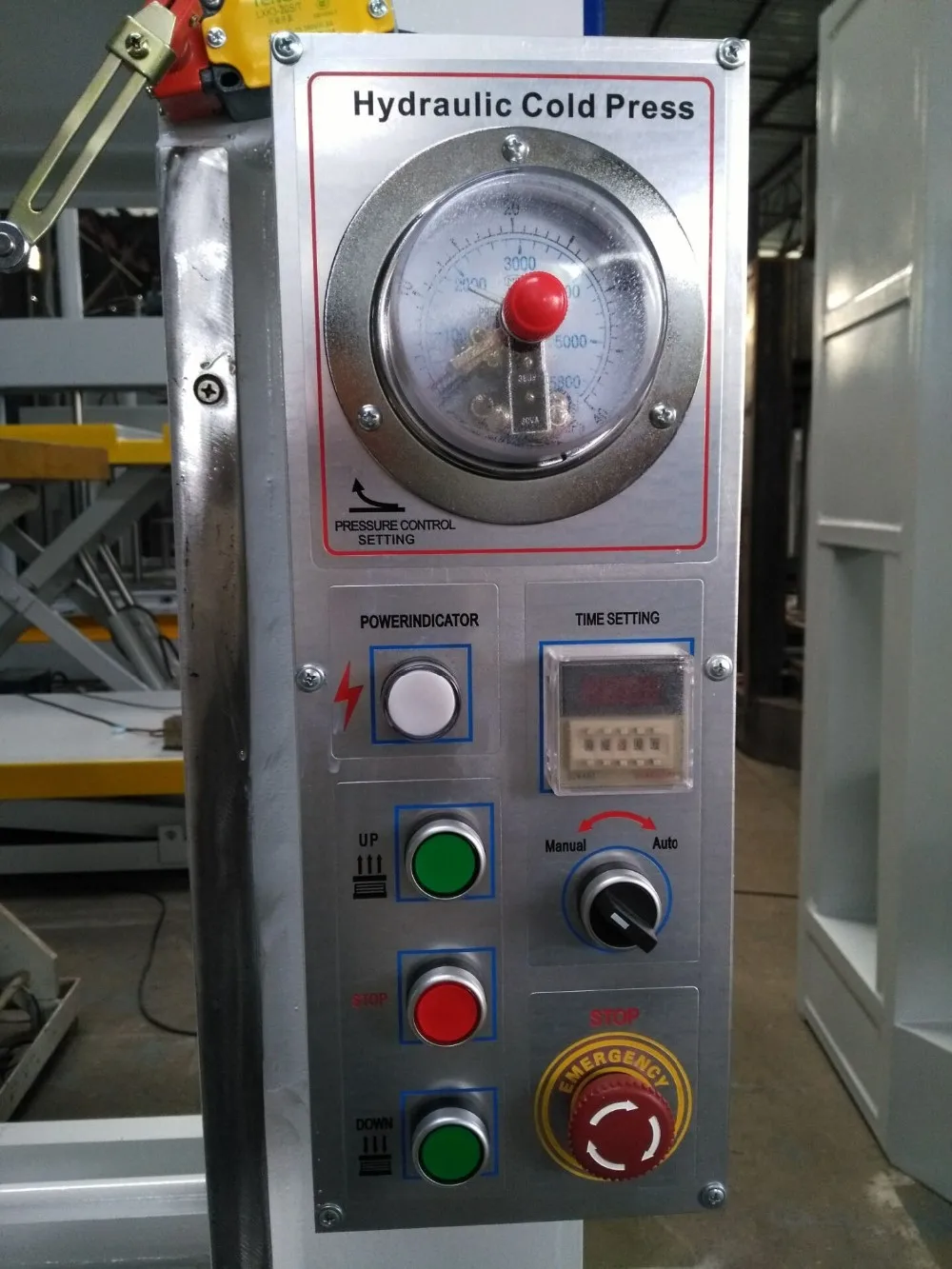

Detailed Images
