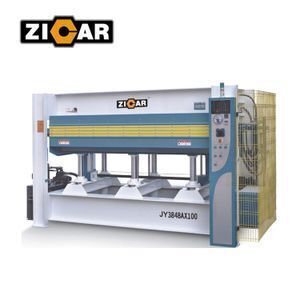

120 tons hydraulic hot press JY3848AX120 for wood furniture/cheap hot press machine with electric heated with thermal oil
- 10573.00 set
| Max.total thrust: | 120t(3.0kg/cm2); | Application: | woodworking; |
| Supply Ability: | 50.0 Set/Sets per Month; | Power(W): | 6.2kw; |
| Condition: | New; | Place of Origin: | Shandong China; |
| Type: | HOT PRESS; | Payment Terms: | L/C,T/T; |
| Brand Name: | zicar; | Weight: | 5600kgs; |
| Oil cylinder: | 85mm*6pcs; | Pressure: | 100tons; |
| Voltage: | 380v,50hz; | Warranty: | One Year; |
| Press platen dimensions: | 1300*2500*42mm; | Hydraulic motor power: | 4kw; |
| Port: | SHUNDE; | Packaging Detail: | hot press machine for door work with oil in exporting packages; |
| Model Number: | JY3848AX120; |

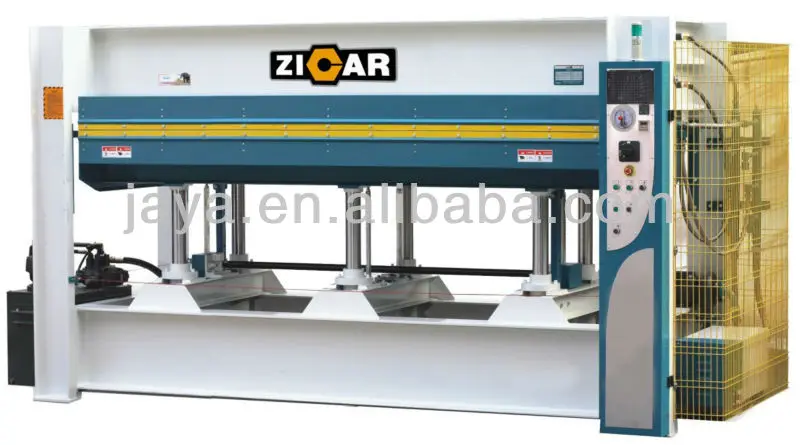

hydraulic hot press electric heated with thermal oil for door JY3848AX120
Our factory is verified by Alibaba group and granted with USD 625,000 trade assurance credit ,that means ,Alibaba will offer you Maximum USD 625,000 return if there is any fraud during business .
| Model | JY3848AX120 | ||
| 1LAYER | 2LAYERS | 3LAYERS | |
| Press platen dimensions | 1300x2500x42mm | ||
| Max.total thrust | 120t(3.0kg/cm2) | ||
| Pressure of hydraulic system | 265kg/cm2 | ||
| Max.platen opening | 380mm | 100mm | 100mm |
| Oil cylinder | Φ85x6pcs | ||
| Hydraulic motor power | 4kw | ||
| Hot oil pump power | 2.2kw | ||
| Overall dimensions(LXWXH) | 370x166x204/206/209cm | ||
| Net weight | 4900kg | 5300kg | 5600kg |
Feature :
Suitable to press veneer ,fireproofing-board ,decorating-paper etc .
Adopt solid steel heat conduction board with deep-hole drilling technic ,configure with pedal emergency switch ,quadric temperature protection device etc; Main hydraulic parts cylinders and composites are imported from Japan and Taiwan .
Heating type :
1.Electric heating with circulating heat-transmission oil (standard configuration );
2.Steam heating (optional)
3.With both electric and steam hearing ,suitable for shortage of steam area
Advantage :
This series hot press is a smart numerical hot press ,this series of hot press with PLC.Pressure sensor .Temperature sensor .Human-machine ,interface and others exact numerical control electrical parts can set and display the main parameter such as pressure .temperature .time and safety ,all the message from the LCD screen interface can lead the operator ,so that reduce the troubles ,depress the waster ratio and defend the machine .
OEM :
Different specification of hydraulic hot press can be designed as your requirements ,from press pressure 100T ,120T ,160T ,300T ,500T ,1500T ,Layer number from one ,two ,three ,five ,to ten layers ,hot press platen size from 1300*2500,1300*2500,1300*3000,1550*3000,1370*2700 and so on .
Your are welcome to send your detailed requirements to us for special parameter

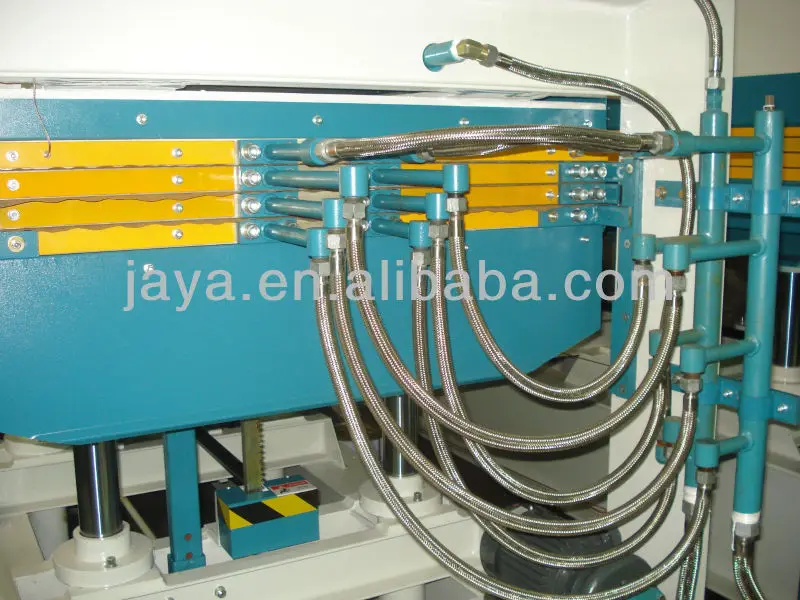

Heating pipe

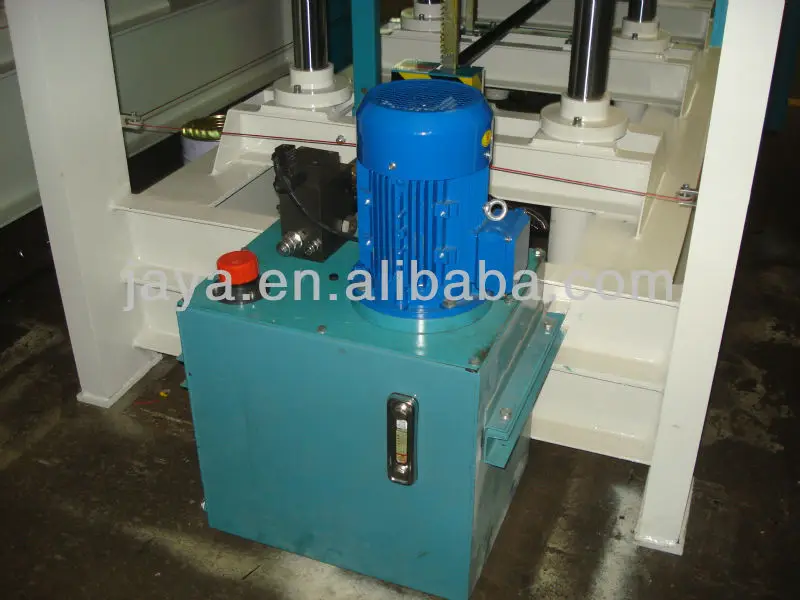

Hydraulic pump

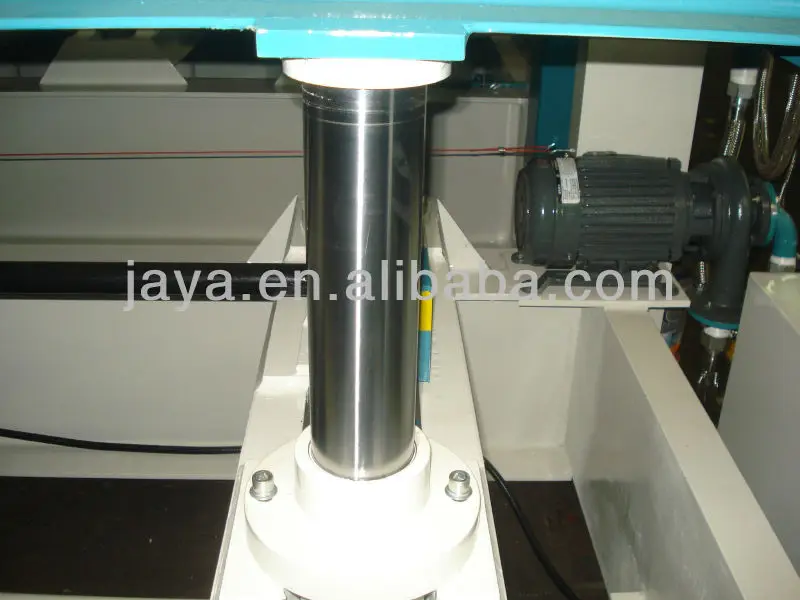

Hydraulic cylinder

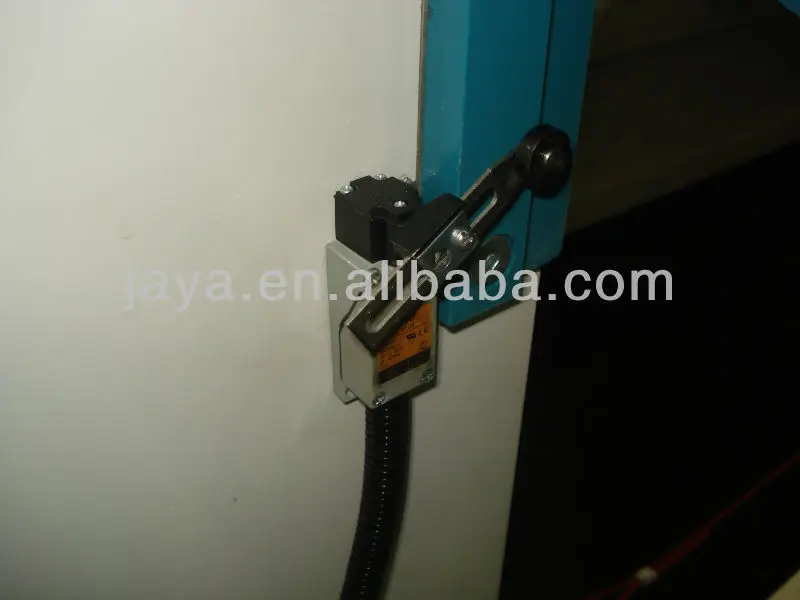

Travel Switch

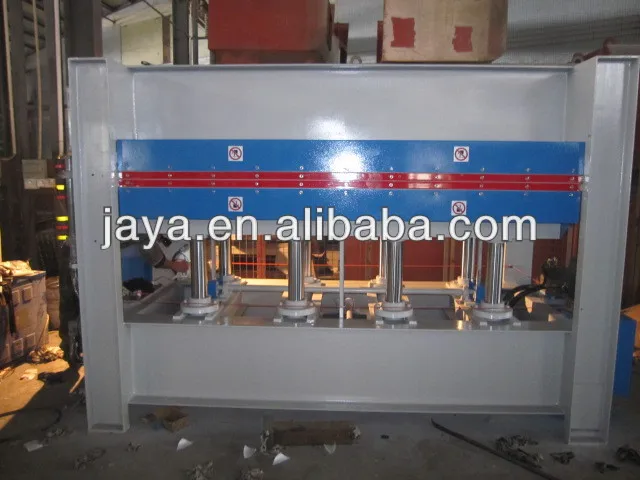

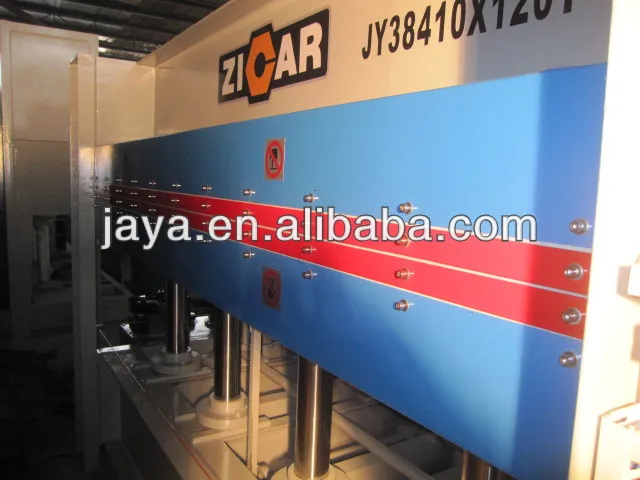

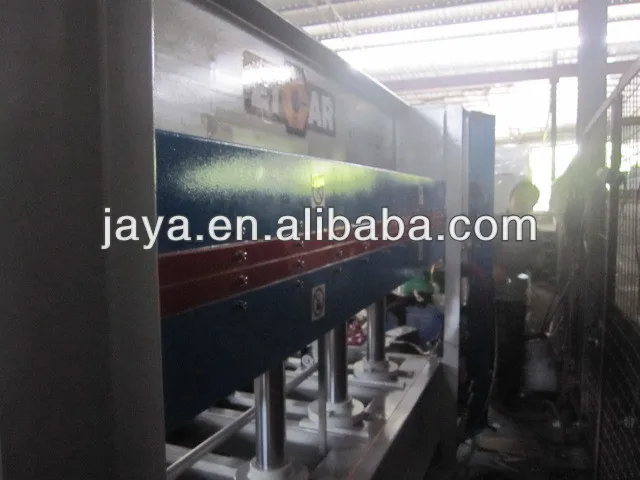

Machin ready for test:
