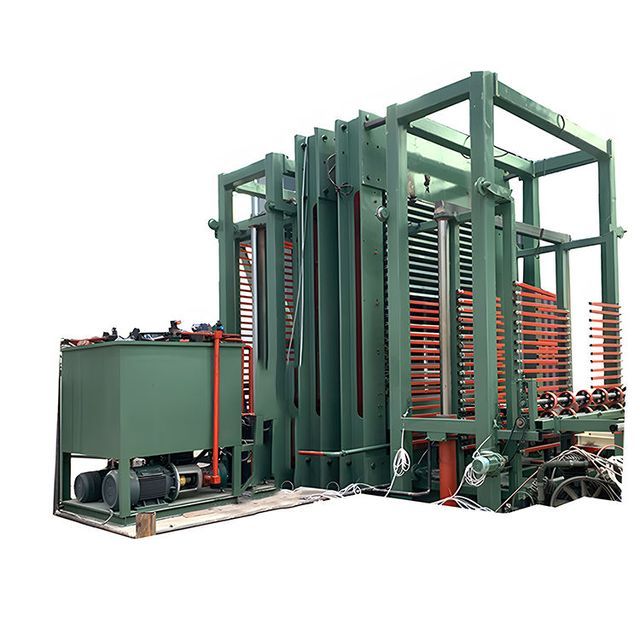

Shiny 15 ply plywood veneer heat press machine

Supplier: Linyi Shining International Trading Co., Ltd.
Region: Shandong, China
Contact: Mr Owen Liu
Price: $26900.00 / 1 - 2 sets
$25900.00 / 3 - 4 sets
$23800.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Table size (mm):	3550*1370	payment terms:	L/C, Western Union, D/A, T/T
Supply capacity:	2000 sets per year	Dimensions (LWH):	355013704600mm
brand:	shining	Video shipment inspection:	if
pressure:	400/500/600/800T	color:	customer request
Applicable industries:	Mechanical Repair Shop, Retail, Construction	Marketing Type:	New Products 2020
Core components:	PLC, motor, hydraulic	work method:	touchscreenautomatic
Warranty:	1 year	port:	Qingdao
Weight (kg):	35000 kg	layer:	1~25 floors
Main selling points:	easy to operate	type:	Hot Press
Showroom location:	not any	Power (kW):	7.5Kw+18.5Kw
Control System:	Programmable Controllers	Origin:	Shandong China
Package preview:		Steel:	Q235 Q345
Maximum pressure (T):	500/600/800	Voltage:	380V
Packaging Details:	Pack the heat press machine according to the needs of customers.	cylinder:	Wuxi
Health status:	new	Mechanical test report:	if
product name:	Plywood Heat Press Machine	Frame Thickness:	assembled
manufactures:	4*8 feet splint	After-sales service provided:	engineer
Core component warranty:	1 year

Original manufacturer of plywood making machines for over 29 years

1.29 years experienced plywood machinery manufacturer with strong quality control system and team.
2. One year warranty.
3. Vulnerable parts and wearing parts are shipped randomly
4. Spare parts and service are provided free of charge during the warranty period.
5. Accept OEM, ODM and customization.

1) Almost all kinds of plywood machines are available here.
2) Online technical and engineer support.
3) Promise to provide you with quality products at the best price and service.
4) Factory direct selling price.

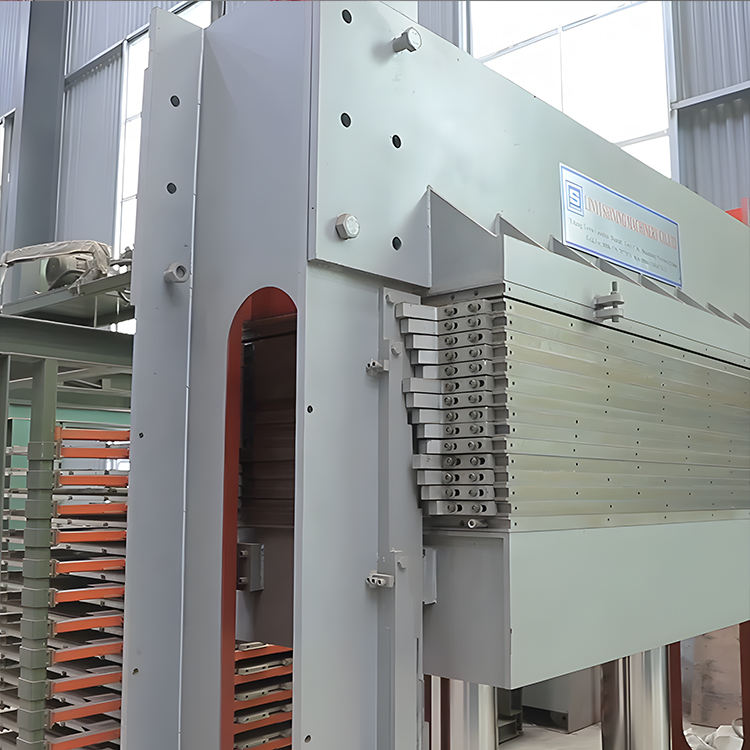

High quality plywood heat press machine

500 tons hot press
pressure	500 tons
layers	15 floors

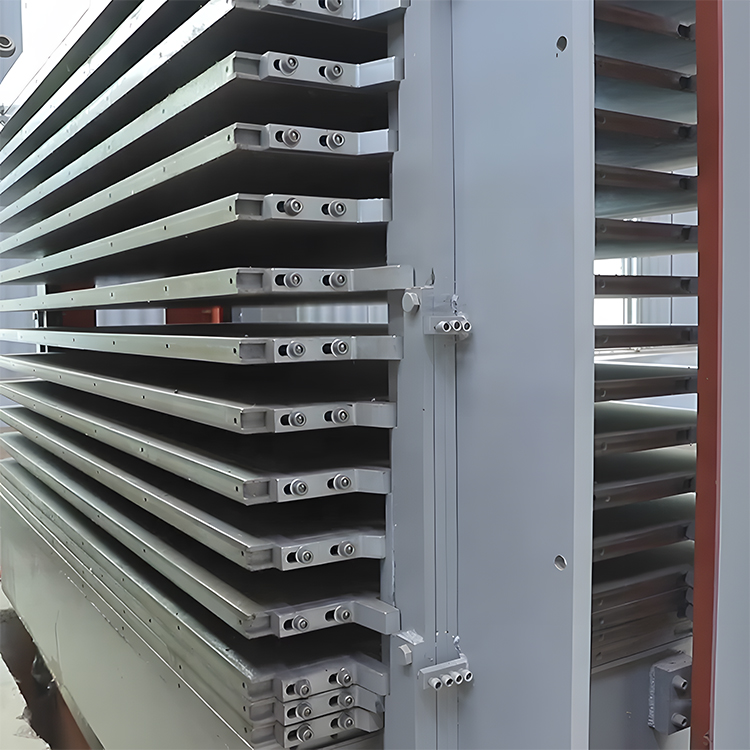

Hot plate distance	70mm
Number of hot plates	16
Heating plate size	2700137042mm
Number of cylinders	2
cylinder diameter	360mm
cylinder stroke	1050mm
Upper and lower beams	900mm
Main frame steel thickness	35mm Q235
Dimensions	355013704650mm
weight	about 38 tons

600 tons hot press
pressure	600 tons
layers	10 floors
Hot plate distance	100mm
Number of hot plates	11
Heating plate size	2700137052mm (two in two out)
cylinder diameter	6ø220mm, 2ø120mm, (lift cylinder), 8 cylinders in total, Wuxi cylinder
cylinder stroke	1000mm
Upper and lower beams	900mm
Main frame steel thickness	35mm Q235
Dimensions	3600mm1370mm4200mm
weight	about 42 tons

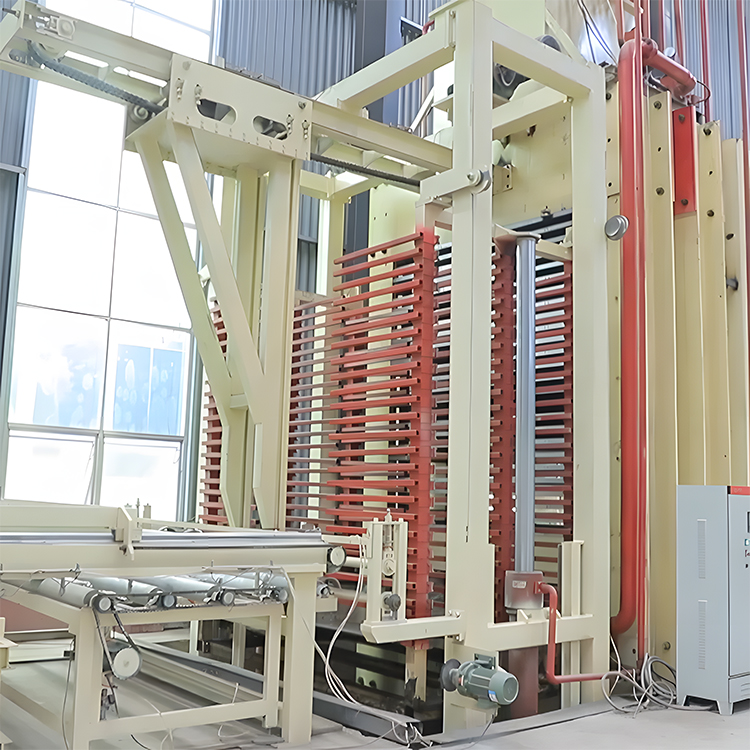

800 tons hot press
pressure	800 tons
layers	25 floors
Hot plate distance	80mm
Number of hot plates	26
Heating plate size	2700137042mm
Number of cylinders	4
cylinder diameter	320mm
cylinder stroke	2000mm
Upper and lower beams	900mm
Main frame steel thickness	40mm Q235/(4 group frames)
Dimensions	3600mm1370mm6720mm
weight	about 86 tons

detailed drawing

Plywood Heat Press Machine Veneer Laminator

The main sections of the plywood production line include: peeling section, veneer drying section, gluing section, pre-pressing section, hot-pressing section, sawing section, grinding section...etc. 1. Strict control and management of raw materials, the main frame is welded by standard steel plates. 2. Using domestic and foreign high-quality accessories and famous brand valve blocks, the failure rate is greatly reduced. 3. Reasonable structure, convenient operation, beautiful appearance, never cut corners to ensure product quality. 4. High autonomy, the most needed accessories can be produced independently to achieve excellence. 5. Timely service and guaranteed product quality.
