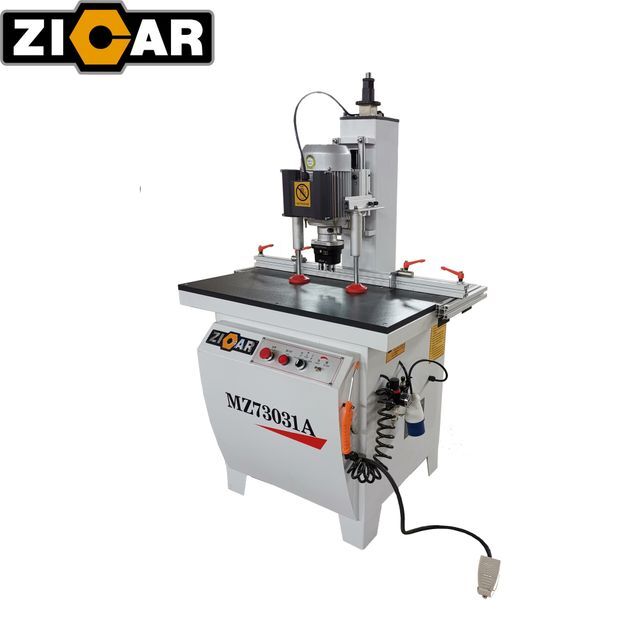

ZICAR High Quality Drilling Cabinet Hinge Drilling Machine Hinge Drilling Machine MZ73031A

Click here to contact

Product details

Supply capacity:	100 sets per month	Core components:	motor
Applicable industries:	Hotels, building materials stores, machinery repair shops, manufacturing plants, household, construction projects, advertising companies	Dimensions (LWH):	8007501700MM
Power (kW):	1.5kW	total measurement:	800x750x1700mm
Showroom location:	Indonesia, India, Chile, Algeria	phone number:	single
Core Components Warranty:	1 year	After-sales service provided:	Free spare parts
payment terms:	L/C,Western Union,T/T,MoneyGram	Packaging Details:	ZICAR High Quality Drilling Cabinet Hinge Drilling Machine Hinge Drilling Machine MZ73031A Plywood Box Packing Size: 1000x850x1700mm GW: 150kg
CNC or not:	normal	Marketing Type:	New Products 2020
Packaging Preview:		Weight (kg):	350kg
air pressure:	0.6-0.8Mpa	Spindle speed:	2480 rpm
Voltage:	220V50HZ1PH	Package dimensions:	1000x850x1700mm
Main selling point:	easy to operate	Vertical Spindle Head:	220-815mm
port:	Qingdao Port	Install the power supply:	1.5kW
Warranty:	1 year	brand:	Zika
Health status:	new	place of origin; place of origin:	Shandong China
Mechanical test report:	if	Number of spindles:	3
Maximum Drilling Diameter:	50mm	Video external inspection:	if
Maximum working depth:	60mm

Product parameters

ZICAR High Quality Drilling Cabinet Hinge Drilling Machine Hinge Drilling Machine MZ73031A

Advantages of ZICAR hinge boring machine:
● Simple operation, low price and high quality.

● One year after-sale service.

● All work areas and specifications can be customized according to your requirements.
