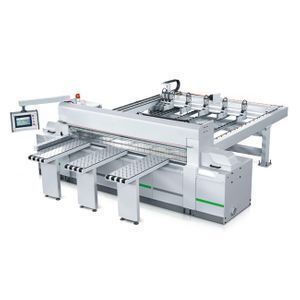

Computer Controlled CNC Panel Saw Machine For Woodworking

Supplier: Qingdao High-Class Service Import & Export Co., Ltd.
Region: Shandong, China
Contact: Ms Cindy Yu
Price: $35000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Application:	wood cutting;	After-sales Service Provided:	Field installation, commissioning and training;
Use:	Woodworking;	Usage:	Woodworking;
Weight:	6000kg;	Saw Socket Forward Speed:	5-100m/Min;
Warranty:	1 Year;	Voltage:	Customized;
Air Capacity:	150L/Min;	Place of Origin:	Shandong China;
Style:	Vertical;	Weight:	6000kg;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Max. Height Of Blade:	120mm;
Max.Cutting Length:	3780mm;	Name:	Beam Panel Saw;
Min. Speed Of Dust Collection:	26m/Sec;	Supply Ability:	1000 Set/Sets per Month beam panel saw;
Port:	Qingdao or Huangpu Port;	Working Table Height:	920mm;
Dimension(LWH):	600015002300mm;	Power(W):	20.2kw;
Website:	www.hicasmach.com;	Air Compression:	6bar;
Condition:	New;	Packaging Detail:	Computer Controlled CNC Panel Saw Machine For Woodworking: Plywood packaging;
Certification:	CE ISO;	Brand Name:	HICAS;

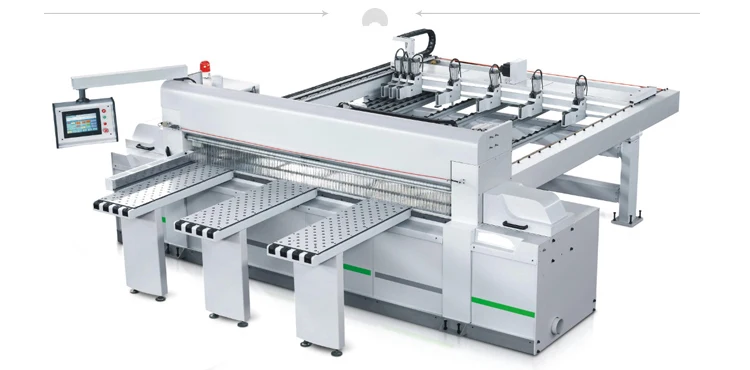

Computer Controlled CNC Panel Saw Machine For Woodworking

Model	HC330	HC380	HC280
Max.cutting length	3280mm	3780mm	2680mm
Mechanical arm’s running distance	3280mm	3780mm	2750mm
Max. height of blade	120mm (intelligent control)	120mm (intelligent control)	90mm (intelligent control)
Main saw blade	4004.47572T (optional:4504.4 7572T)140	4004.47572T (optional:4504.4 7572T)140	4004.47572T (optional:4504.4 7572T)140
Scoring saw blade	1604.4/5.445*24T	1604.4/5.445*24T	1604.4/5.445*24T
Saw socket forward speed	5-100m/min	5-100m/min	5-80m/min
Saw socket backward speed	Max.100m/min	Max.100m/min	Max.80m/min
Mechanical arm’s forward speed	0-100m/min	0-100m/min	0-80m/min
Mechanical arm’s backward speed	Max.100m/min	Max.100m/min	Max.80m/min
Side aligner system	Pneumatic double side pressing wheels	Pneumatic double side pressing wheels
Motor power of main saw shaft	18kw	18kw	15kw
Motor power of scoring saw shaft	2.2kw	2.2kw	2.2kw
Voltage	customized	customized	customized
Working table height	920mm	920mm	920mm
Number of mechanical arm	8pcs	10pcs	7pcs
Air floating table	3pcs	3pcs	3pcs
Air compression	6bar	6bar	6bar
Min. Speed of dust collection	26m/sec	26m/sec	26m/sec
Air capacity	150L/min	150L/min	150L/min
Negative pressure(at least)	1200pa	1200pa	1200pa
Diameter of dust collecting holes	2001pcs/1001pcs	2001pcs/1001pcs	2001pcs/1001pcs
Input air capacity for dust collection	4400m³/h	4400m³/h	4400m³/h
Packaging size	540013502170mm 4200900500mm	600015002300mm 4200900500mm	480013501900mm 4200930500mm
High pressure blower of air floating table	1pcs	1pcs	1pcs
Floor area	5500*6500mm	6000*7000mm	5000*6000mm
Weight	5500kg	6000kg	4500kg

Packing:

Why Choose Us

1.14 years experience in chinese woodworking machinery market.

2. 8 years exportation experience, have customers in more than 40 countries.

Click here to check customer's feedback

3. Know Chinese market well, through the years cooperation, now we have about 30 stable suppliers.

4. Joined Alibaba Trade Assurance to make sure the buyer’s benefit. If can’t meet the details in the contract, 100% of your payment will be returned.

5. Our Transaction
