ISO Certified SS metal fiber pleated cartridge filter for food beverage / chemical industry

Supplier: Hangzhou Tianshan Precision Filter Material Co., Ltd.
Region: Zhejiang, China
Contact: Ms Fiona Li
Price: $1.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Application:	Drinking water / mineral water etc liquid;	Application 3:	Food & Beverages:Viscous liquid with high temperature.;
Application 2:	Pharmaceuticals:Prefiltraion and decarbonate filtration.;	Micron:	1um/3um/5um/10um/20um/50um;
Filter Rating:	90%;	Type:	Filter Elements;
Filter Media:	SUS316 mesh pleated filter cartridges;	Material:	Metal Fiber;
Payment Terms:	L/C,D/P,T/T;	Shape:	Cylindrical;
Model Number:	STP;	Length:	5''/10'' / 20'' / 30''/ 40'';
Usage:	Air Filter;	Brand Name:	TS filter;
Place of Origin:	Zhejiang China (Mainland);	Packaging Detail:	Export standard package: 1pc filter cartridge/ 1 polybag/ 1 small carton; 12 or 20 pcs in one big carton;
Application 4:	Fine Chemicals: Strong Acid and Alkaline filtration.;	Thickness:	Require;
Length:	Customize Length;	Delivery Detail:	3-15 days;
Width:	Require;	Application 5:	Water:Filtrate the O-zone containing water.;
Port:	Shanghai;	Application 1:	Suitable for the extreme operating enviroments, steam filtration.;
Supply Ability:	4680 Piece/Pieces per Month;

ISO Certified SS metal fiber pleated cartridge filter for food beverage / chemical industry

Product Description

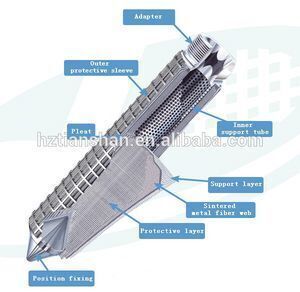

Main filter media of pleated filter element is stainless steel sintered fiber web and stainless steel weaving wire cloth.

Stainless steel sintered fiber web is a kind of stainless steel media, sintered into a graded pore structure, the filter element enjoys the advantage of high porosity rate, big filtration area and good dirt holding capacity, and can also be used repeatedly after chemical cleaning, etc.

Stainless steel weaving wire cloth is weaved with stainless steel wire, the filter element has such characteristics of good strength, fastness, easy cleaning, high temperature resistance, low cost, etc.

Filter rating ranging from 3 micron to 200 micron is available. The size is available at customers’ requirement.

Application: mainly used in filtration of high molecular polymer, drug, hydraulic oil, water treatment, hot gas,

Comprehensive presentation

Specifications

STP :stainless steel mesh pleated and weld .resistant strong acid and alkali.it can be used for corrosive liquids liquid or gas

STP :highly -quality stainless steel powder sintered under high temperature .it can be used for liquid or gas under high temperature and high pressure

Feature	Resistant high temperature and pressure
	Resistant strong acid and alkali
	Small resistance in filtration process
	Cartridges can resist to strong acid, alkaline
Specification	Filtration accuracy: 1-100 um
	Length: 10-40 inch
	Porosity: 65%-85%
Operating parameters	PH: 1 ~14
	Max.temperature: 200℃
	Max.differential: 0.60Mpa
Typical water flow rate (10 '')
Typical Applications	Steam filtration
	Decarbonization of high viscosity liquid filtration
	Removing impuriteis in Petrochemical industry impurities Filtering
	Strong polar solvent filtration
	Highly corrosive liquid and gas purification
	Liquid or gas in high temperature and pressure

ORDER INFORMATION

PRODUCT	MICRON	Outer Dia.	ADAPTER	LENGTH	O-RING / GASKET
STS	100-1um	D60-60mm	NIL- Cut Ends (Cylinder)	10-10"	S-silicone; N-nitrile
STP	300-3um	D80-80mm	AA- DOE ( With Gaskets)	20-20"	E-epdm ; T-teflon (Encaptulated)
	500-5um		BF-222/ Seal	30-30"	V-vition
	1000-10um		CF-226/ Seal	40-40"
	2000-20um		YBP- 1" BSP Threaded	05-5"
			HBP- 1/2" BSP Threaded	Other-XX	How to Order?- Example
					STP; Micron:5um; Outer Dia.:60mm; Length:10"; Adapter:1"BSP; O-rings: Silicone
					Selection Code is: STP500D60YBP10S
