Medical high flow sintered porous UHMWPE PE filter element

Supplier: Dalon Machinery Co., Limited
Region: Zhejiang, China
Contact: Mr Frank Tang
Price: $0.20 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Hole shape:	round	payment terms:	L/C,Western Union,D/P,D/A,T/T,Paypal for small values
Applicable industries:	Food and beverage factories, farms, perfume industry	Filter level:	99.99%
type:	filter element	Core Components Warranty:	1 year
Supply capacity:	100 tons per month	Outer diameter:	12
thickness:	2mm	Marketing Type:	normal product
Outer Diameter Tolerance:	+/-0.2mm	Health status:	new
place of origin; place of origin:	Zhejiang, China	Identity Tolerance:	+/-0.2mm
Weight (kg):	0.5	Material:	Porous PE, plastic
Showroom location:	China	brand:	Darrow
width:	12mm	length:	36,36mm
Core components:	filter element	Packaging Details:	Products are packaged in polybags of up to 500 pieces or 5kg each, in cartons of up to 20kg each. Delivered in wooden packaging or iron cage/pallet upon request, standard size 800x800x1200; up to 800 kg
port:	any Chinese port	Removal particle size range:	1 micron
Mechanical test report:	if	the inside diameter of:	8
Warranty:	1.5 years	Packaging Preview:
After-sales service provided:	Provide overseas third-party support	Video external inspection:	if
usage:	liquid filter	Filter Type:	cup

Product Description

Medical high flow sintered porous UHMWPE PE filter element

DALON sintered plastic filters are made of PE powder. During the production of PE sintered filters, powder is gravity filled into molds to form strong, brittle parts. The pore size can be determined by the chosen power and applied pressure.
The final performance of the filter is affected by the shape, size and distribution of the powder.

detailed picture

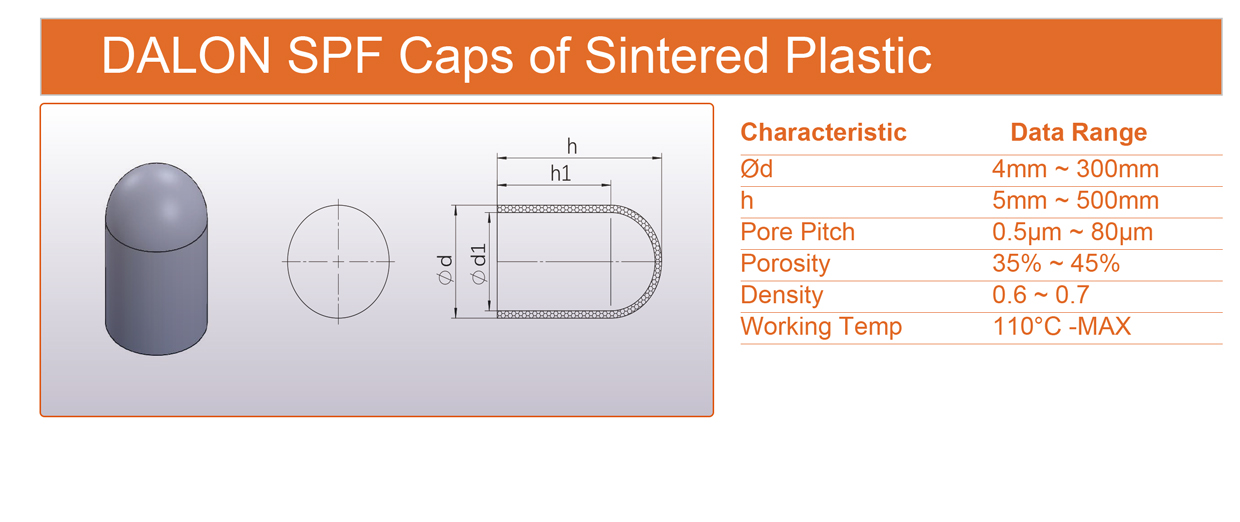

Specification

style	filter cover
Body material	Porous polyethylene
Outer diameter range	4~300mm
Thickness range	1~50mm
Hole spacing	0.5~80 microns
Porosity	35% ~ 45%
feature	Hydrophobic or hydrophilic
Operating temperature	110℃-MAX

DALON filter properties

* Shape is self-supporting structure, suitable for different high pressure.
* Particularly good performance under compression, vibration and changing conditions or with high sudden pressure peaks.
* High heat resistance and thermal stability.
* Defined permeability and filtration performance because pore size and distribution are precise and uniform.
* Backwash and easy cleaning by superheated steam or ultrasonic.
* Can weld and process a variety of metal materials.

Characteristics of DALON Filters
Filter level	Porosity	permeability coefficient			Pore size distribution			Shear strength
[microns]	[%]	[10^-12Meter²]	[10^-7Meter²]	[d_minute] Um	multifunction machine	[d_maximum] Um	[N/mm²]
8	29	2	52	8	11	twenty one	130
12	32	6	64	11	15	37	120
20	38	10	83	18	26	57	110
30	36	14	89	twenty one	31	61	100
45	37	43	144	30	47	101	90
60	41	50	202	31	53	147	90
80	42	114	282	37	72	175	80
100	42	127	406	48	98	220	70
120	40	230	633	65	125	280	60
150	44	248	643	68	140	305	40
200	48	463	1046	105	195	500	30
