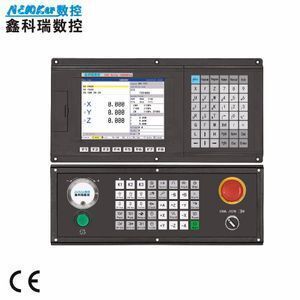

3 axis cnc control panel cnc control system NEW1000MDCa-3 fo

Product details
Speed:60m/min;Packaging Detail:1.Industrial packing(3 axis cnc control panel cnc control system): plastic bag +foam boxes+ carton +wooden pallets 2.Commercial packing: plastic bag+ foam boxes + carton 3.As the clients' requirement;
Function:PLC+ATC;Certification:CE;
Delivery Detail:Normally ready goods and stock within 1-3days;Dimension(L*W*H):412*205*125;
Payment Terms:L/C,T/T,Western Union,PayPal;Condition:New;
Port:56input 32output;Place of Origin:Sichuan China (Mainland);
Model Number:NEW1000MDca-3 axis;Brand Name:NEWKer-CNC;
Port:Any ports of China;Axis:3 axis cnc control unit control wood lathe machine;
Dimension for hole of subpanel:A,B type is 390*130 C type is 390*183;Dimension for hole:390*183;
Weight:10KG;User Store Room:128Mb;
Display:8 Inch Real Color LCD;Application:Milling Machine;
Supply Ability:10000 Set/Sets per Month 3 axis cnc control panel cnc control system;CPU:ARM(32bits)+DSP+FPGA;
Interface:USB+RS232 Communction Port;
Product Description

1.Product Name:3 axis cnc control panel cnc control system NEW1000MDCa-3 for milling machine
2. Axis:
3 axis cnc control panel cnc control system

3. For machine tools:Milling machine、Drilling machine、Boring machine、Grinding machine、Milling machining center

Products Show
System function
G code shows
Number of control shaft:
3 axis cnc control panel cnc control system(X、Y、Z)
Locate rapidly:
G00
The smallest programming:
0.001mm
Straight line interpolation:
G01
The most programming:
±99999.999mm
Arc interpolation:
G02/G03
The highest speed:
60m/min
Helix cutting:
G02/G03
Feed speed:
0.01~30m/min
Cycle of drilling deep hole with high speed
G73
Continuous manual:
one axis or multi axis at the same time
Cycle of point-point to drill hole
G81、G82
Line interpolation:
Straight line, arc, helix interpolation
Cycle of drilling hole with chip removal
G83
Cutter compensation:
length of the compensation、nose of tool compensation
Cycle of boring hole
G85、G86、G89
Spindle function:
gear、Double analog control、Rigid tapping
Cycle of tapping
G74、G84
Handwheel function:
panel、handheld
Cycle of program
G22、G800
Handwheel processing:
The handwheel processing function
Local cooridnate system
G52
Screen protection:
The screen protection function
Detect the instruction of skip:
G31、G311
Communication function:
RS232、Usb interface
Pole coordiante programme:
G15、G16
Compensation function:
Tool compensation、Space compensation、 Screw pitch compensation、Radius compensation
Metrical/Imperial programme:
G20、G21
Edit program:
Metric/Imperial、Relative/Absolute
Programming mode:
G90/G91
Limit function:
Soft limit、Hard limit
Processing plane:
G17、G18、G19
Preread function:
Preread 10000 short straight lines
Workpiece coordiante system:
G54~G59
Password protection:
Multilevel password protection
Length compensation of tool:
G43、G44、G49
Input/output:
I/O 56X32
Radius compensation of tool:
G45~G48
PLC programme:
All open PLC design
Tool radius C compensastion:
G40、G41、G42
Acceleration and deceleration control:
Staight line 、Index
Accurate locating/continuous path process:
G60/G64
Number of encoder:
Arbitrary set
Backing to start point of progarm:
G26、G261~G264
User macro program:
Have
Backing to the fixed point:
G25、G61、G60
Electrical gear function:
Have
Backing to the datum point:
G28、G281~G284
Subpanel:
A type with handwheel; B type with band switch; C with with both
Suspend:
G04
Application:
Milling machine、Drilling machine、Tapping machine、Grinding machine and some special heavy machine
Macro program:
G65、G66、G67
Auxiliary function:
S、M、T

Product features

★Adapt bus modbus technology, ARM + DSP + FPGA technology


★USB and RS232 port, DNC function of USB (NEW)

★Network remote technology and could diagnose the system online (NEW)

★User's storage is 128M and could be infinite number of program (NEW)

★Abosolute type of motor (17bits multi circle) controlling technology (NEW)

★The most moving rapid speed is 300m/min, processing speed reaches 0.01 ~ 30m/min (NEW)

★The cycle of interpolation is 2ms, controlling accuracy is 0.1um (NEW)

★All closed-loop with grating ruler control and the accuracy is <2um (NEW)

★Preread the short line program to satisfy with high speed engraving and cutting (NEW)

★Intelligent Man-Machine dialog interface (NEW)

Our Service

Our Seller

Name:JinHua Chen
Tel:13981709850
QQ:706983380
E-mail:706983380 @qq.com

Our Techinical Service

Name:GuangCan Liao
Tel:13550063039
QQ:357022449
E-mail:357022449 @qq.com

Our Customer Service

Name:Xin Liao
Tel:13548198210
QQ:461536982
E-mail:461536982 @qq.com

Our Company

Factory

Our Factory

Warehouse

Our Warehouse

Test Room

24 hours work in different tempreture and humidity

Reception

Our Reception

Packing & Delivery

1.Industrial packing(3 axis cnc control panel cnc control system): plastic bag +styrofoam+ carton +wooden pallets
2.Commercial packing: plastic bag+styrofoam+ carton
3.As the clients' requirement
Delivery Detail: Normally ready goods and stock within 1-3days

1. Special logistics packaging
2. Suitable carton size
3. Shock bubble film
4. Professional placement
5. Professional shock
6. Complete package
Our Certifications

Our product after strict many test and examine
Our purpose:
Make the most practical ideal CNC system
Casting the high-quality goods to service the world

Customer Photo

Our customer

Our customer is delivering the machines with our compelete set of system (Our system, our driver and our motor).

Our customer

Processing customer is using our set of system to reduce their manual work.

Our customer

Our customer is on an exhibition with our set of system and our mechanical hand to realize non-manual control.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: 100% in advance.
