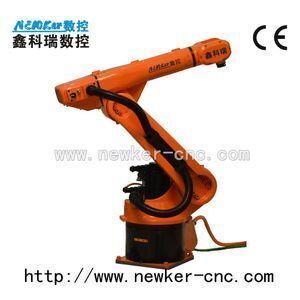

6 axis industrial robotic arm for TIG/MIG/MAG welding

Supplier: Chengdu Newker CNC-Technology Co., Ltd.
Region: Sichuan, China
Contact: Mr James Liao
Price: $10000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Function:	PLC+CNC+Teach;	Program:	Teach function, G code;
Port:	48input 32output;	Brand Name:	NEWKer-CNC;
Port:	Any ports of China;	Application:	Welding and Palletizing;
Axis:	6 axis;	Display:	8 Inch Real Color LCD;
CPU:	ARM(32bits)+DSP+FPGA;	Vertical Travel(mm):	350mm;
Elevation Speed:	1.5 m/s;	Horizonal Travel(mm):	1500mm;
Interface:	USB+RS232 Communction Port;	Application:	machine tool loading and unloading ,teaching, playing chess;
Dimension(LWH):	Optional;	Certification:	CE;
Model Number:	NewKer-i6;	Speed:	1.5m/s;
Power(W):	220V;	Place of Origin:	Sichuan China (Mainland);
Packaging Detail:	1.Industrial packing(6 axis industrial robotic arm for TIG/MIG/MAG welding): plastic bag +foam boxes+ carton +wooden pallets 2.Commercial packing: plastic bag+ foam boxes + carton 3.As the clients' requirement;	Warranty:	1 Year;
Payment Terms:	L/C,T/T,Western Union,PayPal;	User Store Room:	256Mb (Expand to 2G);
Weight:	56kg;	Condition:	New;
Delivery Detail:	Normally ready goods and stock within 1-3days;	After-sales Service Provided:	No overseas service provided;
Supply Ability:	10000 Set/Sets per Month 6 axis industrial welding robotic arm;

Product Description

1.Product Name：6 axis industrial robotic arm for TIG/MIG/MAG welding
2. Axis: 6 axis
3. Application: Material handling,Welding, palletizing, painting, tending,machine tool loading and unloading,teaching and other special robot arm

Products Show

Industrial Robot Series Parameters
Number of shaft：	6 axis （J1, J2, J3, J4, J5, J6, Xs, Ys）
Payload:	3kg
Repeadted Positioning Accuracy：	±0.05mm
Self Weight：	56kg
Installation Method:	Ground Mounted
Power Capacity:	1.1kw
Maximum Reach Distance:	800mm
Minimum Reach Distance:	190mm
Axis J1(turn)：	±170°
Axis J2(lower arm swinging)	﹣90°---﹢75°
Axis J3(uper arm swinging)	﹣90°---﹢90°
Axis J4(arm rotary)	±170°
Axis J5(wrist pitch)	±120°
Axis J6(wrist rotary)	±360°
Axis J1(turn)	190°/s
Axis J2(lower arm swinging)	225°/s
Axis J3(uper arm swinging)	270°/s
Axis J4(arm rotary)	270°/s
Axis J5(wrist pitch)	337°/s
Axis J6(wrist rotary)	420°/s
Synthetic arm tip speed：	1.5m/s
End flange：	solid
Can it be changed to 5 axis？	Yes
Main Application：	Material handling,palletizing,machine tool loading and unloading,teaching,playing chess

Product features

★ Never Crush the machine, the system with memorial function (Abosolute feature)

★ Needn't install hard limit in this 4-8 joint axis welding robot controller all kit and back to the zero point (Abosolute feature)

★ Use phone connect with controller by Wifi function, easier and more convenient to send program (NewKer feature)

★ G code program, only NewKer-CNC robot controller could work with G code program like cnc controller (NewKer feature)

★ Teach function with technics parameter, easier to operate (NewKer feature)

★ PLC and macro program are all opened (NewKer feature)

★ Only one cable come out from controller, easier to connect (Bus type feature)

★ Multilevel random password protection, more safety (NewKer feature)

Our Service

Our Seller

Name:JinHua Chen
Tel:13981709850
QQ:706983380
E-mail:706983380 @qq.com

Our Techinical Service

Name:GuangCan Liao
Tel:13550063039
QQ:357022449
E-mail:357022449 @qq.com

Our Customer Service

Name:Xin Liao
Tel:13548198210
QQ:461536982
E-mail:461536982 @qq.com

Our Company

Factory

Our Factory(6 axis industrial welding robotic arm offering reduced cycle times)

Warehouse

Our Warehouse

Test Room

24 hours work in different tempreture and humidity

Reception

Our Reception

Packing & Delivery

1.Industrial packing(6 axis industrial robotic arm for TIG/MIG/MAG welding): plastic bag +styrofoam+ carton +wooden pallets
2.Commercial packing: plastic bag+styrofoam+ carton
3.As the clients' requirement
Delivery Detail: Normally ready goods and stock within 1-3days

1. Special logistics packaging(6 axis industrial welding robotic arm offering reduced cycle times)

2. Suitable carton size

3. Shock bubble film

4. Professional placement

5. Professional shock

6. Complete package

Our Certifications

Our product after strict many test and examine
Our purpose:
Make the most practical ideal CNC system
Casting the high-quality goods to service the world

Customer Photo

Our customer

Our customer is using our set of controller kit to control welding robot arm (6 axis industrial welding robotic arm offering reduced cycle times).

Our customer

Our customer is using our set of controller kit to control palletizing robot arm (6 axis industrial welding robotic arm offering reduced cycle times).
