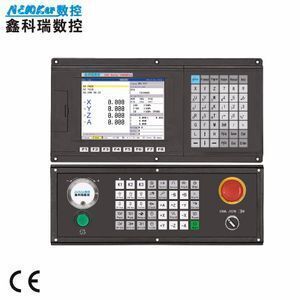

Delta cnc controller NEW1000MDCa 4 axis milling cnc system / controller

Supplier: Chengdu Newker CNC-Technology Co., Ltd.
Region: Sichuan, China
Contact: Mr James Liao
Price: $400.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Application:	Milling Machine;	Packaging Detail:	1.Industrial packing(Delta cnc controller NEW1000MDCa 4 axis milling cnc system / controller): plastic bag +foam boxes+ carton +wooden pallets 2.Commercial packing: plastic bag+ foam boxes + carton 3.As the clients' requirement;
Dimension for hole:	390*183;	Supply Ability:	10000 Set/Sets per Month 4 axis milling cnc system / controller;
Brand Name:	NEWKer-CNC;	Axis:	4 axis;
Function:	PLC+ATC;	Interface:	USB+RS232 Communction Port;
Display:	8 Inch Real Color LCD;	Port:	56input 32output;
Port:	Any ports of China;	Weight:	10KG;
Certification:	CE;	Dimension(LWH):	412205125;
CPU:	ARM(32bits)+DSP+FPGA;	Model Number:	NEW1000MDca-4 axis;
User Store Room:	128Mb;	Condition:	New;
Place of Origin:	Sichuan China (Mainland);	Speed:	60m/min;
Delivery Detail:	Normally ready goods and stock within 1-3days;	Dimension for hole of subpanel:	A,B type is 390130 C type is 390183;
Payment Terms:	L/C,T/T,Western Union,PayPal;

Product Description

1.Product Name：Delta cnc controller NEW1000MDCa 4 axis milling cnc system / controller
2. Axis: 4 axis
3. For machine tools：Milling machine、Drilling machine、Boring machine、Grinding machine、Milling machining center

Products Show

System function		G code shows
Number of control shaft：	4 axis （X、Y、Z、A）	Locate rapidly：	G00
The smallest programming：	0.001mm	Straight line interpolation：	G01
The most programming：	±99999.999mm	Arc interpolation：	G02/G03
The highest speed：	60m/min	Helix cutting：	G02/G03
Feed speed：	0.01～30m/min	Cycle of drilling deep hole with high speed	G73
Continuous manual：	one axis or multi axis at the same time	Cycle of point-point to drill hole	G81、G82
Line interpolation：	Straight line, arc, helix interpolation	Cycle of drilling hole with chip removal	G83
Cutter compensation：	length of the compensation、nose of tool compensation	Cycle of boring hole	G85、G86、G89
Spindle function：	gear、Double analog control、Rigid tapping	Cycle of tapping	G74、G84
Handwheel function：	panel、handheld	Cycle of program	G22、G800
Handwheel processing：	The handwheel processing function	Local cooridnate system	G52
Screen protection：	The screen protection function	Detect the instruction of skip：	G31、G311
Communication function：	RS232、Usb interface	Pole coordiante programme：	G15、G16
Compensation function：	Tool compensation、Space compensation、 Screw pitch compensation、Radius compensation	Metrical/Imperial programme：	G20、G21
Edit program：	Metric/Imperial、Relative/Absolute	Programming mode：	G90/G91
Limit function：	Soft limit、Hard limit	Processing plane：	G17、G18、G19
Preread function：	Preread 10000 short straight lines	Workpiece coordiante system：	G54~G59
Password protection：	Multilevel password protection	Length compensation of tool：	G43、G44、G49
Input/output：	I/O 56X32	Radius compensation of tool：	G45~G48
PLC programme:	All open PLC design	Tool radius C compensastion：	G40、G41、G42
Acceleration and deceleration control：	Staight line 、Index	Accurate locating/continuous path process：	G60/G64
Number of encoder：	Arbitrary set	Backing to start point of progarm：	G26、G261~G264
User macro program：	Have	Backing to the fixed point：	G25、G61、G60
Electrical gear function：	Have	Backing to the datum point：	G28、G281~G284
Subpanel：	A type with handwheel; B type with band switch; C with with both	Suspend：	G04
Application：	Milling machine、Drilling machine、Tapping machine、Grinding machine and some special heavy machine	Macro program：	G65、G66、G67
		Auxiliary function：	S、M、T

Product features

★Adapt bus modbus technology, ARM + DSP + FPGA technology

★USB and RS232 port, DNC function of USB (NEW)

★Network remote technology and could diagnose the system online (NEW)

★User's storage is 128M and could be infinite number of program (NEW)

★Abosolute type of motor (17bits multi circle) controlling technology (NEW)

★The most moving rapid speed is 300m/min, processing speed reaches 0.01 ~ 30m/min (NEW)

★The cycle of interpolation is 2ms, controlling accuracy is 0.1um (NEW)

★All closed-loop with grating ruler control and the accuracy is <2um (NEW)

★Preread the short line program to satisfy with high speed engraving and cutting (NEW)

★Intelligent Man-Machine dialog interface (NEW)

Our Service

Our Seller

Name:JinHua Chen
Tel:13981709850
QQ:706983380
E-mail:706983380 @qq.com

Our Techinical Service

Name:GuangCan Liao
Tel:13550063039
QQ:357022449
E-mail:357022449 @qq.com

Our Customer Service

Name:Xin Liao
Tel:13548198210
QQ:461536982
E-mail:461536982 @qq.com

Our Company

Factory

Our Factory(Delta cnc controller NEW1000MDCa 4 axis milling cnc system / controller)

Warehouse

Our Warehouse

Test Room

24 hours work in different tempreture and humidity

Reception

Our Reception

Packing & Delivery

1.Industrial packing(Delta cnc controller NEW1000MDCa 4 axis milling cnc system / controller): plastic bag +styrofoam+ carton +wooden pallets
2.Commercial packing: plastic bag+styrofoam+ carton
3.As the clients' requirement
Delivery Detail: Normally ready goods and stock within 1-3days

1. Special logistics packaging(Delta cnc controller NEW1000MDCa 4 axis milling cnc system / controller)

2. Suitable carton size

3. Shock bubble film

4. Professional placement

5. Professional shock

6. Complete package

Our Certifications

Our product after strict many test and examine
Our purpose:
Make the most practical ideal CNC system
Casting the high-quality goods to service the world

Customer Photo

Our customer

Our customer is delivering the machines with our compelete set of system (Delta cnc controller NEW1000MDCa 4 axis milling cnc system / controller).

Our customer

Processing customer is using our set of system to reduce their manual work.(Delta cnc controller NEW1000MDCa 4 axis milling cnc system / controller)

Our customer

Our customer is on an exhibition with our set of system and our mechanical hand to realize non-manual control.(Delta cnc controller NEW1000MDCa 4 axis milling cnc system / controller)
