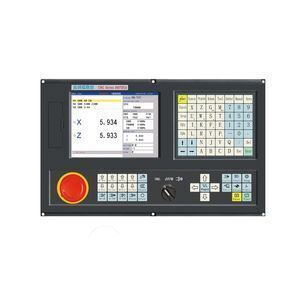

Delta Cnc control unit 2 axis NEW990TDca-2 turning lathe controller

Supplier: Chengdu Newker CNC-Technology Co., Ltd.
Region: Sichuan, China
Contact: Mr James Liao
Price: $360.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Local Service Location:	None;	Interface:	USB+RS232 Communction Port;
Dimension(LWH):	400245125;	Application:	Lathe and Turning Center;
After-sales Service Provided:	Online support;	Function:	PLC+ATC;
Package Preview:	;	Certification:	CE;
Program:	User Macro Program;	Dimension for hole:	380*226;
User Store Room:	128Mb;	Warranty:	1 YEAR;
Condition:	New;	Showroom Location:	None;
Place of Origin:	Sichuan China;	Display:	8 Inch Real Color LCD;
Port:	24input 24output;	Applicable Industries:	Machinery Repair Shops,Manufacturing Plant;
Speed:	30m/min;	Port:	guangzhou;
Supply Ability:	10000 Set/Sets per Month 2 axis Delta Cnc control unit;	CPU:	ARM(32bits)+DSP+FPGA;
Brand Name:	NEWker-cnc 2 axis Delta Cnc control unit;	Packaging Detail:	1.Industrial packing( 2 axis Delta Cnc control unit ): plastic bag +styrofoam+ carton +wooden pallets 2.Commercial packing: plastic bag+styrofoam+ carton 3.As the clients' requirement;
After Warranty Service:	Video technical support,Online support;	Axis:	2 axis cnc Delta Cnc control unit;
Payment Terms:	L/C,T/T,Western Union,Paypal;	Weight:	10KG;

poster

Product

Product features

Adapt bus modbus technology, ARM + DSP + FPGA technology

USB and RS232 port, DNC function of USB (NEW)

Network remote technology and could diagnose the system online (NEW)

User's storage is 128M and could be infinite number of program (NEW)

Abosolute type of motor (17bits multi circle) controlling technology (NEW)

The most moving rapid speed is 300m/min, processing speed reaches 0.01 ~ 30m/min (NEW)

The cycle of interpolation is 2ms, controlling accuracy is 0.1um (NEW)

All closed-loop with grating ruler control and the accuracy is <2um (NEW)

Preread the short line program to satisfy with high speed engraving and cutting (NEW)

Intelligent Man-Machine dialog interface (NEW)

Product application
