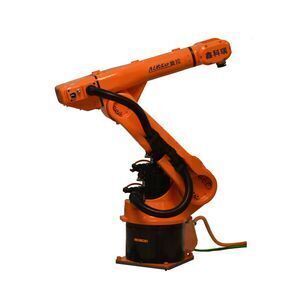

NEWKer stable and high quality 6 axis palletizing Industrial robot arm for loading and unloading support many playloads

Click here to contact
Product details
Local Service Location:None;Packaging Detail:1.Industrial packing(Industrial robotic arm 6 axis for palletizing): plastic bag +foam boxes+ carton +wooden pallets 2.Commercial packing: plastic bag+ foam boxes + carton 3.As the clients' requirement;
CPU:ARM(32bits)+DSP+FPGA;User Store Room:256Mb (Expand to 2G);
Program:Teach function, G code;Application:machine tool loading and unloading ,teaching, playing chess;
After Warranty Service:Video technical support,Online support;Port:48input 32output;
Dimension(L*W*H):optional;Certification:CE;
Power:220v;Vertical Travel(mm):350mm;
Function:PLC+CNC+Teach;Machinery Test Report:Provided;
Speed:1.5m/s;Brand Name:NEWKer;
Condition:New;Warranty:1 Year;
Horizonal Travel(mm):1500mm;Video outgoing-inspection:Provided;
Marketing Type:Ordinary Product;Payment Terms:L/C,T/T,Western Union;
After-sales Service Provided:Online support;Applicable Industries:Manufacturing Plant,Machinery Repair Shops;
Supply Ability:10000 Set/Sets per Month Industrial robotic arm 6 axis for palletizing;Interface:USB+RS232 Communction Port;
Package Preview:;Display:8 Inch Real Color LCD;
Port:Any ports of China;Core Components:PLC;
Showroom Location:None;Weight:56kg;
Warranty of core components:1 Year;Place of Origin:Sichuan China;
poster



Product





Product details: NEWKer stable and high quality 6 axis palletizing Industrial robot arm for loading

and unloading support many playloads





Parameter details:

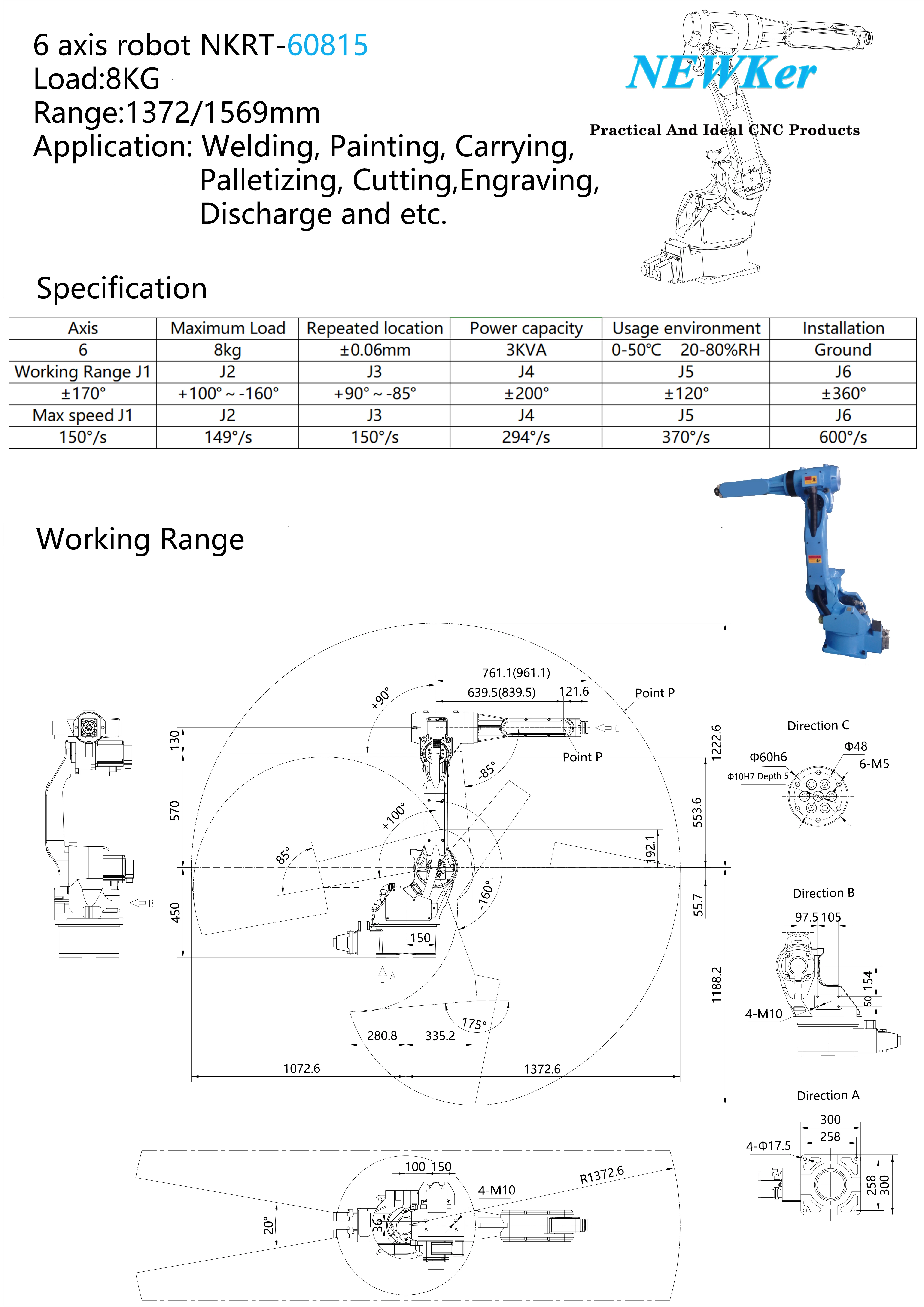

Model NKRT-60815
Axis Maximum Load Repeated location Power capacity Usage environment Installation
6 8kg ±0.06mm 3KVA 0-50℃    20-80%RH Ground
Working Range J1 J2 J3 J4 J5 J6
±170° +100°~-160° +90°~-85° ±200° ±120° ±360°
Max speed J1 J2 J3 J4 J5 J6
150°/s 149°/s 150°/s 294°/s 370°/s 600°/s


Model NKRT-62017
Axis Maximum Load Repeated location Power capacity Usage environment Installation
6 20kg ±0.06mm 5.5KVA 0-50℃    20-80%RH Ground
Working Range J1 J2 J3 J4 J5 J6
±170° +110°~-145° +205°~-80° ±200° ±140° ±360°
Max speed J1 J2 J3 J4 J5 J6
162°/s 112°/s 150°/s 294°/s 300°/s 566°/s


Model NKRT-65021
Axis Maximum Load Repeated location Power capacity Usage environment Installation
6 50kg ±0.06mm 11KVA 0-50℃    20-80%RH Ground
Working Range J1 J2 J3 J4 J5 J6
±170° -96°~-145° +140°~-80° ±200° ±125° ±360°
Max speed J1 J2 J3 J4 J5 J6
133.5°/s 97.8°/s 105.9°/s 205.7°/s 165.3°/s 247.9°/s


Model NKRT-40814
Axis Maximum Load Repeated location Power capacity Usage environment Installation
4 8kg ±0.08mm 2.5KVA 0-50℃    20-80%RH Ground
Working Range J1 J2 J3 J4 J5 J6
±170° +78°~-38° +10°~-90° ±360°
Max speed J1 J2 J3 J4 J5 J6
150°/s 149°/s 225°/s 375°/s


Model NKRT-42017
Axis Maximum Load Repeated location Power capacity Usage environment Installation
4 20kg ±0.08mm 3.8KVA 0-50℃    20-80%RH Ground
Working Range J1 J2 J3 J4 J5 J6
±170° +85°~-40° +20°~-90° ±360°
Max speed J1 J2 J3 J4 J5 J6
150°/s 149°/s 150°/s 297.5°/s
