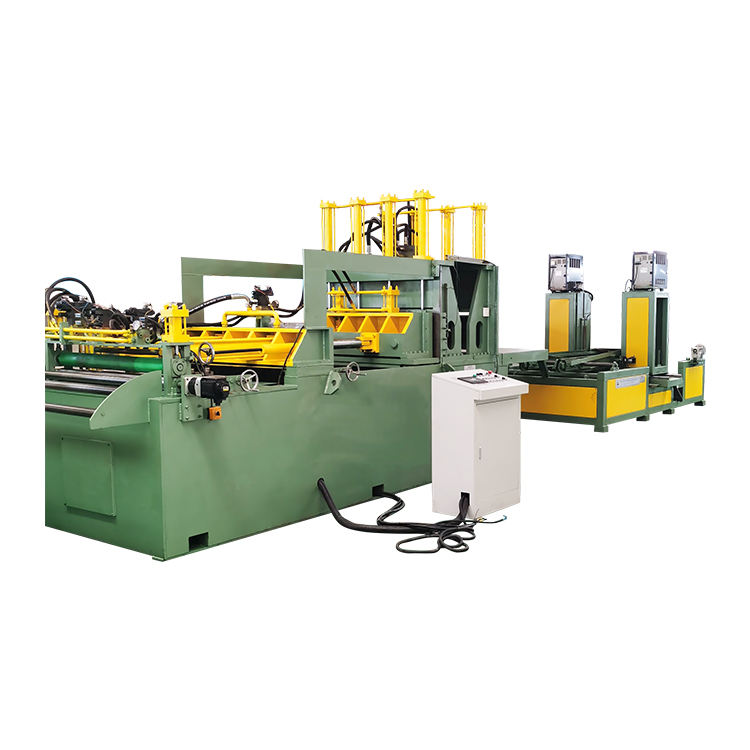

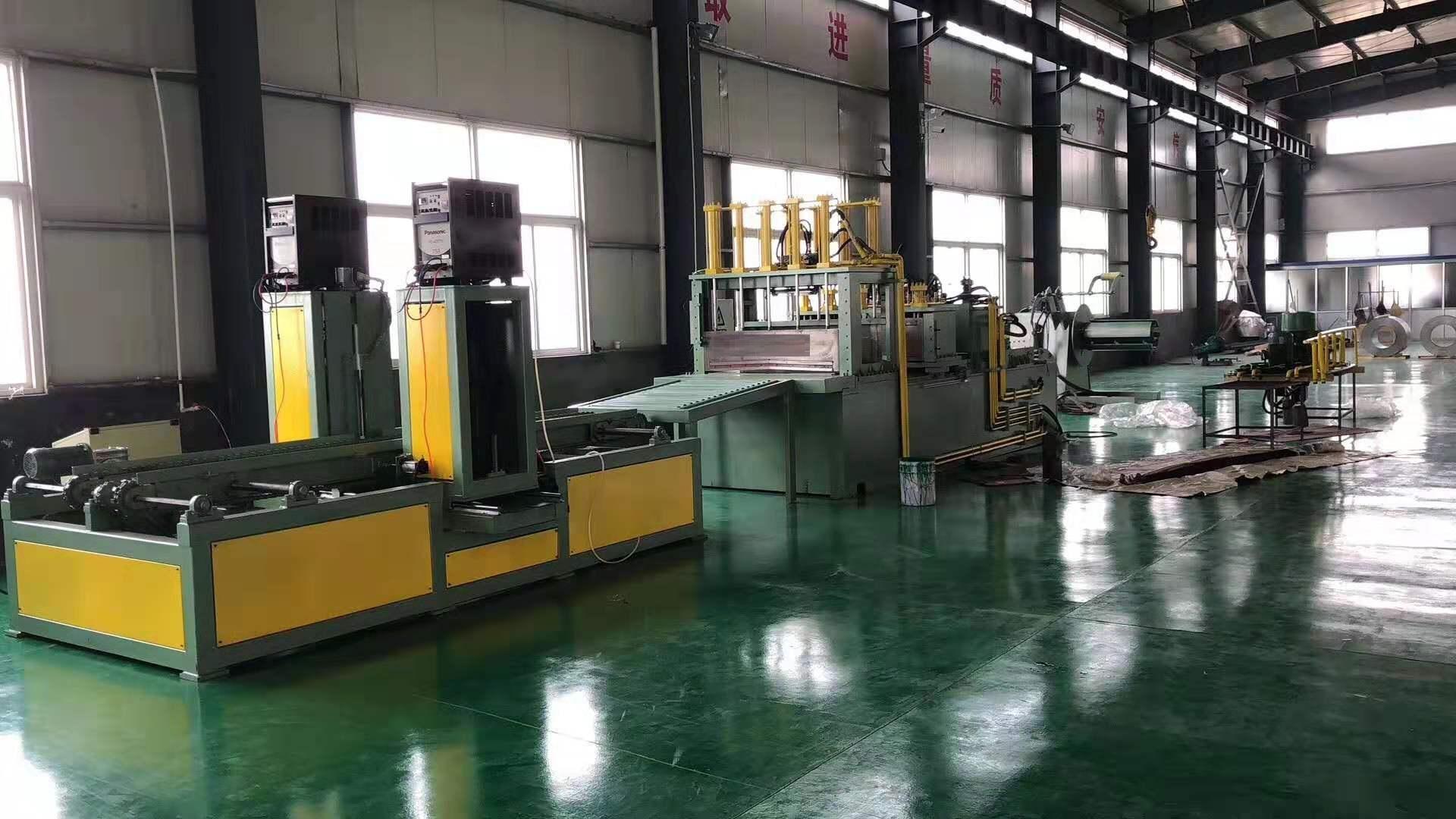

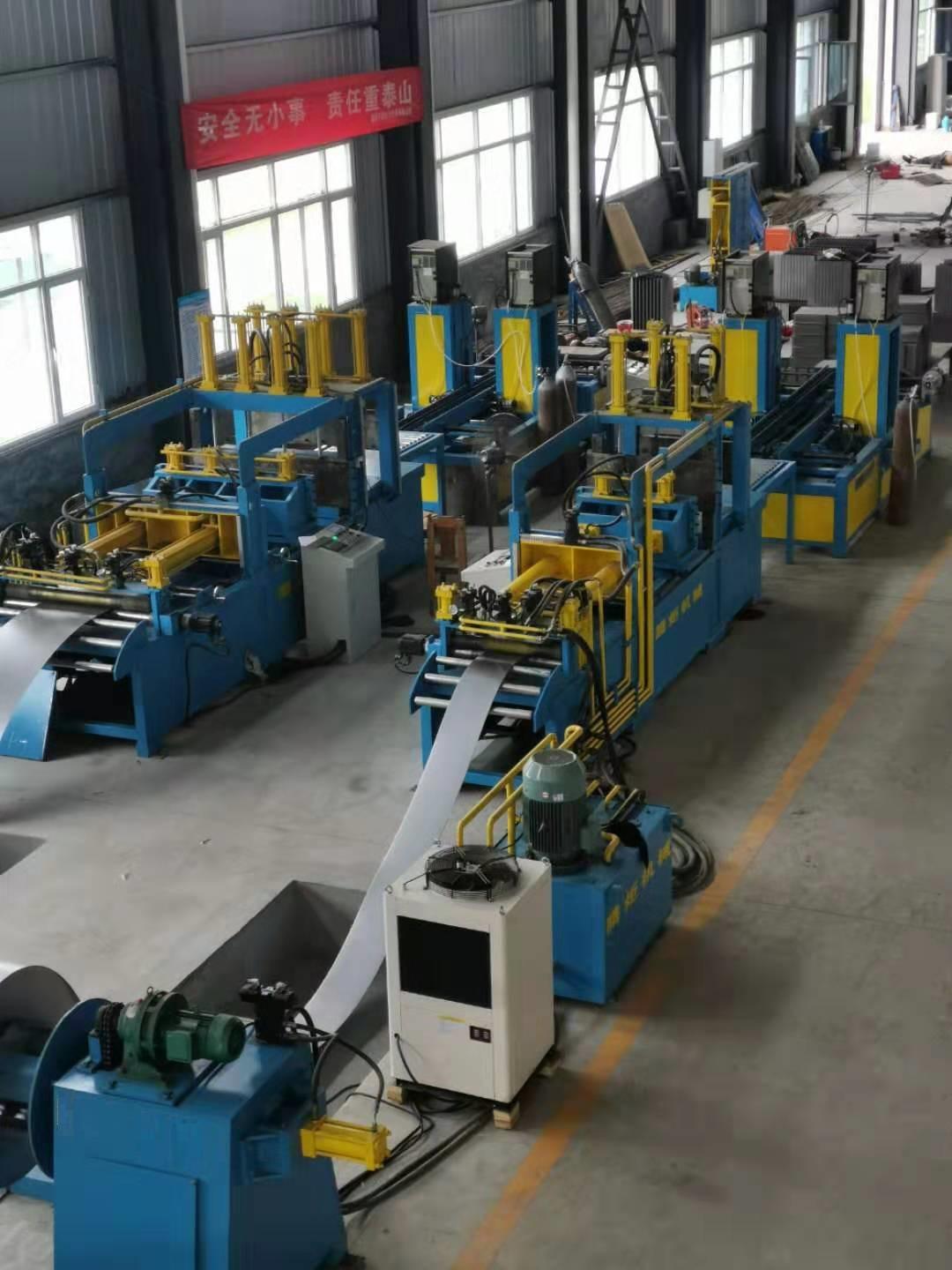

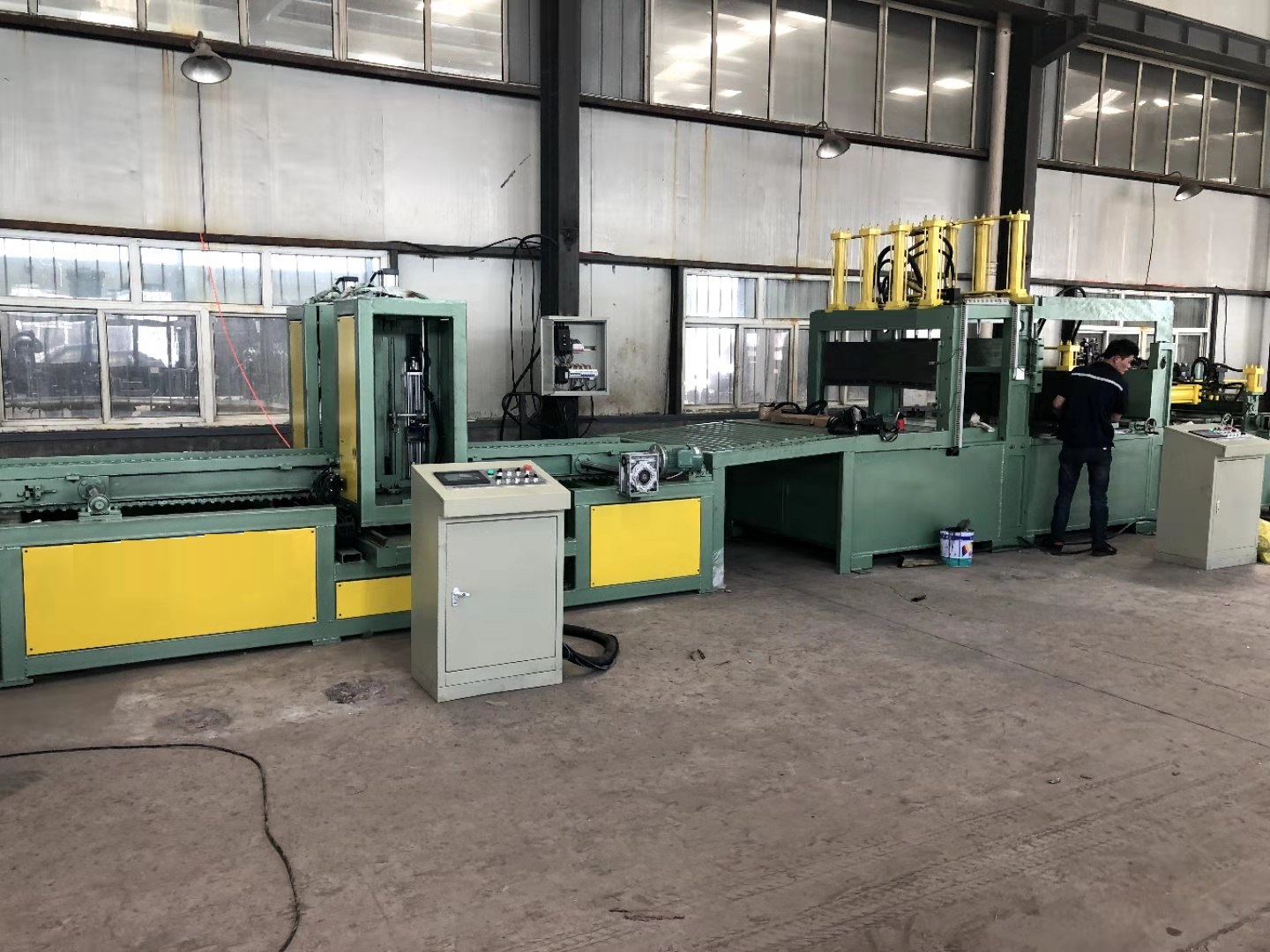

Transformer radiator forming welding line, transformer oil tank corrugated fin forming welding line

Supplier: Shanghai Orinno International Business Co., Ltd.
Region: Shanghai, China
Contact: Mr Titan Ding
Price: $20000.00 / 1 - 9 sets
$15000.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Showroom location:	not any	Main selling points:	automatic
Mechanical test report:	if	Origin:	China Shanghai
Core components:	motors, pressure vessels	application:	Transformer oil tank corrugated fin production
After-sales service provided:	online support	feature:	fully automatic process
Supply capacity:	50 sets per month	size:	1200 200 260CM
Total weight (T):	10	Video shipment inspection:	if
product name:	Transformer oil tank corrugated fin forming welding line	Marketing Type:	normal product
Certification:	International Organization for Standardization	port:	Shanghai
Core component warranty:	1 year	Health status:	new
color:	blue green or customized	Material:	mild steel
Applicable industries:	Mechanical repair shop, manufacturing plant	Warranty:	1 year
brand:	Olino

Product Description

project	data
Corrugated plate width	1300,1600mm or customized
Steel plate thickness	1～2mm
Ripple height	400mm or customized
Corrugation pitch t	min 40mm±0.2 or customized
Forming speed	3 tablets per minute
cutting burr	<0.02mm
Uncoiler loading capacity	1000KG

machine composition

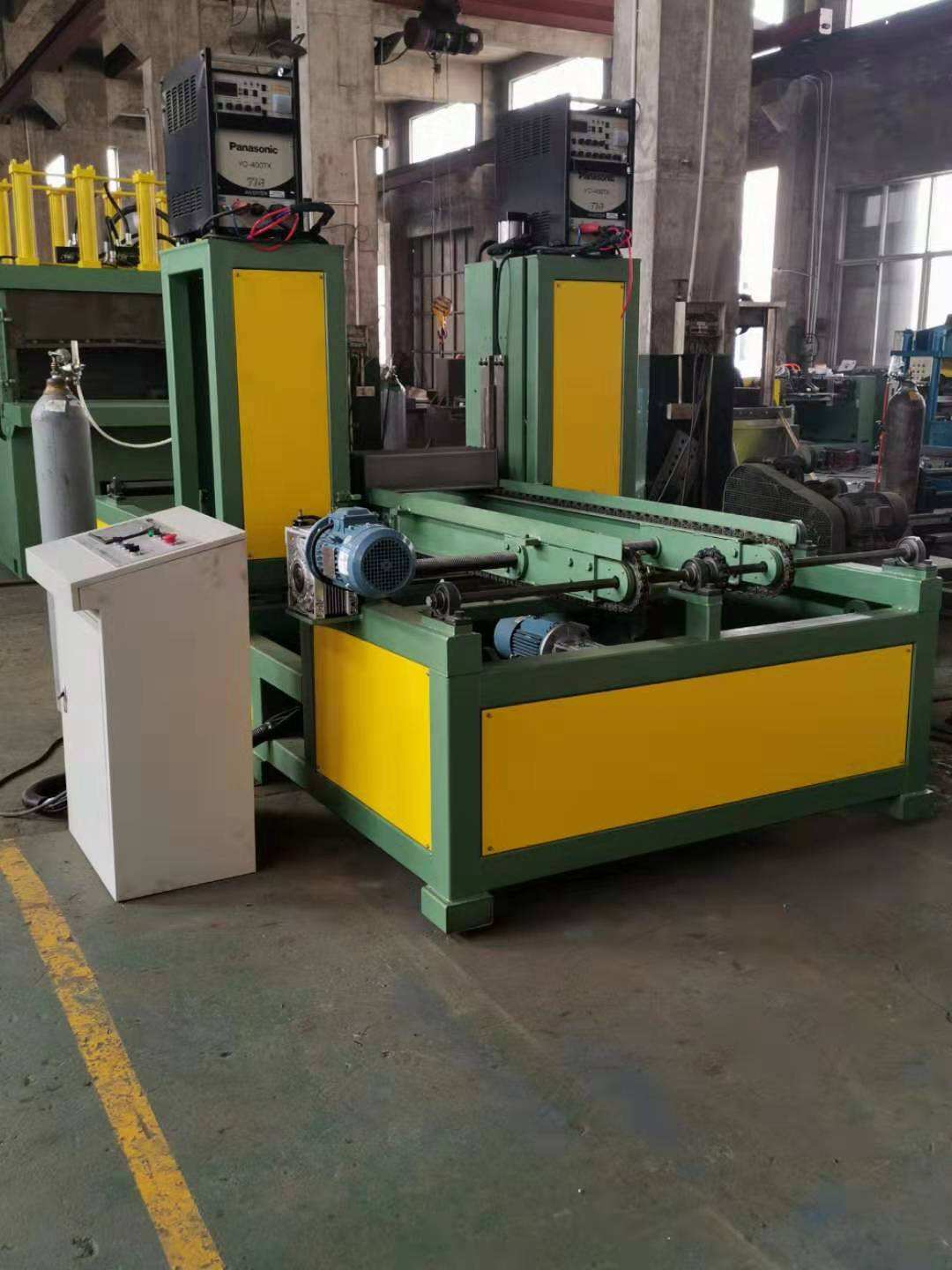

Consists of 2 main machines 1. Uncoiler and folding machine for forming fins and cutting panels to desired length 2. Machine for welding side edges

main features

1. Automatic production process 2. Touch screen operation, convenient panel data programming, simple control 3. Powerful hydraulic system 4. Stable welding quality

application

For the production of embossed corrugated plates for transformer oil tanks
