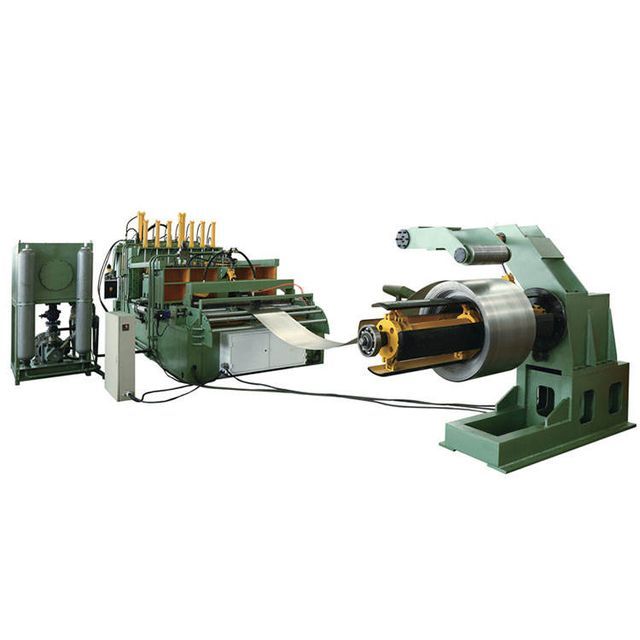

BW1600 transformer corrugated fin forming machine manufacturer
- 80000.00 set
| payment terms: | L/C, T/T, Negotiable | Board width: | 300-1600mm |
| Packaging Details: | Seaworthy packaging, a 40ft container | Warranty: | 1 year |
| color: | depends on customer needs | Bending height: | 20mm |
| Origin: | Jiangsu, China | Supply capacity: | 5 sets per quarter |
| Ripple height: | 50-400mm | After-sales service provided: | Free spare parts, online support, on-site installation, commissioning and training, engineers can provide overseas service machinery |
| brand: | Zemu | Forming speed: | 3-6 tablets/min |
| Sheet thickness: | 0.5-1.75mm | Fin clearance: | 6mm |
| Ripple pitch: | >=45mm | port: | Shanghai |
1. Mechanical description of BW1600 corrugated radiator fins
1) Including material guide, feeding, front bag, back bag, folding,
Shearing and parts collection.
2) The hydraulic system is automatically controlled and runs smoothly.
3) Man-machine interface computer dialogue display, reasonable structure, convenient operation, labor-saving
(1~2 jobs).
4) Input all operations at one time, and complete the forming, cutting and hemming process at one time
Parameters on the computer unit.
2. Mechanical parts of BW1600 corrugated radiator fins
1) Hydraulic automatic uncoiler
2) Corrugated Radiator Fin Forming Machine
3) Hydraulic corrugated radiator fin cutting and bending machine
4) Transformer corrugated radiator fin automatic welding machine
5) Hydraulic station
6) PLC control system
3. Mechanical characteristics of BW1600 corrugated radiator fins
1) Specially designed for forming and welding transformer fins.
2) PLC control, fully automatic line: automatic conveying, clamping, welding.
3) Touch screen control, easy to operate.
4) High-speed welding, much faster than manual welding.
5) Argon arc welding, the welding is tight and the surface is very smooth.
4. Mechanical parameters of BW1600 corrugated radiator fins
thing | parameter |
Board width | 300mm-1600mm |
Sheet thickness | 0.5mm-1.75mm |
Ripple height | 50mm-400mm |
Corrugation pitch | >=45mm |
bending height | 20mm |
Forming speed | 3-4 tablets/min |
Motor total power | 40KW |
warranty period | twelve months |
This line is hot! And welcome to visit our factory to see its running performance!
This is our customer's machine in Vietnam
