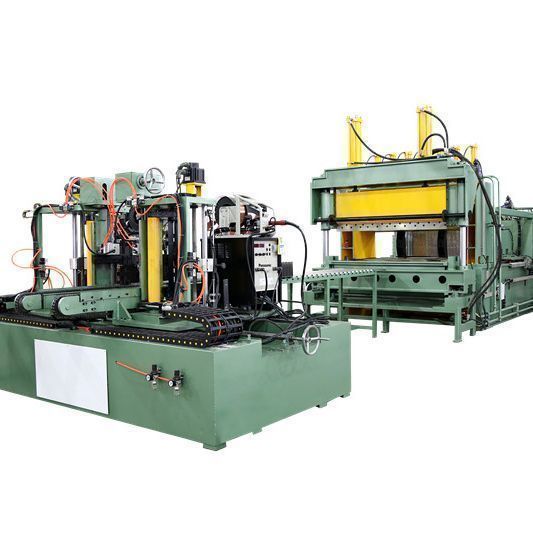

Distribution Transformer Corrugated Fin Forming Machine
-
Supplier: Changzhou Zemu Machinery Technology Co., Ltd. -
Region: Jiangsu, China -
Contact: Mr wenbo zhang -
Price: $50000.00 /set -
Min. Order: 1 set
| place of origin; place of origin: | Jiangsu, China | Fin Clearance: | 6mm |
| Corrugation Spacing: | >=45mm | payment terms: | L/C,T/T,Negotiable |
| Forming speed: | 3-4 fins/min | brand: | Sawagi |
| Packaging Details: | Standard packing or sea packing | color: | As for customer requirements |
| Health status: | new | port: | Shanghai |
| Hemming height: | 20mm | Fin width: | 300-1600mm |
| Supply capacity: | 3 sets per month | model. : | BW1300B |
| After-sales service provided: | Engineers can repair machinery overseas | Ripple height: | 50mm-400mm |

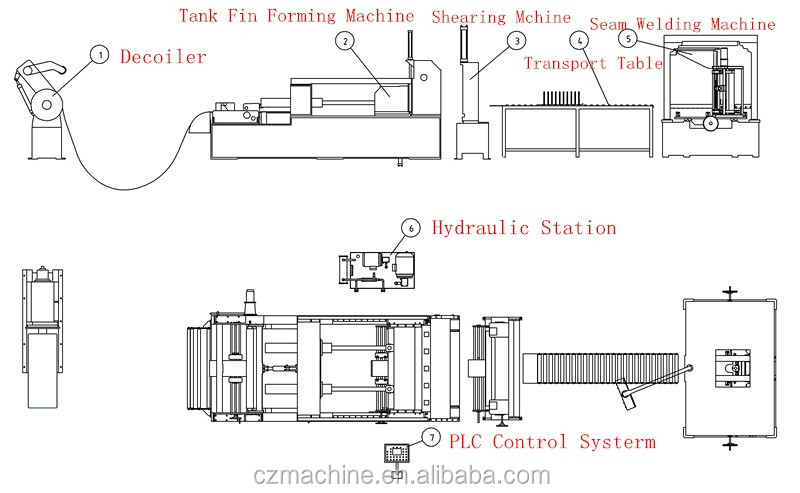

1. Mainframe of distribution transformer corrugated fin forming machine
1) Hydraulic automatic uncoiler

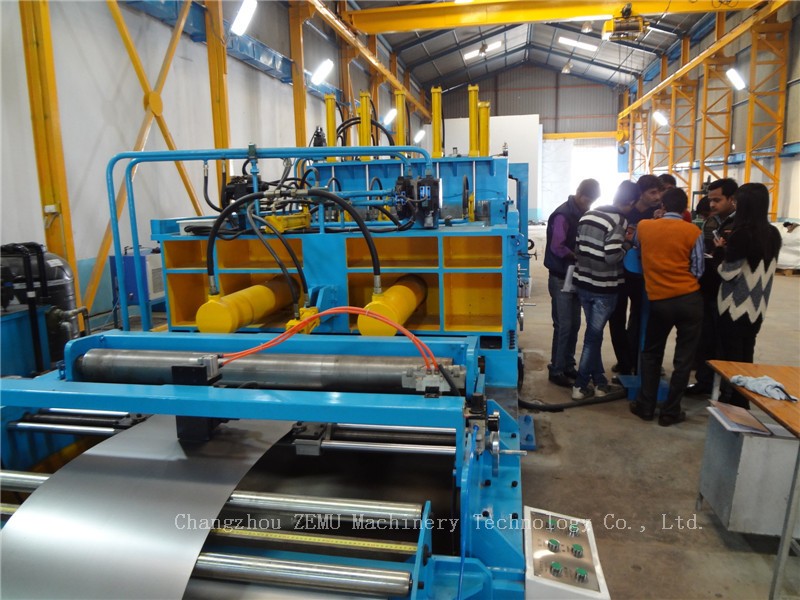

2) Transformer corrugated fin forming machine
3) Hydraulic automatic shearing machine

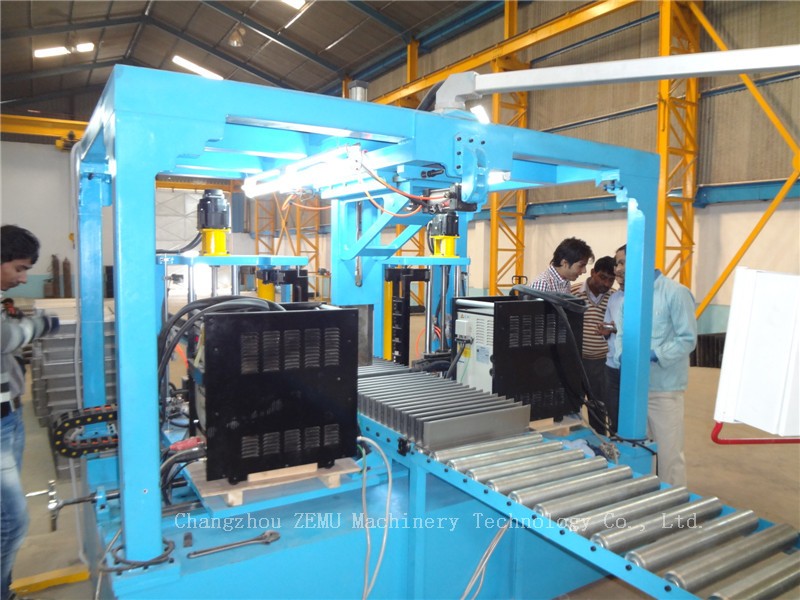

4) Corrugated fin automatic welding machine
5) Hydraulic station
6) PLC control system
2. Features

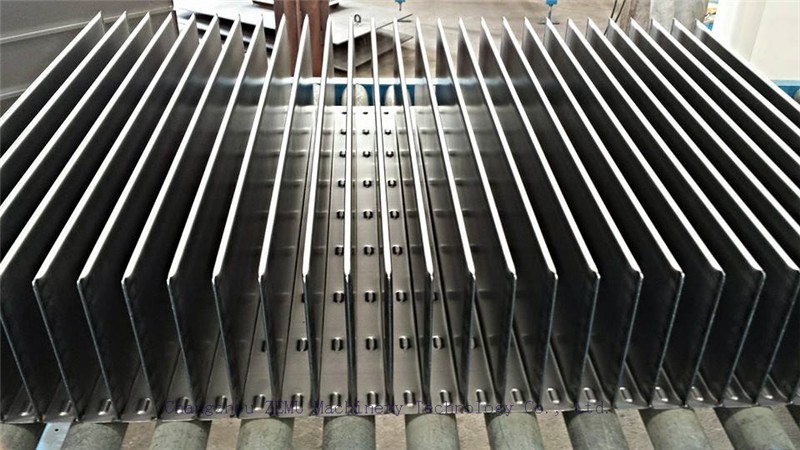

1) Designed for forming and welding transformer corrugated fins.
2) PLC control, fully automatic line: automatic conveying, clamping and welding.
3) Touch screen control, easy to operate.
4) High-speed welding, much faster than manual welding.
5) TIG welding, the welding is tight and the surface is very clean and smooth.
6) Warranty period: twelve months
7) Cooperative customers: Japan's Komatsu, Second Automobile, Shanghai GM, etc.
3. General Instructions

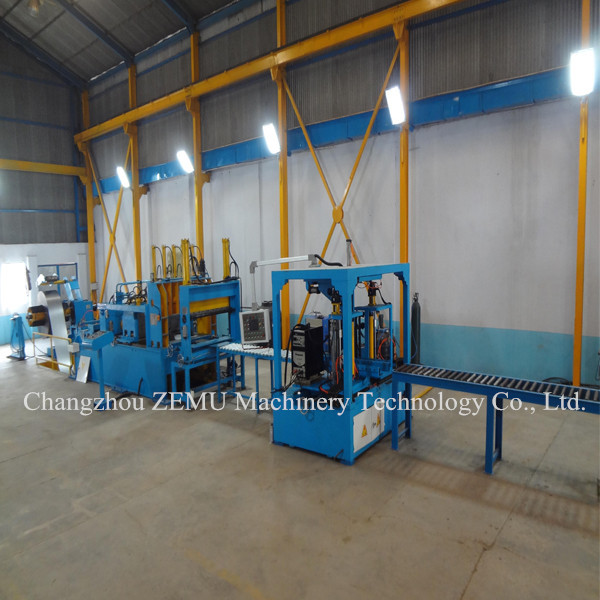

BW1300A Transformer Corrugated Radiator Production Line
1) including material guidance,When you enter all operating parameters on the computer unit, one fold.
2)The hydraulic system is automatically controlled and runs smoothly.
3) Human-machine interface computer dialogue display, reasonable structure, convenient operation, saving labor (1~2 labor).
4) Input all operating parameters on the computer unit to complete the process of forming, cutting and folding at one time
5) Since the use of this machine, it has been proved by the transformer manufacturer that the performance is durable, the quality is reliable, and the efficiency is high..
4. Technical data of BW1300 transformer corrugated cooling fin production line
parameter | |
board width | 300mm-1300mm |
plate thickness | 0.5mm-1.75mm |
corrugation height | 50mm-400mm |
corrugation spacing | >=45mm |
hemming height | 20mm |
Forming speed | 3-4 fins/min |
total motor power | 40KW |
gross weight | 20T |
model. | BW_1300A |
|

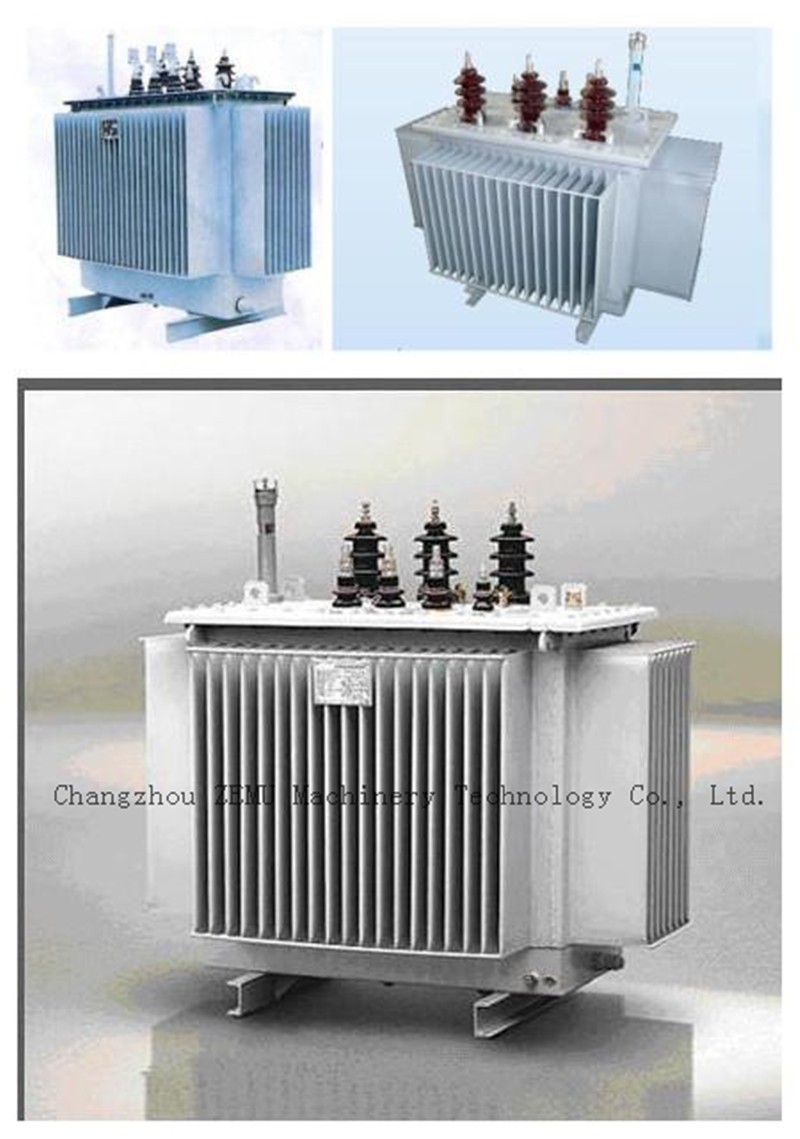

Zemu is a transformer machinery manufacturer of high quality transformer products in China. We can provide transformers
Oil tank machine, transformer radiator rolling machine, welding machine, transformer corrugated oil tank, etc.
other transformer machines.
If you are not sure which machine is best for your needs, our technical department will be happy to assist you
Advise you on the best machine type for your requirements.
Our service scope:
* Transformer corrugated fin production line (fin folding & automatic welding)
* Transformer spot welder for fin embossing
* Transformer pressed steel radiator production line (roll forming and radiator model making)
* Transformer tank assembly manipulator
* Transformer tank vertical bending machine
Quality is our culture. All machines are tested for safety and performance under extreme conditions.
The whole line is based on the overall welding, the material is uniform, and the strength and precision are well guaranteed. It is easy to operate, and the entire production line only needs 2 people to operate, which greatly reduces labor time and labor intensity.
-
