Automatic Transformer Coil Winding Machine, Transformer Coil Machine, Transformer Machine
- 2000.00 1 - 4 sets
- 1500.00 >=5 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| port: | Shanghai Port | Center Height (mm): | 800 mm |
| Warranty: | 5+ years | Coil Type: | round |
| Main selling point: | automatic | After Warranty Service: | no signal |
| Weight (kg): | 2000 | maximum. Load (kg): | 2000kg |
| After-sales service provided: | Engineers can go overseas to service machinery, on-site maintenance and repair services, on-site installation, commissioning and training, video technical support, online support, free spare parts | Maximum Transformer Capacity (kVA): | 10000 kVA |
| Applicable industries: | manufacturing plant | Core components: | engine |
| Certification: | EU standard | Shaft length (mm): | 1000 mm |
| Video external inspection: | if | Mechanical test report: | if |
| Core Components Warranty: | 1 year | Marketing Type: | normal product |
| place of origin; place of origin: | China Shanghai | Local service location: | not any |
| Showroom location: | not any | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| CNC or not: | CNC | brand: | Orino |
| Health status: | new |
Product Description
project | data |
Winding height | 800mm or customized |
Winding diameter | 600mm or customized |
Winding speed | 400 rpm |
main motor power | 4.5KW or customized |
Round wire diameter | maximum. 5mm |
flat wire | 4*15mm |
Layer insulation width | 800mm or customized |
More products<<<

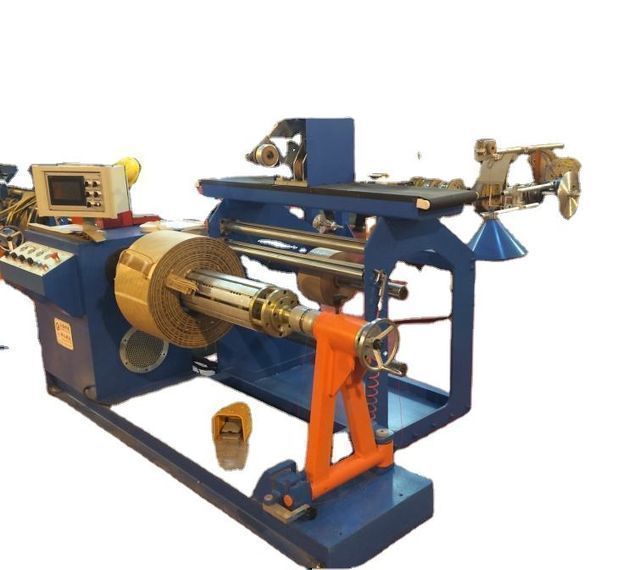

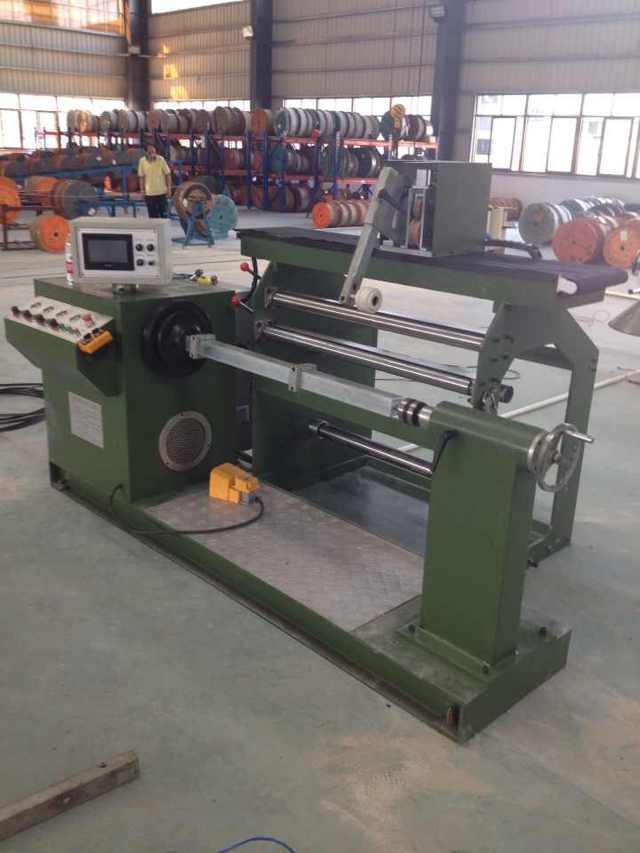

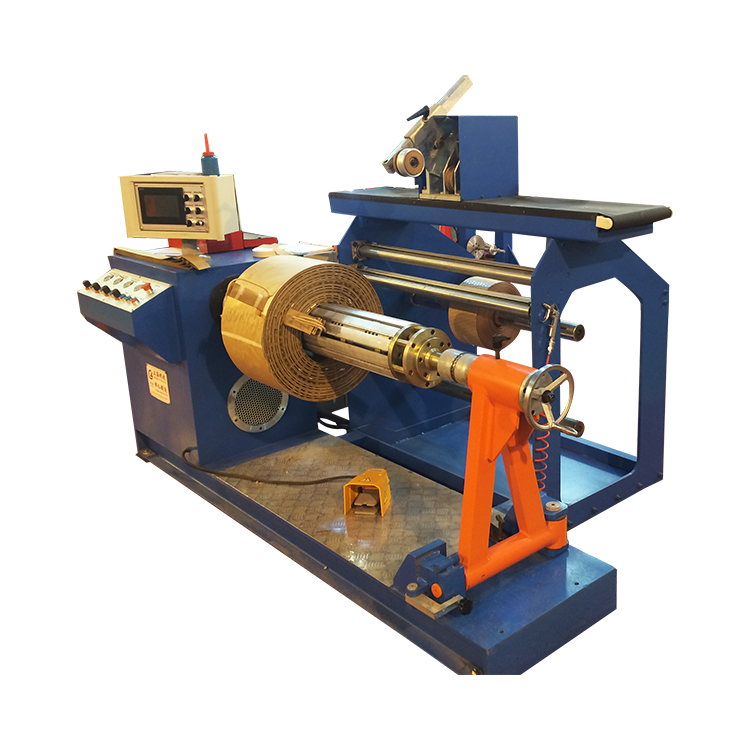

Machine composition
1. Host belt drive device 2. Guide wire trolley 3. Pneumatic winding tension system 4. Layer insulation unwinder 5. Round wire unwinder 6. Flat wire unwinder 7. Touch screen control 8. Electrical cabinet
Main features
1. Servo motor drives automatic wire feeding 2. Touch screen operation and PLC control 3. Adjustable and stable wire tension 4. If high-speed and low-speed gears are used, it can also be used to wind low-voltage coils
application
It is a very automatic and multifunctional winding machine, which can wind various distribution transformer high voltage coils, 50-4000 KVA<35 KV, using round and rectangular wires.
