Digital manual winding machine for coil counting, coil winding machine, manual winding machine

Supplier: Shanghai Qipang Industrial Co., Ltd.
Region: Shanghai, China
Contact: Ms Anne Zhao
Price: $35.00 /pair
Min. Order: 1 pair

Click here to contact

Product details

Applicable industries:	Energy and mining, construction engineering, manufacturing plants, metal wire and cable industries	Weight (kg):	16
Core Components Warranty:	1 year	Marketing Type:	normal product
weight:	5kg	Warranty:	1 year
Maximum Transformer Capacity (kVA):	2 kVA	CNC or not:	normal
Center Height (mm):	20 mm	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
place of origin; place of origin:	China	application:	Cable Manufacturing Industry
Core components:	gear	Mechanical test report:	if
Health status:	new	Packaging Details:	Carton Low Price Manual Digital Coil Counting Winding Machine
Function:	coil winding	Available Materials:	copper wire
Video external inspection:	if	After-sales service provided:	Free spare parts
Showroom location:	Egypt, Canada	Shaft length (mm):	150 mm
Function 1:	wire feed	Manual digital winding machine:	Winding machine for several turns
Main selling point:	easy to operate	Packaging Preview:
brand:	Chibon	maximum. Load (kg):	2KG
usage:	twine

title

^{Low price manual digital coil counting winding machine}

Product Description

Adopt manual gear transmission and mechanical digital counting. It can be used for manually winding various small coils and winding various coil tapes.

technical parameter:
* Maximum diameter of the coil that can be wound: 150mm
* Maximum width of the coil that can be wound: 100mm
* Maximum coil length: 100mm
* Counting range: 0-99999 circles

Counting table: 5100 laps
Screw size: 10*130mm
Rocker to spool speed ratio: fast: 1:8 slow: 1:1

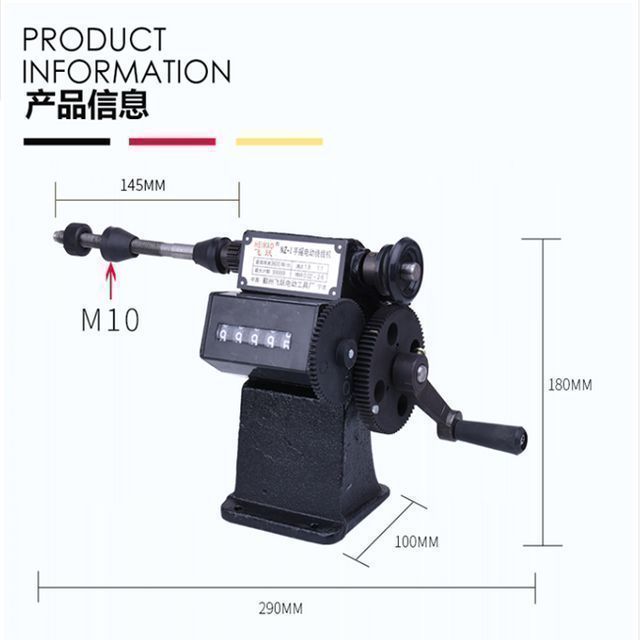

.Dimensions (LxWxH) 350 mm x 100 mm x 180 mm

detailed picture

Mechanical principle:
1. The hand-cranked electric counting winding machine is driven by the crank main gear to drive the main shaft, and the counter is driven by the main gear of the headless gear to count. 10 turns, that is, the number of counter letters is 1 turn.

2. The machine is hand-cranked, electric and electric. Remove the handle when electric, so that the maximum speed of the main shaft of the winding machine is 2000 rpm.

3. Add a little oil to the main oil hole normally.

instruct:
1. The machine should be placed on a solid workbench with wooden boards and three holes on the machine floor for fixing and installation between the machine and the workbench.

2. When in use, turn the counter reset lever with your left hand to reset to 00000.
Lever plate twice to reset all count gears. (Otherwise, the gear slip count may be inaccurate) before
Operation can be started. Can be cleared to 0 after operation. It is strictly forbidden to reset to 0 during operation.
