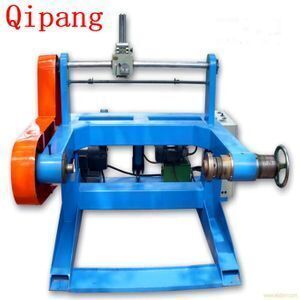

Take-up Machine

Supplier: Shanghai Qipang Industrial Co., Ltd.
Region: Shanghai, China
Contact: Ms Anne Zhao
Price: $1350.00 /pair
Min. Order: 1 pair

Click here to contact

Product details

After-sales Service Provided:	Engineers available to service machinery overseas;	Warranty:	1 Year;
Weight:	30KG;	Place of Origin:	Shanghai China;
Applicable Industries:	Manufacturing Plant;	Certification:	ISO9001:2008;
Packaging Detail:	Mujia;	Condition:	New;
Application:	Winding;	Voltage:	380V/220V;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Product Keywords:	Take-up Machine,Take-up Machine,Take-up Machine;
Supply Ability:	50 Acre/Acres per Month;	Power(W):	550W;
Dimension(LWH):	850mm650mm700mm;	Production Capacity:	2.5-3.5M/min;
Brand Name:	QIPANG;	Port:	shanghai;

Product Description

Take-up Machine

Product Detail

Product Keywords

Take-up Machine,Take-up Machine,Take-up Machine

JD500 high-speed arch opposite twisting wire machine

1. Used by joint wire of electric element loaded in barrel welding thread loaded in barrel. Heat-thread furnace multi-head annealing quincunx bobbin winding.
2. Adjusted speed device with automatically speed.
3. Equipped with the pay-off frame.
4. Adjusted tension of coil within the wire in a free state without responding force.
5. Adjusted the range of eccentric within adjusted forms quincunx.

Function characters
High speed, big coil quincunx bobbin winding; put in barrel, box or receiving wire frame; The reel forms regular quincunx. While paying off, high speed can’t make the wire in disorder.

Main Parameter

Standard	Outside diameter of coil	Inside diameter of coil	Height of coil	Speed of take-up	Diameter of wire taken-up	Take-up motor	Motor moving reel
MH300	φ300mm	φ150mm	φ400mm	60-200m/min	Annealed copper wire. Aluminium wire, iron wire 0.4mm-1.5mm PV wire 0.7mm-4mm	Inverter 1.5KW	90W electric adjusting speed
MH500	φ500mm	φ300mm	φ500mm	60-300m/min	Annealed copper wire. Aluminium wire, iron wire 0.7-2mm PV wire 0.8-5mm	Inverter 2.2KW	250W electric adjusting speed
MH800	φ800mm	φ500mm	φ800mm	60-300m/min	Annealed copper wire. Aluminium wire, iron wire 1mm-3mm PV wire 1-6mm	Inverter 4KW	Motor with frequency chance is possible
MH1000	φ1000mm	φ600mm	φ1000mm	60-300m/min	Annealed copper wire. Aluminium wire, iron wire 1mm-4mm PV wire 1-6mm	Inverter 5.5KW	Motor with frequency change is possible
