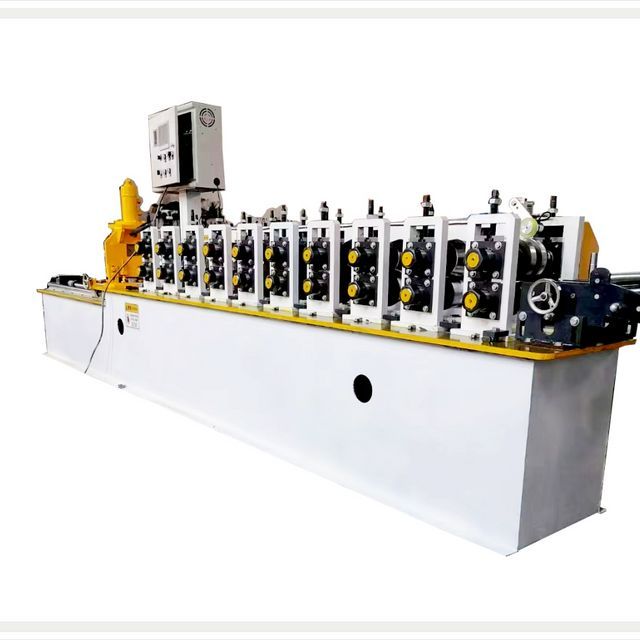

Lightweight Metal Frame Drywall Metal Studs and Track Grooves CU Roll Forming Machine

Supplier: Tianjin Hengrunhe International Trade Co., Ltd.
Region: Tianjin, China
Contact: Ms Anita Zhang
Price: $12599.00 / 1 - 9 sets
$8999.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

After-sales service:	lifetime	size:	5.5mx1.2mx1.5m.
brand:	Henrun River	Warranty:	1 year
Dimensions (lengthwidthheight):	5.8x2.6x1.6 meters	Type of machine:	Automata
Mechanical test report:	if	weight:	2300
payment terms:	L/C, Western Union, D/A, T/T	application:	put up
Place of origin:	Tianjing, China	Core component warranty:	1 year
port:	Tianjin	Production type:	Corner/omega/c/u studs etc.
Control System:	Delta Corporation	Voltage:	380V 50Hz three-phase/customized, 380v
product name:	Drywall Metal Studs and Track Grooves CU Roll Forming Machine	Core components:	PLC, bearings, motors, gears, pumps
Package preview:		Marketing type:	2020 new products
Suitable materials:	Galvanized/Aluzinc/Aluminum Coil	Health status:	new
Production capacity:	200 sets per month	Showroom location:	Egypt, Saudi Arabia, Thailand, United Arab Emirates
strength:	2kW, 7.5kW	Packaging details:	Standard export package
Video outbound inspection:	if	Supply capacity:	200 sets per month
Main selling points:	Easy to operate	Applicable industries:	Building material stores, machine repair shops, manufacturing plants, farms, home use, construction engineering, energy and mining
Roller material:	42 chromium molybdenum alloy

Product Description

Advantages of our machines

1. Delta PLC control system is easy to operate and saves labor

2. Confirm the drawings required by the customer. We will produce the machine strictly according to the customer's requirements, especially the customer's requirements for hole position. We must ensure the accuracy of the holes. Our machine production error guarantee: length +-1mm hole position; +-0.5mm
3. The machine operates stably, production speed: 0-50m/min

4. Raw materials use less waste

5. Save electricity

6. Exquisite appearance, machine color can be customized according to your preferences

Production range

Applicable Products	Corner, Omega profile, C/U stud.W shape or any special size as per customer requirement
Applicable materials	Galvanized steel coil, galvalume steel coil, color coated steel coil, aluminum steel coil
Material thickness	0.2-0.6mm

Machine usage environment

Machine size	5.5mx1.2mx1.5m
weight	About 2.6 tons
Production area	3x8 meters
Voltage	380V, 50Hz, three-phase
workers need	2 workers

Product parameters

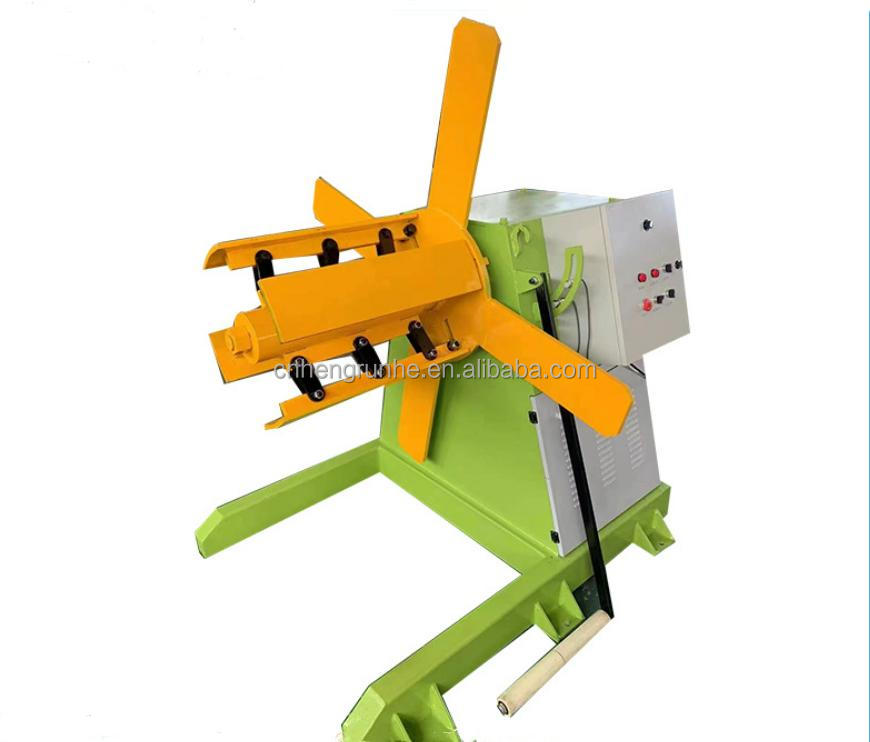

Hydraulic uncoiler

Maximum capacity: 1.5T

It is more convenient for workers to operate machines

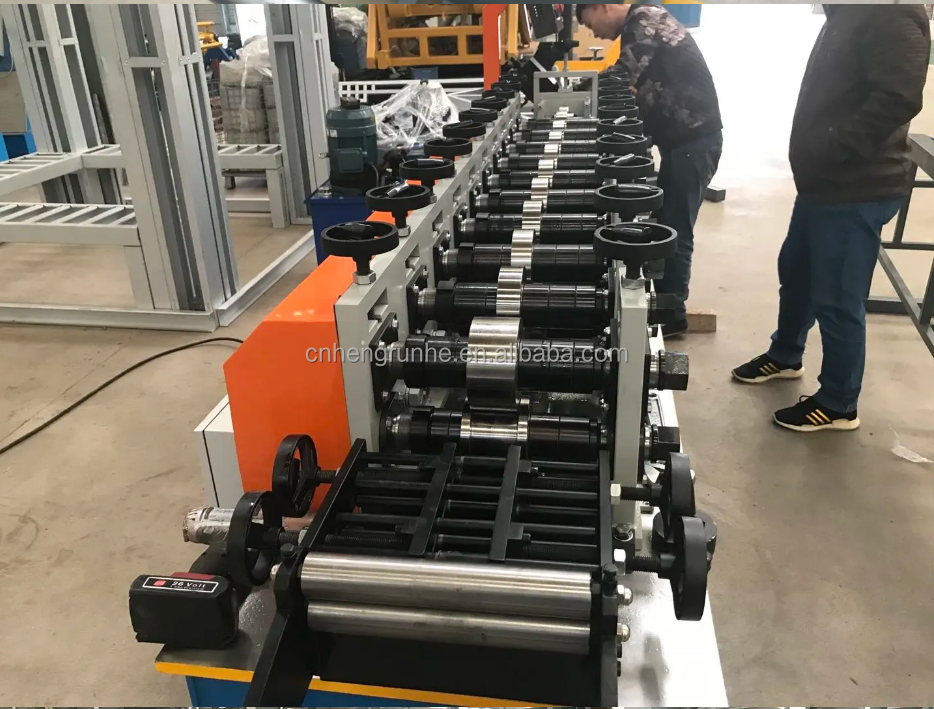

Forming system roller

Angle: 14 rollers x 40mm diameter U-shaped: 16 rollers x 40mm diameter C-shaped: 16 rollers x 40mm diameter Omega: 16 rollers x 40mm diameter Roller material: Cr12 solid steel, quenched 58-62℃ Guaranteed for machine motor use Lifespan: 7.5kw famous brand or customized according to your requirements to ensure stable production of the machine

Cutting method

Advantages of hydraulic non-stop flying cutting method: fast speed, no waste, accurate and neat cuts, no splash noise Material: Blade and mold material Cr12MoV steel quenched at 60-62℃

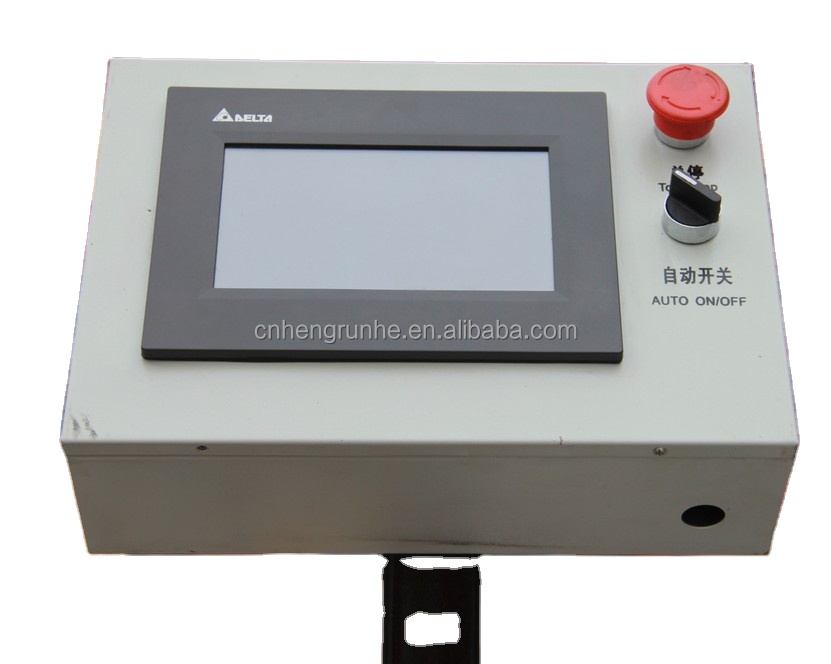

PLC control system

Simple and easy to operate, freeing workers’ hands

1. Automatic length measurement

2. Automatic quantity measurement

3. Computer controlled length and quantity. When the required quantity is reached, the machine will automatically set the length and stop

4. The length error can be easily corrected Brand: Taiwan Delta, can be customized if there are special requirements

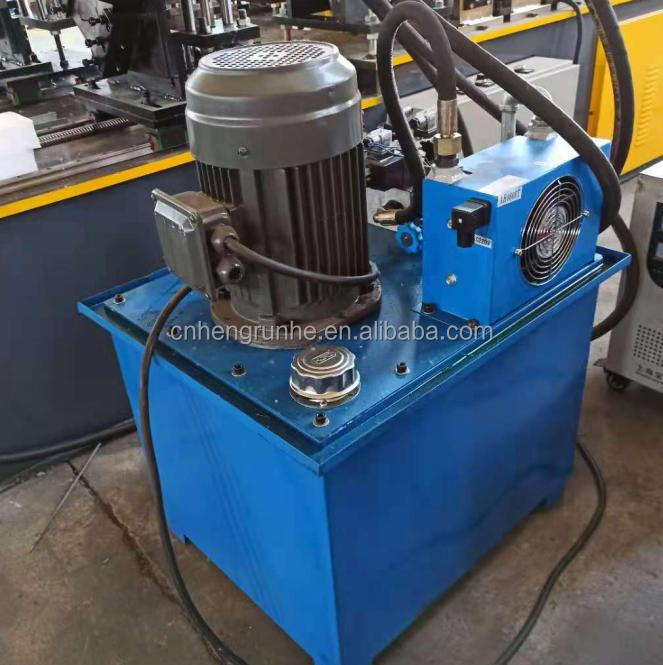

Hydraulic system

1 Power: 5.5kw 2. Hydraulic pump with cooling fan: easy to install, ensuring stable operation of the machine
3. Chinese famous brands, or according to your requirements

spare parts

1 set of daily maintenance tools for the machine; 1 set of consumable parts for machine operation: 1 set
