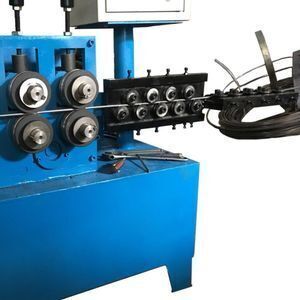

Qipang 1-6mm Steel metal Twisting machine Small wire straightener cutter wire Hydraulic straightening and cutting machine

Supplier: Shanghai Qipang Industrial Co., Ltd.
Region: Shanghai, China
Contact: Ms Anne Zhao
Price: $480.00 /pair
Min. Order: 1 pair

Click here to contact

Product details

Material:	Steel Material;	Warranty of core components:	1 Year;
Port:	shanghai;	Type:	Wire Drawing Machine;
Package Preview:	;	Condition:	New;
Place of Origin:	Shanghai China;	Brand Name:	qipang;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Packaging Detail:	Carton boxes, packing boxes, wooden and foam;
Power:	Electrical;	Weight:	12KG;
Voltage:	380V/440V;	Color:	Customer Demand;
After-sales Service Provided:	No overseas service provided;	Supply Ability:	100 Acre/Acres per Month;
Marketing Type:	New Product 2020;	Core Components:	PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel;
Warranty:	1 Year;	Showroom Location:	Egypt,Canada,Turkey,United Kingdom,United States;
Function:	Straigthen;	Video outgoing-inspection:	Provided;
Use:	Wire;	Machinery Test Report:	Provided;
Local Service Location:	Egypt,Canada,United Kingdom;	Key Selling Points:	Famous brand PLC;
After Warranty Service:	Video technical support,Online support,Spare parts;	Applicable Industries:	Hotels,Garment Shops,Farms,Energy & Mining;
Product Keywords:	ring roll bending machine,ring bending plier,rebar bending machine mb8;	Certification:	ISO9001;
Product name:	Wire Straightening;	Dimension(LWH):	1200500800;
Thickness:	7mm;

Production Flow

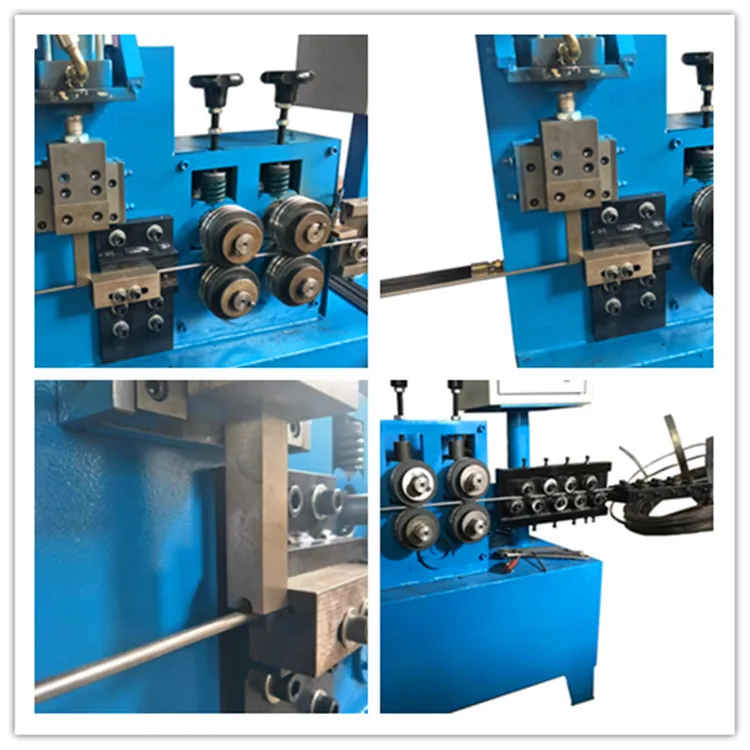

Qipang 1-6mm Steel metal Twisting machine Small wire straightener cutter wire Hydraulic straightening and cutting machine

1	Applicable wire diameter :	1.0-6.0mm
2	Length tolerance :	±0.2mm
3	Straightening speed :	18 m/min
4	Motor power:	0.75 kw *2 sets
5	Rated voltage:	380V,50HZ,3 phases
6	Material requirements:	coiling wire

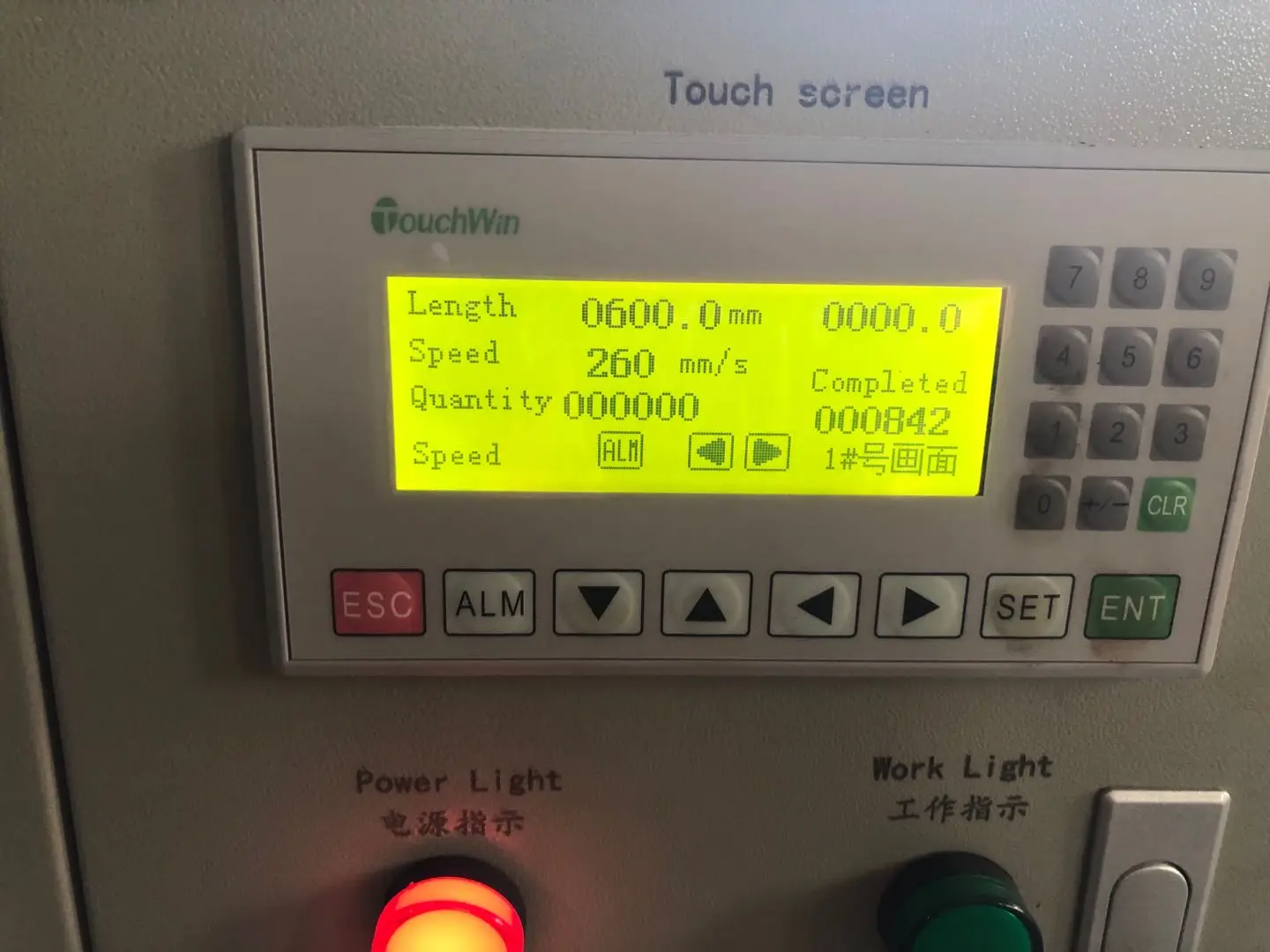

7	Mechanical features:	Chinese-English menu, super LCD,easy to operate.etc
8	The cutting length	djustable and is controlled by PLC program
9	Size :	1800 * 690* 760 mm (length * width * height)
10	Weight :	250kg
11	Advantage	Set the number of times, accumulate quantity and memory of specifications

JZQ---Wire Straightener

Wire Straightener specification :Φ0.8mm----Φ2.0mm

18-----The Wheel number

23------The Wheel diameter

V-------The wheel notch

V type,R type,U type and customer specific product

A-------type:A The whole form of opening and closing

B Type is a single straightening wheel independent movement adjustment

Wire straightener size : Long 290mm×Wide 135mm× Tall135mm

The total mass of straightener: 7kg without the machine, including the package is about 8kg .

Adjustment of straightening wheel:The mobile part of straightening wheel is independent.
Packaging: Wooden case.
Net weight: Approx.10KG
Dimension of straightening device: 610mm(L)*90mm(W)*90mm(H)

A----- A type straightening wheel is the overall opening and closing form;
B----B type is single straightening wheel independent mobile regulation;
T---- T type is a special straightening device

Straightening adjustment method: It is related to the center distance between the straightening wheels, either the horizontal or vertical straightening wheel, in the longitudinal direction (i.e., along the forward direction of the copper tube), the distance between two adjacent wheels should be small (but not equal to zero), and the straightening effect will be better, however, the center distance in this direction is fixed and can not be adjusted. However, the center distance in the other direction (For the horizontal straightening wheel is horizontal; for the vertical straightening wheel is vertical ) is adjustable. In this direction, the center distance between adjacent wheels is adjustable. In this direction, the center distance between the two rounds is too large or too small is not enough. Too large is not straight, when too small, after the completion, it will appear the wave shape in the full length. Since the copper tube is hard, the elasticity is bigger, you can adjust the center distance between the two wheels to slightly smaller than the theoretical size, when transferred to a certain extent, it will be straight

WHY CHOOSE US

TEAM

QUALITY

We are Alibaba's top supplierare Alibaba's top supplierWe are Alibaba's top supplierOur factory in Shanghai, shipping speedOur factory in Shanghai, shipping speedISO9001:2000

SGS

FACTORY

Certifications

OUR CERTIFICATES

FAQ:Q1: Are you a factory or trading company?
We are a factory . We can promise you a short lead time and best price if you purchase our machine. We also have our own trading department.

Q2: How does the factory ensure products quality?

With Nearly 16 years experience in manufacturing winding machine, we have our own technology develop department and testing department.
Quality is the first priority. We have strict purchasing system to ensure the quality of spare parts. We have experienced workers to assemble and test machine.

Q3:How about your after-sale service?

We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone,we can online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem.

Q4: What are your payment terms?

100%TT or prepaid 50% , balance 50% before shipping.

Q5: How can I get my order? How can I know you sent the goods?

We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods, we will give you the tracking number or other
relative files for checking.

Q6 : Will you send the installed machine or machine parts?
We will install the machine and test the machine before delivery. And the machine can be used directly after receiving the machine
