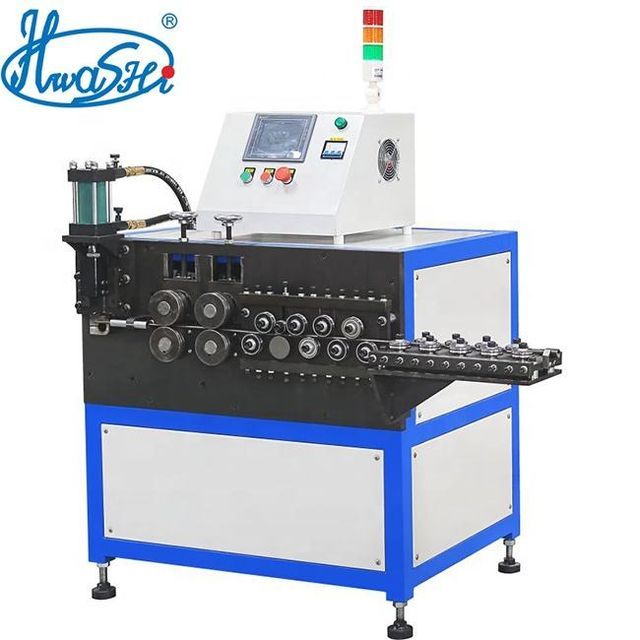

HWASHI Drum Wire Straightening and Cutting Machine

Supplier: Guangdong Hwashi Technology Inc.
Region: Guangdong, China
Contact: Ms Kary Hou
Price: $800.00 /set
Min. Order: 1 set

Click here to contact

Product details

brand:	Fahrenheit	Mechanical test report:	if
color:	customizable	Maximum wire feeding speed:	25m/min adjustable
Packaging Details:	wood packaging	Voltage:	380V
Wire diameter:	2mm-5mm/ 5mm-8mm	Showroom location:	india, no
type:	Straighteners and Cutters	Warranty:	1 year
usage:	Wire straightening and cutting machine	Coder:	E40S6-1000 absolute type
Oil pump:	3P	product name:	HWASHI Wire straightening and cutting machine
use:	metallic line	Main selling points:	competitive price
strength:	60	payment terms:	L/C, D/P, D/A, T/T
Applicable industries:	Building material stores, machine repair shops, manufacturing plants, construction projects	Core component warranty:	1 year
port:	Shenzhen Port	control method:	PLC
Host working voltage:	Three-phase 380V (±15V)	Supply capacity:	30 sets per month
Preset quantity function:	Yes	Dimensions (LWH):	1300x900 mm
Origin:	Guangdong, China	Marketing Type:	Hot Products of 2023
Health status:	new	Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
Weight (kg):	300	Package preview:
Video outbound inspection:	if

Product Description

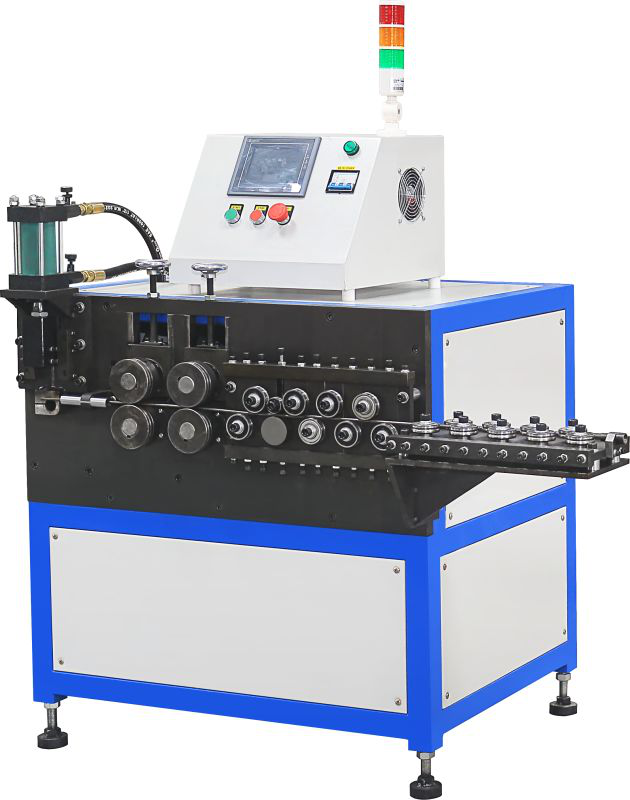

Wire straightening and cutting machine

work rules

The hydraulic drive mechanism adopts gear transmission to accelerate, so that the roller rotates at a high speed, and the wire passing through the roller is straightened.

The hydraulic motor uses the gear reducer to drive the four conveying rollers to pull the steel wire forward, and drives the oil cylinder to move the cutter up and down. When the encoder senses the preset cutting length, the program controls the solenoid valve through the PLC, and drives the cutter through the oil cylinder to cut off the wire.

Technical Parameters

1	Wire diameter	Ø2mm-5mm/ Ø5mm-8mm
2	cylinder	Ø63mmX25mm
3	oil pump	3P
4	coder	E40S6-1000 absolute type
5	Oil press power	2.2kw/3hp
6	Fuel tank capacity	80 liters
7	oil pump flow	40 l/min
8	wire feeding speed	25m/min adjustable
9	Hydraulic Motor Specifications	90X90 flange
10	Uncoiler maximum load capacity	1500Kg (customized)
11	Uncoiler circular plate diameter	φ1600mm (customized)
12	Host working voltage	Three-phase 380V (±15V)
13	control method	PLC
14	Preset Quantity Function	Yes
15	aspect	1300x900 mm
