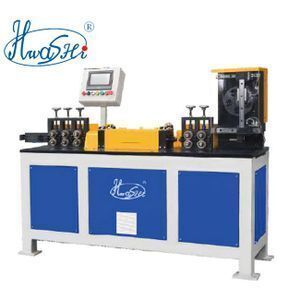

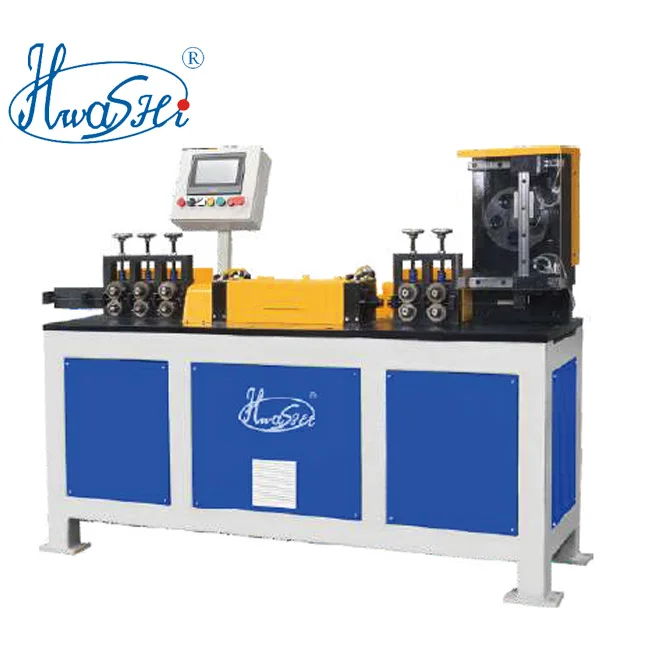

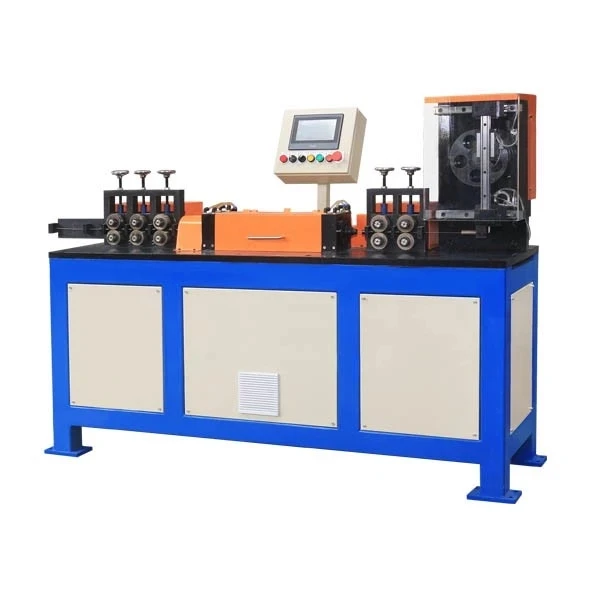

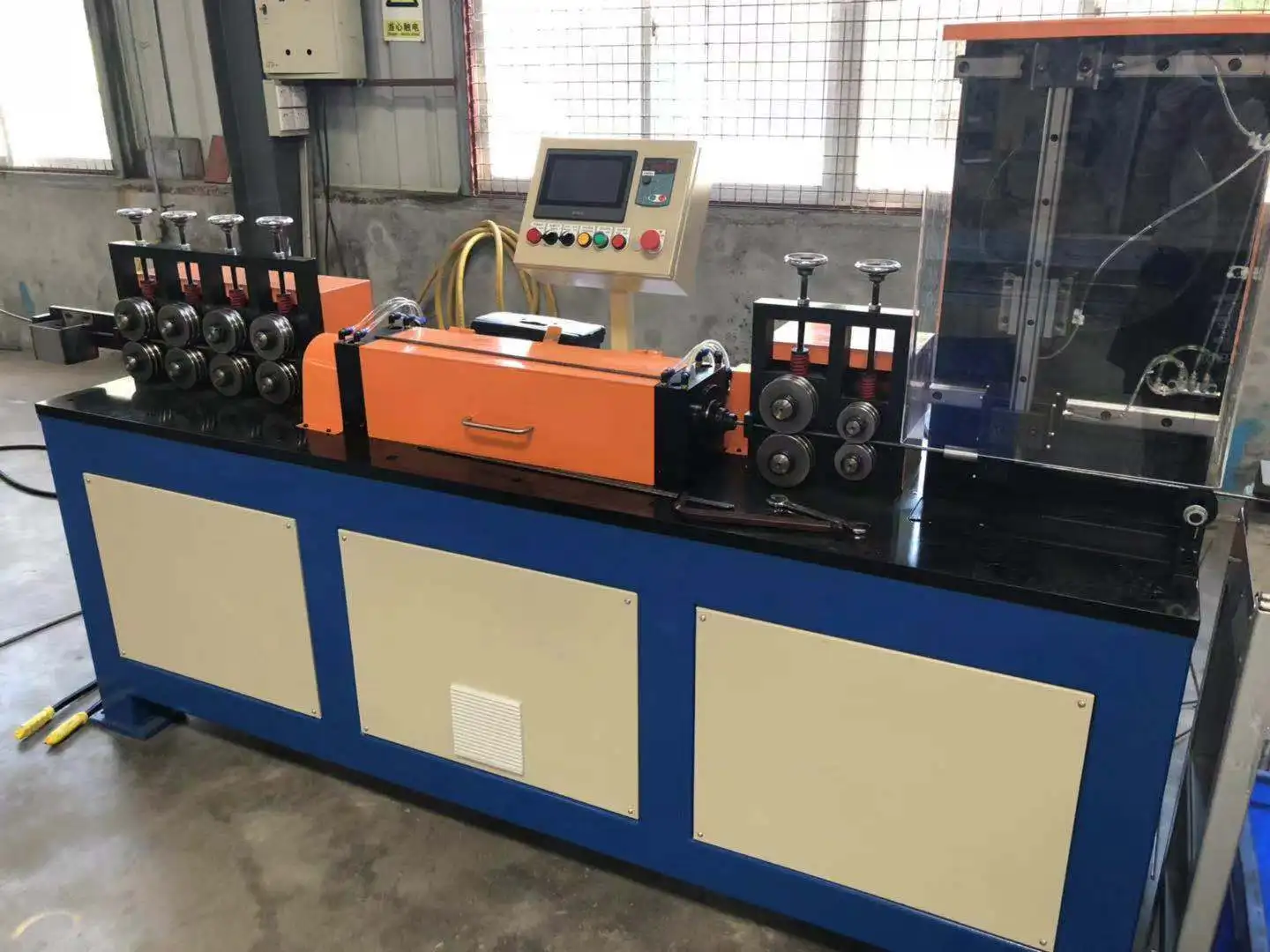

High speed 1-9mm wire straightener and cutter with decoiler rollers

Product details
Wire diameter:1-2mm 2-5mm 5-14mm;Color:Customer Demand;
Brand Name:Hwashi;Condition:New;
After-sales Service Provided:Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;Applicable Industries:Manufacturing Plant,Construction works ;
Supply Ability:100 Set/Sets per Month;Showroom Location:none;
Drawing material:Steel Iron;Local Service Location:indonesia,INDIA,RUSSIA,UKRAINE;
Voltage:220/380V;Warranty:1 YEAR;
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;Payment Terms:L/C,T/T;
Name:High Speed Steel Wire Straightening;Power(W):1KW;
Weight:500kg;Dimension(L*W*H):1500x500x1100mm;
Use:wire;Packaging Detail:Wood Seaworth Package;
Certification:CE, CCC;Port:Shenzhen;
Key Selling Points:Easy to operate;Place of Origin:Guangdong China;
Type:Straightener & Cutter;

Specifications of wires straighening and cutting machine!



Model

HS-HC-1.1-1.5

HS-HC-1.6-3

HS-HC-2-4

HS-HC-3-5

HS-HC-5-7

Input Power

AC380V(50Hz/60Hz)

Suitable Wire Material

Normal low carbon steel wire/stainless steel wire/galvanized steel wire/copper coated steel wire

Air Pressure

0.5-0.6Mpa

Wire Diameter

1.1-1.5mm

1.6-3mm

2.0-4.0mm

3.0-5.0mm

5.0-7.0mm

Cutting Length

50-5000mm

Max. Cutting Speed

Max. 350pcs/min

Max. 250pcs/min

Max. 250pcs/min

Max. 230pcs/min

Max. 200pcs/min

Wire Speed

110m/min

100m/min

90m/min

80m/min

70m/min

Price (FOB Shenzhen)

USD10000

USD10500

USD11000

USD11500

USD12000

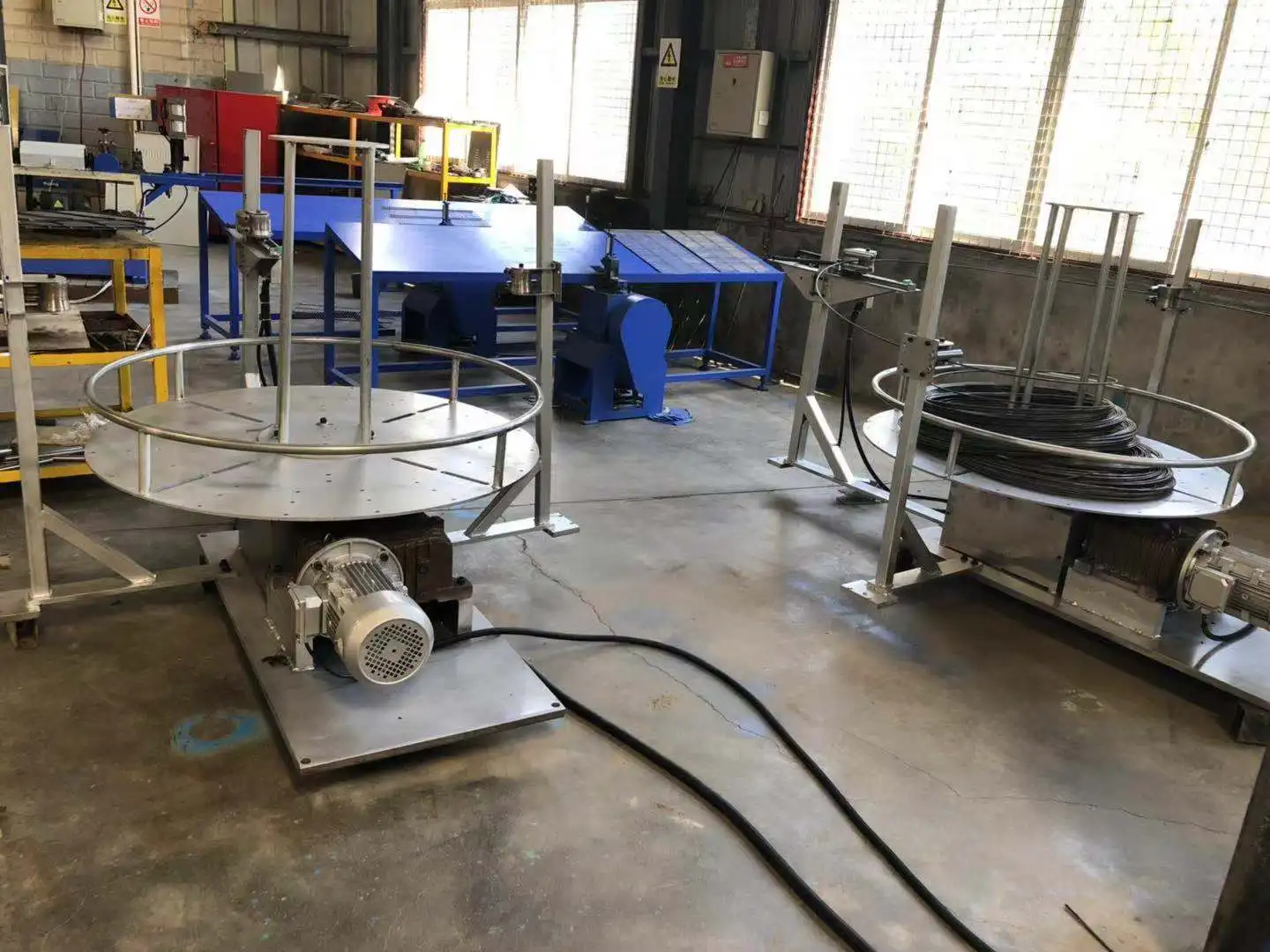

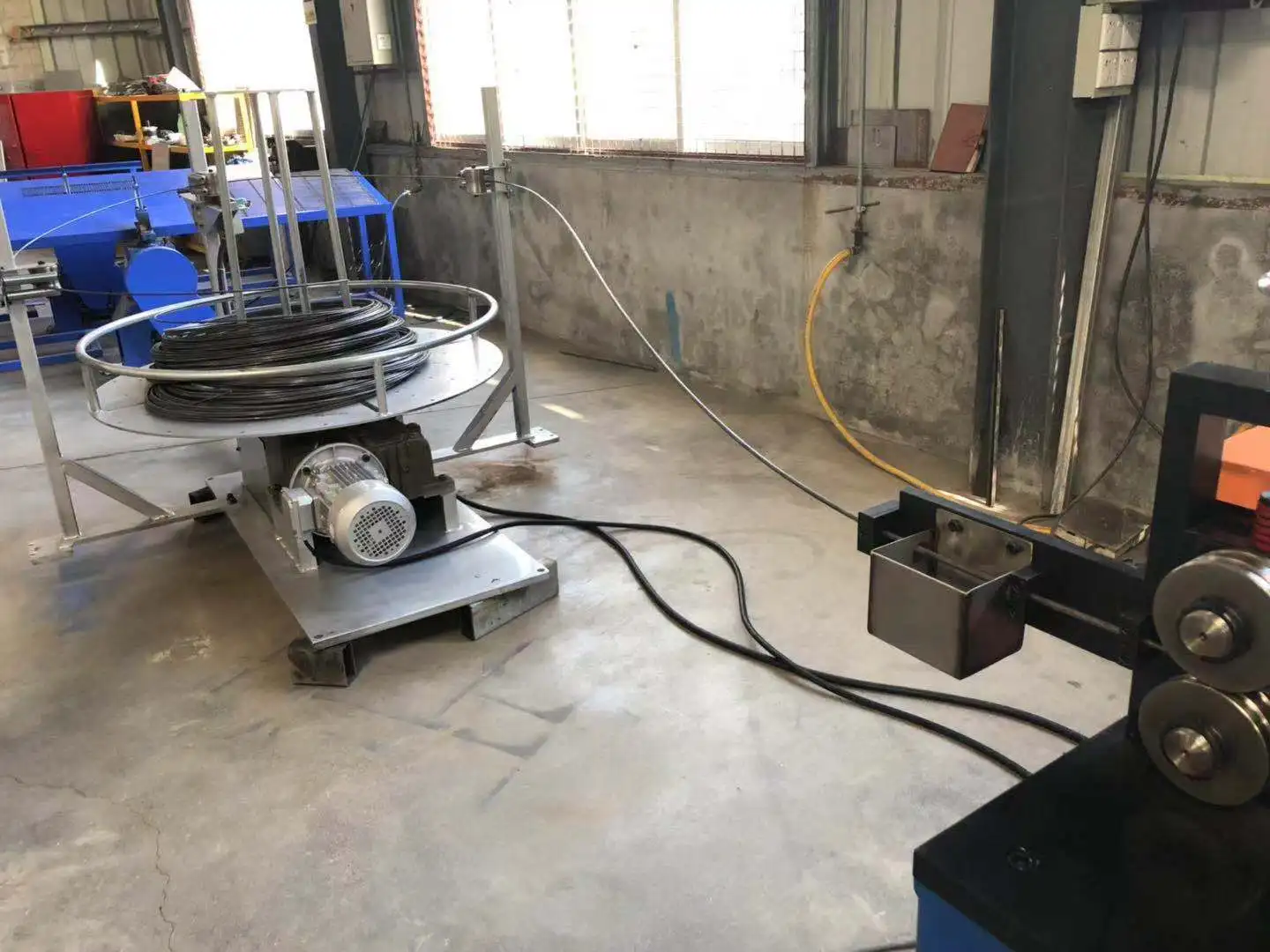

Decoiler

300kg (without Motor)

USD750

500kg(without Motor)

USD1000

1 Ton (with Motor)

USD1800

2 Ton (with Motor)

USD2200

Cutting Precision

±0.5mm (except for accelerate and decelerate)

Operation System

PLC Touch Screen

Running Mode

Automatic



2. Configuration

No.

Items

Brand

1

Machine Main Body

HWASHI professional welding, post weld stress relief treatment

2

Painting

Sand blasting treatment, surface spray powder, color can be customized.

3

PLC

Panasonic

4

Servo Motor

TECO

5

Touch Screen

Weinview/Samkoon

6

Encoder

Omron

7

Low Voltage Apparatus

Schneider



Decoiler




Holding Tray
