TT-H15C High Quality Automatic Large Heavy Duty Toroidal Coil Winding Machine Replaces Jovil, Gorman, Ruff Winding Machine

Product details
place of origin; place of origin:China ShanghaiType of machine:Toroidal coil winding machine
application:Toroidal inductors, toroidal transformers, etc.maximum. Coil height:152mm
Minimal fin. ID:42mmHow to make a toroidal transformer:WISDOM Toroidal Coil Winding Machine
After-sales service provided:Free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, video technical support, online support, engineers can provide overseas service machinerypayment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram
brand:wisdomCoil outer diameter:50~254mm
How to make a Toroidal Core Coil:WISDOM Toroidal Coil Winding MachinePackaging Details:Customs approved plywood case, or according to customer's requirements.
port:Shanghaiwind type:Gear Type Toroidal Coil Winding Machine
How to make a ring coil:WISDOM Toroidal Coil Winding MachineSupply capacity:1000 sets of toroidal coil winding machines per month
State of health:new

Product Description

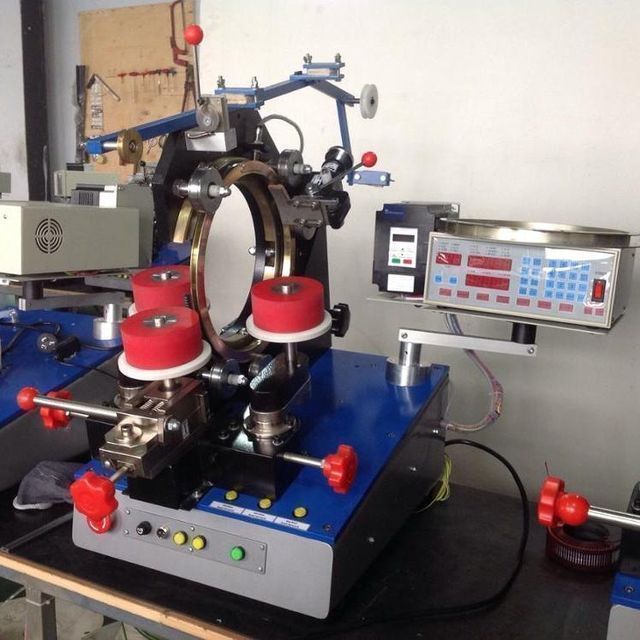

TT-H15C Automatic Toroidal Coil Winding Machine



feature:

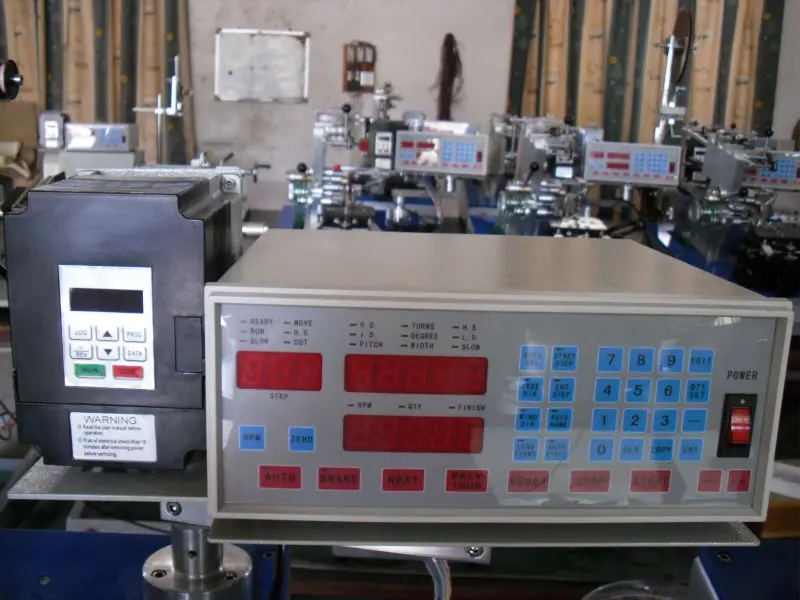

• TT-H15C automatic ring coil winding machine adopts CNC ring controller, and TT-H15C automatic ring coil winding machine is a gear type ring coil winding machine. TT-H15C automatic toroidal coil winding machine is a precise and reliable digital toroidal coil winding machine, TT-H15C automatic toroidal coil winding machine is used for toroidal inductors, toroidal transformers, toroidal current transformers, toroidal current sensors, Toroidal coils, toroidal chokes, power inductors, power magnets, UPS inductors, variable current inductors, ammeter sensors, electronic watt-hour meter toroidal current transformers, etc.





type of machine

TT-H15C Toroidal Coil Winding Machine

Wire diameter

0.6-2.5mm

Shuttle diameter

266mm

Minimal fin. ID

42mm

speed

200 rpm

Coil outer diameter

50-254mm

maximum. high

152mm

winding motor



0.75KW AC motor, variable frequency drive



energy source

220V±10%; 50 / 60 Hz

net weight

95KG

aspect

950mmX850mmX900mm

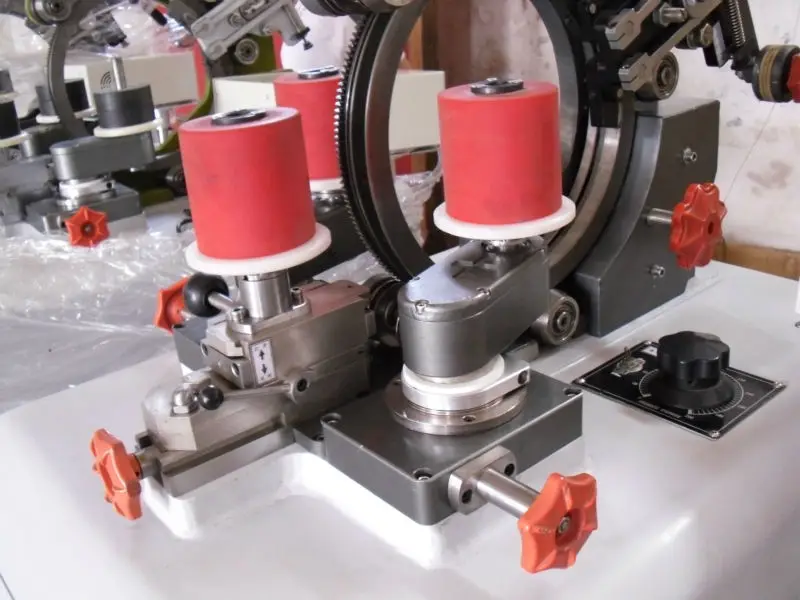

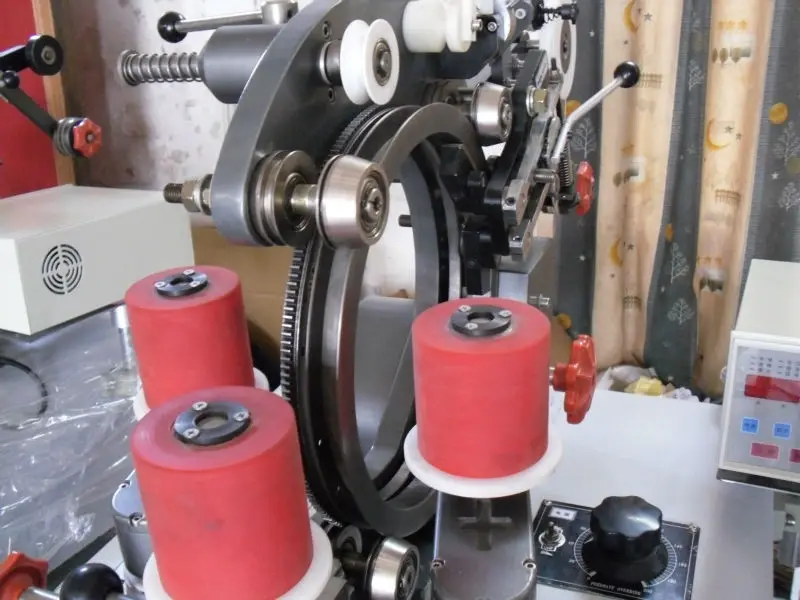

1. Equipped with a gear-type winding head, it can wind ultra-thick wires, and the interchangeable roller table can be matched with shuttles (magazines) of different sizes, which are suitable for coils of different sizes and different wires, reducing costs.
2. High-tech shuttle, the highest efficiency.
3. The loading speed is independently controlled.
4. Accurately calculate the loading length through the limit switch.
5. The photoelectric sensor accurately counts the number of winding turns.
6. Programmable winding direction, winding return range (number of turns or angle) and segmented winding angle.
7. Programmable controller precise line spacing.
























Packaging and Shipping

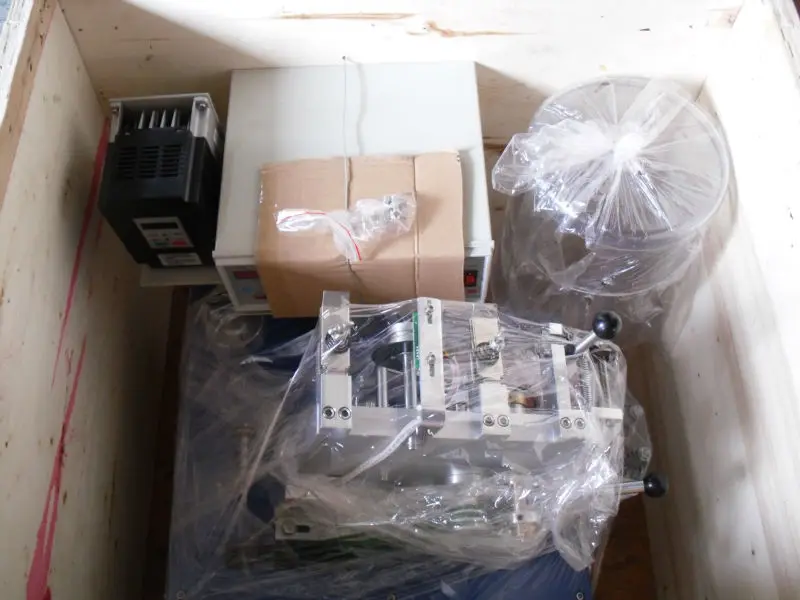

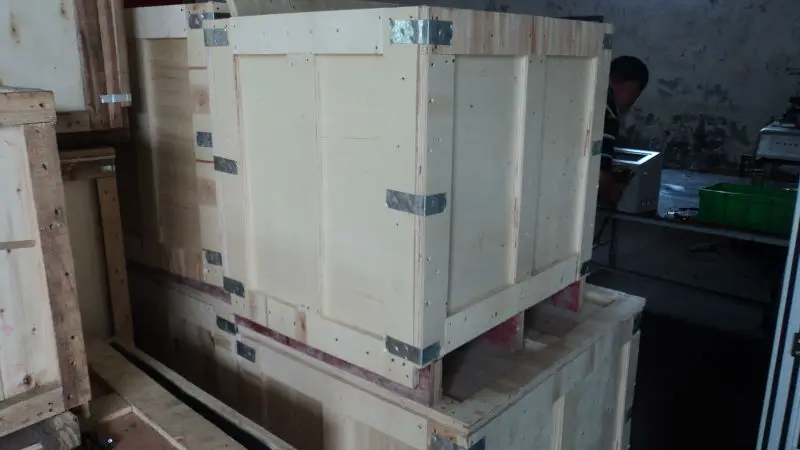

We always pack our toroidal coil winding machines in plywood boxes. We can also provide the packaging of toroidal coil winding machine according to customers' requirements.
















FAQ



How to choose the best automatic toroid winding machine for your toroid





Please tell us your toroid data as below:



1. What is the outer diameter of the toroidal core before winding?



2. What is the inner diameter of the ring core before winding?



3. What is the height of the toroidal core before winding?



4. How many windings does this iron core have?



5. What is the number of turns of each winding?



6. What is the diameter of the copper wire of each winding?



7. Which one is better to provide product pictures.




company information

We are a leading enterprise specializing in the design, production, marketing and service of winding machines and other ancillary equipment. Since its establishment, Wisdom has made continuous efforts to develop and design special winding machines for current transformers, inductors, magnetic ballasts, and automotive generators.



Wisdom can provide customers with technical support for transformer and ballast production. The main products are: ring winding machine, high torque winding machine, motor stator winding machine, medium-sized coil winding machine series, voice coil winding machine, 1- 6-axis high-speed winding machine, high-frequency transformer special winding machine, and some winding machine accessories.



Our corporate tenet: professionalism, focus, enthusiasm and sincerity.



Warmly welcome friends from all walks of life to visit and negotiate. We take pride in cooperating with customers with high-quality products, competitive prices, perfect services and good reputation. We look forward to your business negotiation and sincerely hope to be your best trading partner.
