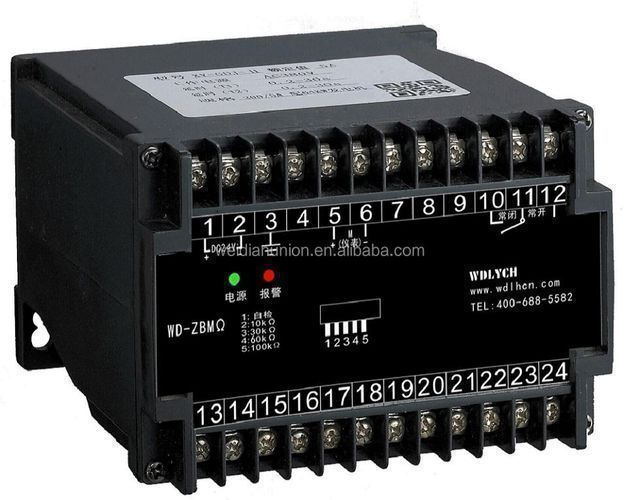

Separate DC Network Insulation Monitor with DIN Rail Mounting

Click here to contact
Product details
Accuracy class:1.5%Shipping Details:5 days after payment
Certificate:China Classification Societyaccuracy:1.5%
Packaging Details:Inner color box with standard export cartonSupply capacity:10000 pieces per month
Alarm value:Can be setDisplay type:to lead
Warranty:18 monthsInstall:DIN rail 35mm
payment terms:L/C, T/T, Western Unioncolor:Black
model:WS-ZBMΩproduct name:Separation Mesh Insulation Table
Operating temperature:-45-65℃aspect:110*75*120mm
Function:Resistance measurementTest voltage:DC24V
Origin:Hubei, Chinaport:Wuhan
brand:micro shopMeasuring range:DC24V-220V
model:WD-ZBMΩ
describe
product name
Separate DC grid insulation table
model
WD-ZBMΩ
aspect
110*75*120mm
Install
DIN rail 35mm
Measurement
DC24V/DC110V/DC220V
connection method
direct connection
Instructions for use

1. The DC network insulation monitor integrates indication and monitoring;

2. Once the insulation resistance is lower than the preset value, an alarm signal will be output;

3. There is a switch on the back of the meter, and the alarm value can be set to 4 levels of 10KΩ, 30KΩ, 60KΩ, and 100KΩ;

4. Power supply: DC24±20%/DC220V±20%/DC110V±20%/DC12V±20% (the grid under test);

5. Alarm unit power consumption: 10VA;

6. It can be used alone or in conjunction with other net insulation meters;

wiring diagram
