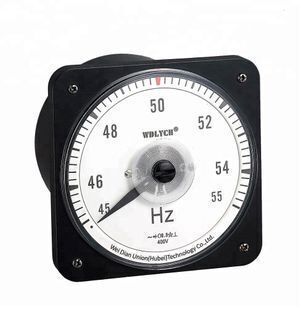

45-55Hz Square Round Tyoe 240 Degree Analog Panel Frequency Meter

Supplier: Wei Dian Union (Hubei) Technology Co., Ltd.
Region: Hubei, China
Contact: Mr Sandy He
Price: $25.68 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Technical Standard:	IEC60092-50;	Payment Terms:	L/C,T/T,Western Union;
Supply Ability:	30000 Piece/Pieces per Month;	Dimension:	110*110mm;
Operating Temperature:	-45℃-65℃;	Product Name:	Frequency Meter;
Model No:	WDG110-Hz;	Voltage:	100V-690V;
Measuring Range:	45-65Hz;	Indicating Angle:	240°-270°;
Accuracy Class:	2.5%;	Certificate:	CCS/CE/ISO9001:2008;
Model Number:	WDG110B-Hz;	Display:	Analog Display;
Port:	Wuhan;	Color:	Black+white;
Brand Name:	WDLYCH;	Warranty:	18 months;
Material:	ABS Plastic Shell Housing;	Packaging Detail:	Color box with standard export carton/Pallets;
Place of Origin:	Hubei China;	Dimensions:	110*110mm;
Display Type:	Analog Only;

Summary

Introduction & Application:

The Meters is analog display instrument, moving coil structure, which mainly measure Frequency in transmission & distributing power system.

Standard: Comply with IEC60092-50

Features

Technical Parameters:

1. Usage: Marine type;

2. Indicating Angle: G(Wide Angle), 240°-270°;
3. Measurement: For frequency

3. Measuring Range:45-55Hz, 55-65Hz, 45-65Hz,350-450Hz

4. Connection Way: 100V, 220V,380V,400V,440V,690V;

5. Mounting: Vertical installation;

6. Dimension(mm): 110*110. 80*80;

Usage & Application

Mainly used in various AC/DC transmission and distribution system, power control panel and electric equipment for various industries such as marine,rail, aviation, chemical and explosive-proof,nuclear power, hig/mid voltage equipment, power generator set and control engineering. It is high end meter, and suitable for complicated environment to measure electric/non-electric energy;

Also used on low voltage equipment, construction/mechanical equipment, various AC/DC power distribution system, electrical control panel and equipment. It is mid/low end meter, and suitable for universal environmental to measure electric/non-electrical energy.

Optional Function

Option:

1. Can with transmitting 4-20mA output, accuracy class: 2.5%;

2. Out of specification: Mark red or Red pointer;

3. Color of board is option, back light is workable;

4. With transmitting output, accuracy class: 1%

R & D

Wei Dian Union sticks to the core value of "PURSUING FOR PRECISION AND PERFECTION", UNIFYING THINKING AND BEHAVIOR"as always. The WDLYCH technology study changes from mechanical machining mainly to more intensive, compact, electromechanical integration of mechanics & electrics fields. The world class experiment installation and testing facilities give strong R & D platform for Wei Dian Union continual creation and development.

Based on sufficient experience and understanding of industry automation field, the Wei Dian Union technical team continuously gives technology upgradation and renovation on electro-mechanical pneumatic components, focusing study on high frequency, intelligence, and low power technology, ex. multi-function meter, stern shaft tachometer, etc., just to make all products fits more for production, fits better for system, and achieve higher safety and stability performance.
