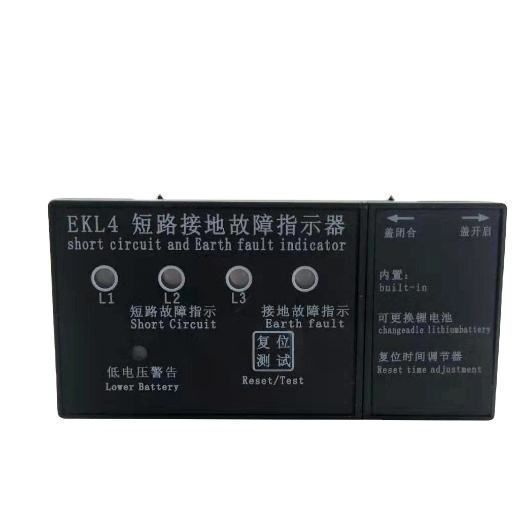

EKL4 Ground Fault Indicator High Voltage Switchgear Short Circuit Indicator



The panel-type short-circuit ground fault indicator is installed in the ring main switch, cable branch box and transformer box in the distribution network system. A real-time monitoring device for indicating a single-phase short-circuit-to-earth fault in the corresponding cable segment. If the line fails, the staff can use the indicator light to give an alarm indication, quickly determine the fault section, and find out the fault point. At the same time, the alarm fine can be sent to the monitoring center server in real time. Display the fault area and specific location on the monitoring computer screen, guide

The patrol personnel quickly determined the fault section and identified the fault point. These indicators provide the best way to resolve troubleshooting issues. It is of great significance to improve work efficiency, shorten power outage time, quickly restore power supply, improve power supply reliability and economic benefits.

technical parameter

1. Short-circuit current alarm: ≥150A continuously adjustable; factory setting is
1200A, short circuit delay 20-300mS adjustable, factory setting is 60mS.
2. Ground loop current alarm: 5A-400A continuously adjustable; factory setting is 10A,
The short-circuit delay is adjustable from 20-300mS, and the factory setting is 200mS.
3. Working power supply: ER14505 lithium battery 3.6V/1.9Ah (the validity period is not later
8+ years).
4. The standby current of the whole machine: ≤5μA
5. Automatic reset time: 1S-32h (factory setting is 8h)
6. Instrument protection level: host IP40, sensor IP65.
7. Remote relay: 30DC/2A; 230VAC/1A
8. Short-circuit current sensor withstand current: 20kA4S
9. Working environment: -40°C-+75°C; relative humidity: ≤95%
10. Range of application: in systems below 20kV



Equipment List
1. Host: 1
2. Short circuit sensor: 3
3. Ground sensor: 1
4. Short-circuit transmission optical fiber: 3 (standard length: 2m/root), grounded
Transmission line: 1 (standard length: 2m/root)
5. Approval certificate
6. Installation Instructions
