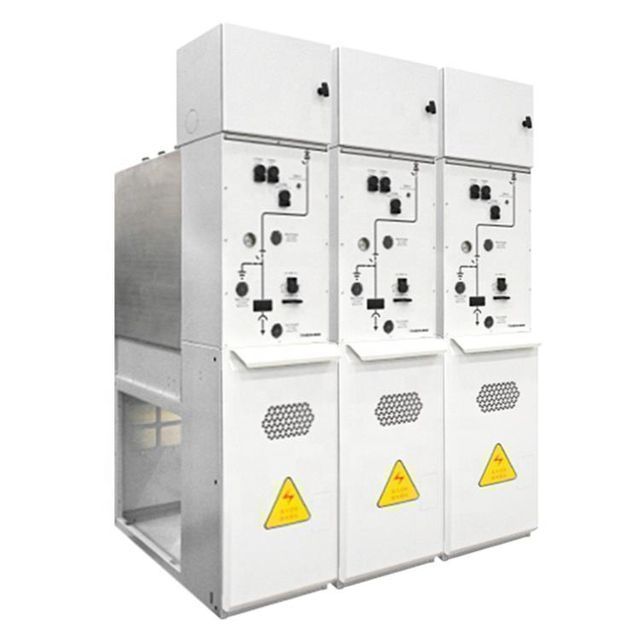

GPS2-12 GREENPOWER Distribution Cabinet Medium Voltage Distribution Cabinet 12kV SIS Solid Insulated Switchgear

Supplier: Zhejiang Greenpower I&e Co., Ltd.
Region: Zhejiang, China
Contact: Ms Annie C
Price: $2500.00 / 1 - 9 sets
$2400.00 / 10 - 99 sets
$2300.00 / 100 - 999 sets
$2200.00 / >=1000 sets
Min. Order: 1 set

Click here to contact

Product details

color:	RAL7035/RAL7032/RAL2004	website:	China Petrochemical Network
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Supply capacity:	10000 sets per year
Packaging Details:	By plywood case	Package preview:
model:	GPS2-12	port:	Ningbo, Shanghai or any port in China
Rated short-circuit breaking current:	25kA every 4 seconds	Auxiliary circuit rated voltage:	DC24, 48, 110, 220, AC 220V
color:	RAL7035/RAL7032	Bill:	42kV/75kV
Rated short-circuit making current:	63KA (peak value)	Life:	40 years
Sequence of operations:	O-0.3s-CO-180s-Co	place of origin; place of origin:	Zhejiang, China
size:	420,450	Rated frequency:	50 Hz, 60 Hz
current:	630,1250	Material:	steel
Voltage:	12000, 10000, 6600, 3300	Intellectual property category:	IP4X/IP67
brand:	GP, green energy

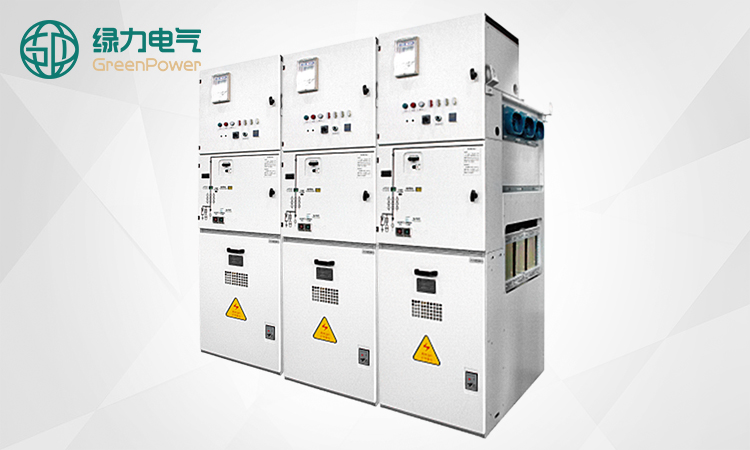

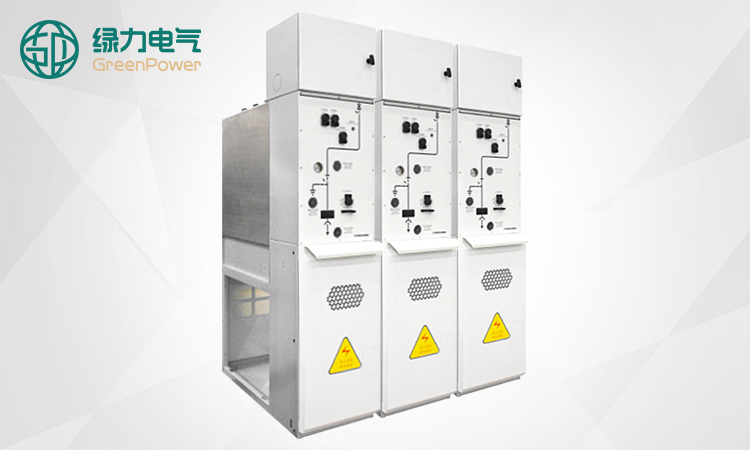

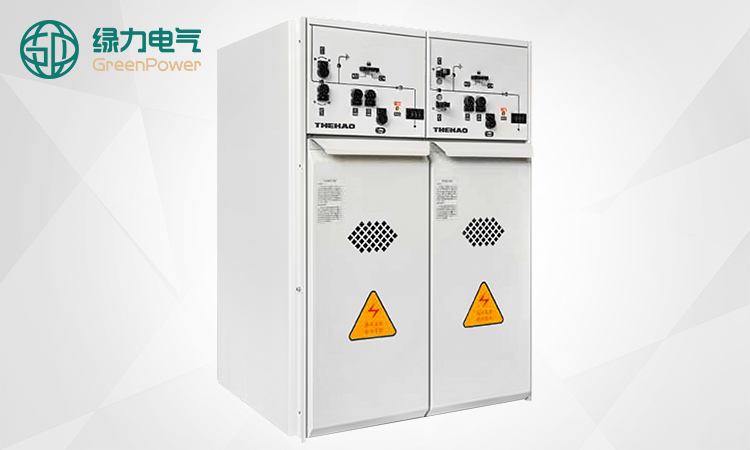

product display

GPS2-12kV solid insulation ring network cabinet solution

Structural features:

GPS2 solid insulated switchgear is composed of functional modules, small in size and compact in structure:Metal closed cabinet:Load switches, circuit breakers, isolating switches and earthing switches can be installed inside.Cable room:Connect to grid or transformer via interface.Operating Mechanism Box:Load switch, circuit breaker, isolating switch, and grounding switch operating mechanism can be installed inside.Low pressure room:Install indicating instruments and comprehensive protective devices.Fuse room:Combined load switch.Bus compartment:scalable bus

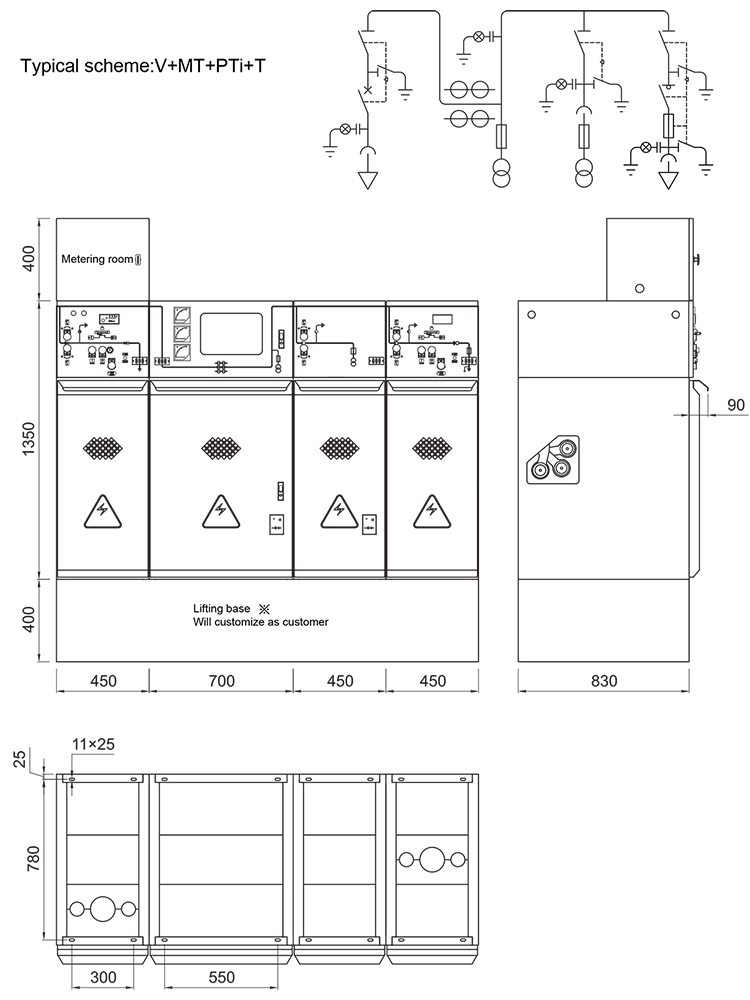

Cabinet width 420 or 450mm

Depth 830mm

Height: 1350mm+400 metering box

Click Consult GP for technical details and prices

No.	name			unit	data
1	room type				vacuum
2	Rated voltage			kV	12
3	rated frequency			hertz	50, 60
4	rated current			A sort of	630,1250
5	Temperature rise test				1.1Ir
6	Rated power frequency 1min withstand voltage	phase-to-phase, phase-to-ground, cross-interface	kV kV	42/48
7	Rated lightning impulse withstand voltage peak (1.2/50us)	phase-to-phase, phase-to-ground, cross-interface	kV kV	75/85
8	Auxiliary and control circuit short-time power frequency withstand voltage			kV	2
9	Rated short circuit breaking current times			Second-rate	25
10	Rated short-circuit breaking current/duration	Main circuit, grounding switch, grounding loop	kA/s kA/s	25/4 21.7/2
11	Rated peak withstand current			Ka	63
12	Rated short-circuit closing current			Ka	63
13	Rated active load current			A sort of	630
14	powered by	Control circuit ground circuit	V V	DC48/110 AC220
15	Partial Discharge Component			personal computer	≤20
16	Induced voltage when the human body touches the surface of the insulator (tested under 1.2Ur)			V	≤36
17	degree of protection	shell Main circuit, solid insulation		IP4X IP67
18	endurance			year	40

Technology and Details

download Google

Note: Please consult your GP for more details.

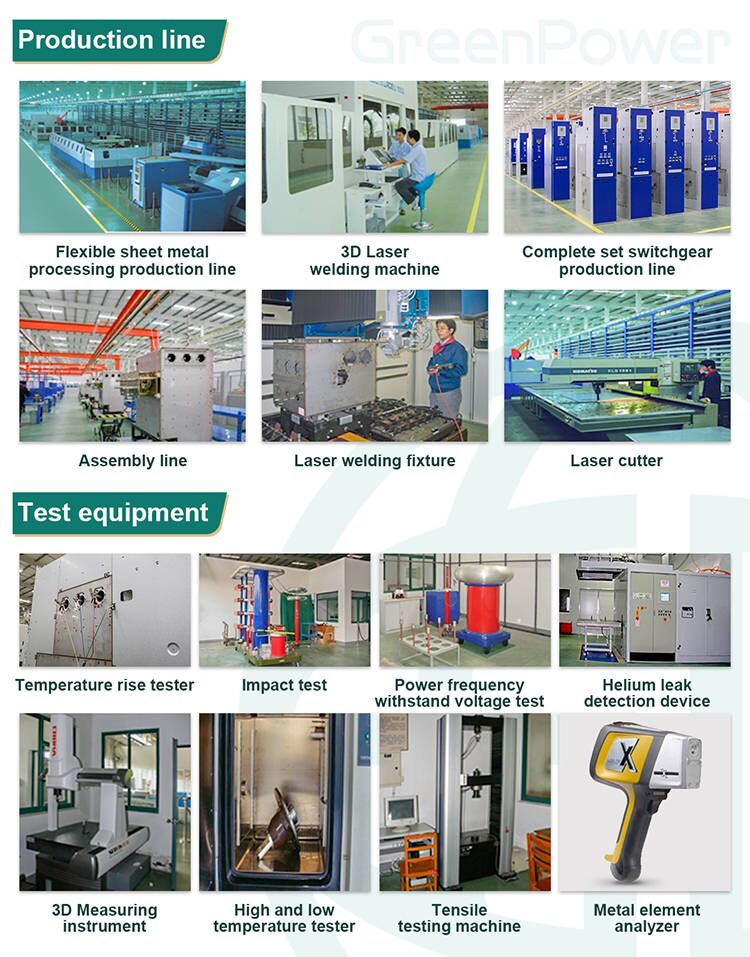

Production equipment and testing equipment

Strict quality control system
*Strict partial discharge detection and control of the whole machine and components
*Partial discharge detection room background: ≤0.5pC
*1. Partial discharge of the whole machine under 1Un ≤ 10pC
Ensure the insulation reliability of the equipment under long-term operation!
