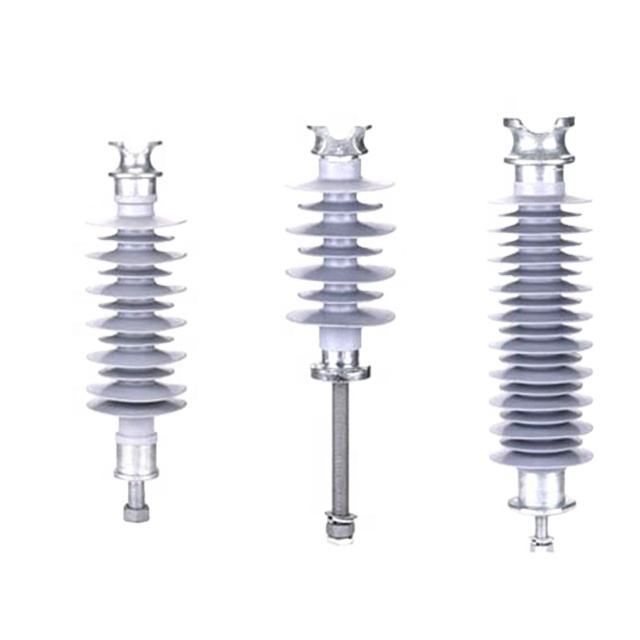

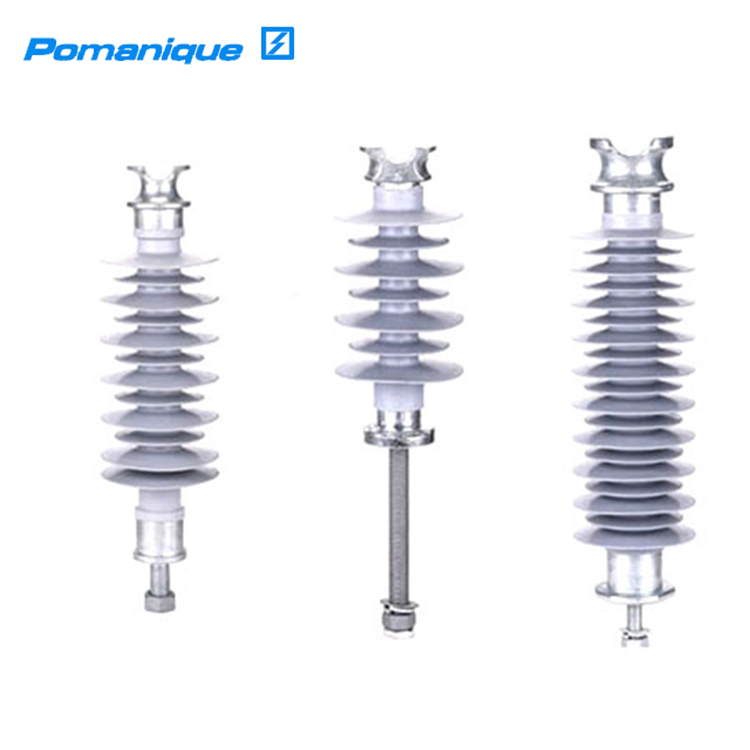

High voltage 12kv 24kv 36kv polymer epoxy resin pin composite insulator
-
Supplier: Yueqing Pomanique Electric Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Benjamin Zhou -
Price: $38.60 / 1 - 99 pieces
$36.80 / 100 - 199 pieces
$33.70 / 200 - 499 pieces
$27.80 / >=500 pieces -
Min. Order: 1 piece
Product details
| Specified mechanical load: | 10kN 11kN 12.5kN | Packaging details: | Export standard cartons, or as per customer requirements |
| Voltage: | 12kV 24kV 36kV,36 | Arc distance: | 180 to 405 mm |
| Leak distance: | 550 to 1650 mm | Single piece packaging size: | 1X1X1 cm |
| Place of origin: | Zhejiang, China | Withstand lightning strikes: | From 110kV to 250kV |
| model: | PDI series | size: | 1500 |
| brand: | pomanik | Sales unit: | Single product |
| Material: | Silicone Rubber | Power frequency withstand voltage: | 50 to 135kV |
| color: | grey | Gross weight of single piece: | 1.000kg |
our service
Product Description

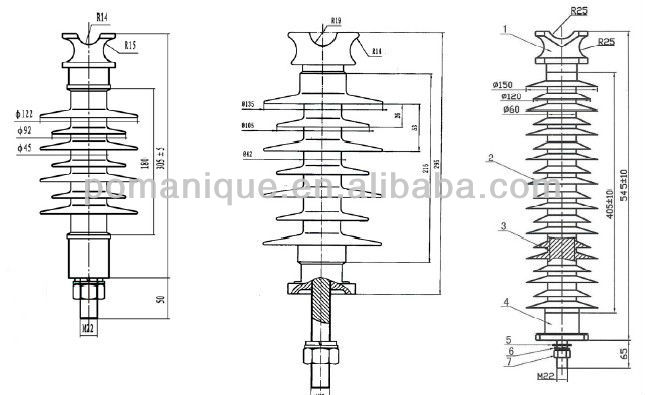

| type | Rated voltage (kV) | Specified mechanical load | Section length (mm) | Minimum arc distance (mm) | Leak distance (mm) | Lightning impulse withstand capability BIL(kV) | Power frequency withstand (wet) (kV) |
| PDI-12/11 | 12 | 11 | 305 | 180 | 550 | 110 | 50 |
| PDI-24/11 | twenty four | 11 | 305 | 215 | 610 | 145 | 65 |
| PDI-36/10 | 36 | 10 | Chapter 445 | 321 | 1040 | 200 | 105 |
| PDI-36/12.5 | 36 | 12.5 | Chapter 545 | 405 | 1650 | 250 | 135 |
