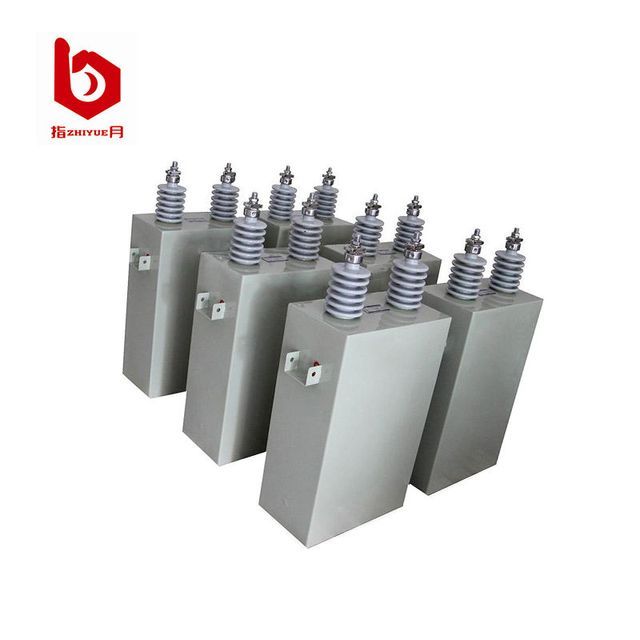

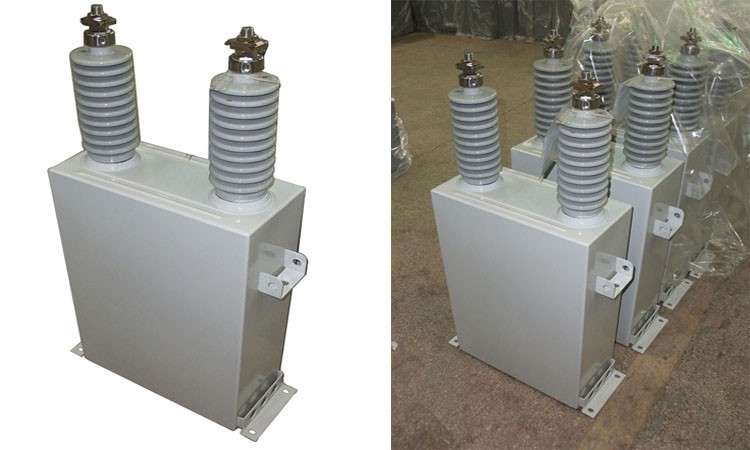

Single phase high voltage power capacitor 6.3 kv 25 Kvar

We can special make it to your specification.

High voltage shunt capacitor technical data:

1. Rated voltage: 6.3kv, 6.6kv, 6.6/kv, 7.96kv, 10.5kv, 11kv, 11kv, 12kv, 12kv

2. Rated capacity: 33-334kvar

3. Capacity tolerance: -5—15%

4. Loss tangent value: film and paper tg <=0.08%, film medium tg <=0.05%.

5. Withstanding voltage: within the capacity range, it can withstand AC2.15 or DC4.3 times the rated voltage for about 10s without interruption or flickering, BIL: 6KV (30KV), 10KV (42KV).

6. Free discharge: It has internal resistance, and after 10 minutes of cutting off the power supply, the remaining voltage drops from Un to 75V.

7. Maximum voltage: 1.1 times rated voltage, no more than 8 hours every 24 hours, 1.15 times rated voltage, no more than 30 minutes every 24 hours, 1.2 times rated voltage, no more than 5 minutes every 24 hours, 1.3 times rated voltage, every 24 hours 24 hours cannot exceed 1 minute.

8. Maximum current: run smoothly at 1.3 times the rated voltage, overvoltage, capacity positive tolerance and harmonics cannot run at 1.43 times the rated current.

9. Implementation standards: GB/T 112024.1-2001, IEC6087:1997.
