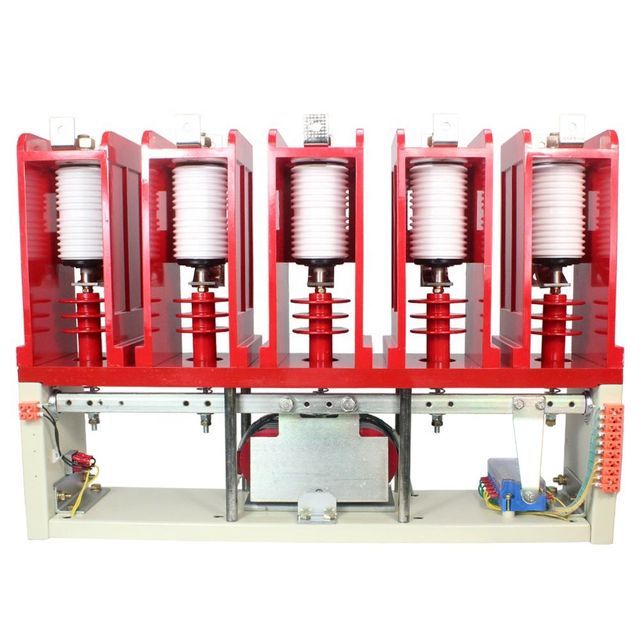

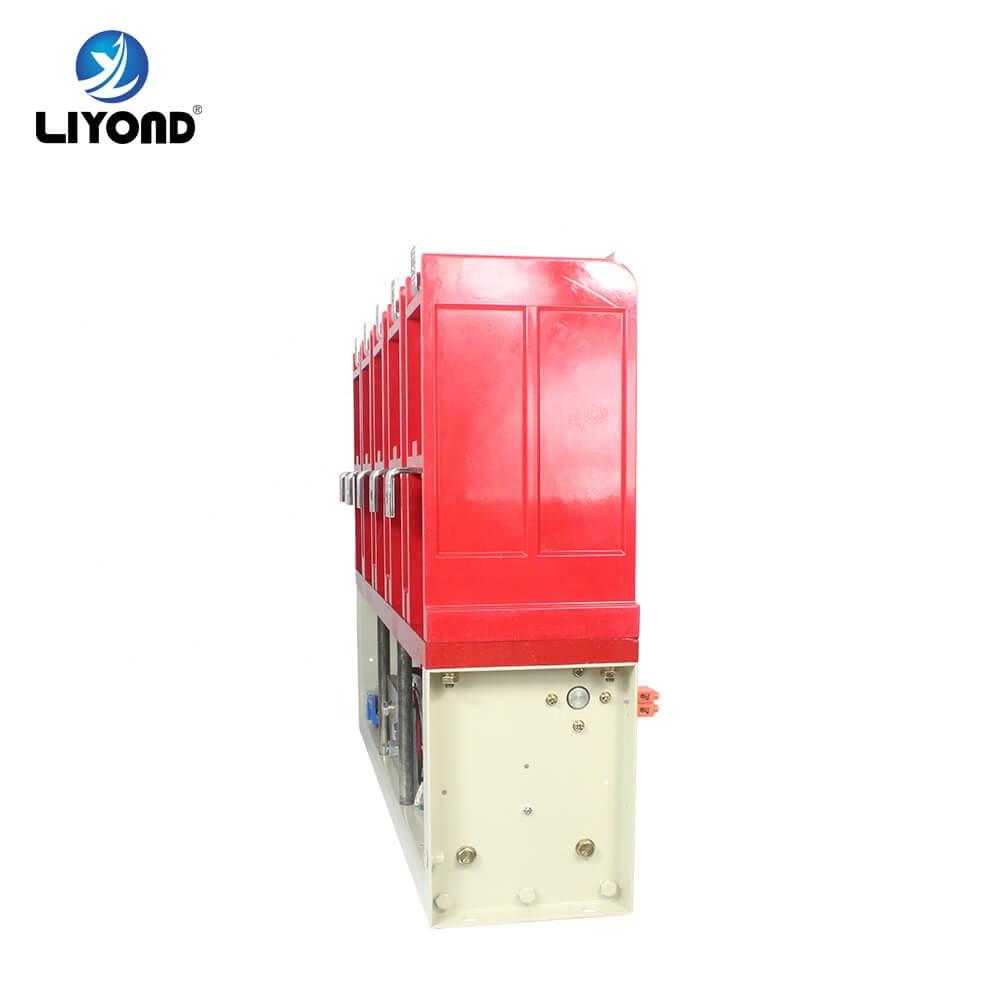

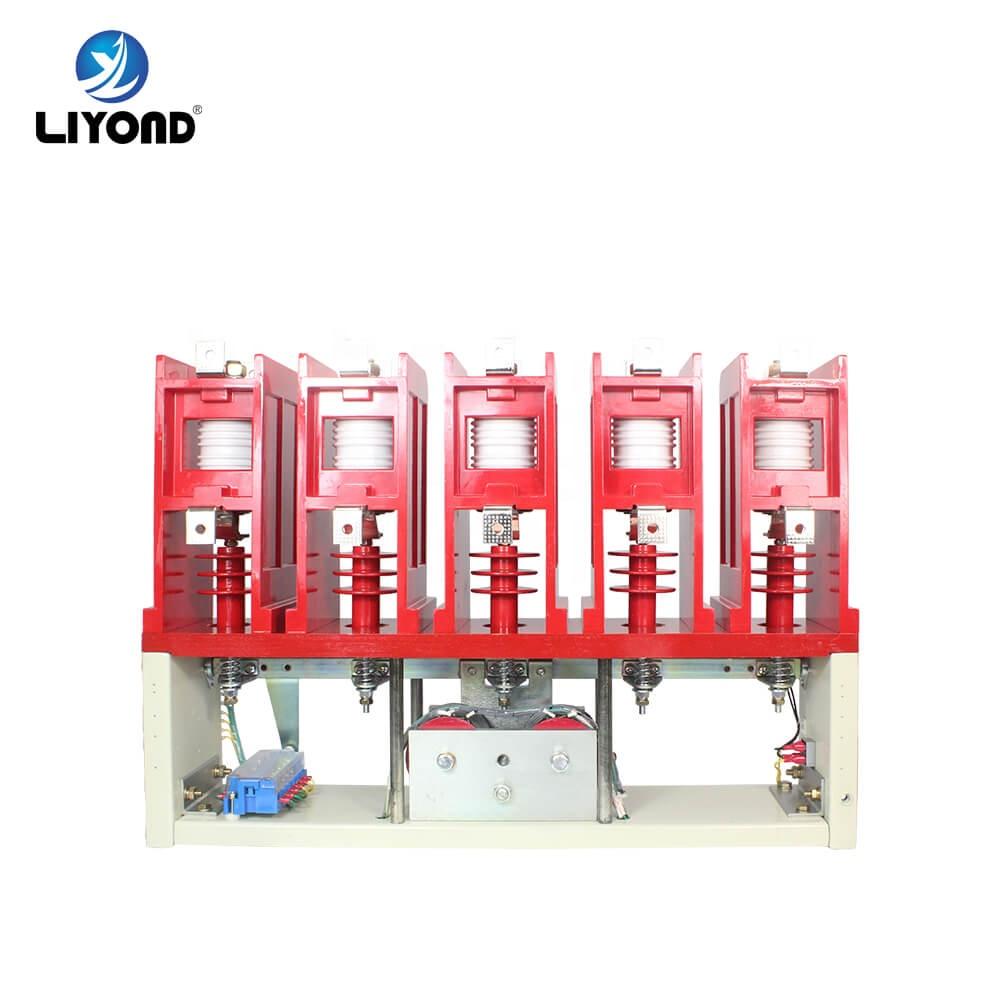

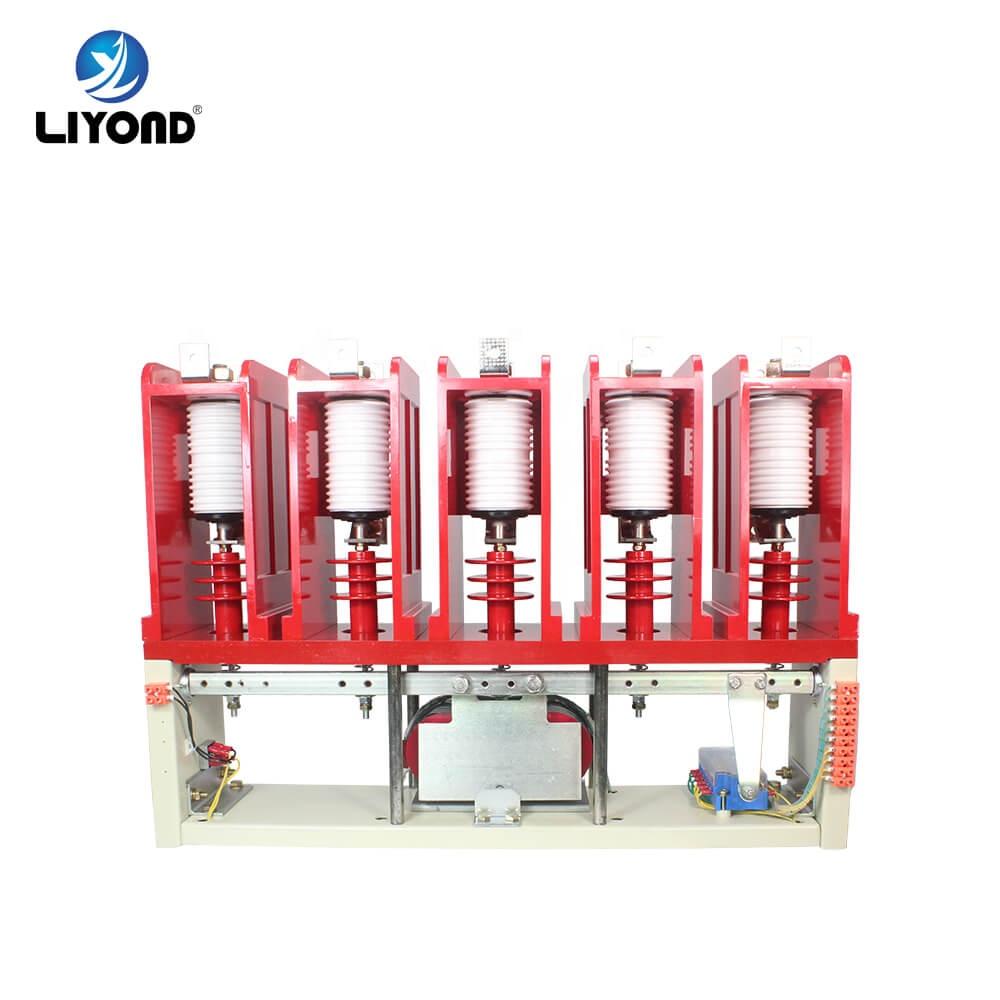

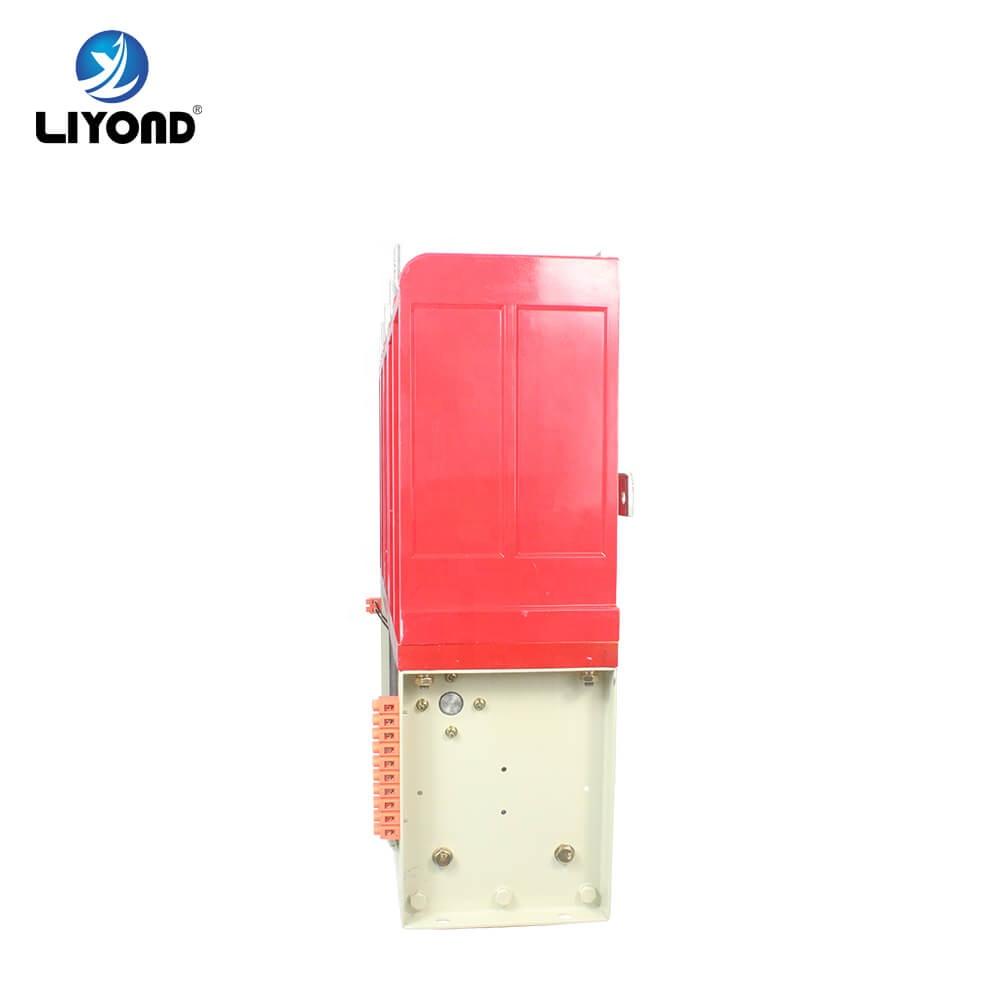

12kV High Voltage 5 pole Contactor AC 630A Vacuum contactor

Supplier: Yueqing Liyond Electric Co., Ltd.
Region: Zhejiang, China
Contact: Mr GuoQi Liu
Price: $430.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Packaging Details:	Provide standard export wooden box or carton according to customer requirements	Voltage:	7.2KV/12KV
Package preview:		current:	160A/250A/400A/630A
model:	CKG3-12/5P	Rated current:	160-630A
Supply capacity:	500,000 contactors per month	Origin:	Zhejiang, China
Number of poles:	5 poles	stage:	5
payment terms:	Western Union, T/T	Rated voltage:	12kV
brand:	Liyong	product name:	vacuum contactor
port:	Shanghai/Ningbo	Breaking capacity:	as specification
Rated frequency:	50Hz-60Hz	Number of poles:	3
Mechanical life:	100,000 times

Product Description

describe:

CKG3-12 series high-voltage vacuum AC contactors are suitable for long-distance connecting and breaking lines and frequent starting in power networks with AC 50-60Hz, rated working voltage of the main circuit 12KV, and rated current below 630A. It is suitable for controlling AC motors, and is more suitable for replacing vacuum circuit breakers with fuses and various protection devices.

Application environment conditions:
1. The ambient air temperature is not higher than +40°C and not lower than -10°C; 2. The altitude of the installation site is not more than 1,000 meters for ordinary models, and not more than 4,000 meters for plateau models; 3. The relative humidity of the air, the wettest month The average maximum relative humidity is 90%, and the average minimum temperature of the month is 25°C, and the condensation on the product surface due to humidity changes is considered; 4. Occasions without obvious shaking and shock vibration. 5. There is no explosion hazard, and there is no gas and dust (including conductive dust) that can corrode the insulation; 6. A place without rain and snow.

feature

1. High arc extinguishing ability
2. Good pressure resistance
3. High working frequency
4. Long life
5. No flashover
6. Small size
7. Light weight
8. Longer maintenance intervals

PS: Products with special requirements, specifications, and sizes that need to be improved can be designed and manufactured according to user requirements.

Product parameters

Main circuit rated voltage (kV)	12	12	12	12
Main circuit rated current (A)	160	250	400	630
Main circuit contact capacity (A/100 times)	1600	2500	4000	6300
On-off capacity of main circuit (A/10 times)	1280	2000	3200	5000
Ultimate breaking capacity (A/3 times)	3200	4000	4500	6300
Mechanical life (times)	1000000	1000000	1000000	1000000
Mechanical lock life (times)	100000	100000	100000	100000
Main circuit power frequency withstand voltage (kV)	32	32	32	32
Auxiliary circuit power frequency withstand voltage (kV)	2.5	2.5	2.5	2.5
Control circuit power frequency withstand voltage (kV)	2	2	2	2
Rated working frequency (times/h)	300	300	300	300
Mechanical lock operation frequency (times/h)	30	30	30	30
Contact opening (mm)	5±0.5	5±0.5	5±0.5	5±0.5
Overtravel (mm)	1.5±0.3	1.5±0.3	1.5±0.3	1.5±0.3
