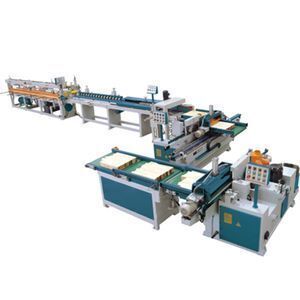

Wood Full Automatic Finger Joint Wood Machine Line Machine

Product details
Power(W):4kw;Brand Name:HICAS;
Brand Name:HICAS;Certification:ISO9000;
Warranty:1 Year;Place Of Origin:Shangdong;
Website:www.hicasmach.com;Condition:New;
Packaging Detail:Wood Full Automatic Finger Joint Wood Machine Line Machine: Standard packaging or packaging according to customer requirements;After-sales Service Provided:Field installation, commissioning and training;
Port:qingdao;Power:65.35kw;
Place of Origin:Shandong China (Mainland);Dimension(L*W*H):18000x6000mm;
Working Hight:20-150mm;Working Width:30-590mm;
Voltage:220V/380V;Product Name:Finger Joint Line;
Applicable Industries:Furniture Factory;Weight:///;
Supply Ability:10 Set/Sets per Month Finger Joint Line;Air Pressure:0.8Mpa;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Air Pressure:0.8Mpa;



Wood Full Automatic Finger Joint Wood Machine Line Machine

Product Description

Full automatic finger joint production line(tenon shaper/gluing/tenon jointer)

Technical ParametersFiger jointer

Figer shaper

MXB3518A-B

Figer shaper

MXB3518C-C

Belt conveyor
Max working length 5000mm/6200mm150mm-900mm150mm-900mm900mm
Effective working width30mm-150mm590mm590mm590mm
Effective working length12mm-70mm18mm-150mm18mm-150mm18mm-150mm
Cutting saw rotary2840r/min4150rpm4150rpm
Fret saw motor  2840rpm2840rpm
rotary speed
Shaper spindle diameter 50mm50mm
Shaper spindle  6750rpm6750rpm
rotary speed
Shaper motor power 11kw11kw
Cutting saw motor2.2kw4kw4kw
Fret saw motor 0.75kw0.75kw×2pcs
Feeding motor power 0.55kw0.55kw×2pcs0.55kw×1pcs
Oil station motor power4kw2.2kw2.2kw
Working speed70m/min
Working air pressure0.8Mpa
Max oil pressure130kgs/c m²
Oil station motor power4kw
Frequency motor power 1.1kw1.1kw
Machine dimension

(6100×1250

×1600) mm (7300×1250

×1600) mm

(2800×1650

×1450)mm

(3300×1900

×1450)mm

(1700×730

×980)mm

Product Show



Characteristic:

1.Guide rail of finger joint shapers conveyor is japan precision linear guide rail to gurantee the shaping accuracy .

2.The design for finger joint shaper is double blades+tooth-tenon knife assembly to  provide high precision.

3.The conveyor table of finger joint shaper adopts German pneumatic hydraulic conveyor system to control bakc and forth ,smoothly,low maintenance,high quality .

4.The second push part of finger joint assembler adopts long+short double pushing board design,

by this kind of structure ,it can assemble very short workpiece to reduce the cost .

5.Whole machine is conveniently operated by PLC Central integrated programmable controller.

Model:RL-520A2 Belt conveyorModel:MXB3518A-B finger tenon shaper
Model:MXB3518A-B finger tenon shaperRoller conveyor

Chain conveyorModel: Finger joint machine
Production Process





Packaging & Shipping





Why Choose Us

1.14 years experience in chinese woodworking machinery market.

2. 8 years exportation experience, have customers in more than 40 countries.

3. Know Chinese market well, through the years cooperation, now we have about 30 stable suppliers.

4. Joined Alibaba Trade Assurance to make sure the buyer’s benefit. If can’t meet the details in the contract, 100% of your payment will be returned.

5.Customer Feedback



6. Our company and products have been verified onsite by SGS Group

7. Learn more about us on Website (www.hicasmach.com) or SNS as follows:
