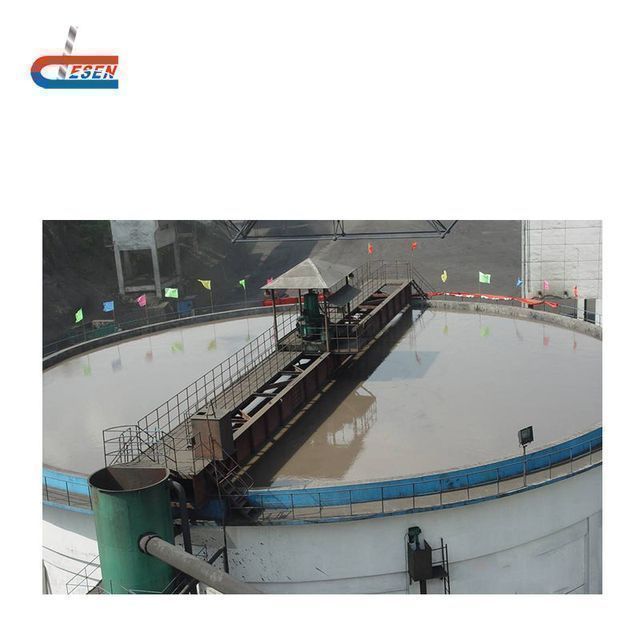

Circular concentration clarifier gravity concentration tank

Supplier: Xi'an Desen Mining Machinerey & Equipment Co., Ltd.
Region: Shaanxi, China
Contact: Ms International Trade Dep.
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Marketing Type:	normal product	price:	Negotiable
application:	ore	Warranty:	1 year
Pay:	L/C or T/T	capacity:	custom made
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Package:	Airworthiness bag
Material:	custom made	Life:	over 35 years
Motor type:	stepper motor	port:	Xiamen Port
Production capacity:	5-1400 tons/day	Showroom location:	not any
Core components:	motor	place of origin; place of origin:	Shaanxi, China
Applicable industries:	Energy and Mining	color:	customized
Features:	tailings thickener	Video shipment inspection:	if
Weight (kg):	1000	Mechanical test report:	if
Core component warranty:	3 years	State of health:	new
Install:	Install	Dimensions (LWH):	Require
Packaging Details:	Sludge thickening tanks are transported in bulk containers or flat rack containers according to customer needs	Types of:	mining thickener
brand:	Desen Mining	draw:	supply foundation map
Supply capacity:	50 sets per month

Product Description

Features

1. There is a degassing chamber to prevent solid particles from adhering to the air bubbles and make the solid particles fall like a parachute.
2. The feeding pipe is lower than the slurry surface; it can prevent air from being brought in during feeding
3. The feeding sleeve moves down and is equipped with a receiving plate. Therefore, the feed slurry falls evenly and steadily, preventing the tumbling phenomenon caused by the residual pressure of the feed
4. There is an inner overflow weir to make the slurry flow according to the predetermined route, avoid short circuit and expand the settlement area
5. The inner overflow weir is made into a zigzag shape, which eliminates the partial water absorption caused by the uneven overflow weir.
6. The nail line is changed from a slash to a curve. The discharge underflow therefore has a higher density, increasing throughput.

Applications

Widely used in metallurgy, mining, coal, petrochemical, building materials, environmental protection and other departments to deal with coal slime, waste water, waste residue, etc.

detailed image

Thickener working principle:

The high-efficiency dense thickener is mainly composed of a round thickening basin and a rake scraper. The solid particles suspended in the slurry in the thickening tank fall down under the action of gravity, and the upper part is clear water to separate the solid particles from the liquid. The ore pulp deposited at the bottom of the thickening tank is continuously scraped by the rake scraper to the discharge port at the center of the bottom of the tank, and the clean water overflows along the upper edge of the thickening tank.

Thickener Features:

(1) Add flocculant to increase the particle size of falling solid particles and accelerate the falling process.
(2) Add a sloping plate to shorten the falling distance of ore particles and increase the falling area.
(3) It plays the role of flocculation, filtration and concentration to increase the processing capacity.
(4) The high-efficiency concentrator is equipped with a complete automatic control device.
