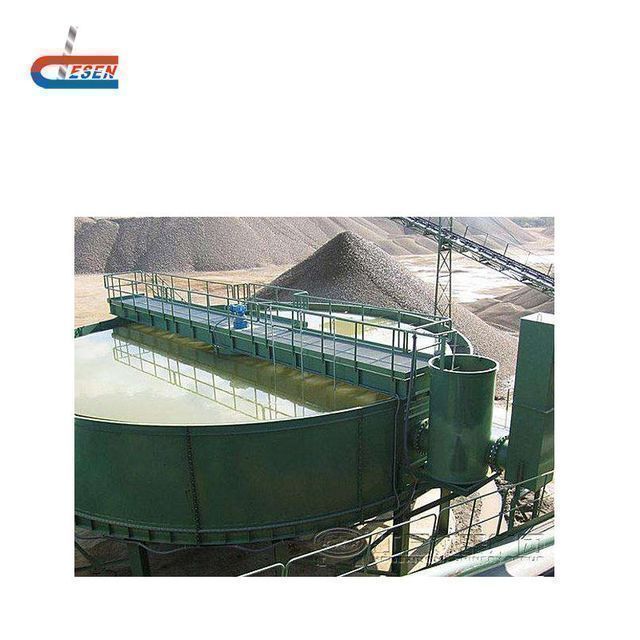

High Efficiency Gravity Thickener

Supplier: Xi'an Desen Mining Machinerey & Equipment Co., Ltd.
Region: Shaanxi, China
Contact: Ms International Trade Dep.
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Local service location:	Nigeria	place of origin; place of origin:	Shaanxi, China
Warranty:	1 year	painting:	Supply base map
Function:	Tailings Thickener	Life:	over 35 years
Showroom location:	not any	brand:	Desen Mining
Health status:	new	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Packaging Details:	Sludge thickening tanks are delivered in bulk containers or flatbed containers according to customer requirements	Supply capacity:	50 sets per month
Video external inspection:	if	Install:	Install
Motor Type:	stepper motor	Material:	custom made
Core components:	motor	Mechanical test report:	if
port:	Xiamen Port	Applicable industries:	Energy and Mining
Pay:	letter of credit or wire transfer	Production capacity:	5-1400 tons/day
Dimensions (LWH):	requested	Package:	Airworthiness bag
Marketing Type:	normal product	color:	customized
Certification:	ISO 9001	Core Components Warranty:	2 years
After-sales service provided:	Free spare parts, online support, on-site maintenance and repair services	price:	Negotiable
application:	ore	capacity:	custom made
type:	Mining Thickener

Product Description

Features

1. Equipped with a degassing chamber to prevent solid particles from adhering to the air bubbles, so that the solid particles fall like a parachute.
2. The feeding pipe is lower than the pulp surface; it can prevent the air from being brought into the feeding
3. The feeding sleeve moves down and is equipped with a feeding plate. Therefore, the feeding slurry falls evenly and smoothly, preventing the tumbling phenomenon caused by the residual pressure of the feeding material.
4. There is an inner overflow weir to make the slurry flow according to the predetermined route, avoid short circuit and expand the settlement area
5. The inner overflow weir is made into a zigzag shape, which eliminates the local water absorption phenomenon caused by the uneven overflow weir.
6. The hook line is changed from a slash to a curve. Therefore, the discharge undercurrent density is higher and the processing capacity is enhanced.

Applications

It is widely used in the treatment of coal slime, waste water and waste residue in metallurgy, mining, coal, petrochemical, building materials, environmental protection and other departments.

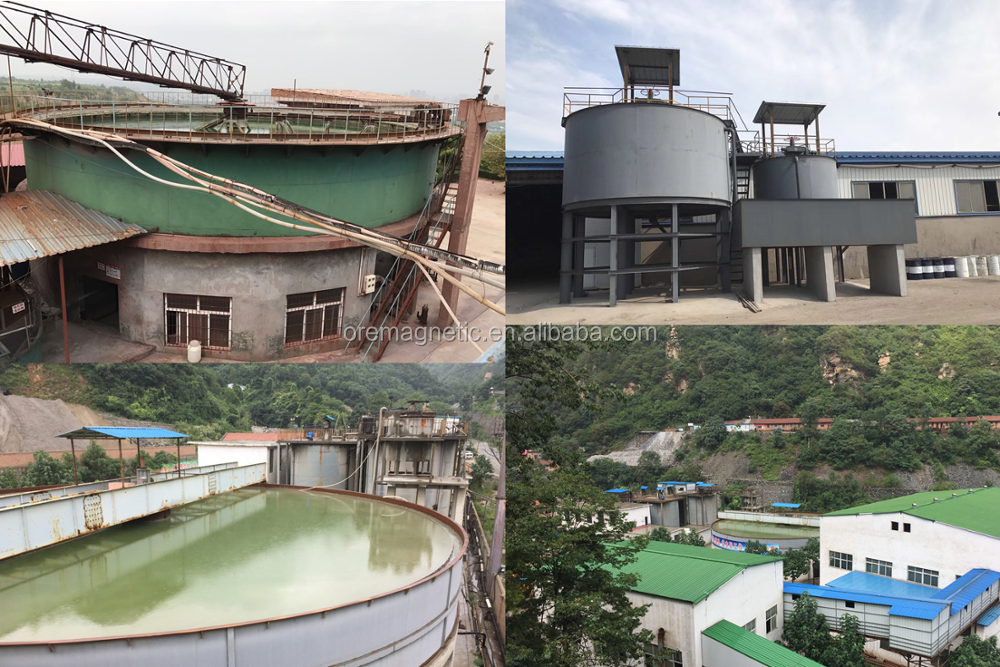

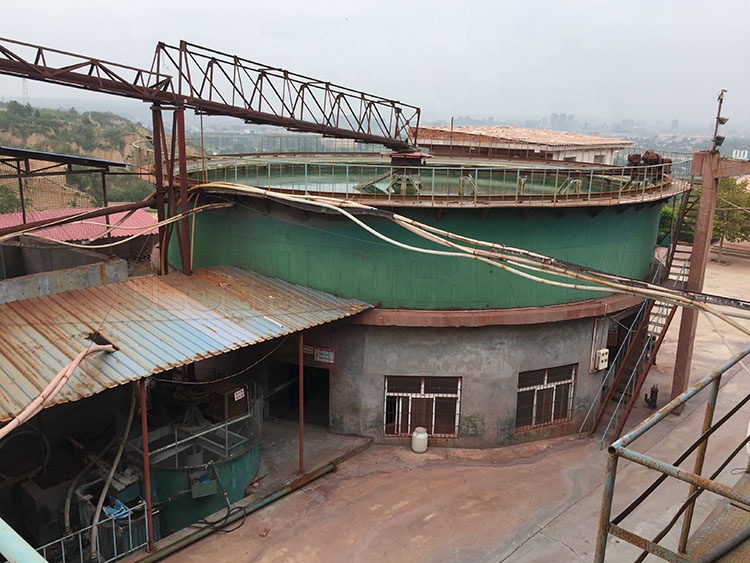

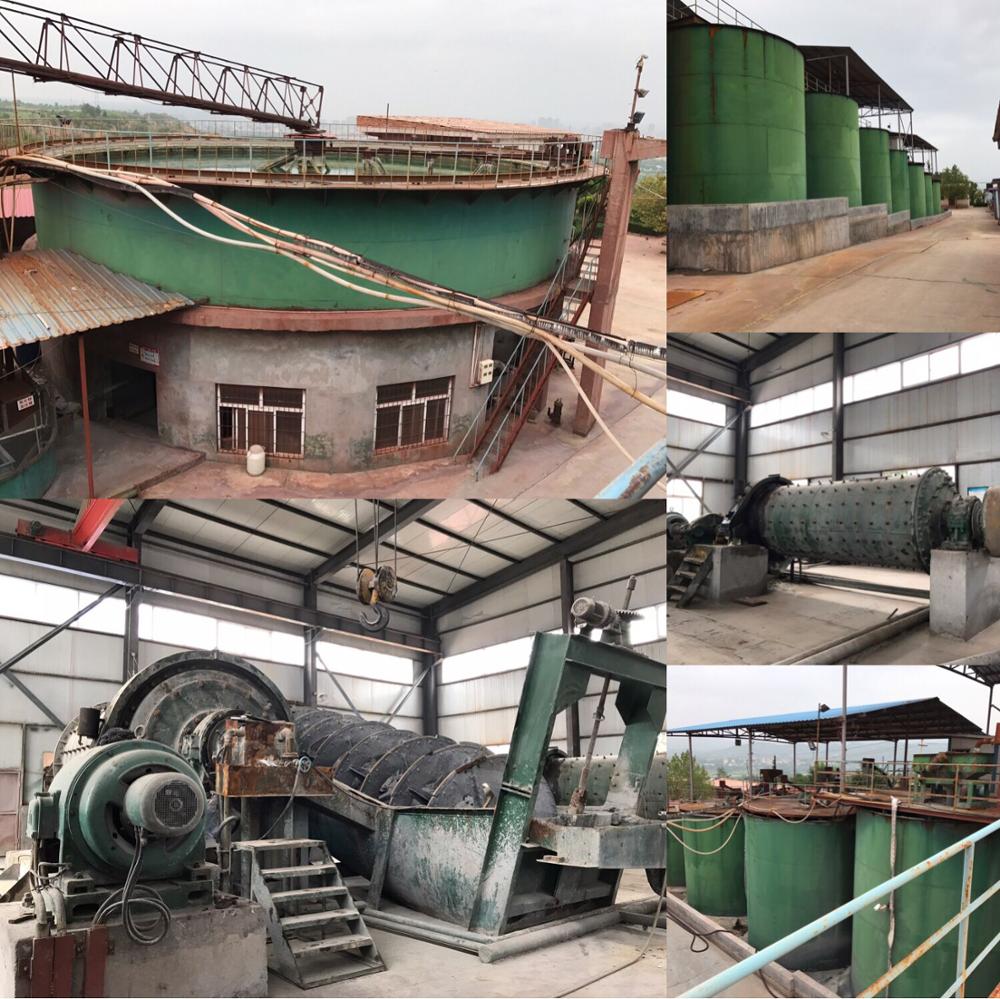

detailed image

How thickeners work:

The high-efficiency thickener is mainly composed of a circular thickening tank and a rake scraper. The solid particles suspended in the slurry in the concentration tank fall under the action of gravity, and the upper part becomes clear water, which separates the solid particles from the liquid. The ore slurry deposited at the bottom of the concentration tank is continuously scraped by the rake scraper to the center discharge port at the bottom of the tank, and the clean water overflows along the upper edge of the concentration tank.

Thickener Features:

(1) Add flocculant to increase the particle size of falling solid particles and accelerate the falling process.
(2) Install the inclined plate to shorten the falling distance of ore particles and increase the falling area.
(3) Play the role of flocculation, filtration, concentration and increase the processing capacity.
(4) The high-efficiency concentrator is equipped with a comprehensive automatic control device.
