Pratt & Whitney T962C Infrared Reflow Oven SMD BGA 2500W Infrared Heater Reflow Oven Platform Pratt & Whitney T962C Reflow Oven

Product details
Function:LED lead-free solderingState of health:new
Applicable industries:Mechanical Repair Shop, RetailTypes of:reflow soldering
temperature range:0-280℃After-sales service provided:online support
Number of heating zones:1Mechanical test report:if
way to heat up:InfraredMarketing Type:New Products 2021
Core component warranty:1 yearWelding time:8 minutes
Solder area:400*600mmSingle package size:78X62X34 cm
brand:Pratt & WhitneyPackage preview:
aspect:76*60*35cmexpiration of pay:T/T;paypal/this platform
Rated Capacity:2900wNominal Duty Cycle:100%
Video shipment inspection:ifapplication:Printed circuit board soldering
Core components:PLC, engine, gearboxVoltage:AC110/AC220V
Weight (kg):30 kgcurrent:13A
Certification:CE certificationGross weight per piece:30.000 kg
Showroom location:pakistan, indiaWarranty:1 year
Main selling points:precise temperature controlPackaging Details:Standard export carton
Sales unit:single productplace of origin; place of origin:Shandong China
usage:smt reflow soldering
Product Description

Pratt & Whitney T-962C smt reflow oven, bga reflow oven

1. Description

1. The product adopts a high-speed and stable main control MCU, combined with advanced intelligent temperature measurement and control technology, with fine temperature measurement and temperature control.

2. The product has a temperature correction and compensation function, which reduces the requirements for the machine's operating environment and enables the machine to maintain a stable temperature measurement quality in a temperature-changing environment.

3. The product has the function of timing and constant temperature, which keeps the machine in a constant temperature environment and meets the diverse needs of users.

4. The product is equipped with PC-side control software, and operations such as heating curve editing and management are simplified.

5. The control software equipped with the product provides a variety of curve input, which is convenient for the setting of various curves.

6. The control software has an original graphic curve display module, which can display curves dynamically in real time, realize what you see is what you get, and intuitively display abstract graphics to users.

7. The control software provides a variety of solder paste data, and users can set curves for reference.

2. Features

(1) Infrared welding area is large

Drawer size: 400*600mm; this greatly increases the range of use of this machine and makes it economical


(2) Selection of different welding cycles

The parameters of eight welding cycles are predefined, and the entire welding process can be completed automatically

Preheat, soak and reflow to cool.

(3) Special heating and temperature equalization for all designs

Reflows solder using up to 2500 watts of energy-efficient infrared heating and air circulation.

(4) Ergonomic design, practical and easy to operate

Good build quality, but at the same time light weight and small footprint, allowing the T962C to fit easily on a bench

Positioning for transport or storage.

(5) Large number of functions available

T962C can solder most raised eye or double-sided PCB small parts, such as CHIP, SOP, PLCC, QFP,

Ideal rework solution for BGA etc. from single run to on-demand low-volume production

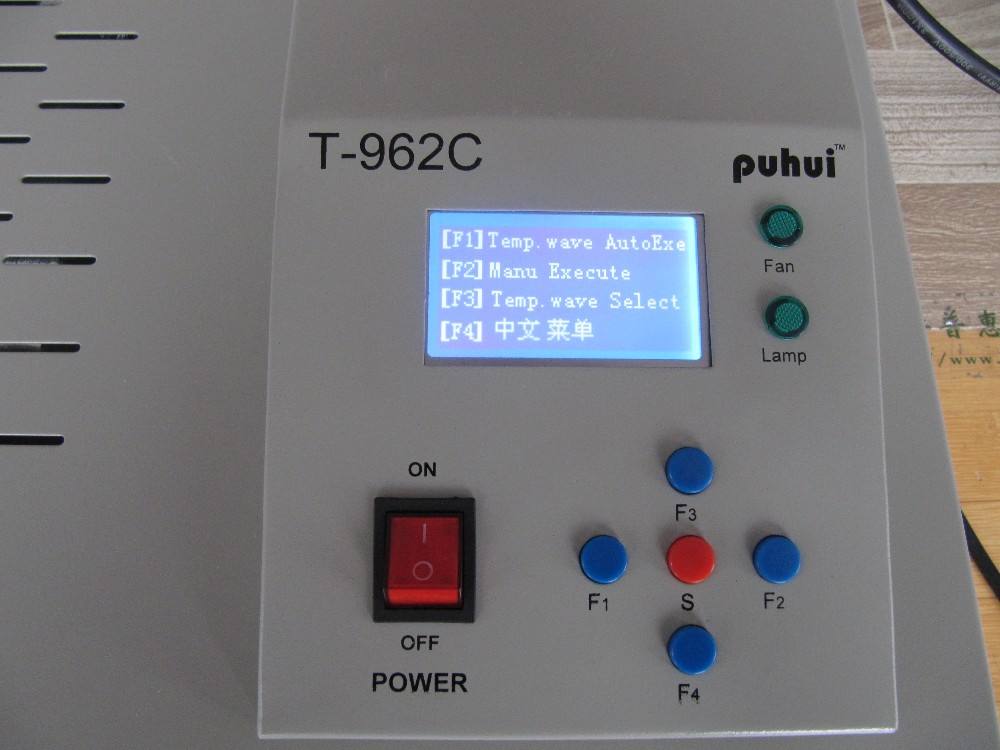

temperature wave
8 wave internal machine
Compatible with most welding processes
connect computer
Change or edit a particular wave
Constant temperature function
Room temperature -300°C

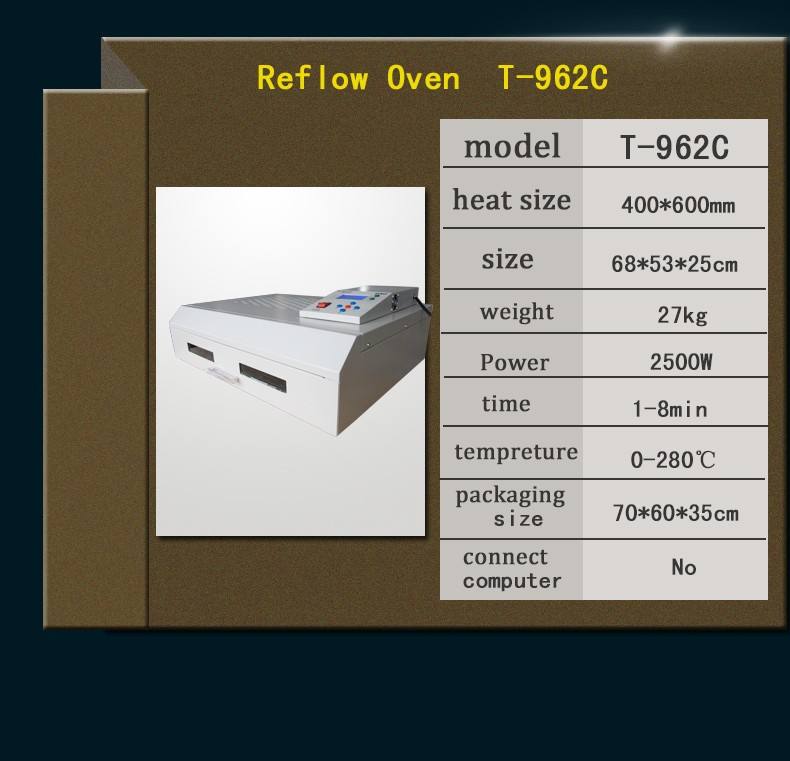

voltage and power

welding area

detailed image

Mechanical Parts

Product Name: Reflow Soldering Chip

Brand: Pratt & Whitney

Original: China

high performance chip


Name: Infrared Lamp
Brand: Pratt & Whitney
Original: China
Domestic high-quality heater, stable heating

Mechanical Parts

Name:cooling fan
Brand: Pratt & Whitney
Country of Origin: China
Strong cooling capacity, make the temperature wave run well.

Mechanical Parts

Name: viewing window
Brand: Pratt & Whitney
Original: China
See clearly and stay warm and in good shape.

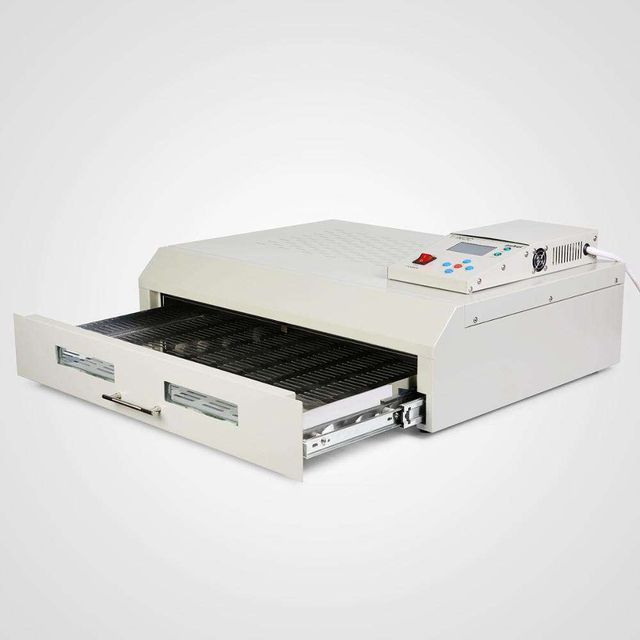

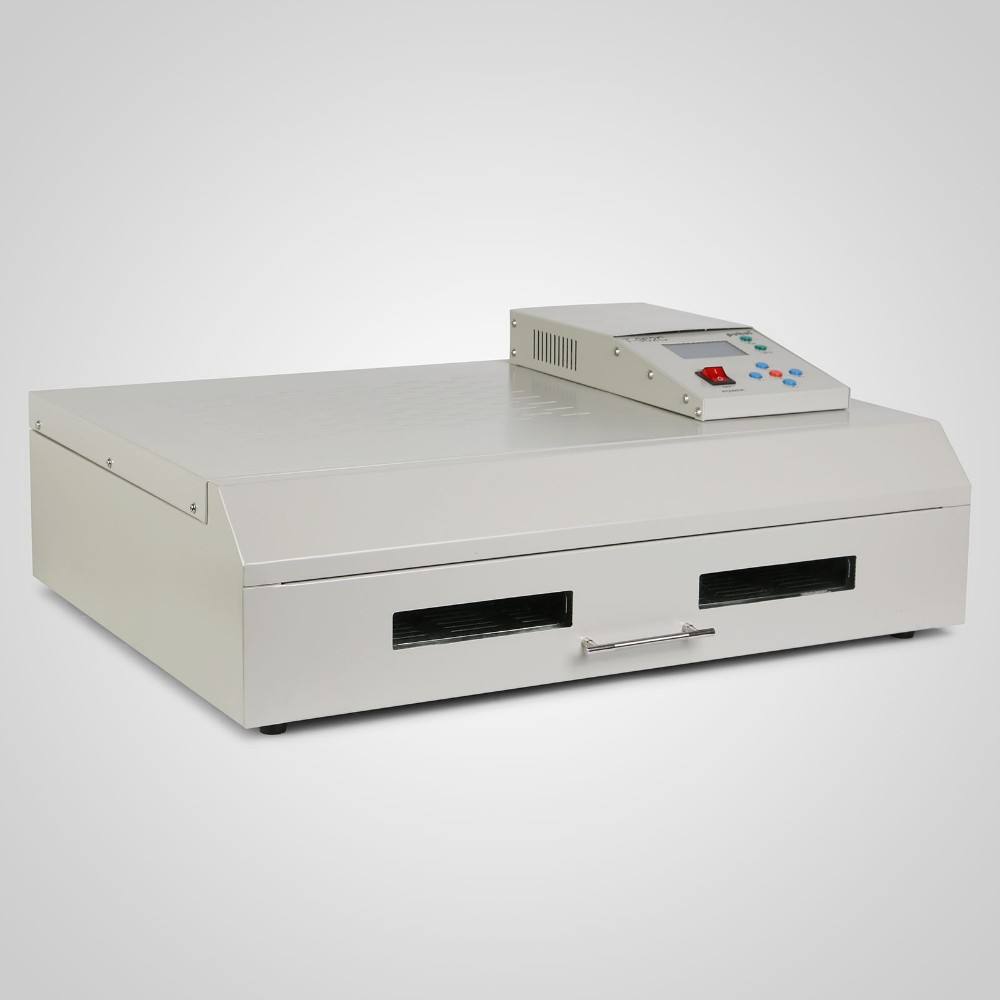

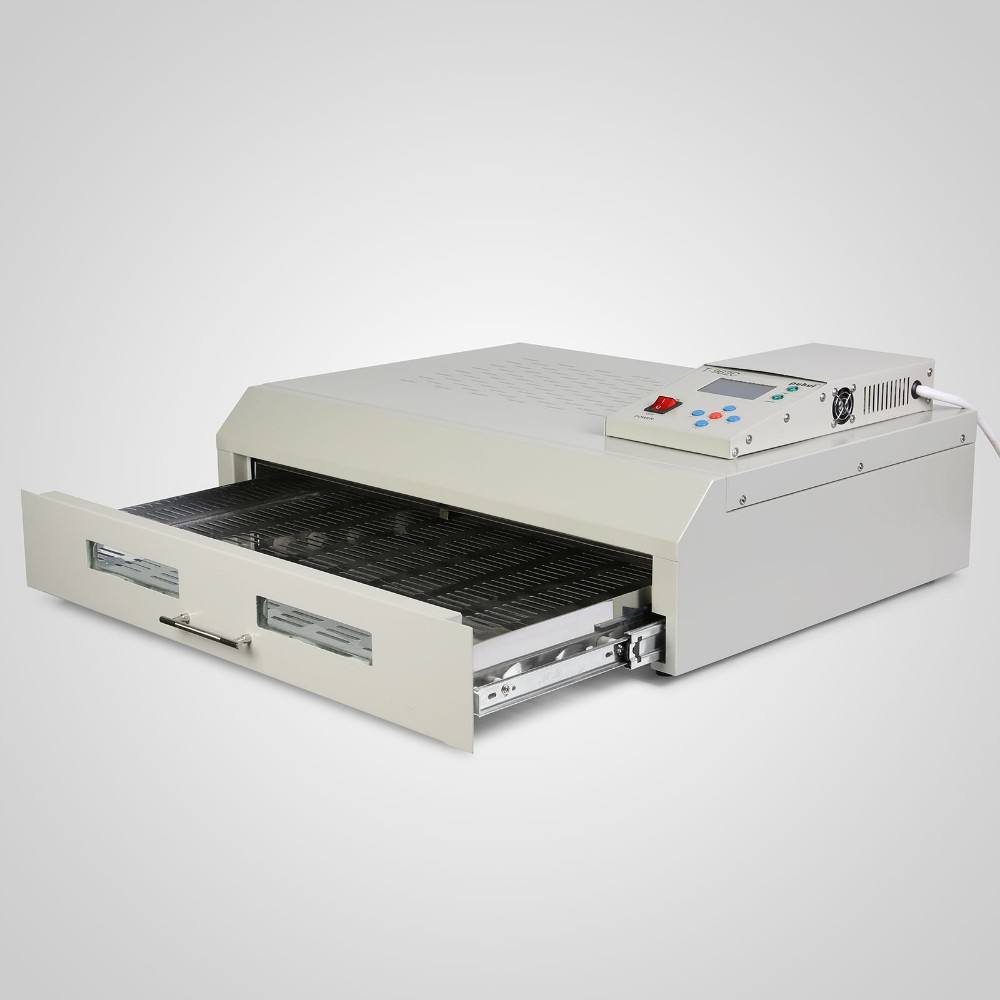

Reflow Oven T962C Front View

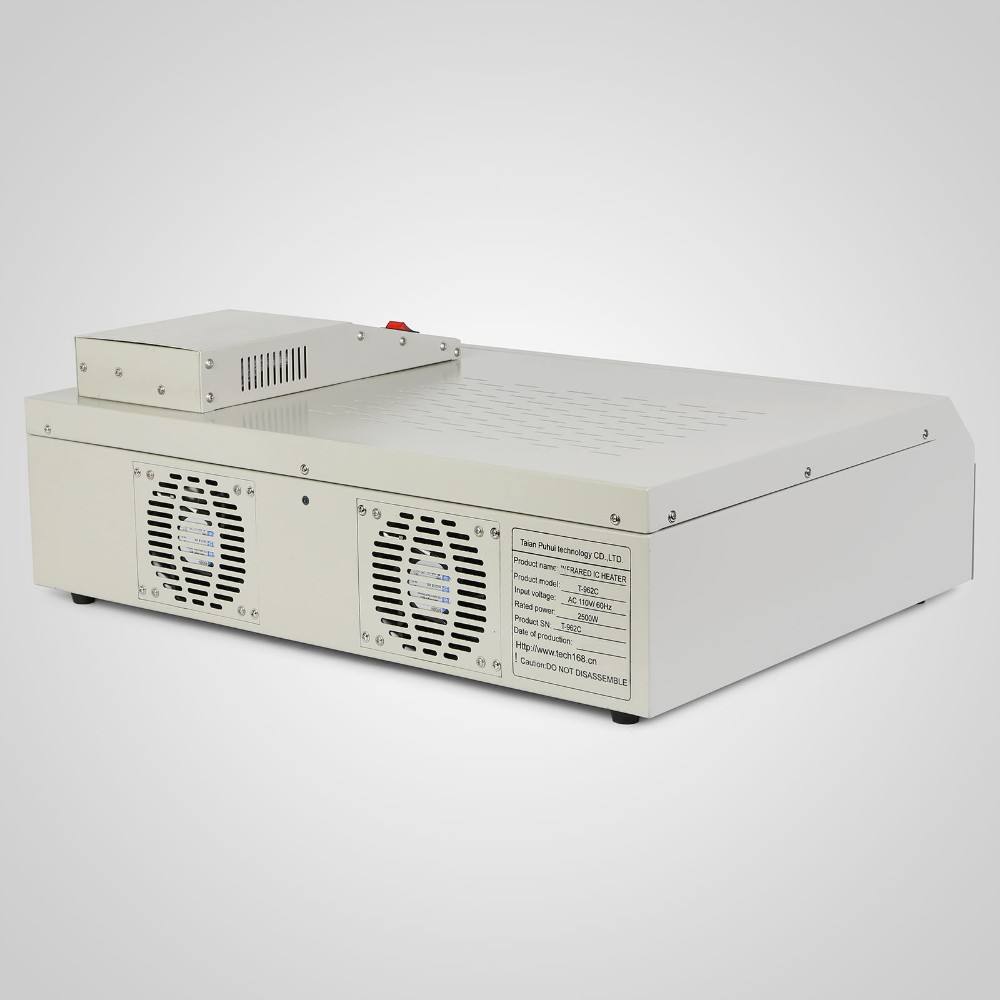

Reflow Oven T962C Rear View
