Puhui SMT machine MT-602 pick and place commonents for SMD

Supplier: Taian Puhui Electric Technology Co., Ltd.
Region: Shandong, China
Contact: Ms Ms Gaby
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Package Type:	safe carton;	number of rack:	56:8mm=50,12mm=4,16mm=2;
positioning accuracy:	0.025mm;	602 mounting head:	double mounting heads;
Single volume:	1 cm;	Brand Name:	puhui;
Package Preview:	https://sc01.alicdn.com/kf/HTB1C4zZvsUrBKNjSZPxq6x00pXaM.jpg_640x640.jpg;	Place of Origin:	Shandong China (Mainland);
Single gross weight:	170 KG;	Selling Units:	Single item;
Model Number:	MT-602;	average speed:	5000CPH;
operating system:	Windows;

Puhui SMT machine MT-602 pick and place commonents for SMD

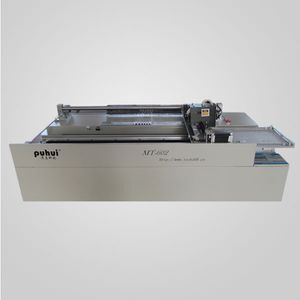

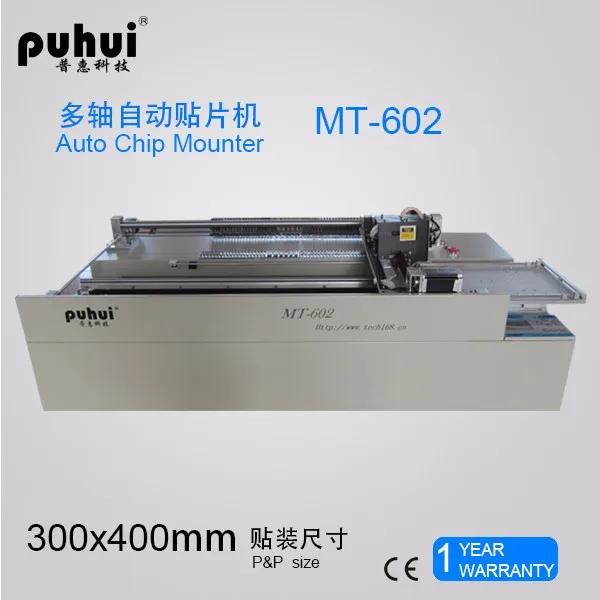

Puhui MT-602 is a new type of pick and place machine. It is widely used for the PCB and LED board in the size of 300*400mm. Adopt two mounting head, it is easy to operate with high precision and stable.

SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
Pproduct Type	MT-602	Mounting Head	double mounting head
Average Speed	5000CPH	Positioning Accuracy	0.025mm
Net Weight	151kg	Applicable Elements	0603-1206 SMD transistors, diodes, capacitors, resistors, chips, etc.
Number of Rack	56:8mm=50,12mm=4,16mm=2	Number of offline storage files	20
Max size of circuit board	300mm×400mm	Power Supply	220V,50/60Hz,280W
Vacuum gas source	-50Kpa,13L/min	Operating System	Windows
Installation Dimension W×D×H	1396761480	Number of vacuum pump	2
Number of pump	1	Malfunction detection	Suction leak detection, pressure detection

Main Features

1.Independent of the placement structure

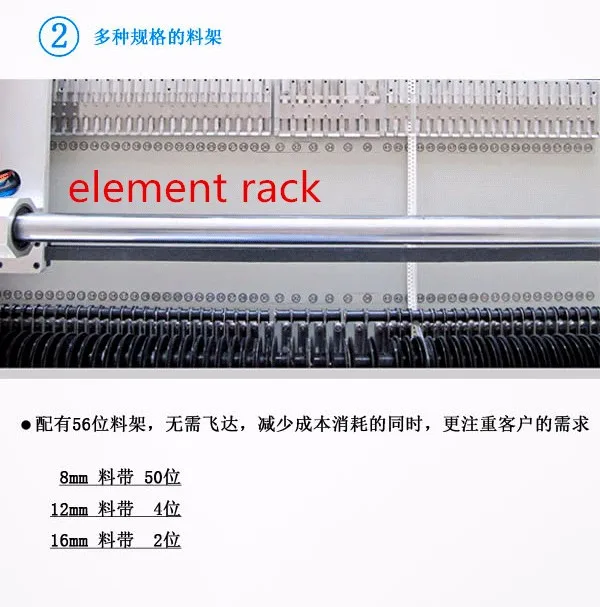

2.A variety of rack specifications
3.Any trapping placement function
4.Leak detection function
5.Easy to learn the placement of software

Machine Parts

Name: control panel

Brand:Puhui

Original:China

MT-602 can be used with offline or cimputer.

When offline, it can be saved 20 placement files.

Main Features

Name: pick and place structure
Brand: Puhui
Original: China
this structure has the function of automatic inspection when leaking the element. The nozzle can pick 8mm,12mm, 16mm.
