SINOLIFT pallet stacker E80 E100 E150 E200(L) mini electric pallet stacker

Supplier: Shanghai Sinolift Mechanical and Electrical Equipment Co.,Ltd
Region: Shanghai, China
Contact: Mr David Deng
Price: $599.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Supply capacity:	150 units per month	Marketing Type:	normal product
Minimum fork height:	20-80mm	Applicable industries:	Advertising company
Video shipment inspection:	if	Name:	Electric Stacker
Key words:	electric stacker	load wheel:	75 PU, universal or fixed
Other names:	E80 E100 E150 E200 stacker electric	After-sales service provided:	Provide overseas third-party support
Weight (kg):	68 kg	Platform size:	470x600 (PE)mm
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	steering wheel:	125pu
Power unit:	24/200 V/W	Outrigger height:	110mm (with universal front wheel)/80mm (fixed front wheel)
port:	Shanghai	Mechanical test report:	if
Core component warranty:	1 year	Showroom location:	not any
Core components:	Pump	Warranty:	1 year
place of origin; place of origin:	China

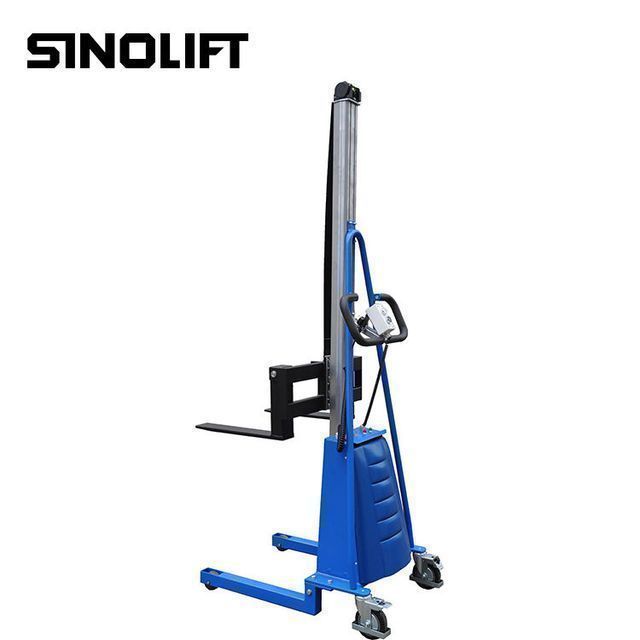

SINOLIFT E80 E100 E150 E200 (L) stacker electric

feature

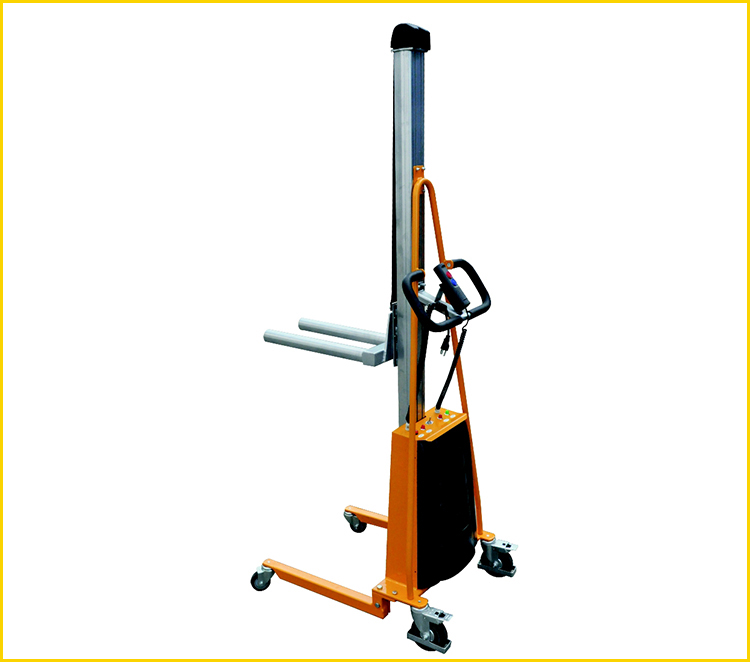

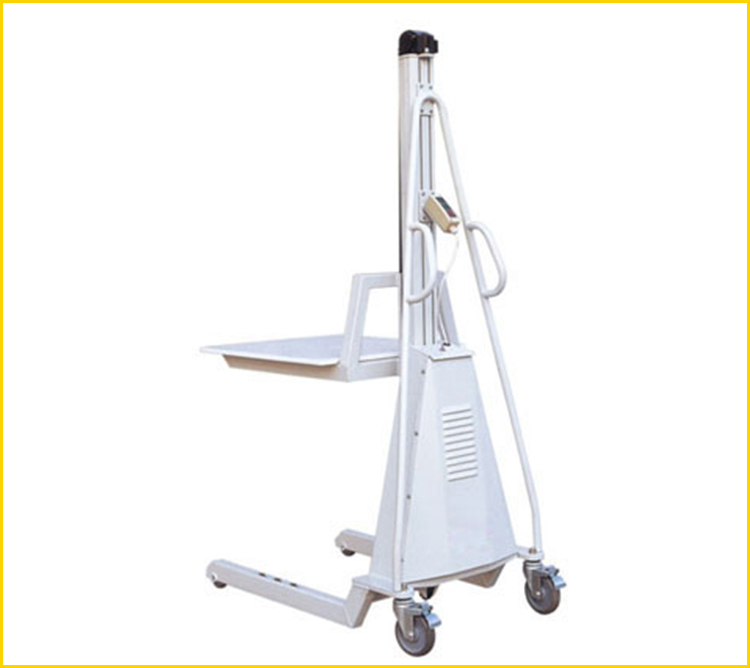

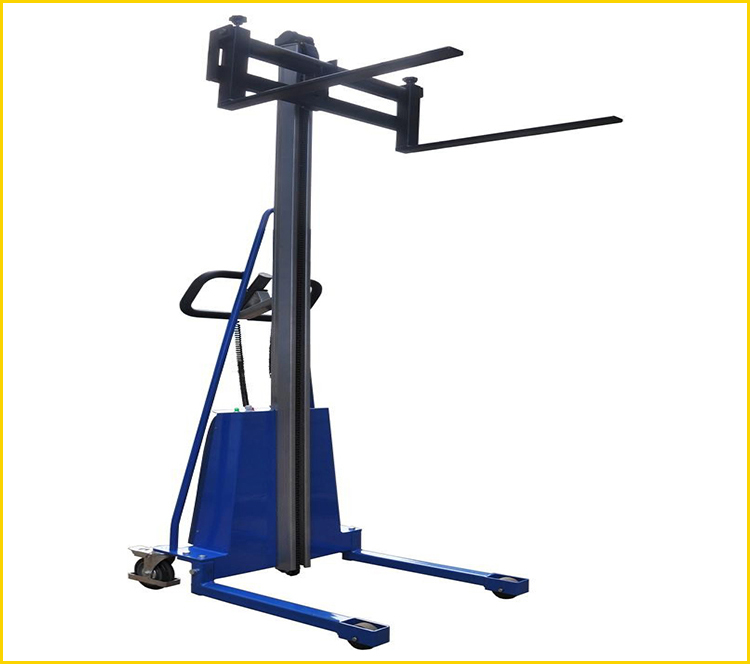

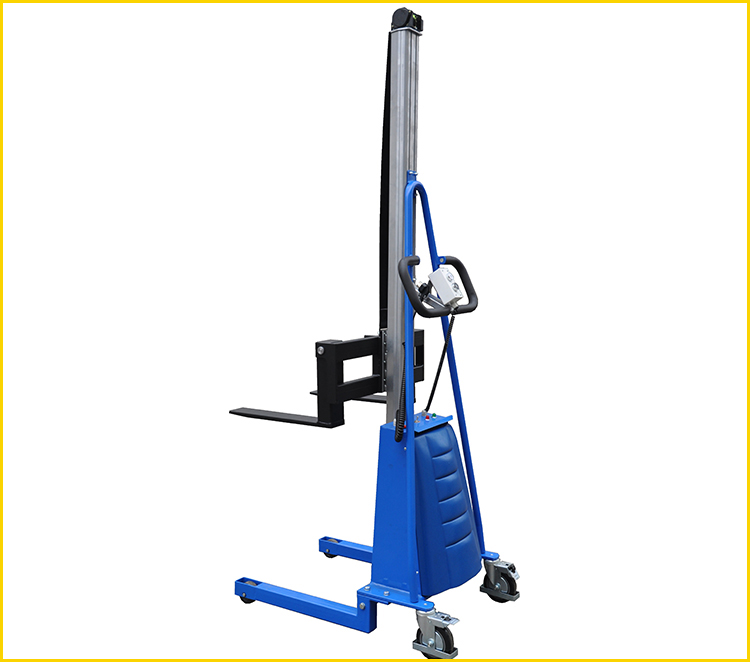

Electric Workbench E80(L) E100(L) E100H(L) E150(L) E200(L) Series

Stronger motor, bigger battery 12Ah, low voltage protection.
A range of highly maneuverable, lightweight lifts designed to take the stress out of any lifting job from floor to shoulder height.

Ideal for use in narrow aisles and confined spaces. Perfect for all applications from pharma to catering, from packaging lines to food processing, from warehouses to offices, kitchens, laboratories, retail outlets...

A wide variety of special designs and optional accessories are available.

Motor type:Automatic electronic overload protection system ensures safety.
Maintenance-free sealed battery, automatic charger.

Quick-change attachment options available.

Compliant with EN1757, CE marked.

Specification

Model		E80	E100	E100H	E150	E200A
Model		(E80L)	(E100L)	(E100HL)	(E150L)	(E200L)
capacity	(Kilogram)	80	100	100	150	200
load center	(mm)	230	230	230	230	230
platform height	(mm)	1500	1700	2000	1500	1200(1500)
minute platform height	(mm)	130 (steel platform is 80mm)
minute fork height	(mm)	20~80	20~80	20~80	20~80	20~80
Outrigger height	(mm)	110mm (with universal front wheel)/80mm (fixed front wheel)
platform size	(mm)	470x600 (original image)
total measurement	(mm)	870x600x1990	870x600x1990	870x600x2290	870x600x1790	950x650x1490(1790)
load wheel	(mm)	Ø75 PU, universal or fixed
steering wheel	(mm)	Ø125 (Polyurethane)
power unit	voltage/power	24/200
Batteries (free service)	voltage/ah	24V/12(17)Ah
net weight	(Kilogram)	66	62	68	65	78
