Manual manual stacker 120kg manual winch lift stacker manual mini trolley platform truck PM120 stacker with adjustable forks
- 319.00 1 - 5 sets
- 289.00 6 - 14 sets
- 269.00 >=15 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Core component warranty: | 1 year | Package preview: | |
| Health status: | new | Warranty: | 1 year |
| Base Ground Clearance: | 35 mm | Applicable industries: | Hotels, building materials stores, restaurants, home furnishing, retail, advertising companies |
| Origin: | Jiangsu, China | Core components: | PLC, bearing |
| Packaging Details: | Wooden packing | Video shipment inspection: | if |
| Supply capacity: | 1000 sets per month | payment terms: | Western Union, D/P, D/A, T/T |
| Showroom location: | not any | Cover size (length*width) (optional): | 420*480 mm |
| Dimensions (L*W*H): | 785*480*1380 mm | Weight (kg): | 39 kg |
| Mechanical test report: | not available | Marketing Type: | New Products 2020 |
| port: | Ningbo/Shanghai/Shenzhen | brand: | Re-promote |
Product overview

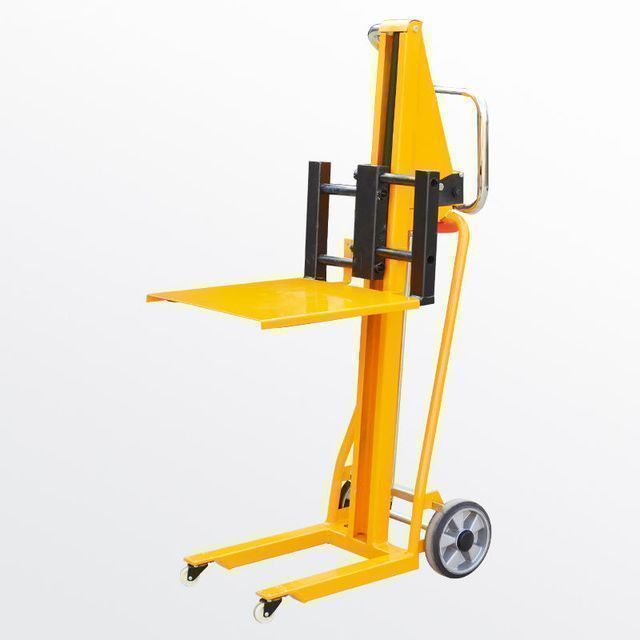

Manual Winch Lift Stacker Manual
product specification
Model | unit | PM120 | PM120A |
type | / | side pull | round tube legs |
Carrying capacity | Kilogram | 120 | 120 |
Maximum Lifting Height | mm | 1065 | 1085 |
minute fork height | mm | Post-90s | Post-90s |
Single fork size (length*width*height) | mm | 420*50*15 | / |
Fork outer width | mm | 345-480 | 440 |
inner leg width | mm | 260 | 470 |
leg width | mm | 360 | 570 |
Front wheel size | mm | φ50*24 | φ50*24 |
rear wheel size | mm | φ200*50 | φ200*50 |
Base Ground Clearance | mm | 35 | 60 |
Overall size (length*width*height) | mm | 785*480*1380 | 785*590*1385 |
Net weight (without cover) | Kilogram | 39 | 37 |
*Cover Size(L*W) (Optional) | mm | 420*480 | 420*570 |
product configuration
