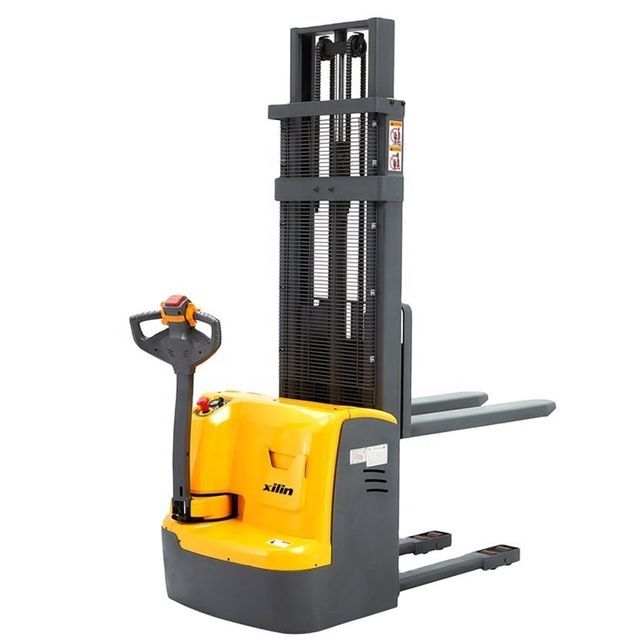

Xilin 1000 kg 1200 kg 1500 kg 1 ton 1.2 tons 1.5 tons electric portable stacker

  • Supplier: Ningbo Ruyi Joint Stock Co., Ltd.
  • Region: Zhejiang, China
  • Contact: Ms Eva Shang
  • Price: $4221.00 / 1 - 14 pieces
    $2600.00 / >=15 pieces
  • Min. Order: 1 piece
Click here to contact
Product details
color:accept allMechanical test report:if
Local service locations:USA, Russia, MalaysiaWeight (kg):1225 kg
Marketing Type:Hot Products of 2019deal with:Frey Tiller Head
After-sales service provided:free spare partsSupply capacity:200 pieces per month
Lifting motor:DeliElectronic controller:Curtis
strength:Lead-acid batteriesCertification:CE
Warranty:1 yearApplicable industries:Hotels, Clothing Stores, Building Materials Stores, Machinery Repair Shops, Manufacturing Plants, Food and Beverage Factories, Farms, Restaurants, Household, Retail, Food Stores, Printing Shops, Construction, Energy and Mining, Food and Beverage Stores, Advertising Agencies
Health status:newPackage preview:
Packaging Details:1 piece/palletCore components:Engines, Motors, Pumps
port:Ningbomotor:HSBC
Origin:Zhejiang, ChinaVideo outbound inspection:if
Lifting height:1600 - 5600 mmShowroom location:USA, Russia, Malaysia
Operator type:walkbrand:Xilin
payment terms:L/C, Western Union, T/T, MoneyGramCore component warranty:1 year
After Warranty Service:Video technical support, online support, spare partsName:Xilin Electric Walking Stacker
Carrying capacity:1.0 - 1.5 tons
Xilin electric walking stacker 1000 kg 1200 kg 1500 kg 1 ton 1.2 ton 1.5 ton capacity forklift
Comment:
CDDR15-III Lightweight
CDDR10-III/12-III economic type (brushless DC)
CDDR10-III/12-III option:
1) AC motor
2) Curtis Controller
3) Free handle
*Options:Lithium battery 225AH (charger 24V/100A)
For more information, please feel free to contact us

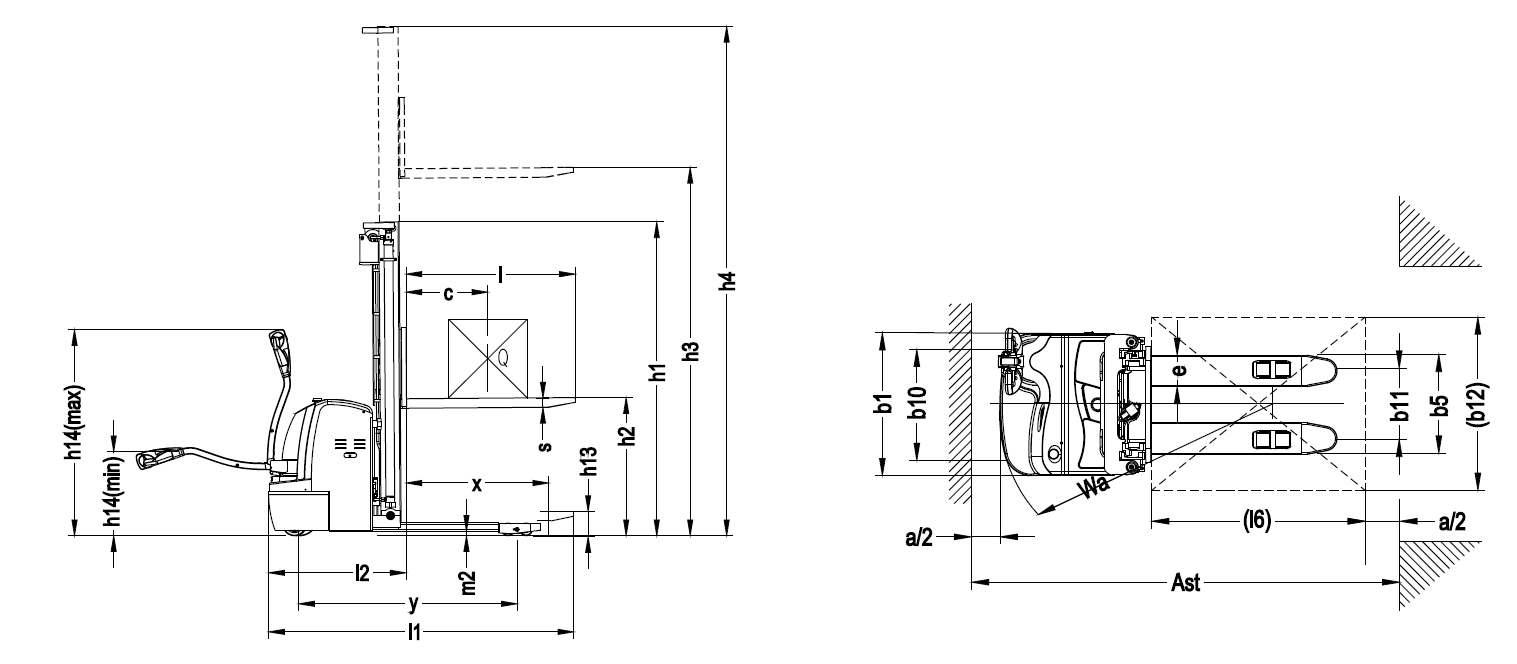

Model

CDDR10-III
CDDR12-III
CDDR15-III
CDDR15-III
capacity
Q (kg)
1000
1200
1500
1500
load center distance
Diameter (mm)
500
500
600
600
Load distance, drive shaft center to fork
x (mm)
Chapter 697
Chapter 667
Fork height, lowered
Height 13 (mm)
90
90
height of mast lowered
High 1 (mm)
2087/1837/2087/2237
2054/2214/2414
Free lift (optional 2500~3500mm)
Height 2(mm)
~
1570/1740/1940
maximum. lift height
Height 3 (mm)
1600/2500/3000/3300
4500/5000/5600
Height of the mast when extended
Height 4 (mm)
2087/3087/3587/3887
5030/5510/6110
Tiller min/max height in drive position
Height 14(mm)
670/1300
670/1300
overall length
l1(mm)
1965
1965
2045
1975/2055
Length to fork face
Length 2(mm)
Chapter 792
Chapter 792
Chapter 792
905
overall width
b1(mm)
820
820
820
820
Fork size
s/e/l(mm)
60/170/1070(1150)
60/180/1070(1150)
Overall width of the fork
b5(mm)
570/695
570/695
Pallet channel width 800x1200 portrait
AST (mm
2370
2370
2450
2450
Turning radius
Width (mm)
1525
1525
1605
Chapter 1575
Travel speed, full load/empty load
km/h
5.3/5.6
5.3/5.6
5.8/6
5.8/6
Lifting speed, full load/no load
multiple sclerosis
0.11/0.17
0.1/0.16
0.09/0.16
0.09/0.16
Battery voltage, normal capacity K5
Voltage/Ampere Hour
24/120
24/120
24/200
24/200
truck weight
Kilogram
730/750/770/795
750/770/790/815
760/810/835/860
1185/1205/1225
Q1: Are you a factory?
A1: certainly. Ningbo Ruyi Co., Ltd.Founded in 1985It is a national high-tech enterprise integrating scientific research, development, production, sales and service.
Q2: Can Ruyi provide customized products? OEM products or ODM products?
A2: Yes, Ruyi can provide customized products according to your requirements. Both OEM and ODM are acceptable. We do many non-standard products, welcome your special customization.
Q3: What is the specification of the charger?
A3: Ruyi has all kinds of chargers, welcome to customize.
Q4: How about the delivery time?
A4: Usually Ruyi production time is15-20 working daysAfter we receive the advance payment. For some standard products, we have moststock availableandready for immediate shipment.
Q5: Do you have agents or representatives abroad?
A5: Yes. We haveTwo branches in the United States and Russia. We haveTwo warehouses located in Los Angeles and ChicagoProducts are in stock and ready to ship. We also have Xilin distributors in Norway, Thailand, Japan, Vietnam and Malaysia. If you are interested to be our agent and enjoy more price. Please contact us, then we can discuss more details.
Q6: Can we print our logo on the product?
A6: Yes, OEM is available upon the permission of our customers.
Q7: What is your payment term?
A7: T/T or L/C, if you need any other way, please contact us.
Q8: What can I get by cooperating with Ruyi?
A8: 1. Unique products, customized services.
2. Timely production and delivery, time is money.
3. Market protection service, long-term business strategy.
