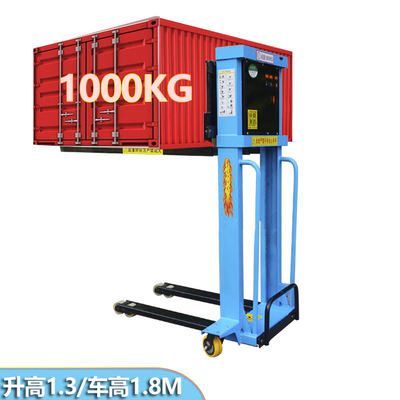

Semi-electric self-adhesive Staver 500 kg 1000 kg 1.3 m 1.6 m Manual Staver

Supplier: Shanghai Yiying Crane Machinery Co., Ltd.
Region: Shanghai, China
Contact: Ms Diana Yang
Price: $1400.00 / 1 - 99 pieces
$1350.00 / 100 - 299 pieces
$1300.00 / 300 - 4999 pieces
$1290.00 / >=5000 pieces
Min. Order: 1 piece

Click here to contact

Product details

Mechanical test report:	if	Certification:	CE certification
Wheel Type:	Nylon/Polyurethane/Rubber	Health status:	new
product name:	Hugong hydraulic manual stacker	Core component warranty:	1 year
Bearing wheel size:	80*60	Loading capacity:	1-3 tons
Applicable industries:	Manual pallet stacker	Packaging Details:	Plywood pallet, or as your request
Dimensions (LWH):	21001000mm (LW)	weight:	88 kg
After-sales service provided:	online support	Steering wheel size:	180*50
After warranty service:	Video technical support, online support	Lifting height:	1.6m-3m
Marketing Type:	2019 Hot Products	Local service location:	not any
Weight (kg):	50 kg	Showroom location:	not any
pack:	Wooden pallets	brand:	Hu Gong
Supply capacity:	50000 pieces per month	Warranty:	1 year
payment terms:	L/C, Western Union, T/T	Origin:	China Shanghai
port:	Shanghai	Power type:	manual hydraulic pump
Core components:	bearing	Video shipment inspection:	if

HUGO Top Ten Brands of Forklifts in China 1 Ton 2 Ton 1.6M Manual Pallet Stacker

Product Description

hydraulic manual stacker for sale price

Model	unit
Product Category		manual stacker	manual stacker	manual stacker	manual stacker
loading capacity	Ton	0.5	1	1.5	2
loading center	mm	400	400	400	400
wheel type		nylon	nylon	nylon	nylon
load wheel size	mm	Ø75×42	Ø80×60	Ø80×60	Ø80×60
steering wheel size	mm	Ø180×50	Ø180×50	Ø180×50	Ø180×50
Minimum fork drop height	mm	Post-90s	Post-90s	Post-90s	Post-90s
The maximum lifting height of the fork	mm	1600	1600	1600	1600
total fork width	mm	220-720	220-940	220-940	260-940
Internal width between forks	mm	20-520	20-740	20-740	20-700
Fork size (l/e/s)	mm	800/100/53	900/100/30	900/100/30	900/120/30
overall length	mm	1284	1375	1430	1430
overall width	mm	1980	1980	2080	2080
total height	mm	800	1000	1000	1000
Minimum turning radius	mm	1250	1400	1400	1400
Pump frequency AT Max.height(laden)	Second-rate	≤95	≤95	≤110	≤110
serving weight	Kilogram	190	220	250	275

Product Details

1) The hydraulic pressure consists of three parts:

Lifting cylinder and control parts, lifting arm and sprocket parts, mast and rear wheel parts.
The lift uses manual or foot-operated hydraulic devices to lift heavy objects, and pushes and pulls heavy objects by hand at a low position.
The oil return valve is installed in the hydraulic unit.
The descending speed is controlled by the pedal to ensure the correct and safe action of the hydraulic system.

2) Big pump, strong heart

	frame thickness The frame thickness is 8mm.
Fork size A model for most countries. General size: 330-740mm It's adjustable forks, The fork size is adjustable from 330mm to 740mm. The leg width is 690mm.
	Fork size A model for European countries General size: 550mm It is a fixed fork with a fork size of 550mm. The leg width is 490mm.
Fork size special model General size: 330-830mm It is an adjustable fork, and the fork size can be adjusted from 330mm to 830mm. It's on the outside of the leg. The leg width is 490mm.

Packaging and Shipping

Package
size	1800(L)800(W)2080(D)
weight	200KG-400KG
packaging details	For LCL goods, usually we can pack with bubble film and linen. Wooden pallets are also an option if you only need one or two samples. It's more secure. It only costs a little.

Package
size	1660(L)760(W)2030(D)
weight	210KG
packaging details	When loading, we can stack them to load more quantity. And each product will be protected from scratches. And will use a lot of fixed rope to keep it stable.
