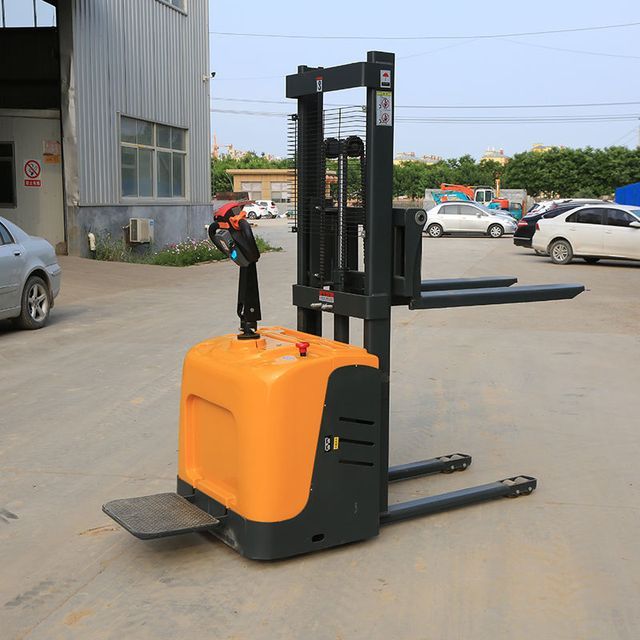

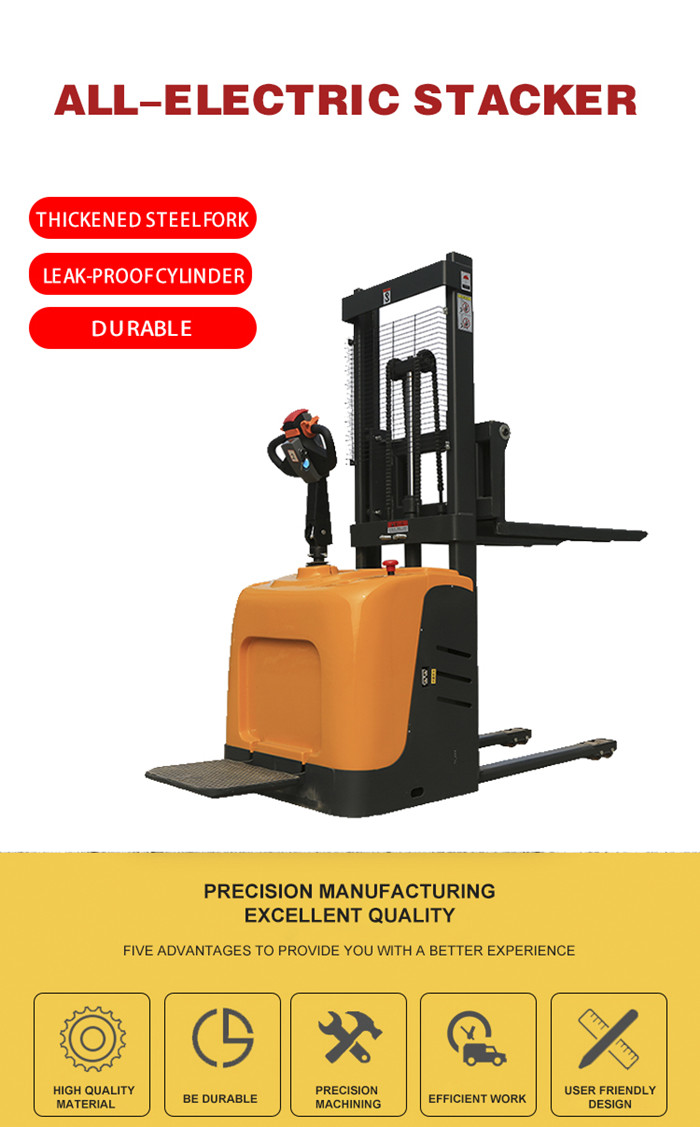

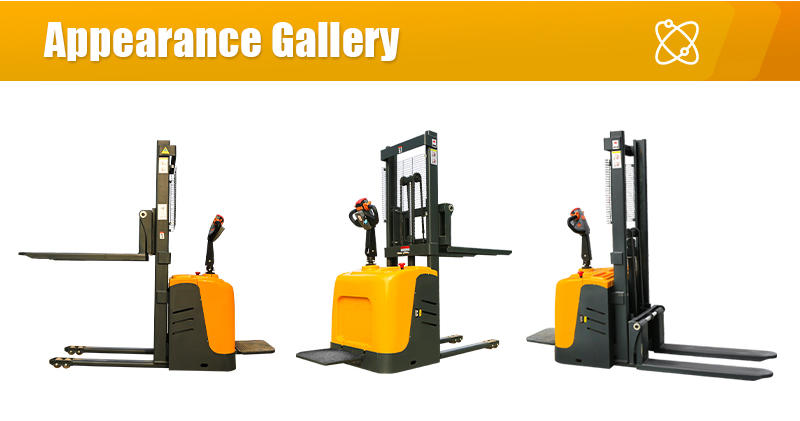

Electr Pallet Stacker Forklift 1.5ton 2ton Battery Powered Full/Semi Electric Stacker

Click here to contact

Product details

Supply capacity:	350 units per month	brand:	the top of the mountain
maximum. Lifting height:	3.5 meters	Core components:	Bearings, motors
Origin:	Shandong China	Charging voltage:	220V
Marketing Type:	New Products 2020	Core component warranty:	1 year
Weight (kg):	545 kg	Battery voltage/capacity:	24V/120AH
Health status:	new	operating hours:	4-5 hours
Packaging Details:	container	Package preview:
Charging time:	6-8 hours	Showroom location:	not any
Applicable industries:	Hotels, clothing stores, machinery repair shops, food and beverage factories, farms, restaurants, food stores, print shops, construction works, food and beverage stores	maximum. Loading weight:	1.5 tons
Mechanical test report:	if	Battery Type:	Lead-acid batteries
payment terms:	L/C, D/P, D/P, T/T	Warranty:	1 year
port:	Qingdao	Video shipment inspection:	if

Product Description

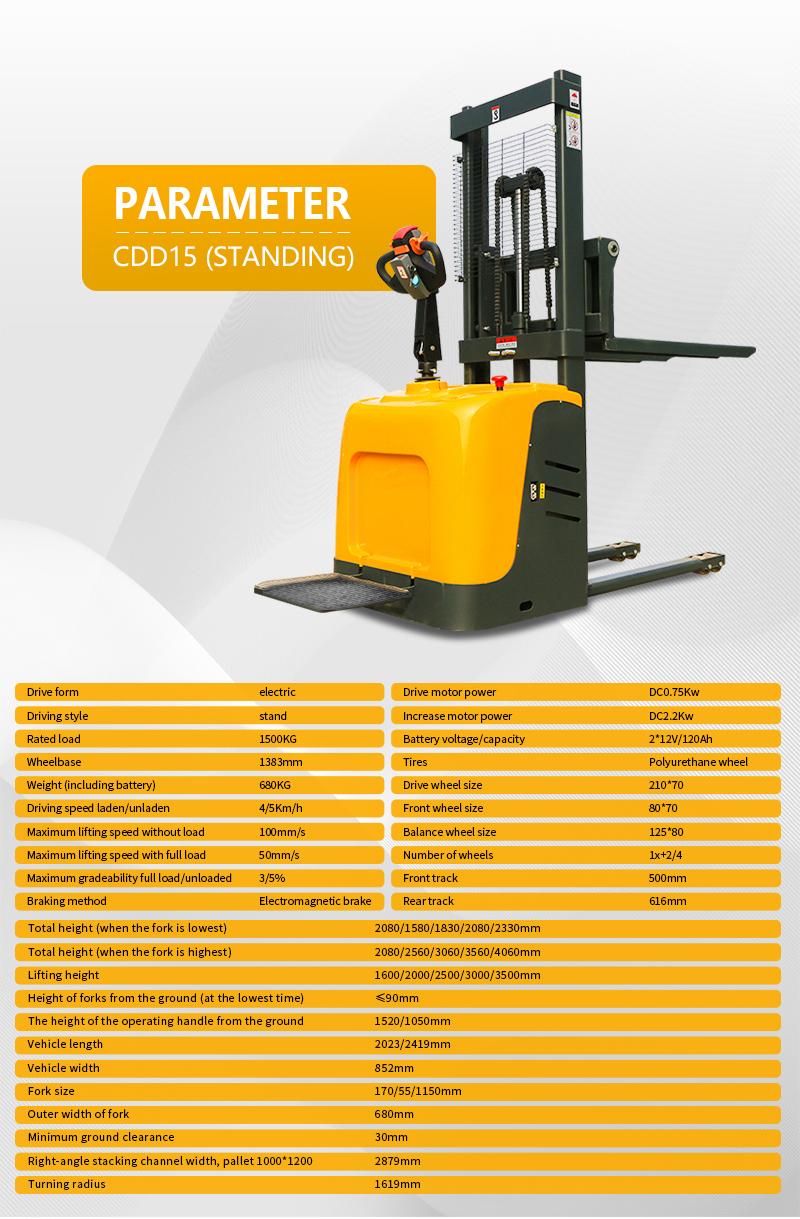

Specification

Parameter CDD15
drive form	electrical	Drive motor power	0.75Kw
driving style	walk	Increase the power of the motor	2.2Kw
specified load	1500KG	Battery voltage/capacity	2*12V/80Ah

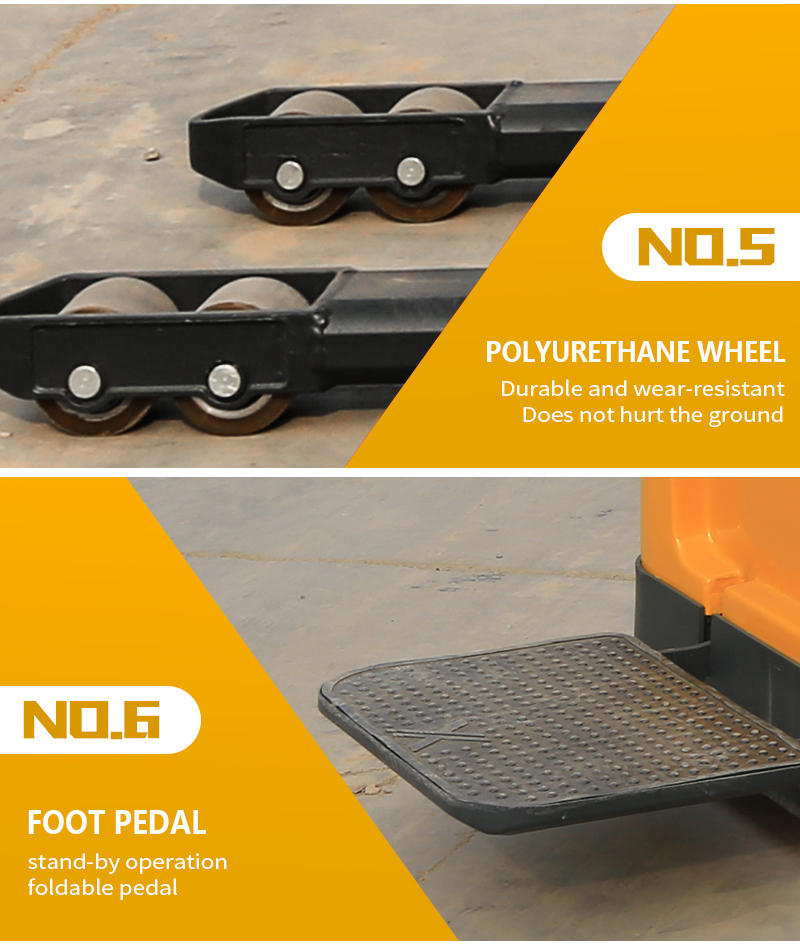

wheelbase	1241mm	tire	polyurethane wheel
Weight (with battery)	545KG	Drive wheel size	210*70
Driving speed hden/unladen	4/5km/h	Front wheel size	80*70
No-load maximum lifting speed	lOO mm/s	balance wheel size	125*50
Maximum lifting speed with full load	50 mm/s	number of wheels	lx+1/4

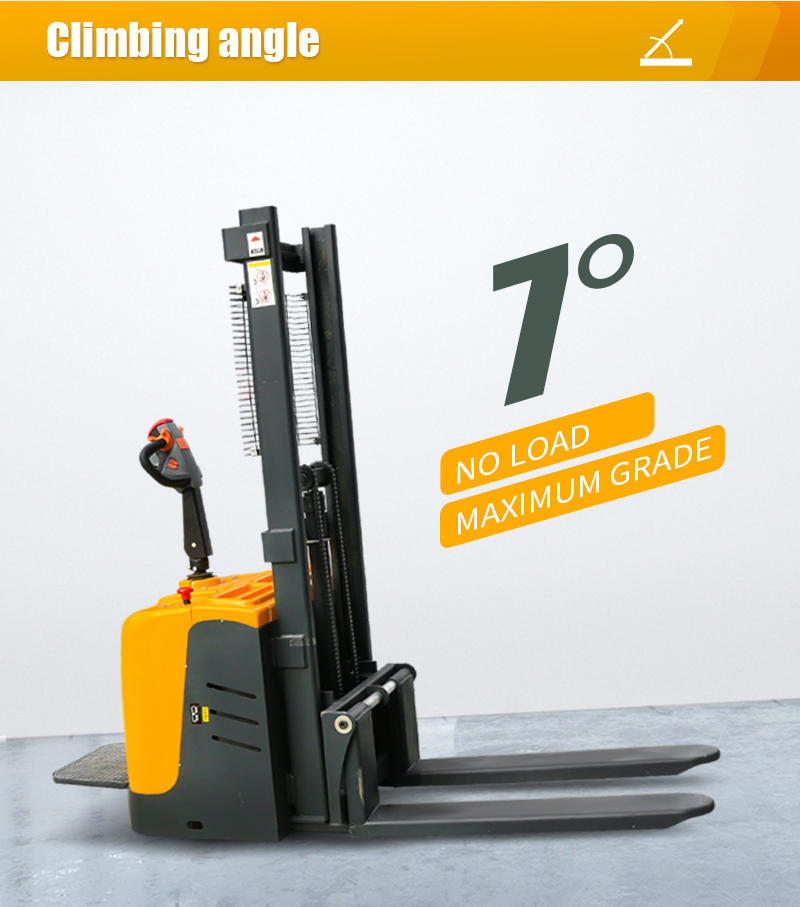

Full load/no load maximum gradeability	3/5%	front track	520mm
braking method	Electromagnetic brake	front track	513mm
Overall height (fork lowest)		2080/1580/1830/2080/2330mm
Overall height (when the fork is at its highest)		2080/2560/3060/3560/4060mm
Lifting height		1600/2000/2500/3000/3500mm
Height of the fork from the ground (minimum)		85mm
Height of operating handle from the ground		1230/750mm
Car length		1791mm
Vehicle width		822mm
Fork size		60/160/1100
Fork outer width		680mm
Minimum ground clearance		30mm
*Right-angle palletizing channel width, pallet 10001200**		2305mm
Turning radius		1431mm
