Diesel forklift electric forklift CPCD250EC empty container stacker with famous brand engine

Supplier: Cruking Engineering Equipment (Xiamen) Co., Ltd.
Region: Fujian, China
Contact: Ms Sheanifu Xie
Price: $160000.00 / 1 - 1 units
$140000.00 / >=2 units
Min. Order: 1 unit

Click here to contact

Product details

Lifting speed (rated load):	590 mm/s	Spreader side shift:	±600/±500 mm
Falling speed (rated load/no load):	300-600 mm/s	Supply capacity:	1000 pieces per month
Package preview:		Overall length (with/without spreader):	6440/5980 mm/s
Applicable industries:	Building material stores, machinery repair shops, manufacturing plants, farms, construction, energy and mining, ports	Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
Lifting capacity:	10000 kg	Warranty:	1 year
Weight (kg):	17500 kg	Video shipment inspection:	if
Marketing Type:	New Products 2020	Dimensions (LWH):	6440415010370mm
Packaging Details:	nude package	Core component warranty:	1 year
Load center:	1220mm	Twist lock maximum lifting height:	18865 mm
Width (front/back):	4150/2800 mm	brand:	work together
Height (retracted):	10370 mm	payment terms:	L/C, Western Union, D/P, T/T, MoneyGram
Container Type:	20/40 feet	Mechanical test report:	if
Showroom location:	Egypt, Turkey, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Spain, Thailand, Morocco, Kenya, Argentina, Korea, Chile, United Arab Emirates, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Tajikistan, Japan, Malaysia, Australia	place of origin; place of origin:	China
State of health:	new	port:	Shanghai, Qingdao, Lianyungang, Tianjin, Xiamen

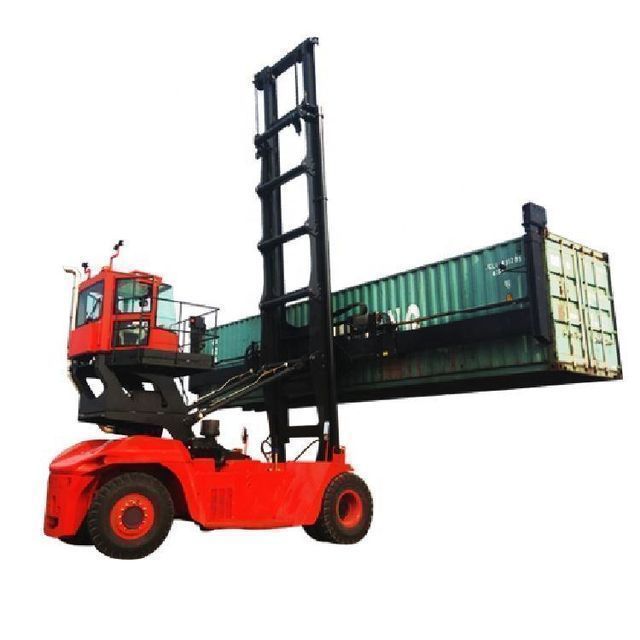

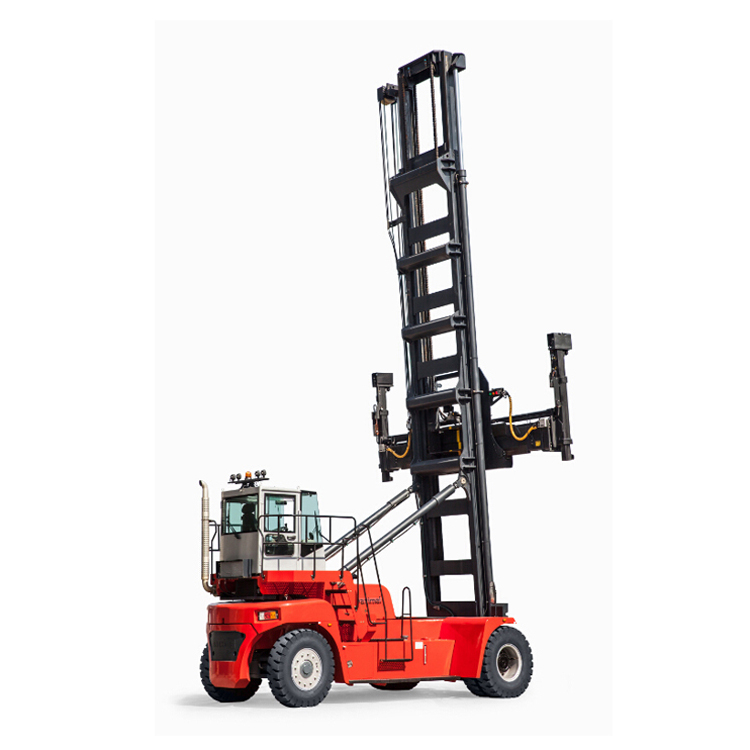

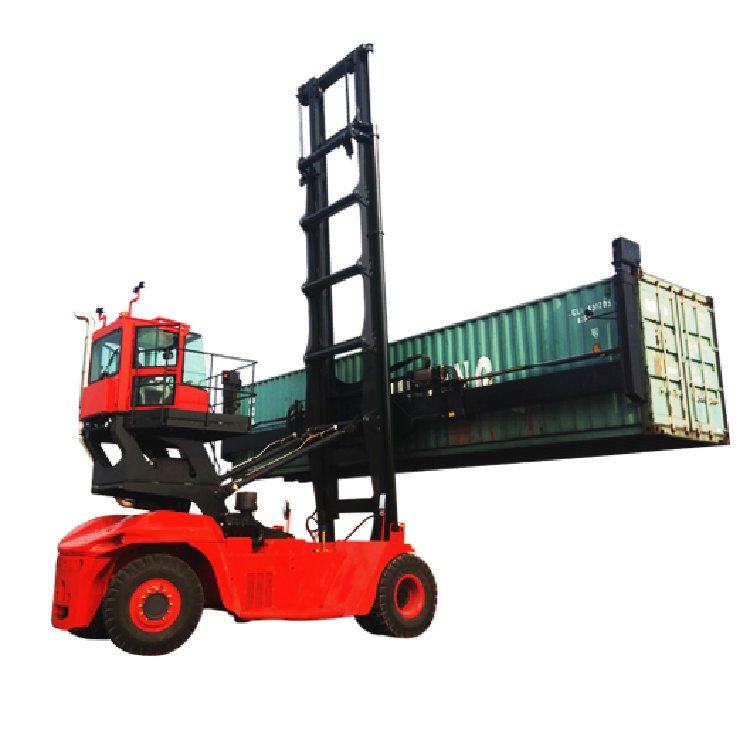

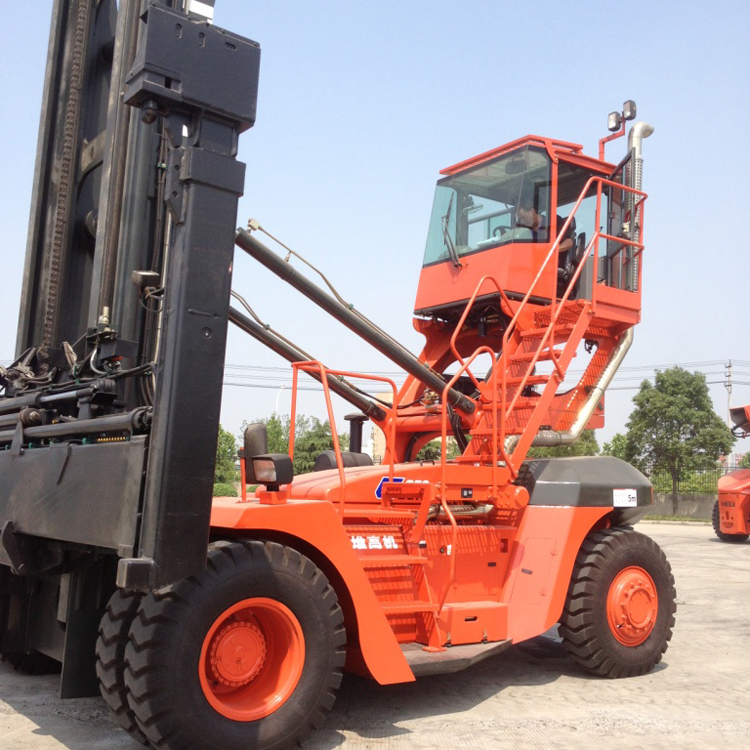

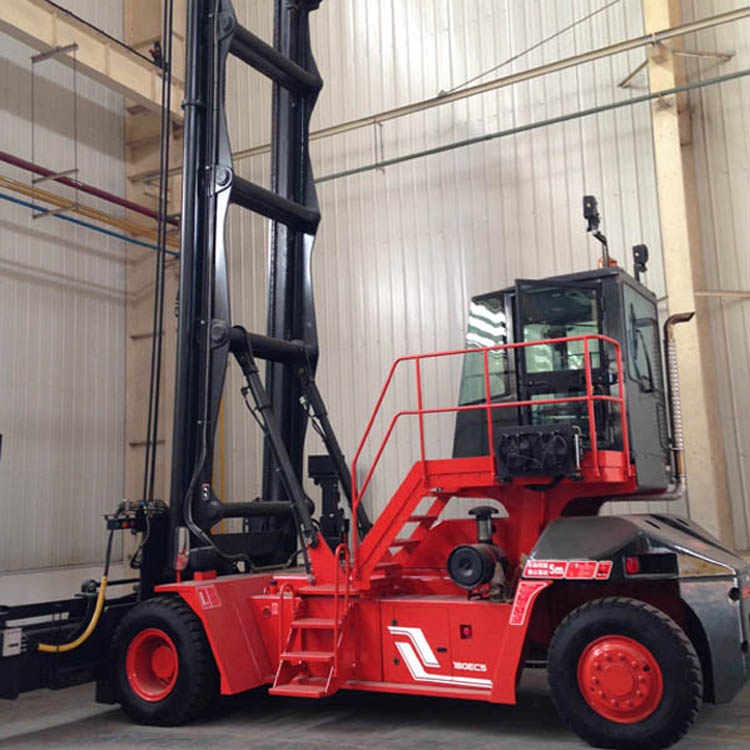

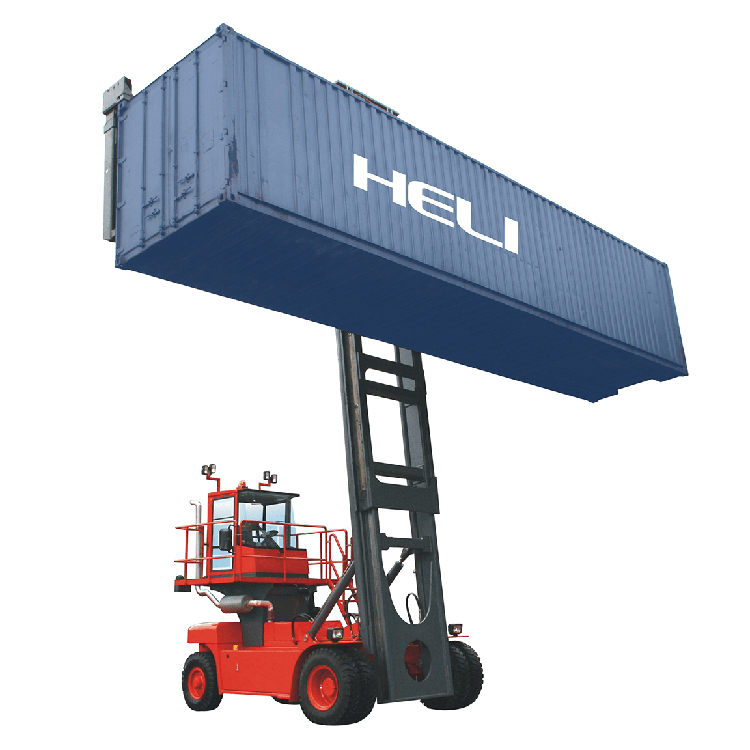

Heli 10 tons internal combustion stacker CPCD250EC7 diesel container stacker

main feature:

♦ Design Standards:

The car was designed by a well-known European port machinery company (Port Machinery Company), and its technical level is in sync with that of European products of the same period. Trucks with higher safety not only meet national standards, but also EU standards (EN1459; ISO15018).

♦ Transmission system:

The hydraulic power that meets the national emission standard level 3 (EU3) is installed on the truck. This model has strong driving force and good weather resistance.

♦ Transmission:

This model adopts imported gearbox with smooth and efficient shifting.

♦ Drive axle:

The whole vehicle adopts the original imported Kessler axle, and the wet disc brake is specially designed for heavy trucks, meeting the requirements of continuous operation and maintenance-free in severe working conditions.

♦ Hydraulic system:

The whole vehicle is equipped with an efficient and fuel-saving American hydraulic system. The innovative design of the self-cleaning hydraulic cooling system extends oil change intervals and lowers the machine's total cost of ownership. Adopt advanced technologies such as load sensing, double-pump confluence, high pressure and small flow, etc., to save energy and reduce consumption.

♦ Electric control system:

CanBus technology increases engine and transmission reliability.

♦ High-strength structural parts:

The heavy-duty box chassis is the foundation for long-lasting high performance.

Product Specifications:

Model	CPCD250EC7-VZG2	CPCD250EC8-VZG2
size and performance	lifting capacity	Kilogram	10000
	load center	mm	1220
	stack height		7(8′6″)	8(8′6″)
	container type	foot	20/40
	Twist lock maximum lifting height	mm	18865	21365
	Minimum lifting height of twistlock	mm	2255/2300
	Mast tilt (backward/forward)	degree	3/3
	spreader side shift	mm	±600/±500
	Lifting speed (at rated load)	mm/s	590
	Falling speed (rated load/no load)	mm/s	300-600
	Overall length (with/without spreader)	mm	6440/5980
	Width (front/rear)	mm	4150/2800
	height (retracted)	mm	10370	11620
