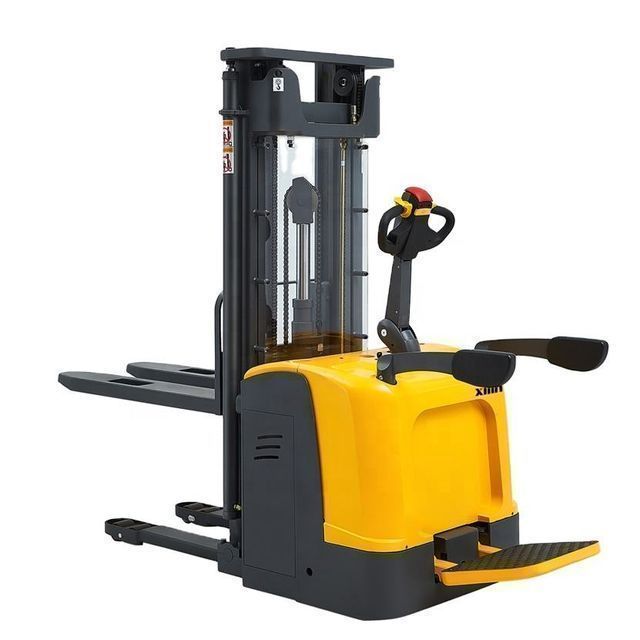

Xilin electromechanical lifting 1ton 1.2ton 1.5ton portable forklift 24v battery car pallet stacker

Click here to contact
Product details
Warranty:1 yearAfter warranty service:Video technical support, online support, spare parts
Lifting height:1600mm-5600mmCertification:CE certification
Marketing Type:/payment terms:L/C, Western Union, T/T, MoneyGram
Carrier type:knightSupply capacity:500 pieces per month
State of health:newWeight (kg):950 kg
Packaging Details:1/trayMechanical test report:/
Video shipment inspection:/brand:Xilin
deal with:FREI TIILER HEADCore components:engine
Name:Xilin full electric rider stackerPackage preview:
place of origin; place of origin:Zhejiang, ChinaAfter-sales service provided:free spare parts
Carrying capacity:1000 kgcolor:accept all
Local service location:USA, Russia, MalaysiaApplicable industries:Hotels, clothing stores, building supplies stores, machinery repair shops, manufacturing plants, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction, energy and mining, food and beverage stores, advertising agencies
Core component warranty:/port:Ningbo
Showroom location:USA, Russia, Malaysia

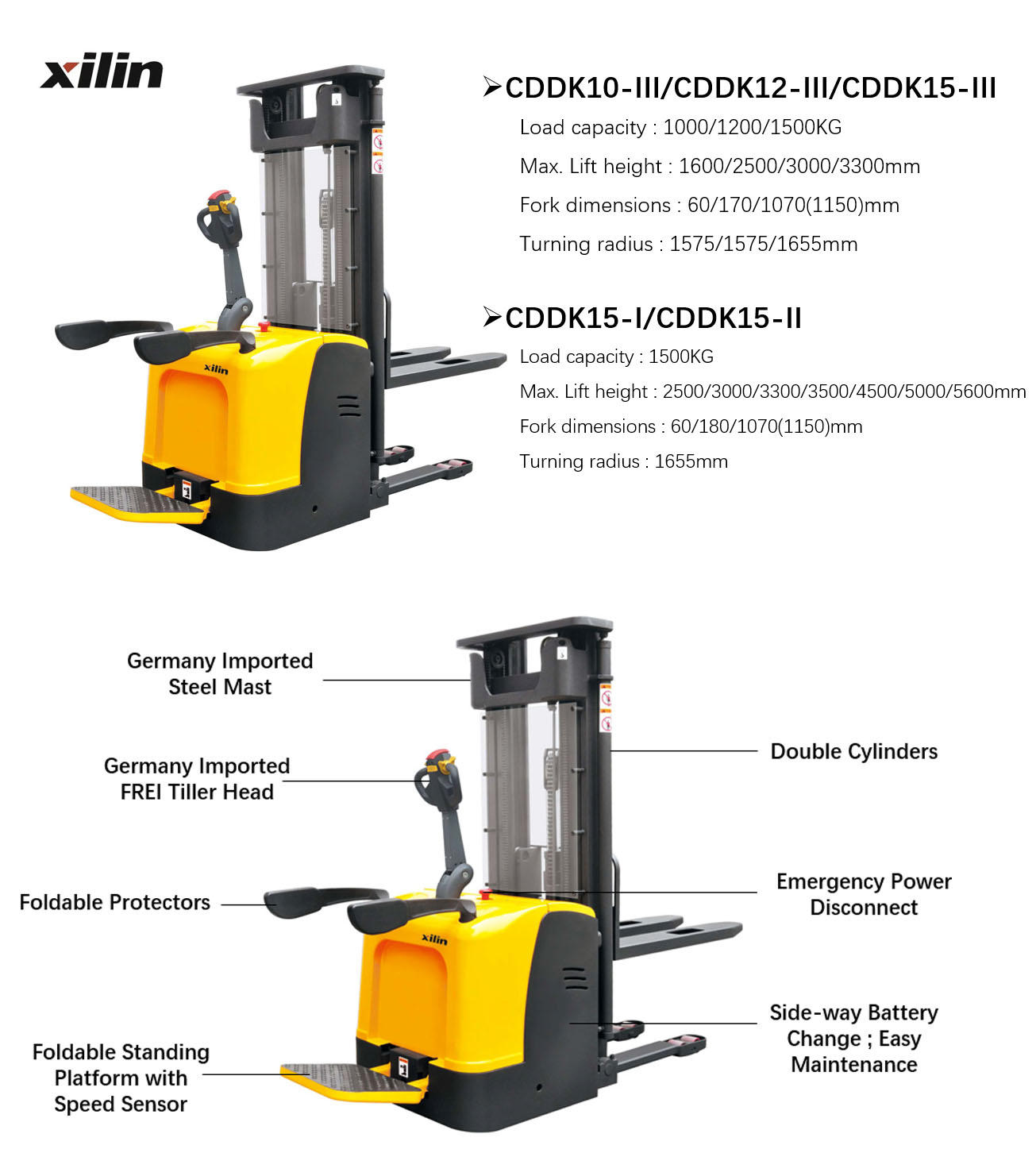

Xilin 1000kg 1200kg 1500kg 1ton 1.2ton 1.5ton capacity 24v battery AC motor electric rider pallet stacker
Safety and Productivity:
AC motorNo need to replace carbon brushes.
multifunction display: battery level, fault code, timer and speed class;
side batteryEasy to maintain.
shock pads for low noiseOperation;
emergency reversing devicein the handle.
Emergency power disconnect switch.
Turtle low speed switch.
Optimized structural design:
low centerGravity ensures stable operation.
vertical drive wheel,small turning radius. The motor structure is waterproof and dustproof
The mast and frame are divisible and interchangeable.
Full free lift, suitable for working in low houses.
applicability:
low battery protectionsettings to extend battery life.
CANbus technology reduces wiring complexity and increases reliability.
Hall elements reduce wearing parts, thereby extending component life.
For more information, please feel free to contact us
Model

CDDK15-I
CDDK15-II
CDDK10-III
CDDK12-III
CDDK15-III
Carrying capacity
Q(kg)
1500
1500
1000
1200
1500
load center distance
c (mm)
600
600
500
500
600
Fork height, lowered
h13(mm)
Post-90s
Post-90s
Post-90s
Post-90s
Post-90s
tire size, front
mm
Φ250*70
Φ250*70
Φ250*70
Φ250*70
Φ250*70
tire size, rear
mm
Φ80*84
Φ80*84
Φ80*70
Φ80*70
Φ80*70
height, mast closed
h1(mm)
1735-2410
1735-2410
2087 / 1837 / 2087 / 2237
free elevator
h2(mm)
1300 - 1940
1300 - 1940
/
maximum. lifting height
h3(mm)
2500 - 5600
2500 - 5600
1600 / 2500 / 3000 / 3300
Mast extension height
h4(mm)
2955 - 6150
2955 - 6150
2087 / 3087 / 3587 / 3887
total length
l1(mm)
2020 / 2100
2020 / 2100
1955
1955
2025
overall width
b1(mm)
850
850
850
Fork darkened.
L*L*L (mm)
60*180*1070 (1150)
60*170*1070 (1150)
total fork width
b5(mm)
570 / 695
570 / 695
580 / 695
Tray channel width 800*1200
wind speed(mm)
2515
2515
2540
2540
2520
Turning radius
Watts (mm)
1655
1655
1575
1575
1655
Travel speed, full load/empty load
km/h
6.5 / 6.7
6.5 / 6.7
6.5 / 6.7
Lifting speed, full load/no load
Miss
0.12 / 0.19
0.11 / 0.14
0.06 / 0.13
Low speed, full load/no load
Miss
0.35 / 0.12
0.12 / 0.12
0.13 / 0.10
battery volts. / cap.
Wow
24 / 300
24/240
24 / 120
24 / 120
24 / 200
battery weight
Kilogram
300
220
Post-90s
Post-90s
160
The battery goes dark. (length*width*height)
mm
625*254*540
675*252*500
753*178*240
753*178*240
800*254*320
Weight (with battery)
Kilogram
1240 - 1380
1180 - 1320
650 - 750
660 - 760
780 - 850
Q1: Are you a factory?
A1: certainly. Ningbo Ruyi Co., Ltd.Founded in 1985, is a national high-tech enterprise integrating scientific research, development, production, sales and service.
Q2: Can Ruyi provide customized products? OEM products or ODM products?
A2: Yes, Ruyi can provide customized products according to your requirements. Both OEM and ODM are acceptable. We do many non-standard products, welcome your special customization.
Q3: What is the specification of the charger?
A3: Ruyi has a variety of chargers, welcome to customize.
Q4: How about the delivery time?
A4: Usually Ruyi production time is15-20 working daysAfter we receive the advance payment. For some standard products we have moststock availablewithready for immediate delivery.
Q5: Do you have any agent or representative abroad?
A5: yes. We haveTwo branches in the US and Russia. We haveTwo warehouses are located in Los Angeles and ChicagoProducts are in stock and ready to ship. We also have Xilin distributors in Norway, Thailand, Japan, Vietnam and Malaysia. If you are interested to be our agent and enjoy more price. Please contact us, then we can discuss in more detail.
Q6: Can we print our logo on the product?
A6: Yes, OEM is available under the license of our customers.
Q7: What's your payment term?
A7: T/T or L/C, if you need any other way, please contact us.
Q8: What can I get by cooperating with Ruyi?
A8: 1. Unique products, customized services.
2. Prompt production and delivery, time is money.
3. Market protection service, long-term business strategy.
